Specifications are subject to change without notification

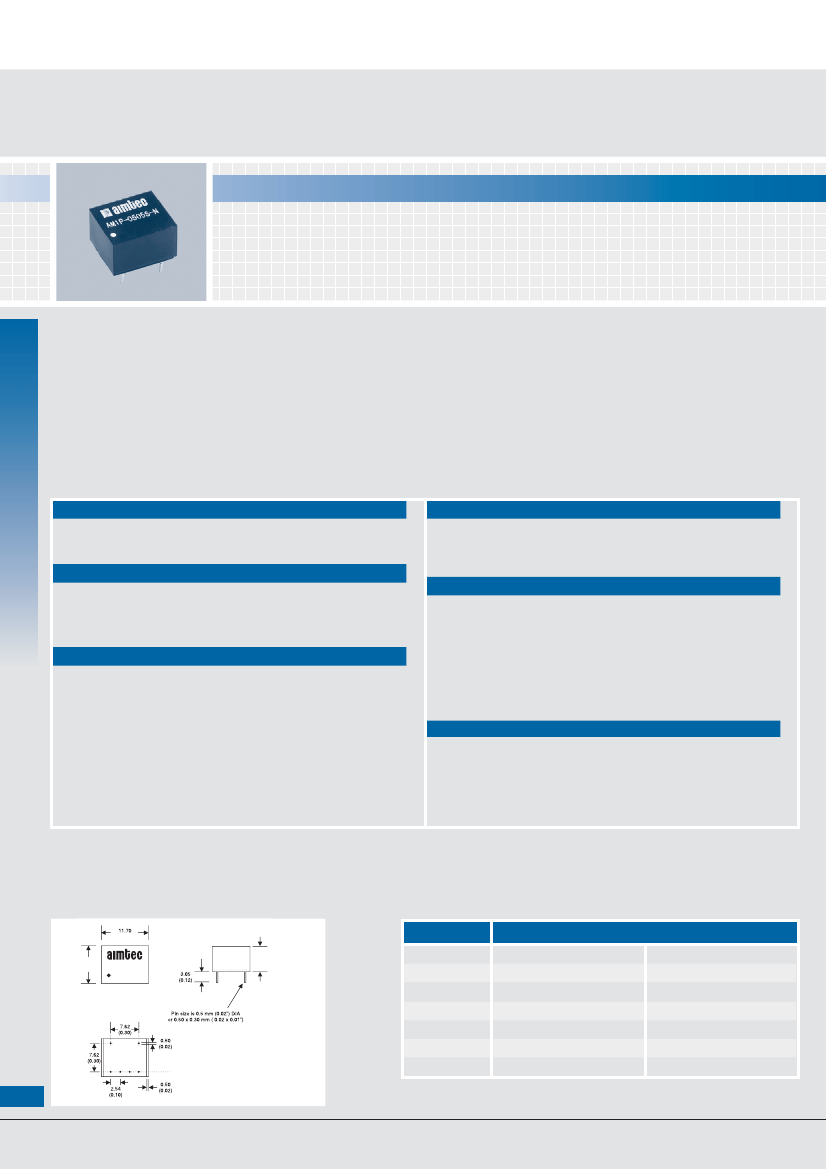

OUTLINE DIMENSIONS & PIN CONNECTIONS
(0.46)
Pin
7.7
(0.30)
9.8
(0.39)
1
4
5
6
7
8
1000VDC
Single
Dual Separated
-V Input
-V Input
+V Input
+V Input
+V Output
+V1 Output
Omitted
-V1 Output
-V Output
+V2 Output
Omitted
-V2 Output
12
TO ORDER CALL 1-888-9-AIMTEC
AM1P-N Series
MODELS
(Single output)
Input Voltage
5V±10%
Models
AM1P-0505S-N
AM1P-0509S-N
AM1P-0512S-N
AM1P-0515S-N
AM1P-1205S-N
AM1P-1209S-N
AM1P-1212S-N
AM1P-1215S-N
AM1P-2405S-N
AM1P-2409S-N
AM1P-2412S-N
AM1P-2415S-N
Ouput Voltage
5VDC
9VDC
12VDC
15VDC
5VDC
9VDC
12VDC
15VDC
5VDC
9VDC
12VDC
15VDC
Ouput Current max.
200mA
110mA
83mA
67mA
200mA
110mA
83mA
67mA
200mA
110mA
83mA
67mA
12V±10%
24V±10%
MODELS
(Dual separated output)
Input Voltage
5V±10%
Models
AM1P-050505D-N
AM1P-050909D-N
AM1P-051212D-N
AM1P-051515D-N
AM1P-120505D-N
AM1P-120909D-N
AM1P-121212D-N
AM1P-121515D-N
AM1P-240505D-N
AM1P-240909D-N
AM1P-241212D-N
AM1P-241515D-N
Ouput Voltage
5/5VDC
9/9VDC
12/12VDC
15/15VDC
5/5VDC
9/9VDC
12/12VDC
15/15VDC
5/5VDC
9/9VDC
12/12VDC
15/15VDC
Ouput Current max.
100/100mA
55/55mA
42/42mA
34/34mA
100/100mA
55/55mA
42/42mA
34/34mA
100/100mA
55/55mA
42/42mA
34/34mA
12V±10%
24V±10%
TYPICAL CHARACTERISTICS
+5%
APPLICATION NOTE
Filtering
In some circuits which are sensitive to noise and ripple, a filtering capacitor may be added to the DC/DC output end and input end to reduce the noise and ripple. However, the capacitance of the
output filter capacitor must be proper. If the capacitance is too big, a startup problem might arise. For every channel of output, provided the safe and reliable operation is ensured, the greatest capacitance
of its filter capacitor sees the external capacitor table. To get an extremely low ripple, an “LC” filtering network may be connected to the input and output ends of the DC/DC converter, which may
produce a more significant filtering effect. It should also be noted that the inductance and the frequency of the “LC” filtering network should be staggered with the DC/DC frequency to avoid mutual
interference (see figure 1).
Requirement On Output Load
To ensure this module can operate efficiently and reliably, a minimum load is specified for this kind of DC/DC converter in addition to a maximum load (namely full load). During operation, make sure
the specified range of input voltage is not exceeded, the minimum output load is not less than 10% of the full load, and that this product should never be operated under no load! If the actual output
power is very small, please connect a resistor with proper resistance at the output end in parallel to increase the load.
Overload Protection
Under normal operating conditions, the output circuit of these
products has no protection against over-current and short-circuits.
The simplest method is to connect a self-recovery fuse in series at
the input end or add a circuit breaker to the circuit.
External Capacitor Table
Vin
External
Capacitor
Vout
External
Capacitor
Output Voltage Regulation and
Over-voltage Protection Circuit
The simplest device for output voltage regulation, over-voltage
and over-current protection is a linear voltage regulator with
overheat protection that is connected to the input or output end
