INA154UA/2K5 datasheet, PDF - EEWORLD Datasheet

INA154UA/2K5: DescriptionAnalog Circuit, 1 Func, PDSO8, SO-8; CategoryThe signal circuit; File Size350KB，9 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

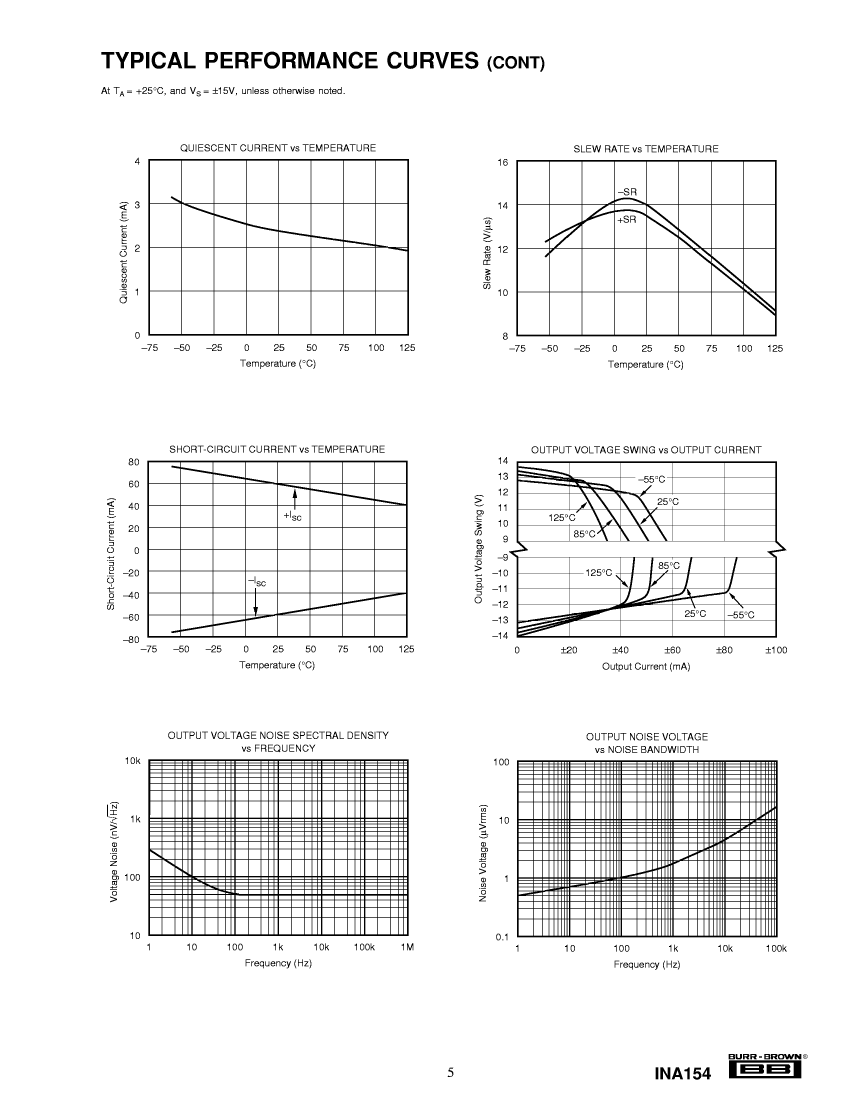

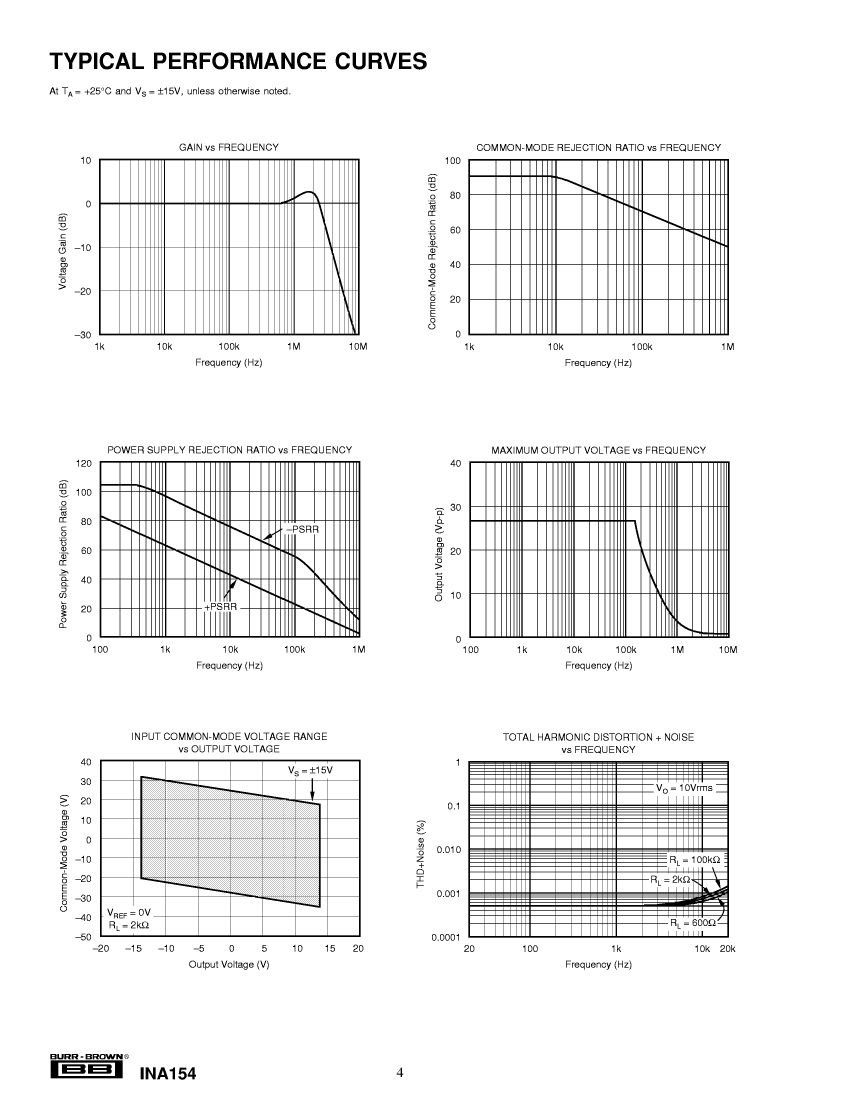

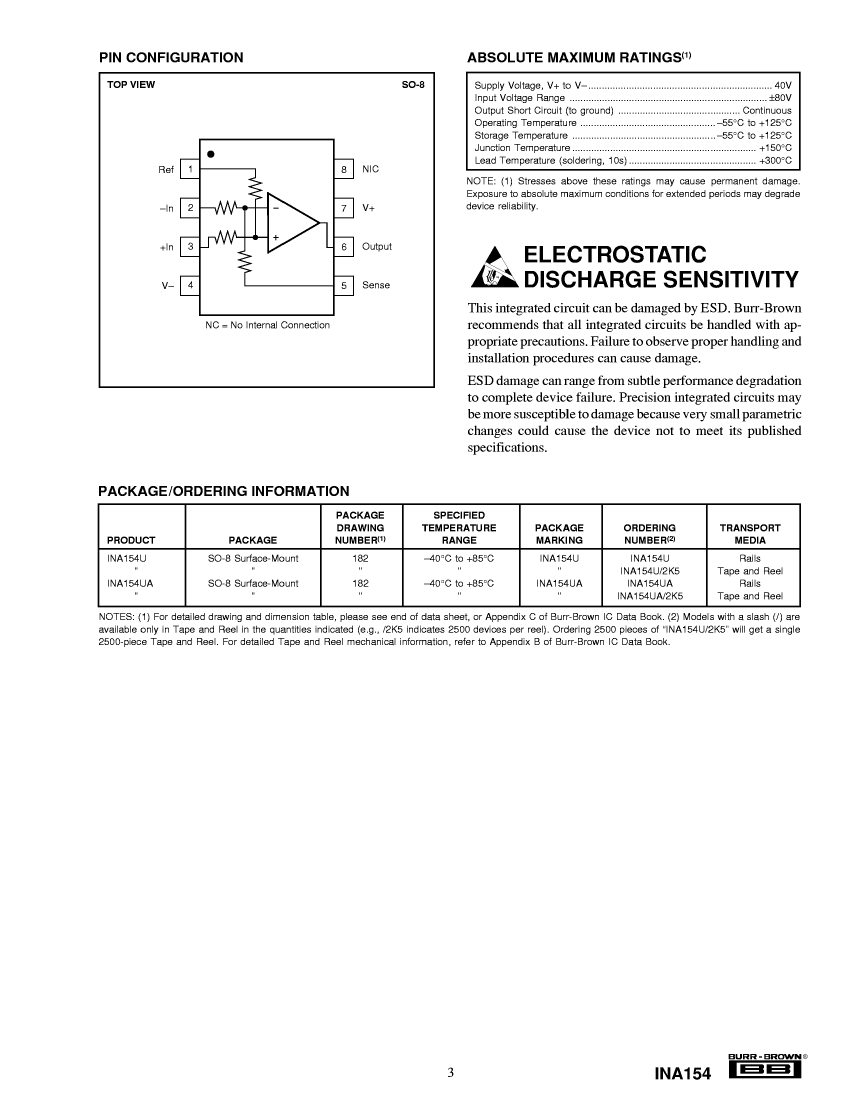

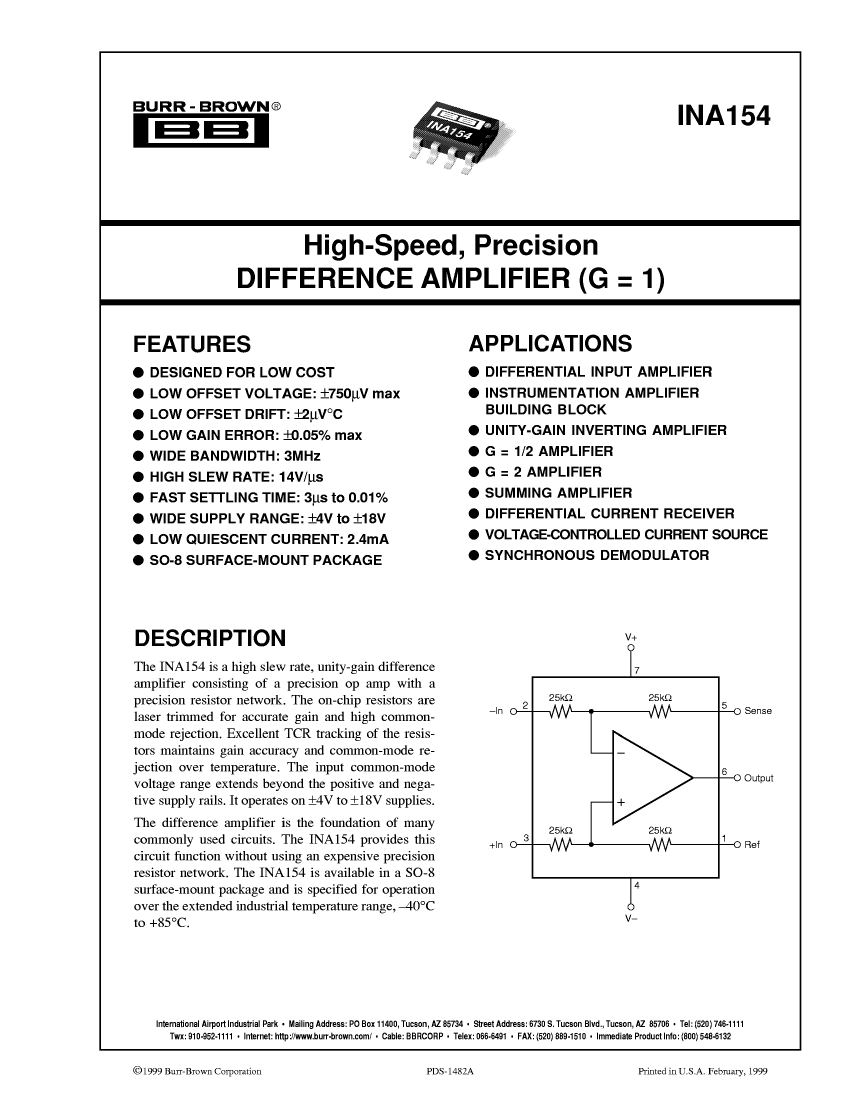

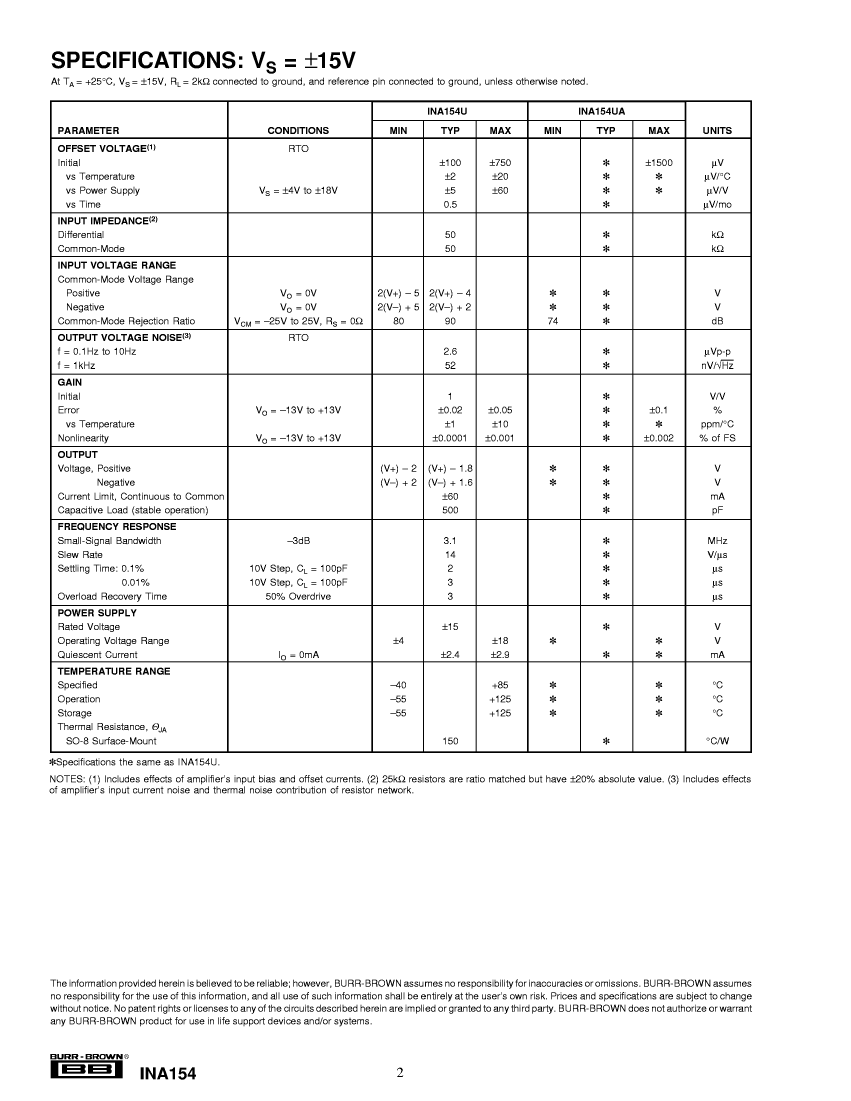

INA154UA/2K5 Overview

Analog Circuit, 1 Func, PDSO8, SO-8

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	SO-8
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-4 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	INA154UA/2K5	INA154U/2K5
Description	Analog Circuit, 1 Func, PDSO8, SO-8	Analog Circuit, 1 Func, PDSO8, SO-8
Is it Rohs certified?	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown
package instruction	SO-8	SO-8
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0
Maximum negative supply voltage (Vsup)	-18 V	-18 V
Negative supply voltage minimum (Vsup)	-4 V	-4 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	18 V	18 V
Minimum supply voltage (Vsup)	4 V	4 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Base Number Matches	1	1
