A54SX08A-FPQ208IX79 datasheet, PDF

Datasheet> All Categories > Programmable logic> A54SX08A-FPQ208IX79

A54SX08A-FPQ208IX79: DescriptionField Programmable Gate Array, 768-Cell, CMOS, PQFP208,; CategoryProgrammable logic; File Size3MB，52 Pages; ManufacturerActel; Websitehttp://www.actel.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

A54SX08A-FPQ208IX79 Overview

Field Programmable Gate Array, 768-Cell, CMOS, PQFP208,

A54SX08A-FPQ208IX79 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Actel
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	S-PQFP-G208
Humidity sensitivity level	3
Number of entries	130
Number of logical units	768
Output times	130
Number of terminals	208
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP208,1.2SQ,20
Package shape	SQUARE
Package form	FLATPACK
power supply	2.5,3.3/5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Base Number Matches	1

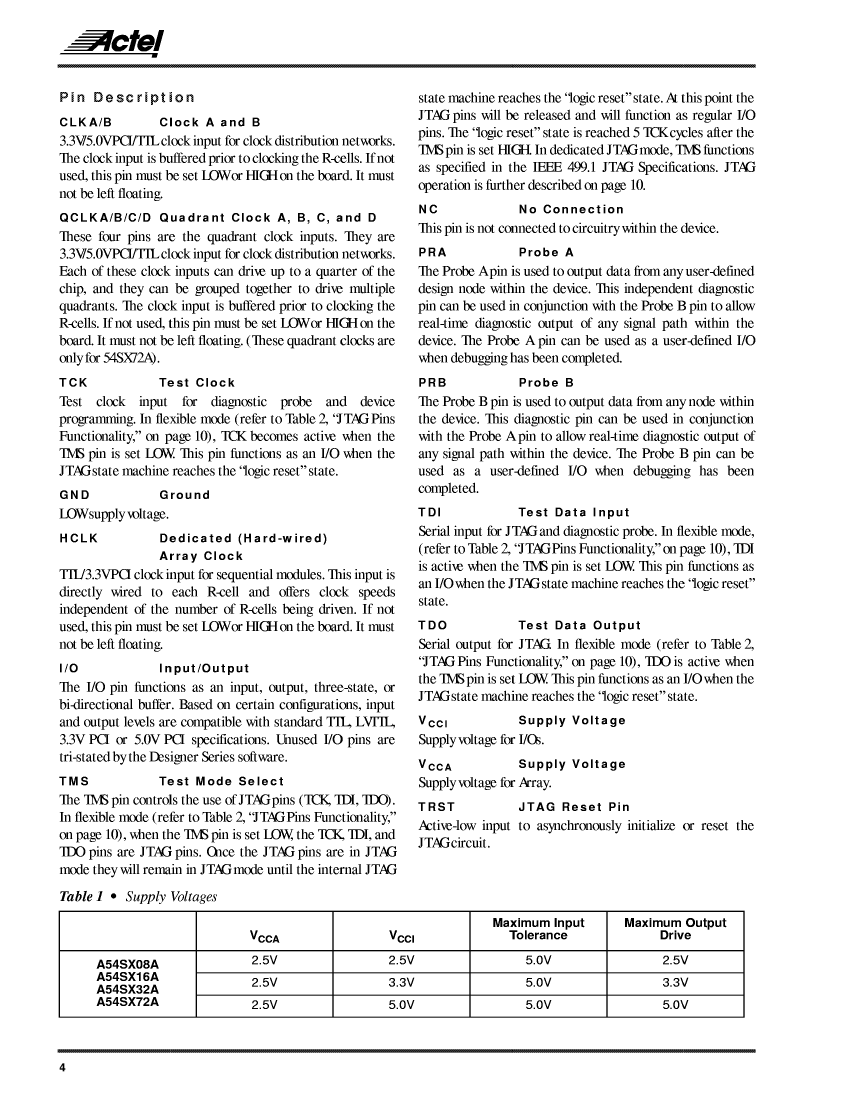

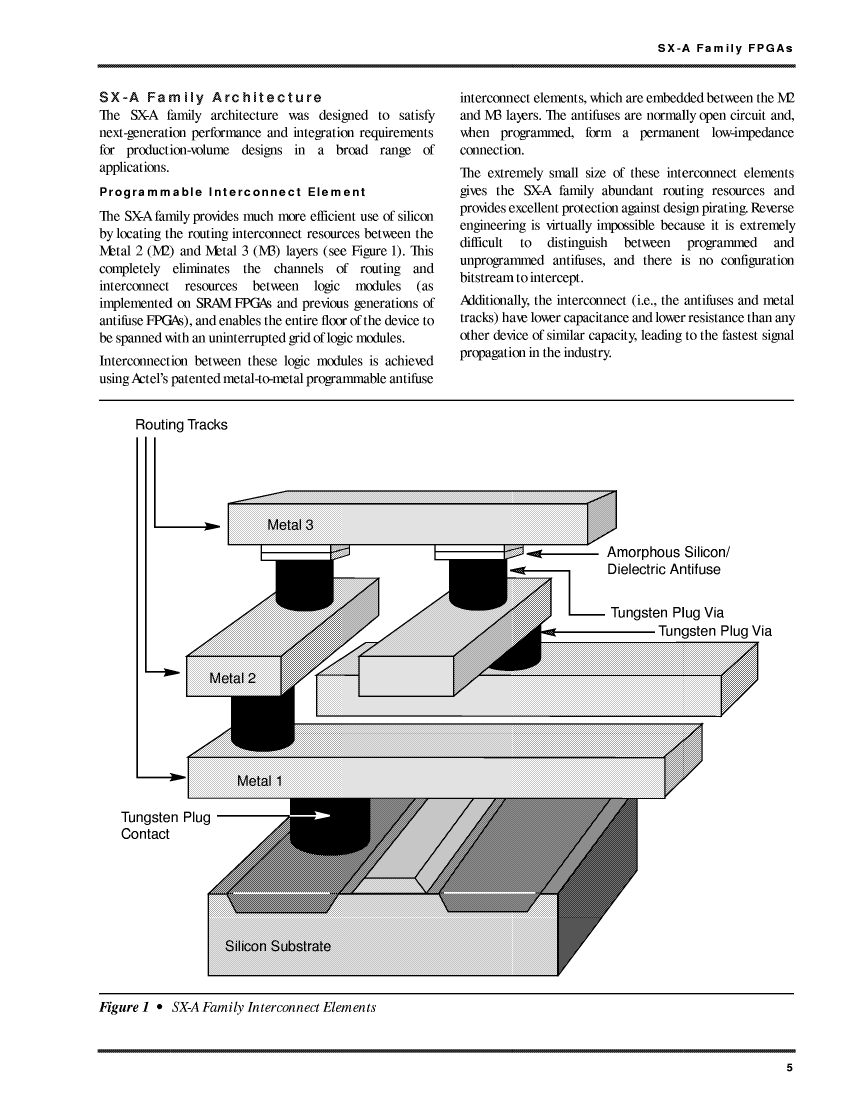

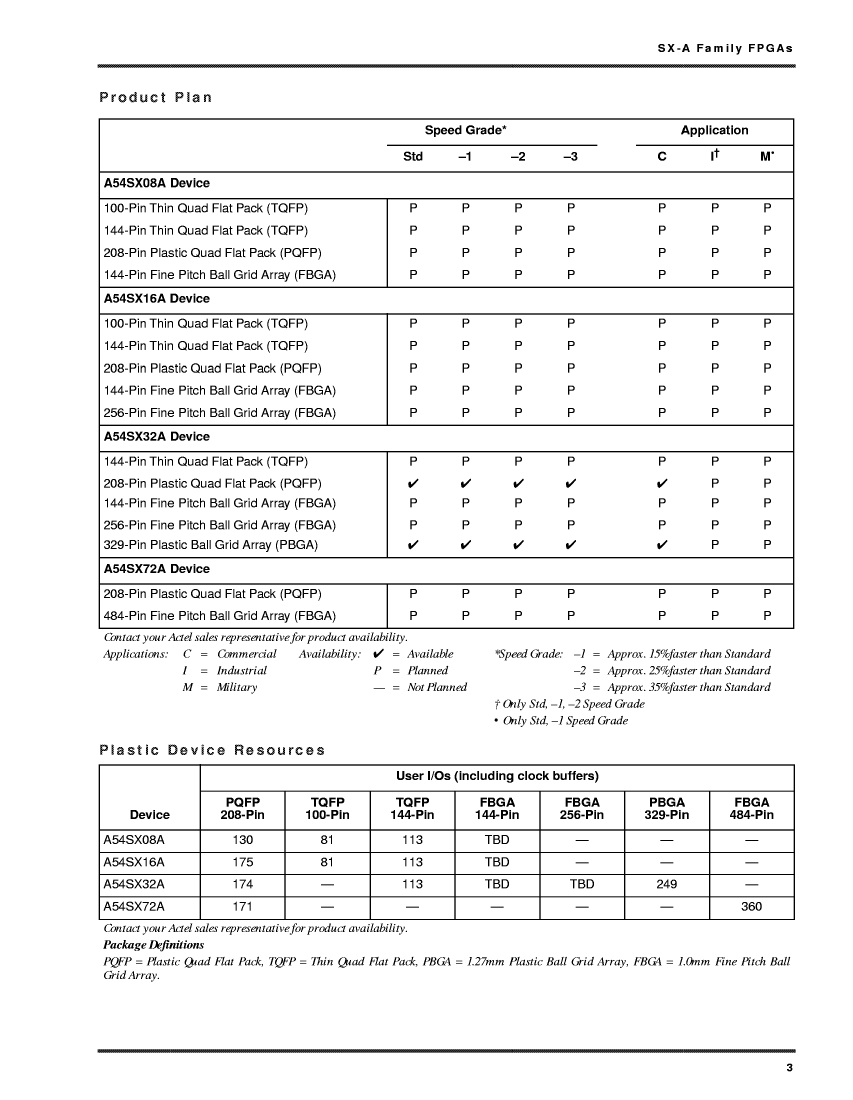

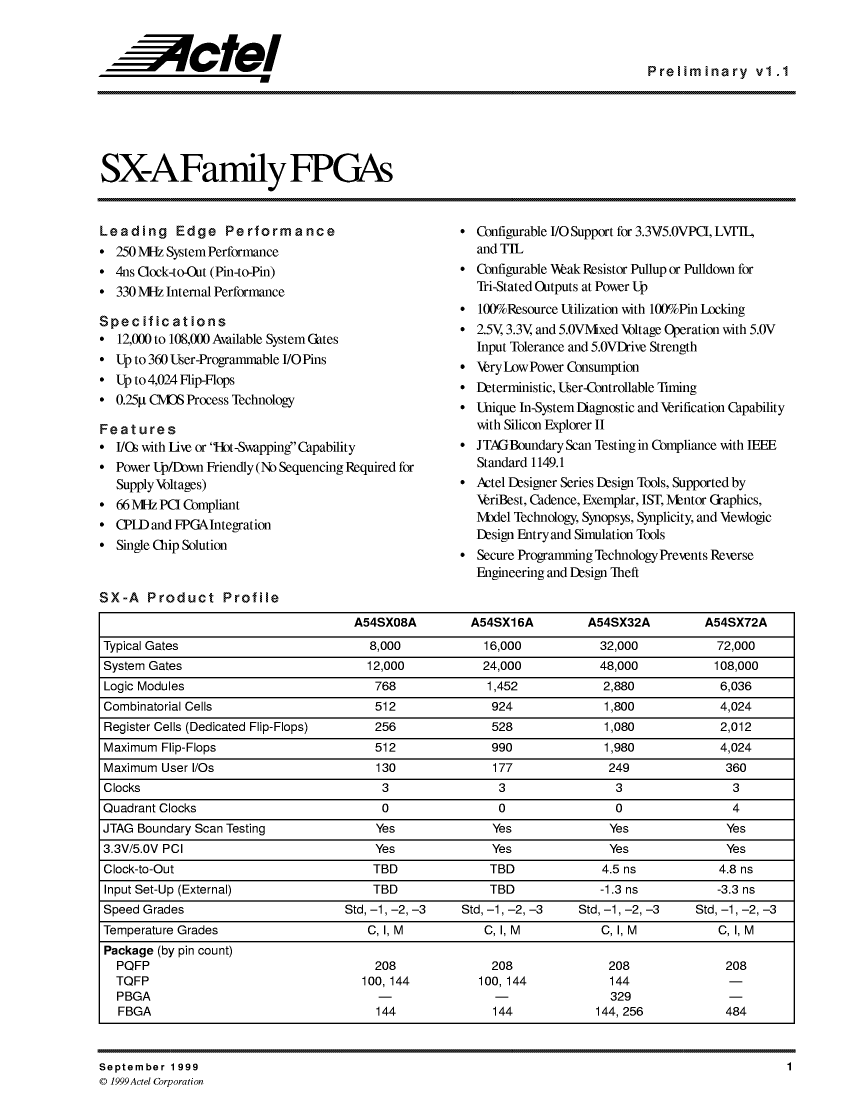

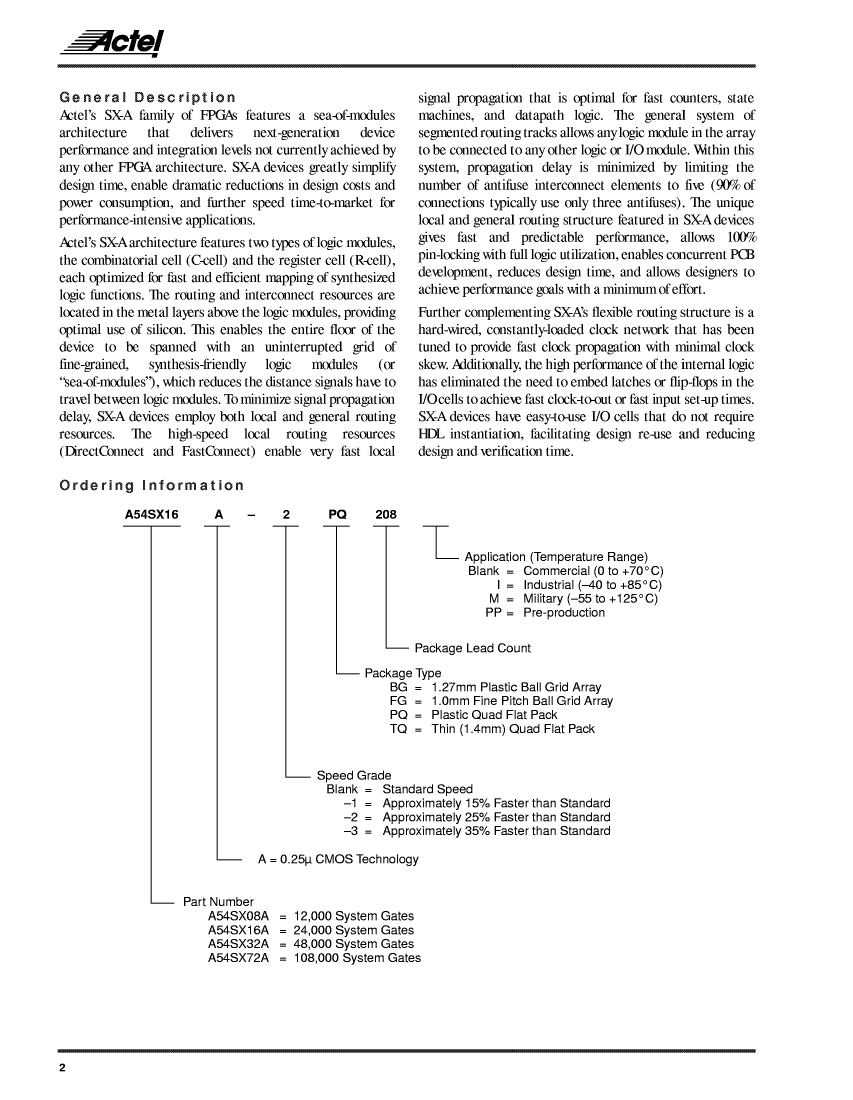

Preview

Download Datasheet

View All

A54SX08A-FPQ208IX79 Related Products

	A54SX08A-FPQ208IX79	A54SX16A-FPQ208IX79	A54SX72A-FPQ208IX79	A54SX08A-FFG144IX79	A54SX08A-FTQ100IX79	A54SX08A-FTQ144IX79	A54SX16A-FTQ144IX79
Description	Field Programmable Gate Array, 768-Cell, CMOS, PQFP208,	Field Programmable Gate Array, 1452-Cell, CMOS, PQFP208,	Field Programmable Gate Array, 6036-Cell, CMOS, PQFP208,	Field Programmable Gate Array, 768-Cell, CMOS, PBGA144,	Field Programmable Gate Array, 768-Cell, CMOS, PQFP100,	Field Programmable Gate Array, 768-Cell, CMOS, PQFP144,	Field Programmable Gate Array, 1452-Cell, CMOS, PQFP144,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	S-PQFP-G208	S-PQFP-G208	S-PQFP-G208	S-PBGA-B144	S-PQFP-G100	S-PQFP-G144	S-PQFP-G144
Humidity sensitivity level	3	3	3	3	3	3	3
Number of entries	130	175	171	111	81	113	113
Number of logical units	768	1452	6036	768	768	768	1452
Output times	130	175	171	111	81	113	113
Number of terminals	208	208	208	144	100	144	144
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QFP	BGA	QFP	QFP	QFP
Encapsulate equivalent code	QFP208,1.2SQ,20	QFP208,1.2SQ,20	QFP208,1.2SQ,20	BGA144,12X12,40	TQFP100,.63SQ	QFP144,.87SQ,20	QFP144,.87SQ,20
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	GRID ARRAY	FLATPACK	FLATPACK	FLATPACK
power supply	2.5,3.3/5 V	2.5,3.3/5 V	2.5,3.3/5 V	2.5,3.3/5 V	2.5,3.3/5 V	2.5,3.3/5 V	2.5,3.3/5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	BALL	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	1 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	BOTTOM	QUAD	QUAD	QUAD
Base Number Matches	1	1	1	1	1	1	1
Is Samacsys	N	N	N	N	N	N	-
