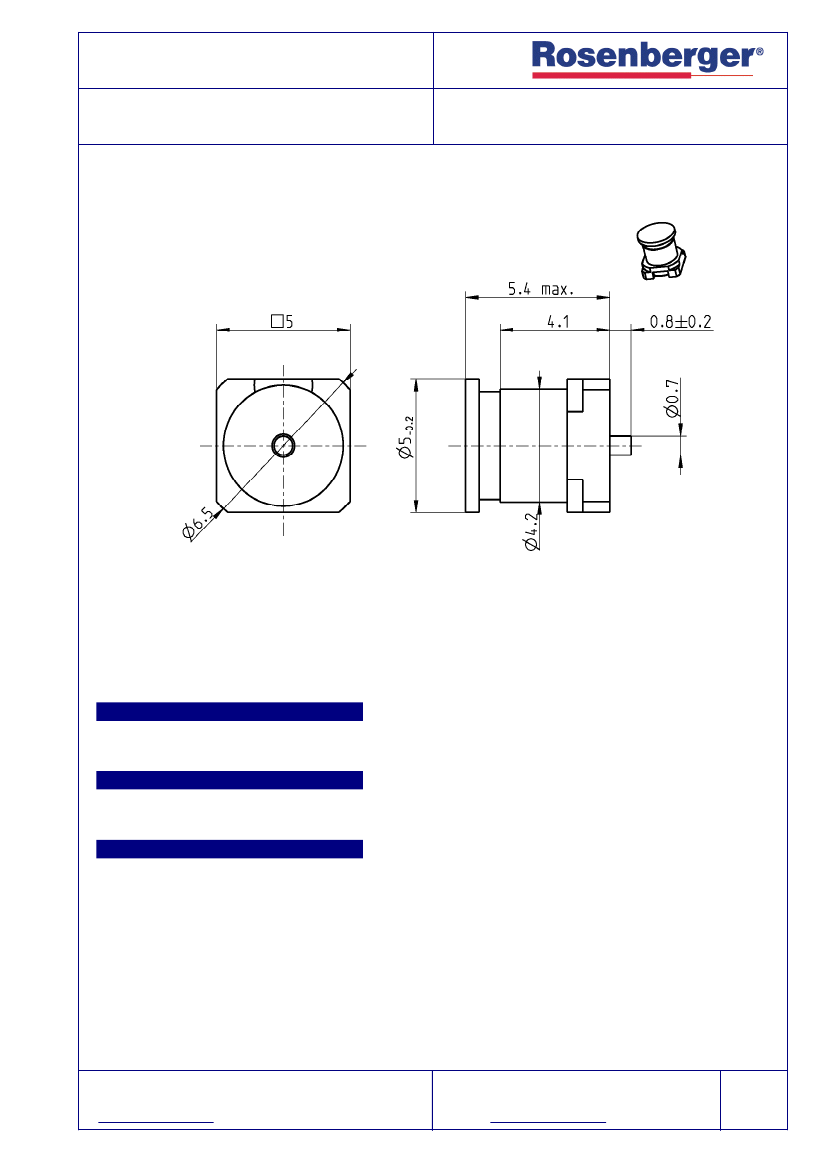

TECHNICAL DATA SHEET
SMP
STRAIGHT PLUG PCB
LIMITED DETENT
19S106-500E4
All dimensions are in mm; tolerances acc. ISO 2768 m-H
Interface
According to
MIL-STD-348A, Fig. 326
Documents
Foot print
B 123
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Material
Brass
Brass
PEEK
Plating
Gold, min. 0.8 m, over chemical nickel
Gold, min. 0.8 m, over chemical nickel
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
SMP
STRAIGHT PLUG PCB
LIMITED DETENT
50
Ω
DC to 26.5 GHz
≥
26 dB, DC to 6 GHz
≥
20 dB, 6 to 12 GHz
≤
0.05 x
f(GHz)
≥
5 GΩ
≤
6.0 mΩ
≤
2.0 mΩ
500 V rms
335 V rms
1.2A DC max.
dB, DC to 12 GHz
19S106-500E4
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Contact Current
- VSWR in application depends decisive on PCB layout -
Mechanical data
Mating cycles
Center contact captivation
Engagement force
- limited detent
Disengagement force
- limited detent
≥
500
≥
7N
45 N max.
9 N min.
Environmental data
Temperature range
Thermal shock
Vibration
Shock
Moisture resistance
-65°C to +155°C
MIL-STD-202, Method
MIL-STD-202, Method
MIL-STD-202, Method
MIL-STD-202, Method
107, Condition B
204, Condition B
213, Condition A
106
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
200 pcs in blister
0.35 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
17/08/04
Approved
Schwangler
Date
25/11/05
Rev.
b00
Engineering change number
05-0642
Name
Sepp Peteranderl
Date
25/11/05
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
