CARDINAL COMPONENTS
Factory Prog. 2 Output CMOS Oscillator Applications
•
•
•
•
•
•
•
Full Custom Multi-Frequency Programmable Osc
Reduced EMI by turning off unused output
Factory Programmable
Industry-standard packaging saves on board space
Mult. outputs 1 pkg vs. mult. osc & assoc. comp.
Lower system cost
Increased integration
•
•
•
•
•
•
•
High-end multimedia
Communications
Industrial
A/D converters
Consumer Applications
Product differentiation
Low-power applications
Series
CCE2C
Part Numbering Example: CCE2C 1A 200.0 / 150.0
CCE2C
SERIES
1A
200
150
FREQUENCY B
0.2 - 200 MHz
PACKAGE STYLE
FREQUENCY A
1A = 14 pin dip
0.2 - 200 MHz
9 = 9.6x11.4 SMD
Specifications:
Frequency Range:
Output A CMOS
Output B CMOS
Available Stability Options:
Supply Voltage:
Operating Temperature
Range Options:
Storage Temperature:
Duty Cycle:
Min
0.2
0.2
-50
3.135
-40
Typ
Max
200
200
50
Unit
MHz
MHz
ppm
V
°C
3.3
3.465
85
-55
40
45
3
125
60
55
10
±5
°C
%
%
mS
Start-Up Time:
Aging (PPM/1st Year):
Ta=25C, Vdd=3.3V
Static Discharge Voltage
Mil-Std 883, method 3015
Output Load:
CMOS, < 40 MHz
CMOS, > 40 MHz
Output Level:
Packaging:
CMOS
25 / Tube
Tape & Reel
2000
V
30
15
pF
pF
14 pin
SMD
Notes: Recommended .01
µF
bypass capacitor from Vcc to GND. Capacitor should be as close to oscillator as possible.
Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
http://www.cardinalxtal.com
E-Mail: cardinal@cardinalxtal.com
121002-REV. 2.0
Specifications subject to change without notice. Check website for latest updates
1
CARDINAL COMPONENTS
Factory Prog. 2 Output CMOS Oscillator
Electrical Characteristics
D
ESCRIPTION
Ioh
Iol
Vih
Vil
Iih
Iil
Ioz
Idd
Idds
Output High Current
Output Low Current
High Level Input Voltage
Low-Level Input Voltage
Input High Current
Input Low Current
Output Leakage Current
Total Power Supply Current
Shutdown Power Supply Curr
Series
CCE2C
C
ONDITIONS
Voh = (L)Vdd - 0.5, (L)Vdd = 3.3 V
Vol = .5, (L)Vdd = 3.3 V
CMOS levels, % of Vdd
CMOS levels, % of Vdd
Vin = AVdd - 0.3 V
Vin = + 0.3 V
tri-state outputs
1 output@19.44 MHz; 1 output@77.76 MHz
1 output@155.22 Mhz; 1 output@200 MHz
Shutdown active
M
IN
12
12
0.7
T
YP
24
24
M
AX
U
NIT
mA
mA
V
0.3
<1
<1
10
10
10
15
26
5
20
V
µA
µA
µA
mA
mA
µA
Output Clock Switching Characteristics
D
ESCRIPTION
1/t1
t3
t4
t5
t6
Output Frequency
Rising Edge Slew Rate
Falling Edge Slew Rate
Output tri-state timing
after SD/OE switches
Clock Jitter
measured at Vdd/2
C
ONDITIONS
Clock output limit, CMOS, Commercial
Output clock rise time, 20% – 80% Vdd
Output clock fall time, 20% – 80% Vdd
Time for output to enter/leave tri-state mode
Peak-to-Peak period jitter, CLK outputs
M
IN
0.75
0.75
T
YP
1.4
1.4
150
200
M
AX
200
U
NIT
MHz
nS
nS
300
nS
pS
Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
http://www.cardinalxtal.com
E-Mail: cardinal@cardinalxtal.com
121002-REV. 2.0
Specifications subject to change without notice. Check website for latest updates
2
CARDINAL COMPONENTS
Series
ALL OUTPUTS, DUTY CYCLE, RISE/FALL TIME
CCE2C
t
1
t
2
OUTPUT
t
3
t
4
OUTPUT 3-STATE TIMING
OE
t
5
ALL
THREE-STATE
OUTPUTS
CLK OUTPUT JITTER
t
5
t
6
CLK
OUTPUT
Cardinal Components, Inc., 155 Rt. 46 W, Wayne, NJ. 07470 TEL: (973)785-1333 FAX: (973)785-0053
http://www.cardinalxtal.com
E-Mail: cardinal@cardinalxtal.com
121002-REV. 2.0
Specifications subject to change without notice. Check website for latest updates
3
CARDINAL COMPONENTS
DIP
PIN FUNCTION
PIN 1 OE (CONNECT TO VDD)
PIN 2 SUSPEND (CONNECT TO GND)
PIN 3 VDD
PIN 4 FACTORY USE (MAKE NO CONNECTION)
PIN 5 CONNECT TO PIN 6
PIN 6 CONNECT TO PIN 5
PIN 7 GND
PIN 8 FACTORY USE (MAKE NO CONNECTION)
PIN 9 FACTORY USE (MAKE NO CONNECTION)
PIN10 FACTORY USE (MAKE NO CONNECTION)
PIN 11 FACTORY USE (MAKE NO CONNECTION)
PIN 12 FACTORY USE (MAKE NO CONNECTION)
PIN 13 CLK A OUTPUT
PIN 14 CLK B OUTPUT
SMD
PIN FUNCTION
PIN 1 FACTORY USE (MAKE NO CONNECTION)
PIN 2 OE
PIN 3 VDD
PIN 4 FACTORY USE (MAKE NO CONNECTION)
PIN 5 CONNECT TO PIN 6
PIN 6 CONNECT TO PIN 5
PIN 7 GND
PIN 8 FACTORY USE (MAKE NO CONNECTION)
PIN 9 FACTORY USE (MAKE NO CONNECTION)
PIN10 FACTORY USE (MAKE NO CONNECTION)
PIN 11 FACTORY USE (MAKE NO CONNECTION)
PIN 12 FACTORY USE (MAKE NO CONNECTION)
PIN 13 CLK A OUTPUT
PIN 14 CLK B OUTPUT

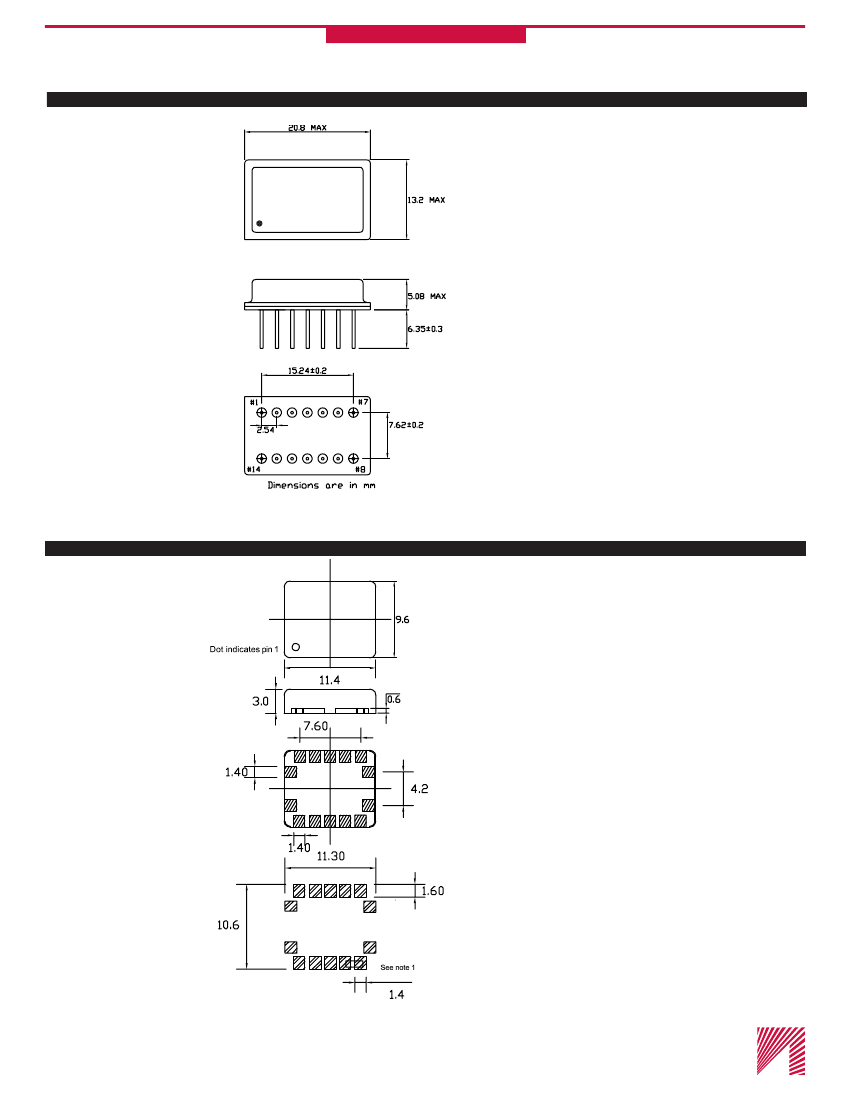

Dimensions in mm
Recommended solder pad layout
Note1:
For proper operation pin 5 must be connected to pin 6
