B4B-PH-K-S(LF)(SN)(PP)

Description
Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
CategoryThe connector
File Size681KB,3 Pages
ManufacturerJST
Download Datasheet Parametric View All

B4B-PH-K-S(LF)(SN)(PP) Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

B4B-PH-K-S(LF)(SN)(PP) Parametric

Parameter NameAttribute value
MakerJST
Reach Compliance Codeunknown
Is SamacsysN
Connector typeBOARD CONNECTOR
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts4
UL Flammability Code94V-0
Base Number Matches1
PH
CONNECTOR
2
3
Emboss Tape

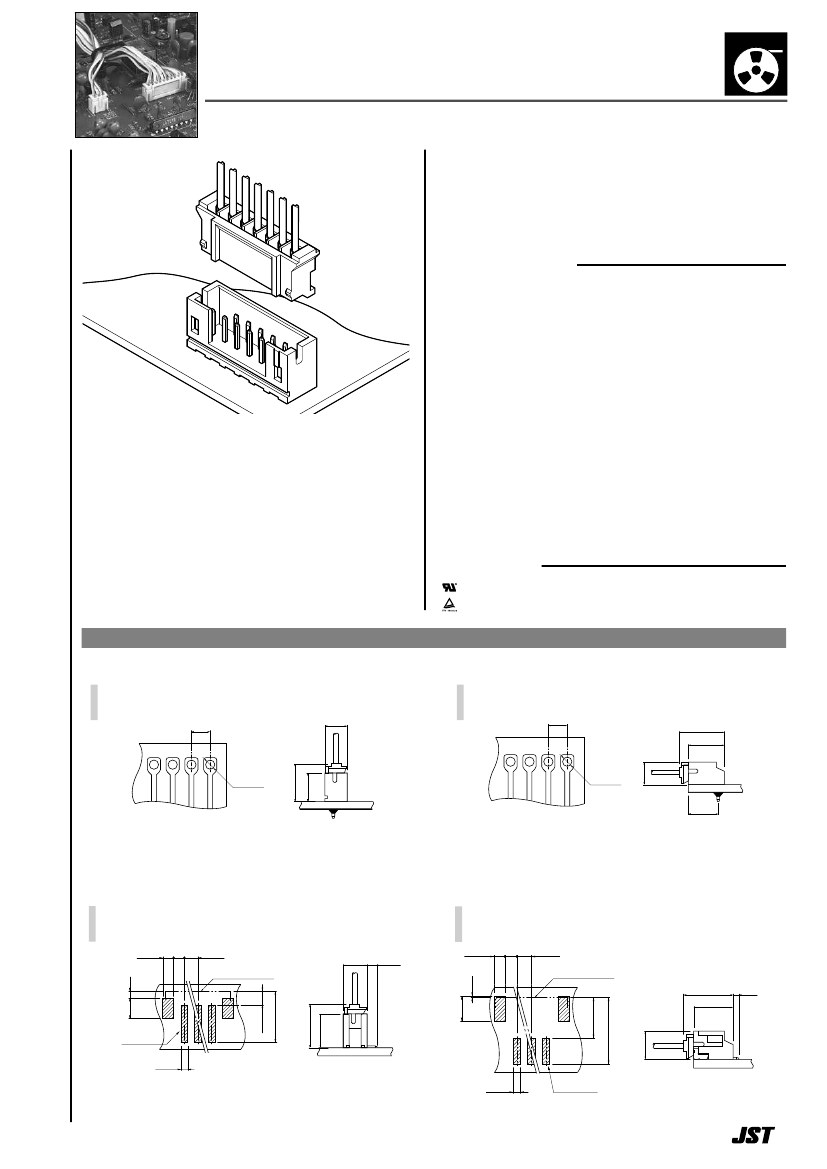

2.0 mm pitch/Disconnectable Crimp style connectors
PH CONNECTOR
4
This is a thin, low-profile 2.0 mm pitch
connector 8.0 mm in height after mounting
and 4.5 mm in width. It is designed to meet
the demand for high-density connection of
internal wires to printed circuit boards. It is
compact, highly reliable and low in cost.
Reliable contact
Fully shrouded header
Printed circuit board retention mechanism
Surface mount model (SMT)
Through-hole type (viewed from soldering side)
PC board layout and Assembly layout
Top entry type
2
± 0.05
6
φ0.7
(8)
+0.1
0
φ0.7
+0.1
0
4.8
Note: 1. Tolerances are non-cumulative: ±0.05 mm for all centers.
2. Hole dimensions differ according to the type of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should
be larger. The dimensions above should serve as a guideline. Contact JST for details.
〈SMT
type (viewed from component side)
SM4 type
Top entry type
1.6
±0.1
1.6
±0.1
2
±0.05
End face of wafer
on the mating side
1
0.2
±0.1
±0.1
7.5 min.
(8.6)
5.5 max.
2 max.
3.4
3
1 min.
1min.
Circuit No.1
Note: 1. Tolerances are non-cumulative: ±0.05 mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
5.5
Circuit No.1
9 min.
6.6
5
6
Specifications
Current rating: 2 A AC/DC (AWG #24)
Voltage rating: 100 V AC/DC
Temperature range:
-
25℃ to
+
85℃
(including temperature rise in applying
electrical current)
Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
Insulation resistance: 1,000 MΩ min.
Withstanding voltage: 800 VAC/ minute
Applicable wire: AWG #32 to #24
Applicable PC board thickness: 0.8 to 1.6 mm
* In using the products, refer to "Handling Precaution for Terminal
and Connector" described on our website (Technical documents
of Product information page).
* Contact JST for details.
* RoHS2 compliance
Standards
Recognized E60389
R75087
Side entry type
4.5
2
± 0.05
(9.6)
7.6
6.25
SM4 type
Side entry type
5
(2)
1.5
±0.1
1.6
±0.1
2
±0.05
End face of wafer
on the mating side
(9.6)
7.6
(1)
1
