* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.

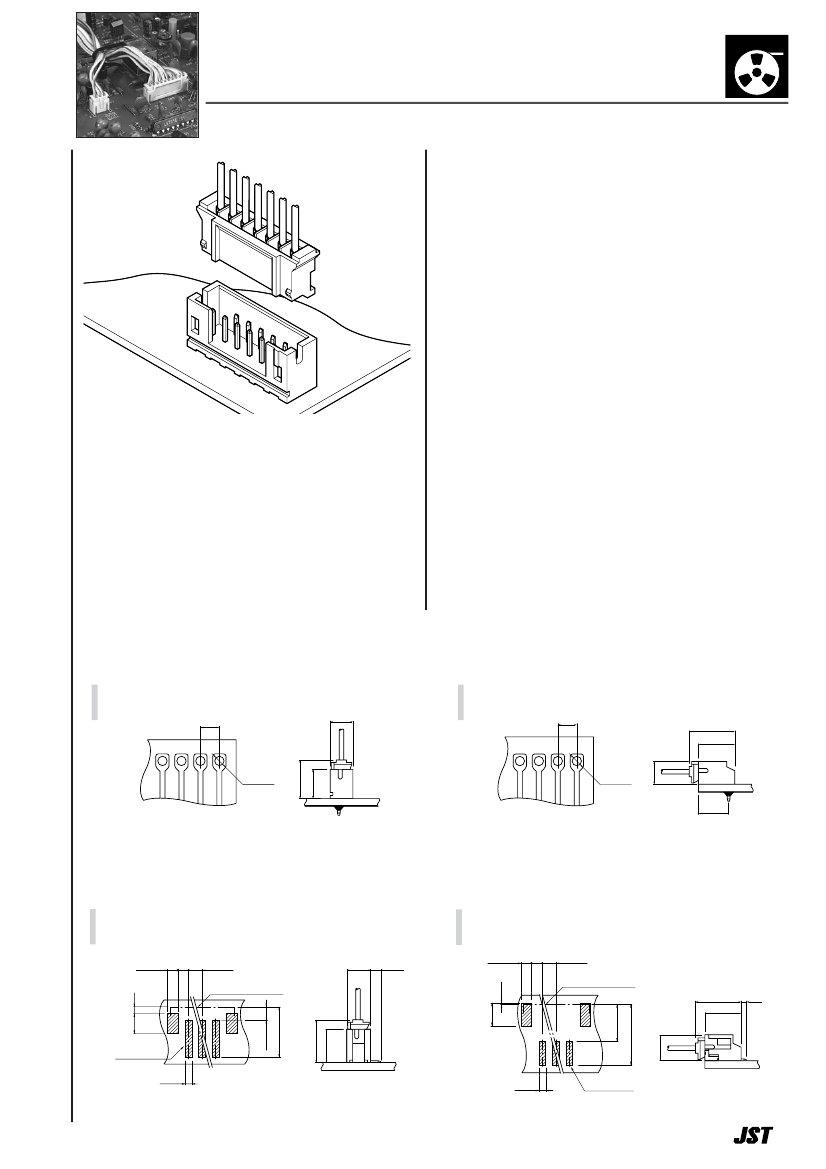

This is a thin, low-profile 2.0mm pitch
connector 8.0mm in height after mounting
and 4.5mm in width. It is designed to meet
the demand for high-density connection of
internal wires to printed circuit boards. It is
compact, highly reliable and low in cost.
• Reliable contact
• Fully shrouded header
• Printed circuit board retention mechanism
• Surface mount model (SMT)
Standards ––––––––––––––––––––––
1
Certified LR20812
2
R75087
0
Recognized E60389
〈
Through-hole type (viewed from soldering side)
〉
Top entry type
2
±0.05
4.5
Side entry type
2
±0.05
9.6
7.6
6
φ0.7
0
8
＋0.1
φ0.7
0
＋0.1
4.8
6.25
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should
be larger. The dimensions above should serve as a guideline. Contact JST for details.
〈
SMT type (viewed from component side)
〉
SM4 type
Top entry type
1.6
±0.1
1.6
±0.1
2
±0.05
End face of wafer
on the mating side
5
（2）
SM4 type
Side entry type
1.5
±0.1
1.6
±0.1
2
±0.05
0.2
End face of wafer
on the mating side
9.6
7.6
1
1
±0.1
7.5
min
5.5
max
±0.1
3.4
2
max
8.6
6.6
9
min
3
Circuit No.1
1
min
1
min
Circuit No.1
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
5.5
1
PH CONNECTOR
Contact
5.7
2.85
2.05
1.5
1
Model No.
mm
2
SPH-002T-P0.5S
SPH-002T-P0.5L
SPH-004T-P0.5S
0.05 ∼ 0.22
0.08 ∼ 0.22
0.032∼0.08
Applicable wire
AWG #
30∼24
28∼24
32∼28
Insulation O.D. (mm)
0.9∼1.5
0.8∼1.5
0.5∼0.9
Q'ty /
reel
8,000
10,000
2.08
Material and Finish
Phosphor bronze, tin-plated (reflow treatment)
Contact
SPH-002T-P0.5S
Crimping
machine
Crimp applicator
MKS-L
*MKS-SC
MKS-L
*MKS-SC
MKS-L-10
*MKS-SC-10
Applicator
Dies
SC/SPH-002-05S
MK/SPH-002-05L
SC/SPH-002-05L
SC/SPH-004-05S
Crimp applicator with dies
APLSC SPH002-05S
APLMK SPH002-05L
APLSC SPH002-05L
APLSC SPH004-05S
MK/SPH-002-05S APLMK SPH002-05S
SPH-002T-P0.5L
AP-K2N
SPH-004T-P0.5S
MK/SPH-004-05S APLMK SPH004-05S
RoHS compliance
Note:
1. Contact JST for gold-plated products.
2. SPH-002T-P0.5L is low-insertion force type contact, for easier insertion/
withdrawal, which would be less resistant to the vibration. The crimp height
is different from the standard.
3. Contact JST for details.
Note: *Strip-crimp applicator
Housing
B
Circuit
No.1
1.9
2
A
0.5
4.5
Circuits
2
3
4
5
6
Model No.
PHR-2
PHR-3
PHR-4
PHR-5
PHR-6
PHR-7
PHR-8
PHR-9
PHR-10
PHR-11
PHR-12
PHR-13
PHR-14
PHR-15
PHR-16
A
Dimensions (mm)
B
5.8
7.8
9.8
11.8
13.8
15.8
17.8
19.8
21.8
23.8
25.8
27.8
29.8
31.8
33.8
Q'ty /
box
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
H JST
8
6.35
7
8
9
10
11
12
13
14
15
16
0.6
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
