KBPC3502W: DescriptionBridge Rectifier Diode, 35A, 200V V(RRM),; Categorydiode; File Size732KB，3 Pages; ManufacturerDaco Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

KBPC3502W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KBPC3502W	-	-	View	Buy Now

KBPC3502W Overview

Bridge Rectifier Diode, 35A, 200V V(RRM),

KBPC3502W Parametric

Parameter Name	Attribute value
Maker	Daco Semiconductor Co., Ltd.
Reach Compliance Code	unknown
Is Samacsys	N
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Maximum non-repetitive peak forward current	400 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	35 A
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

KBPC35005T/W

THRU

KBPC3510T/W

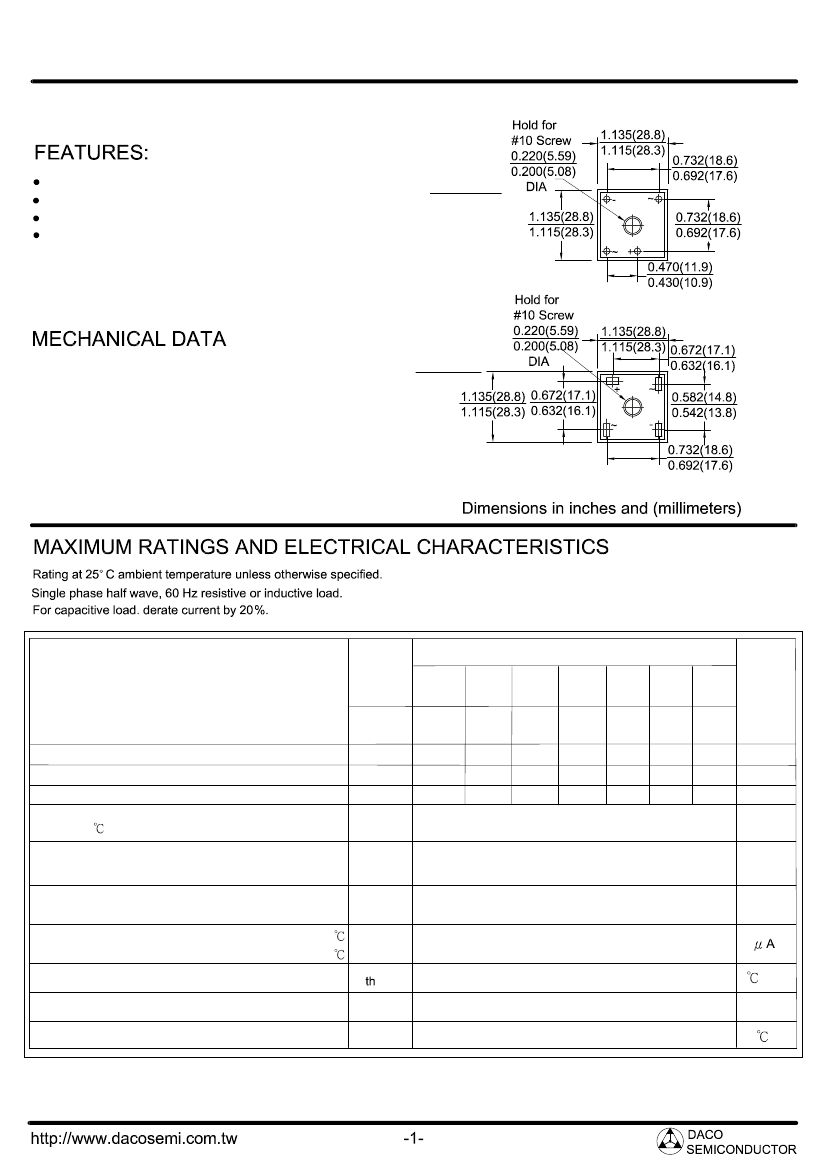

SINGLE PHASE SILICON BRIDGE RECTIFIER

High efficiency

Silicon junction

Metal case

Rating to 1000 V PRV

KBPC-W

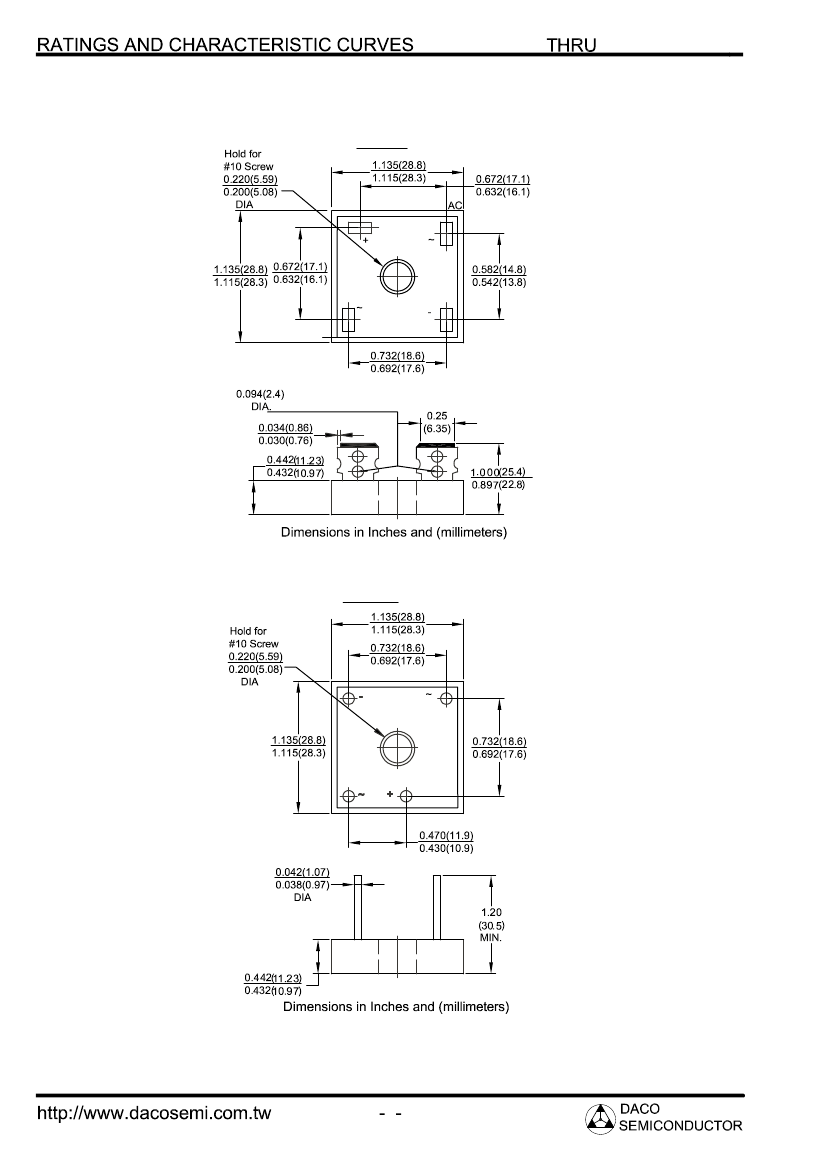

Case : Mounted in the bridge encapsulation

Polarity : As marked on case

Mounting : Hole for #10 screw

KBPC-T

KBPC

Symbol

35005 3501

Characteristic

T/W

KBPC

T/W

KBPC

3502

T/W

KBPC

3502

200

140

200

3504

T/W

KBPC

3504

400

280

400

35

400

3506

T/W

KBPC

3506

600

420

600

3508

T/W

KBPC

3508

800

560

800

3510

T/W

KBPC

3510

1000

700

1000

Units

Volts

Amps

Volts

Maximum recurrent peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

at Tc=55

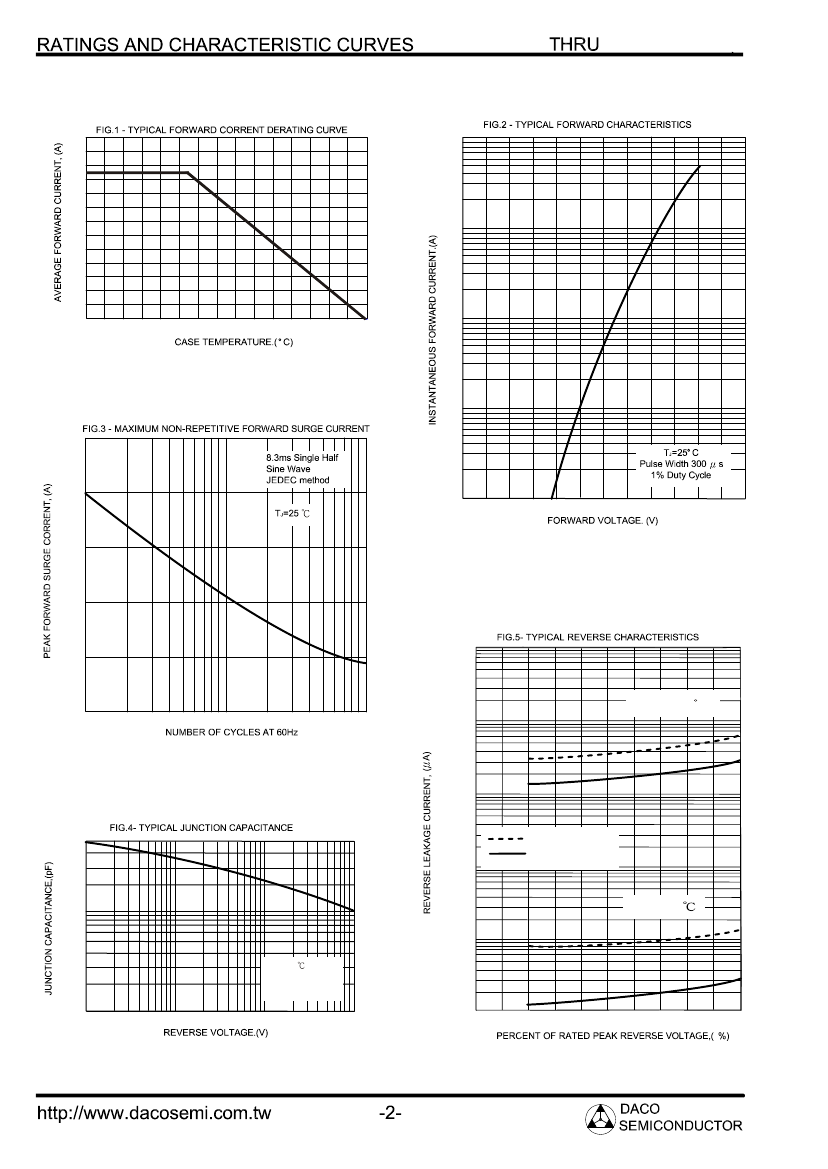

Peak forward surge current 8.3ms single half

sine-wave superimposed on rated load

(JEDEC Method) Per leg

Maximum instantaneous forward voltage

IF=17.5A

Per leg

Maximum DC reverse current

at rated DC blocking voltage Per leg

Typical thermal resistance (NOTE1)

Typical junction capacitance (NOTE2)

Operating junction and Storage temperature range

Tc=25

Tc=100

Marking

35005 3501

V

RRM

100

50

V

RMS

35

70

V

DC

50

100

I

O

I

FSM

V

F

I

R

R -JC

C

J

1.1

5.0

500

1.4

300

-55to+150

/W

P

F

TJ, TStg

NOTES:

(1) Device mounted on 300mm x 300mm x 1.6mm cu Plate Heaksink

(2) Measured at 1MHZ and applied reverse voltage of 4.0V D.C.

KBPC3502W Related Products

	KBPC3502W	KBPC3506W	KBPC3510T	KBPC35005T	KBPC3501T	KBPC3502T	KBPC3508T
Description	Bridge Rectifier Diode, 35A, 200V V(RRM),	Bridge Rectifier Diode, 35A, 600V V(RRM),	Bridge Rectifier Diode, 35A, 1000V V(RRM),	Bridge Rectifier Diode, 35A, 50V V(RRM),	Bridge Rectifier Diode, 35A, 100V V(RRM),	Bridge Rectifier Diode, 35A, 200V V(RRM),	Bridge Rectifier Diode, 35A, 800V V(RRM),
Maker	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow	unknow	unknow
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A	400 A	400 A	400 A
Number of components	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	35 A	35 A	35 A	35 A	35 A	35 A	35 A
Maximum repetitive peak reverse voltage	200 V	600 V	1000 V	50 V	100 V	200 V	800 V
