19S143-400E4

Description
RF SMP Connector, Male, Board Mount, Solder Terminal, Plug,
CategoryThe connector    The connector
File Size119KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

19S143-400E4 Overview

RF SMP Connector, Male, Board Mount, Solder Terminal, Plug,

19S143-400E4 Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
Other featuresVSWR AND INSERTION LOSS MAX AT 18 GHZ, CAPTIVE CENTER CONTACT
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF SMP CONNECTOR
Contact to complete cooperationGOLD (31) OVER NICKEL
Contact completed and terminatedGOLD (31) OVER NICKEL
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.21 dB
insulator materialLIQUID CRYSTAL POLYMER
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number19S143-400E4
Plug informationMULTIPLE MATING PARTS AVAILABLE
Installation methodSTRAIGHT
Installation typeBOARD
Maximum operating frequency26.5 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
voltage standing wave ratio1.64
Base Number Matches1
TECHNICAL DATA SHEET
SMP

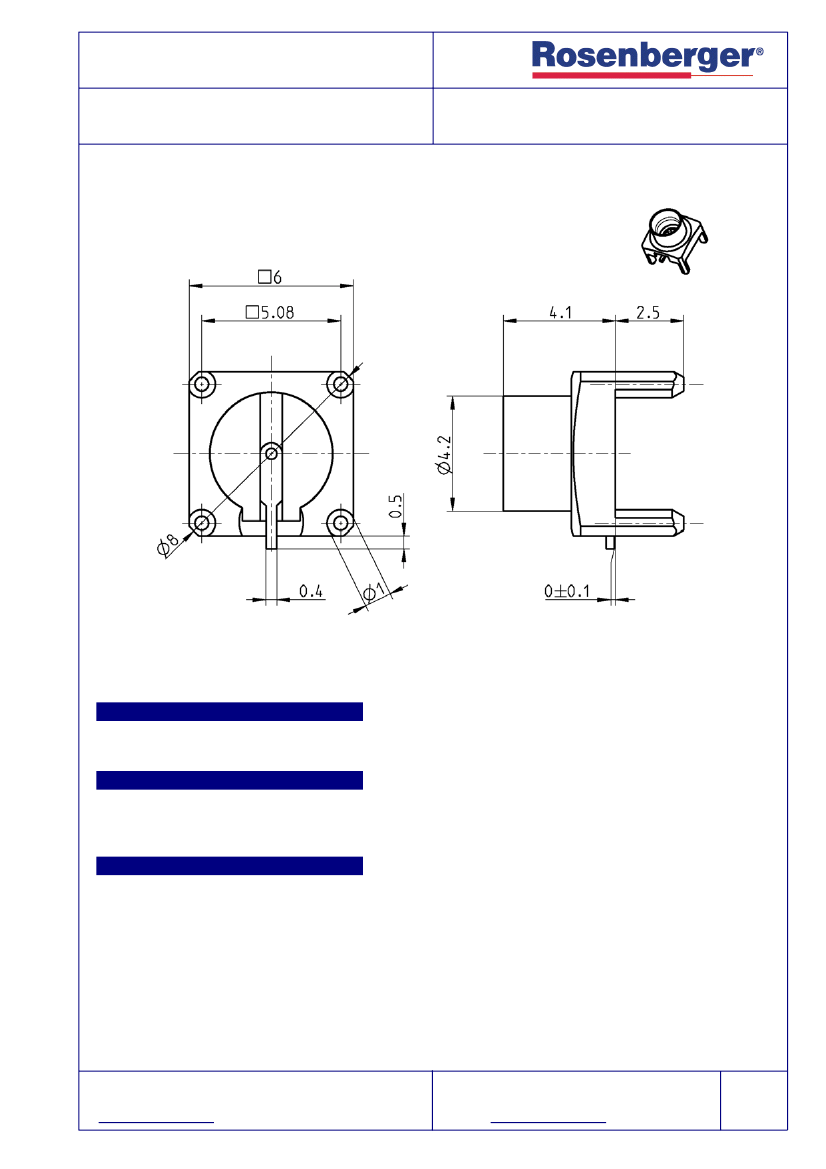

STRAIGHT PLUG PCB
SMOOTH BORE
19S143-400E4
All dimensions are in mm; tolerances acc. ISO 2768 m-H
Interface
According to
MIL-STD-348A, Fig. 326
Documents
Foot print
Tape & reel packaging
B 122
VG33.01M00
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Material
Brass
Brass
LCP
Plating
Gold, min. 0.8 µm, over chemical nickel
Gold, min. 0.8 µm, over chemical nickel
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
