Ordering number : ENA0056
AM-5416

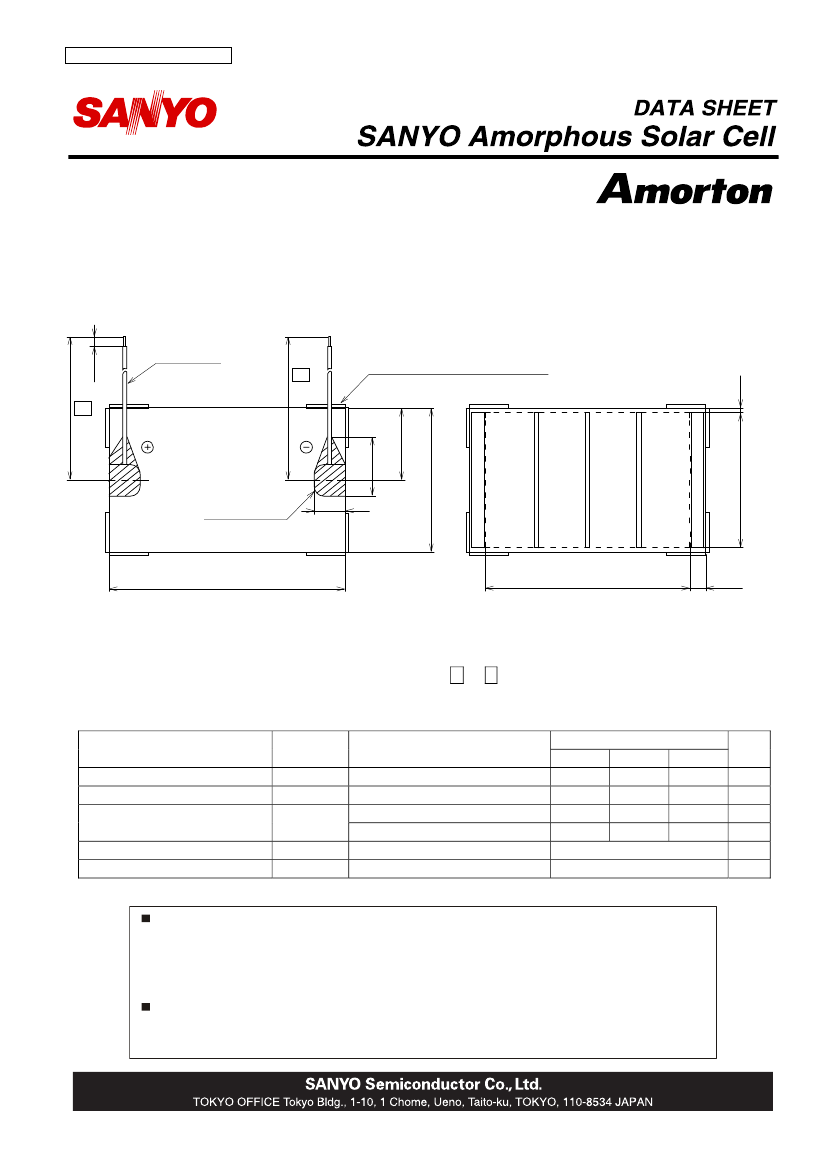

Package Dimensions
(unit : mm)
Overcoat Side
(2.5)
Light Receiving Side
Glass Juts(4 Corners)
Width : 1.0MAX, Length : 15.0MAX
(1.2)
(18.35)
100
±5
Lead Wires
100
A
±5
B
Wire Overcoat
(8)
60.1
±0.5
52.0
±0.2
(4.1)
Note: Glass Substrate Thickness
Module Thickness
Wire-Overcoat Thickness
Standard lead wires length
Ratings
at Ta = 25°C
Parameter
Open Circuit Voltage
Short Circuit Current
Operating Voltage & Operating Current
Operating Temperature
Storage Temperature
: 1.8mm
: 2.3mm max
: 3.3mm max (Including Module)
: 100mm Marking ( A & B )
Effective Area
Symbol
Voc
Isc
Iope
Topr
Tstg
SS 50kLx
SS 50kLx
Conditions
min
Ratings
typ
3.1
22.9
17.4
49.9
-5 to +40
-20 to +70
max
Unit
V
mA
mA
mA
°C
°C
SS 50kLx, Vope=2.0V
AM-1.5, 100mW/cm , Vope=2.0V
2
SS: Solar Simulator
