Datasheet> All Categories > photoelectric> LB-302MP3F

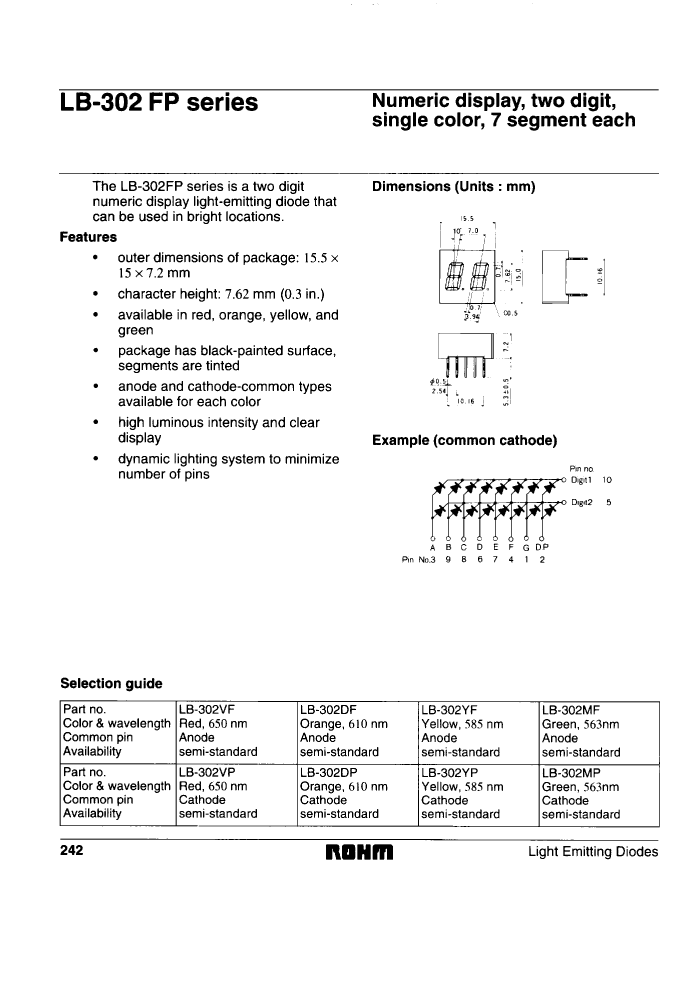

Preview

LB-302MP3F: DescriptionSmart/Normal 7 Seg Numeric LED Display, Green, 7.62mm; Categoryphotoelectric; File Size54KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LB-302MP3F Overview

Smart/Normal 7 Seg Numeric LED Display, Green, 7.62mm

LB-302MP3F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Reach Compliance Code	compliant
Is Samacsys	N
color	GREEN
Configuration	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	7.62 mm
Maximum forward current	0.02 A
JESD-609 code	e1
Number of functions	2
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Base Number Matches	1

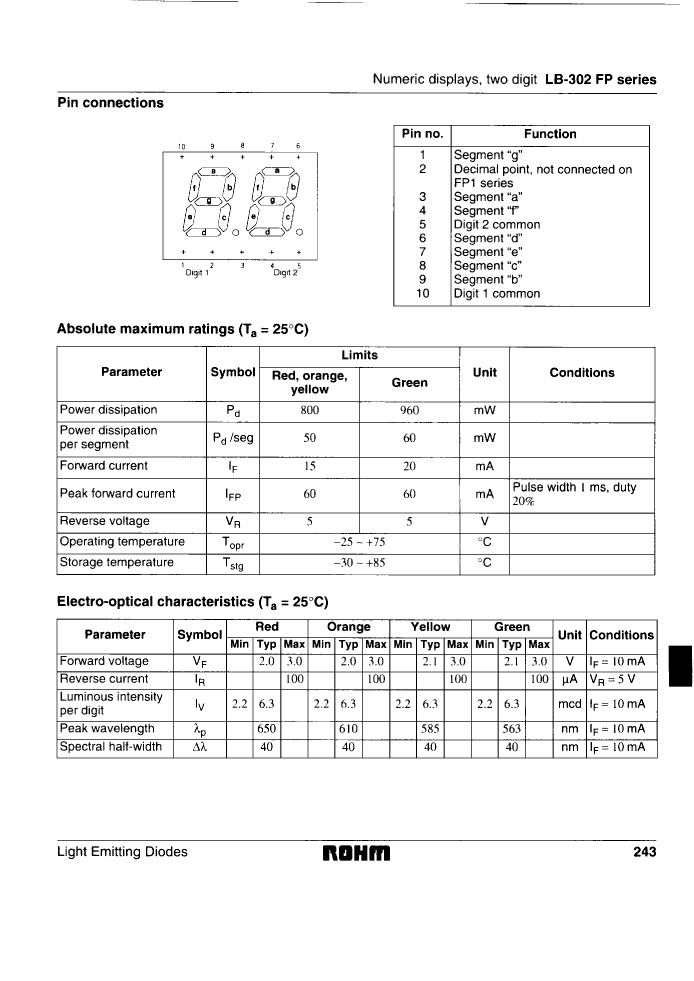

Preview

Download Datasheet

View All

LB-302MP3F Related Products

	LB-302MP3F	LB-302DP3F	LB-302VF3F	LB-302YF3F	LB-302DF3F	LB-302YP3F	LB-302MF3F
Description	Smart/Normal 7 Seg Numeric LED Display, Green, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Orange, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Red, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Yellow, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Orange, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Yellow, 7.62mm	Smart/Normal 7 Seg Numeric LED Display, Green, 7.62mm
Reach Compliance Code	compliant	unknown	compliant	unknown	unknown	unknown	compliant
color	GREEN	ORANGE	RED	YELLOW	ORANGE	YELLOW	GREEN
Configuration	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maximum forward current	0.02 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.02 A
Number of functions	2	2	2	2	2	2	2
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Maker	ROHM Semiconductor	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
