LGT676-P2R1-24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > photoelectric> LGT676-P2R1-24

LGT676-P2R1-24: DescriptionSINGLE COLOR LED, GREEN, 2.4mm, ROHS COMPLIANT, PLASTIC, SMT, LCC-2; Categoryphotoelectric; File Size1MB，21 Pages; ManufacturerOsram Opto Semiconductor; Websitehttps://www.osram.com/index-2.jsp; Environmental Compliance

Download Datasheet Parametric Compare View All

LGT676-P2R1-24 Overview

SINGLE COLOR LED, GREEN, 2.4mm, ROHS COMPLIANT, PLASTIC, SMT, LCC-2

LGT676-P2R1-24 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Osram Opto Semiconductor
package instruction	ROHS COMPLIANT, PLASTIC, SMT, LCC-2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	SUPPORTS INFRARED
color	GREEN
color@wavelength	Green-Yellow
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.4 V
JESD-609 code	e2
Lens type	COLORLESS CLEAR
Nominal luminous intensity	98.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.8 mm
method of packing	TAPE AND REEL
peak wavelength	572 nm
Maximum reverse voltage	12 V
shape	ROUND
size	2.4 mm
surface mount	YES
Terminal surface	Tin/Nickel (Sn/Ni)
Terminal pitch	3 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

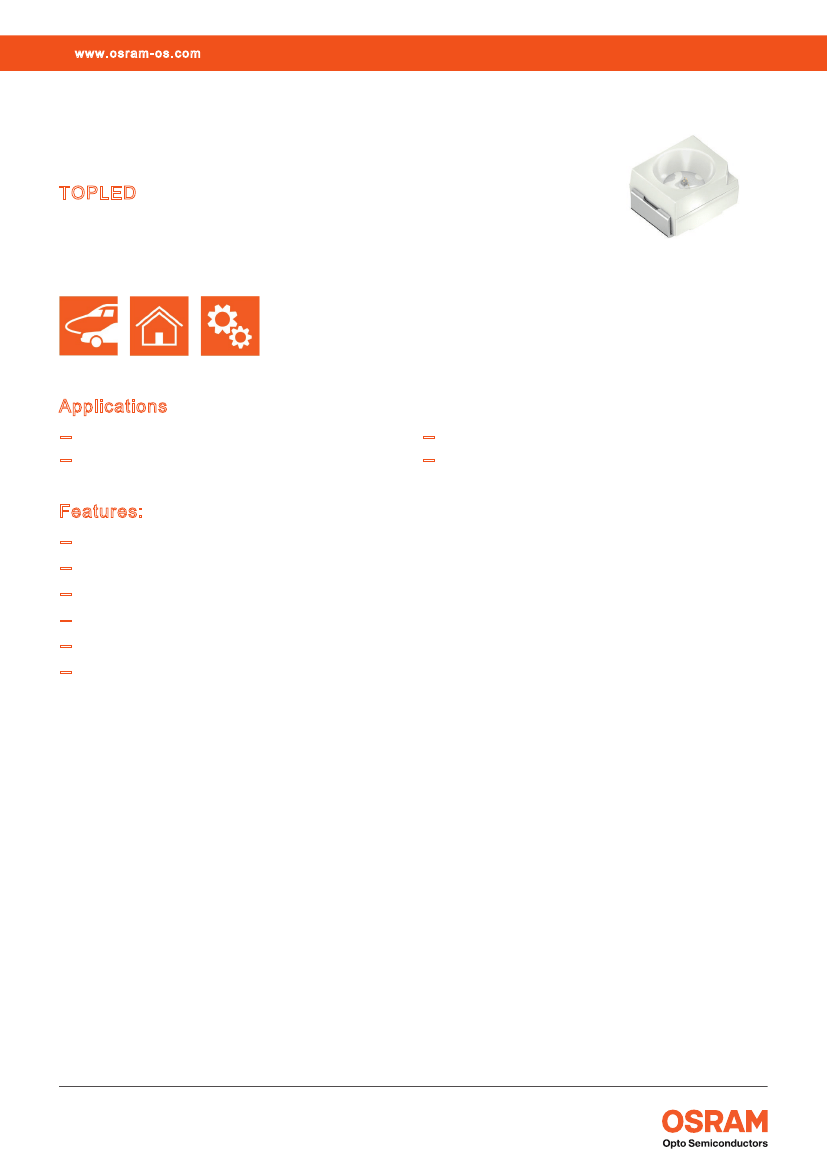

Produktdatenblatt | Version 1.1

LG T676

www.osram-os.com

LG T676

TOPLED

TOPLED, SMT LED with integrated reflector. With

our great experience in SMT LED we are able to of-

fer a high quality product for all kind of applications.

Applications

—

Cluster, Button Backlighting

—

Electronic Equipment

—

Interior Illumination e.g. Ambient Map

—

White Goods

Features:

—

Package: white PLCC-2 package, colorless clear resin

—

Chip technology: InGaAlP

—

Typ. Radiation: 120° (Lambertian emitter)

—

Color:

dom

= 570 nm (● green)

—

Corrosion Robustness Class: 3B

—

ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM)

Version 1.3

| 2018-03-26
