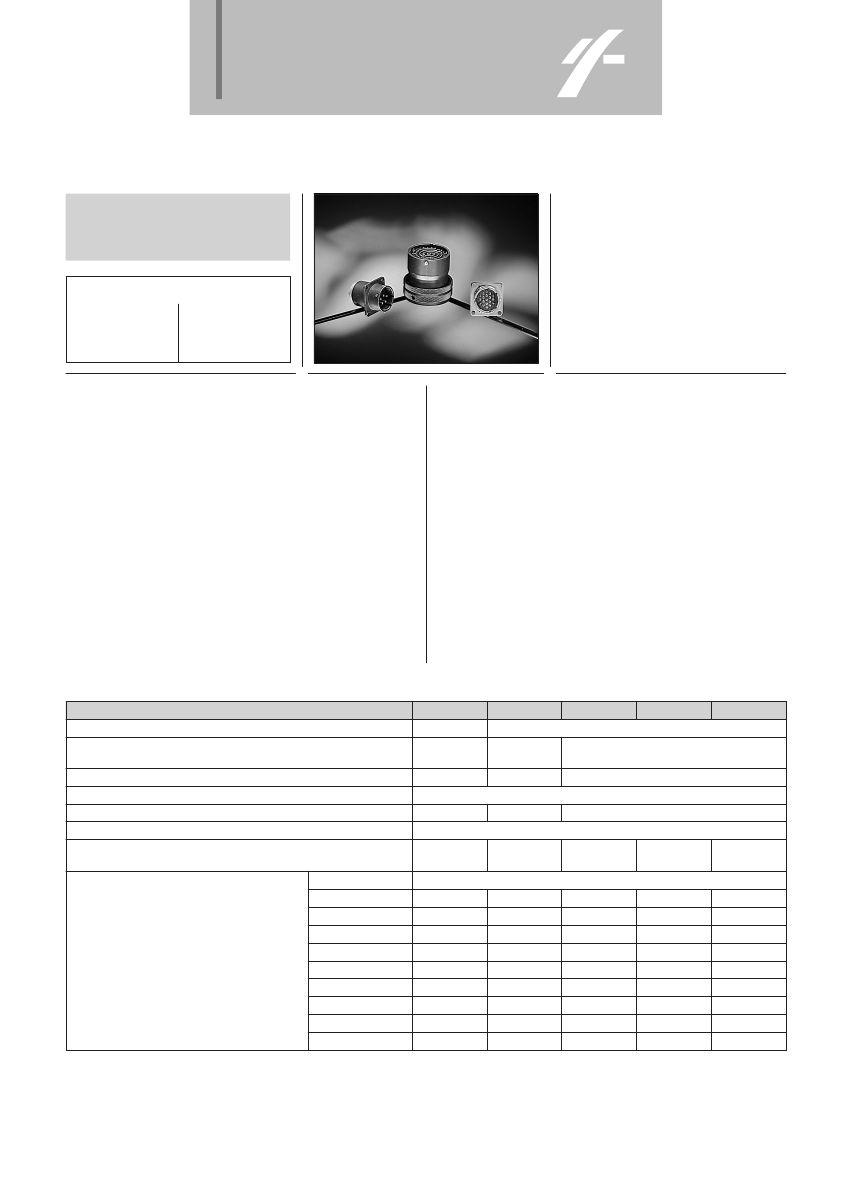

souriau
8F51/8AF51
8F526/8AF526
Applications
- Military
- Aeronautical
- Industrial
Description
8F51
and
8F526
circular filter connectors are
widely used in industrial, military and
aeronautical applications. They are suitable
for severe operating conditions.
They are intermeatable and interchangeable
as to the mounting with standard connectors
of the same series.
8AF51
and
8AF526
adaptors are the solution
to easily retrofit existing non filtered
<equipments.
Standards
Standards
8F51/8AF51 Series
MIL-C 26482 G series 1
NFC 93422, HE 301 B
BS 9522 - F 17
VG 95328
8F526/8AF526 Series
Mil-C 26482 G series 2
NFC 93422, HE 312
EL 2112 Pattern 602
NAS 1599
Characteristics
Mechanical
8F51/8AF51 and 8F526/8AF526 connectors are fitted with tubular
filters.
• Shells : alluminium alloy, olive green cadmium or nickel plated.
• Insulators : thermo-setting plastic.
• Interfacial and peripheral seals :
8F51/8AF51 : neoprene
8F526/8AF526 : fluoro-silicone rubber.
• Contacts : machined copper alloy, gold plated, 1.27 micron min. gold
over 2 microns min. nickel on contact area.
Contact retention force : 70 N min.
Environmental
Temperature -55°C
¨
125°C - MIL - STD 1344, method 1003,
condition A - NFC 20714
Sealing
leakage < 16 cm
3
/h - NFC 20717 Essai Qa - mated
connectors, with differential pressure of 2 bars
Humidity
10 cycles 24 h - MIL - STD 1344, method 1002, type II
except step 7b - NFC 20703
Salt spray
• 48 h-G and L plating - MIL - STD 1344, method 1001,
condition B - NFC 20711
• 500 h-W plating - MIL - STD 1344, method 1001,
condition C
Durability
500 cycles - mating/unmating
Vibration
• 15 g (8F51/8AF51) - MIL - STD 1344, method 2005,
condition III - NFC 20706
• 43,92 Grms (8F526) - MIL - STD 202, method 214,
condition II, letter J
Shock
• 50 g - 11 ms (8F51/8AF51) - MIL - STD 1344,
method 2004, condition A - NFC 20727
• 300 g - 3 ms (8F526) - MIL - STD 1344, method 2004,
condition D
Electrical and filter types
Filter designation
Filter type
Max. voltage rating
Max. current rating
Insulation resistance, 25°C, 2mn electrification time
DWV, sea level, 25°C, 50 mA max. charge/discharge
Contact resistance
Capacitance at 1kHz : 0.1Vrms at 25°C
frequency (MHz)
0.1
0.3
1
Attenuation per MIL-STD-220 at 25°C
(with no applied voltage or current,
in 50
Ω
system)
3
10
30
100
300
1000
4
11
22
29
38
44
50
50
50
2
7
18
35
55
60
60
2
7
18
35
55
60
60
3
10
22
50
55
55
2
10
25
40
50
100 000 pF
min
500 Vdc
B
C filter
200 Vdc
120 Vac
7.5 A
360 Vdc
220 Vac
13 A
900 Vdc
7,5 mΩ max.
6 000 pF to 6 000 pF to
12 000 pF
12 000 pF
2 300 pF to
5 000 pF
1
500 pF to
1 300 pF
M ( # 16)
M ( # 20)
π
filter
200 Vdc
120 Vac rms 400 Hz
7.5 A
500 Vdc
T
H
> 5 000 MΩ (under 100 Vdc)
minimum attenuation (dB)
The capacitance, insulation resistance and dielectric withstanding voltage are tested 100% on all contacts.
Note : • M filter is the most popular filter. If you require other filter types, indicate the maximum operating voltage, maximum capacitance and minimum attenuation
required at various frequencies.
• B filter is substancialy more expensive than other filters.
411
souriau
8F51/8AF51
8F526/8AF526
Ordering information
Connector
basic series
• 8F51 :
MIL-C 26482 series 1, HE 301 B type
• 8F526 :
MIL-C 26482 series 2, HE 312 type
8F526 07
G
20
41
P
1
N
M - ***
shell type :
plating :

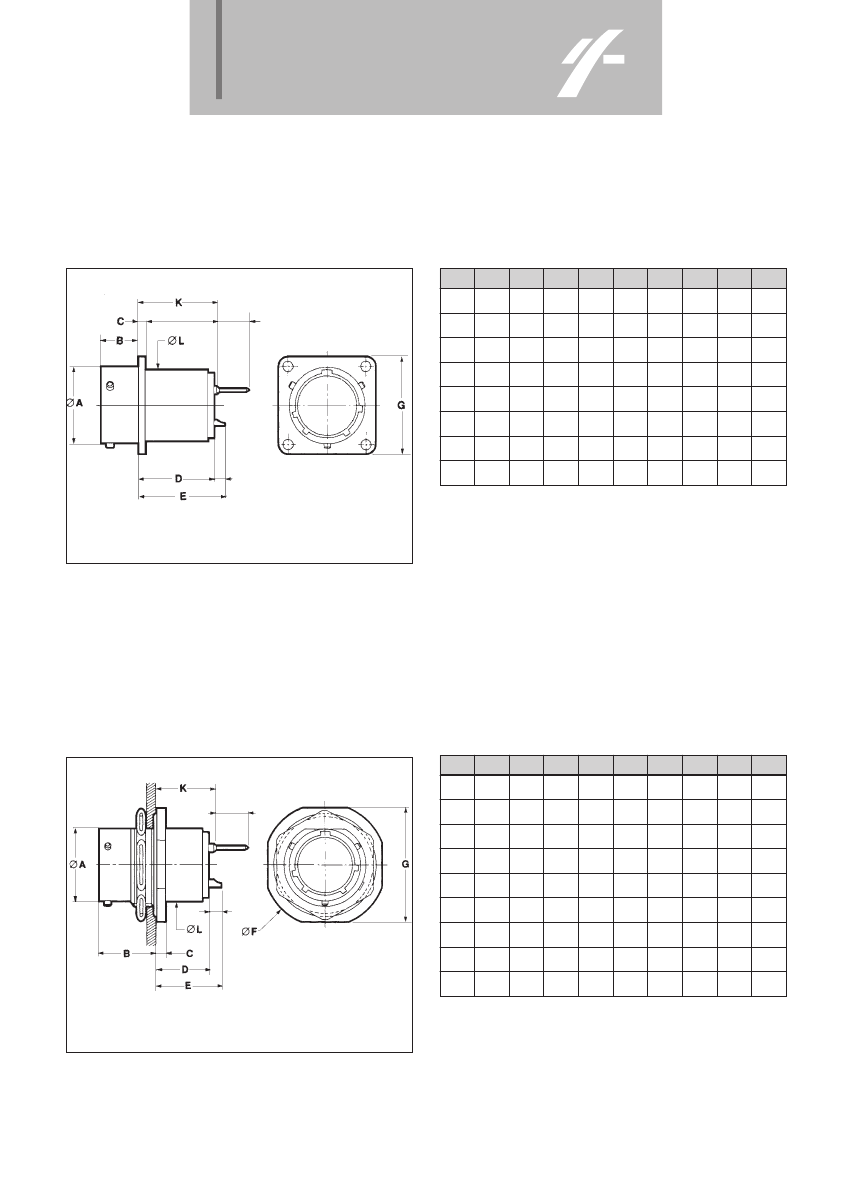

00 -
square flange receptacle
07 -
jam nut receptacle
G -
olive green cadmium (standard)
W -
olive green cadmium (salt spray 500 h)
L -
nickel
- 10-12-14-16-18-20-22-24
shell size :
contact layout :
type contact :
termination

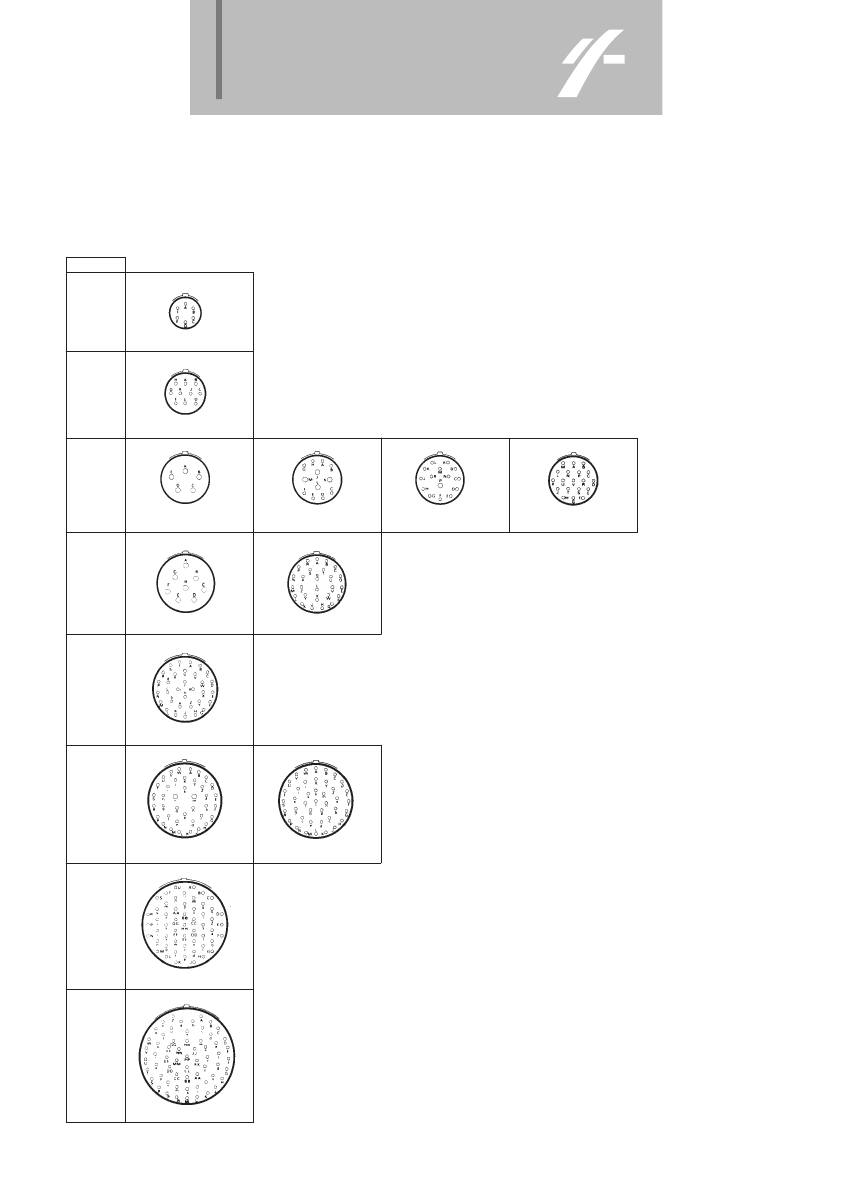

see table page 413
P -
pin
S -
socket
without indication -
solder bucket
1 -
straight spill
orientation
filter type
special modifiers
- N-W-X-Y-Z
- B-M-T-H
-
partially loaded filter connector (with ground or non-filtered contacts)
-
connector with different types of filters (in this case the preceding letter does not appear)
-
non-standard filters

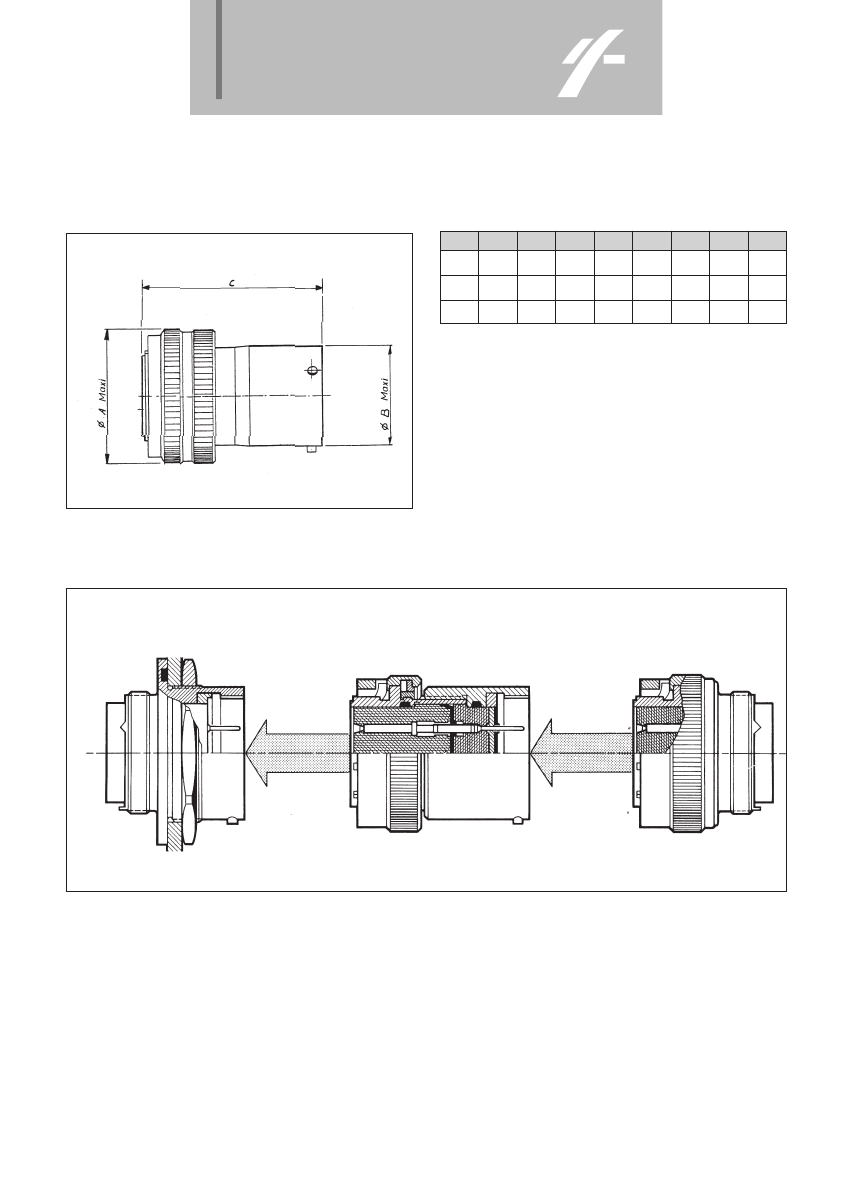

Adaptor
basic series
• 8AF51 :
MIL-C 26482 series 1, HE 301 B type
• 8AF526 :
MIL-C 26482 series 2, HE 312 type
8AF526 20
20 -
adaptor versions - bayonnet locking
G -
olive green cadmium (standard)
W -
olive green cadmium (salt spray 500 h)
L -
nickel
- 10-12-14-16-18-20-22-24
G
20
41
P
N
M
- ***
shell type :
plating :
shell size :
contact layout :
type contact :
(
see table page 413)
P -
pin
S -
socket
Indicate contact type of mating receptacle
- N-W-X-Y-Z
- B-M-T-H
-
partially loaded filter adaptor (with ground or non-filtered contact)
-
adaptor with different types of filters (in this case the preceding letter does not appear)
-
non-standard filters
orientation
filter type
special modifiers
412
