LM2CY08W

Description
Single Color LED, Yellow, Water Clear, 5.65mm, ROHS COMPLIANT PACKAGE-2
Categoryphotoelectric
File Size177KB,4 Pages
ManufacturerSUNLED
Websitehttp://www.sunled.com/
Environmental Compliance
Download Datasheet Parametric View All

LM2CY08W Overview

Single Color LED, Yellow, Water Clear, 5.65mm, ROHS COMPLIANT PACKAGE-2

LM2CY08W Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSUNLED
package instructionROHS COMPLIANT PACKAGE-2
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresIC COMPATIBLE
colorYELLOW
ConfigurationSINGLE
Maximum forward current0.03 A
Lens typeWATER CLEAR
Nominal luminous intensity1990.0 mcd
Installation featuresRADIAL MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSINGLE COLOR LED
total height7.6 mm

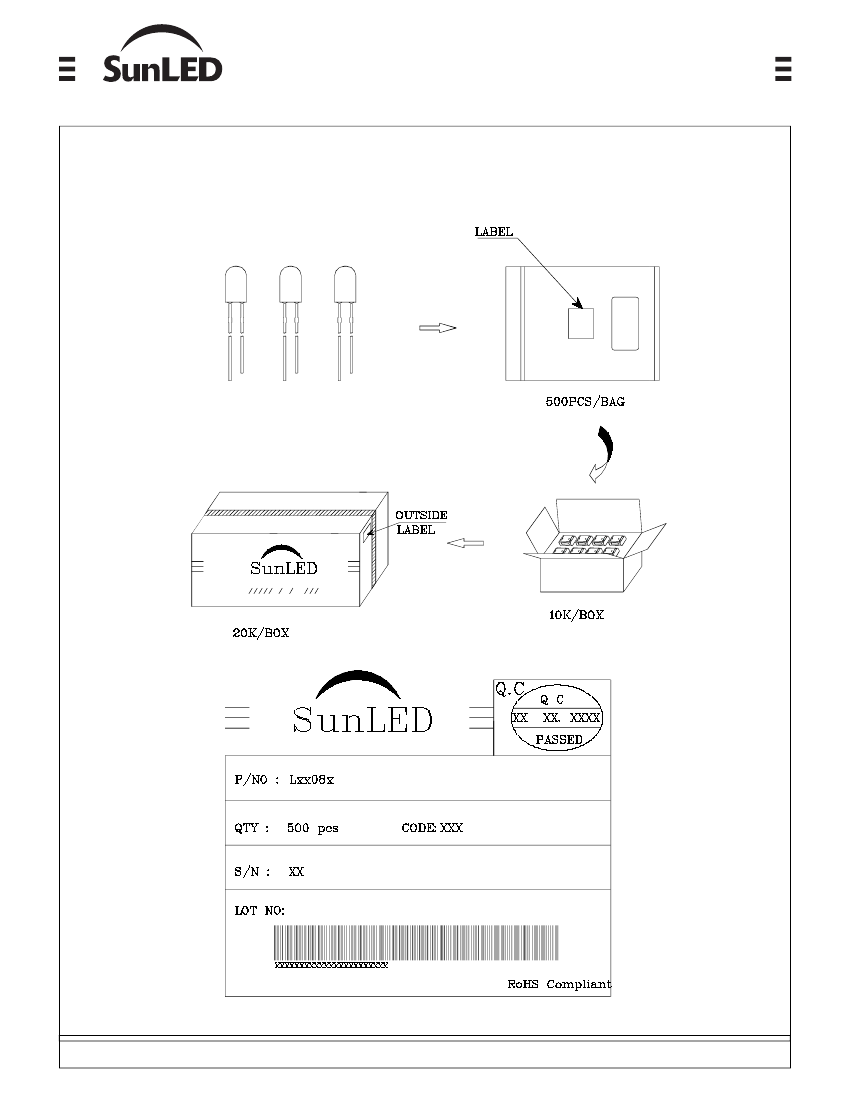

method of packingBOX/BAG
peak wavelength590 nm
shapeOVAL
size5.65 mm
surface mountNO
Terminal pitch2.54 mm
perspective60 deg
Base Number Matches1
Part Number:
www.SunLED.com
LM2CY08W

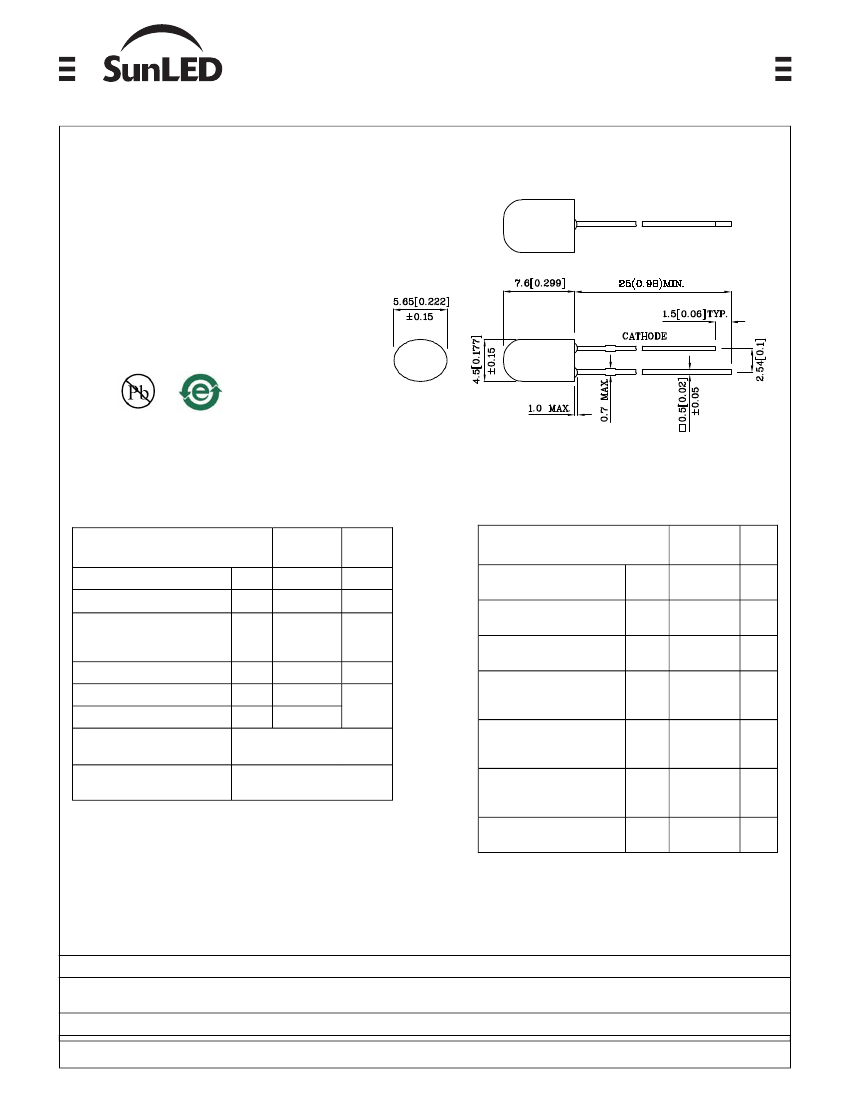

OVAL LED LAMP
PRELIMINARY SPEC
Features
●ULTRA
BRIGHTNESS.
●OUTSTANDING
MATERIAL EFFICIENCY.
●RELIABLE
AND RUGGED.
●IC
COMPATIBLE/LOW CURRENT CAPABILITY.
●RoHS
COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
3.Specifications are subject to change without notice.
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
Lead Solder Temperature
[2mm Below Package Base]
Lead Solder Temperature
[5mm Below Package Base]
V
R
I
F
i
FS
P
T
T
A
Tstg
M2CY
(AlInGaP)
5
30
140
84
-40 ~ +85
-40 ~ +85
Unit
V
mA
mA
mW
°C

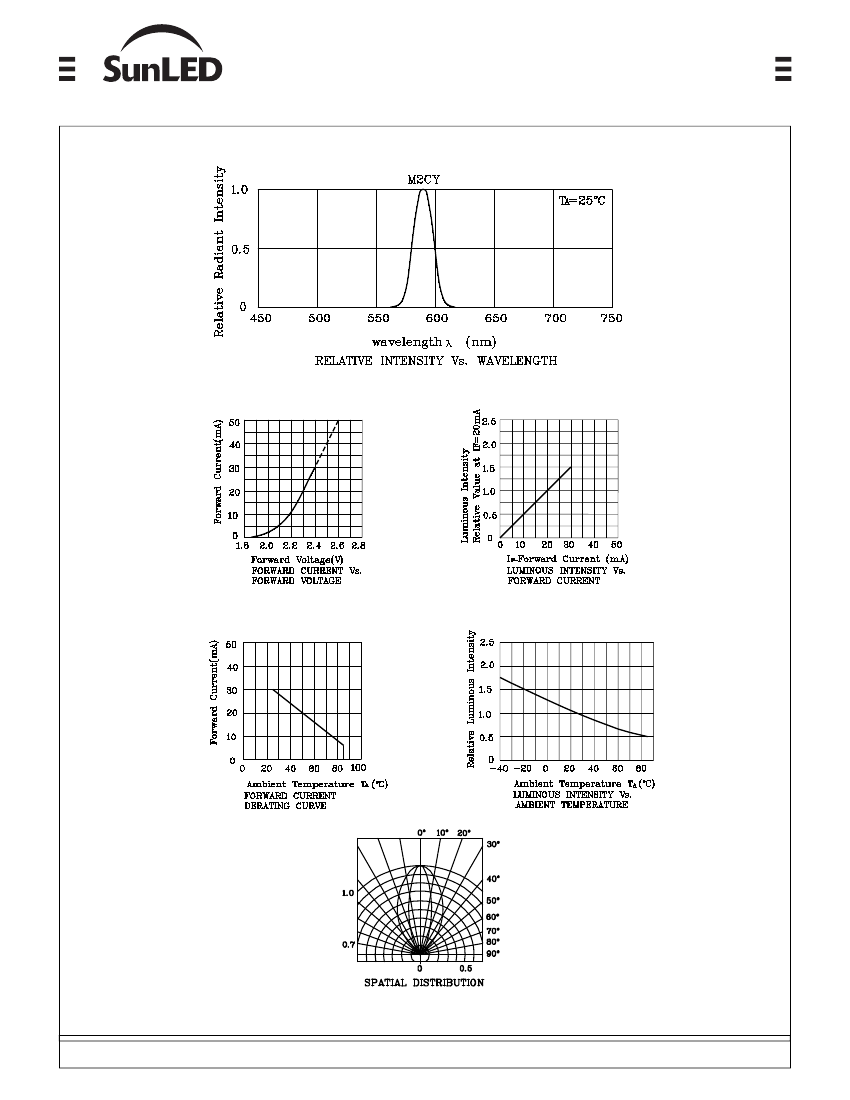

Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.)
(I
F
=20mA)
Forward Voltage (Max.)
(I
F
=20mA)
Reverse Current (Max.)
(V
R
=5V)
Wavelength of Peak
Emission (Typ.)
(I
F
=20mA)
Wavelength of Dominant
Emission (Typ.)
(I
F
=20mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=20mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
V
F
V
F
I
R
M2CY
(AlInGaP)
2.3
2.8
10
Unit
V
V
uA
λ
P
590
nm
260°C For 3 Seconds
260°C For 5 Seconds
λ
D
589
nm
Δλ
20
nm
C
45
pF
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Luminous
Intensity
(IF=20mA)
mcd
min.
typ.
1990
Wavelength
nm
λ
P
Viewing
Angle
2
θ
1/2
LM2CY08W
Yellow
AlInGaP
Water Clear
900
590
30°(H)
60°(V)
Published Date : MAR 22,2008
Drawing No : SDSA6535
V1
Checked : B.L.LIU
P.1/4
