LH1525AT datasheet, PDF - EEWORLD Datasheet

LH1525AT: DescriptionTransistor Output SSR, 1-Channel, 3750V Isolation; Categoryphotoelectric Solid state relay; File Size267KB，7 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

LH1525AT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LH1525AT	-	-	View	Buy Now

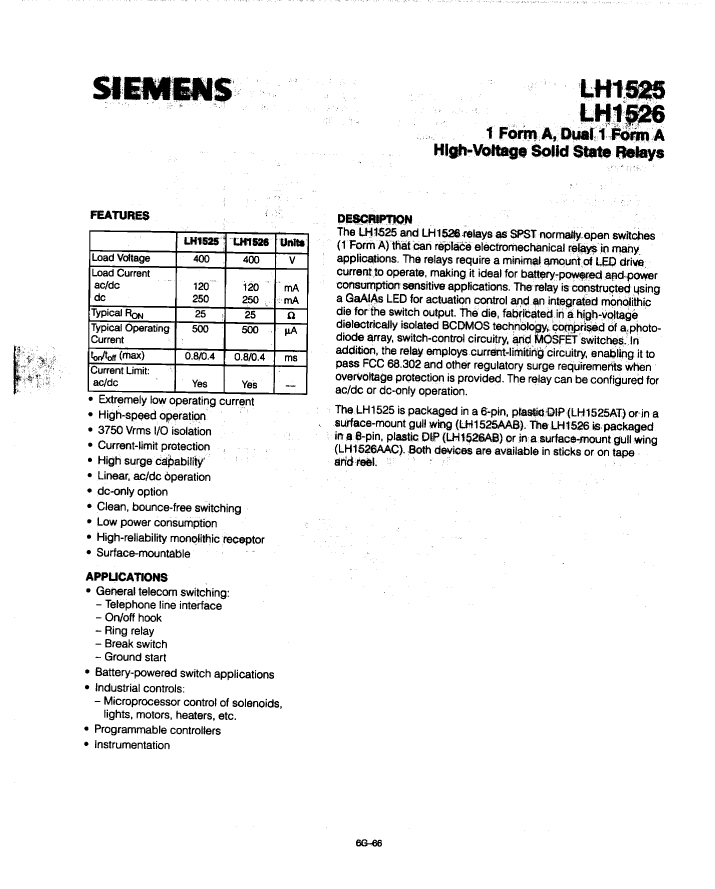

Transistor Output SSR, 1-Channel, 3750V Isolation

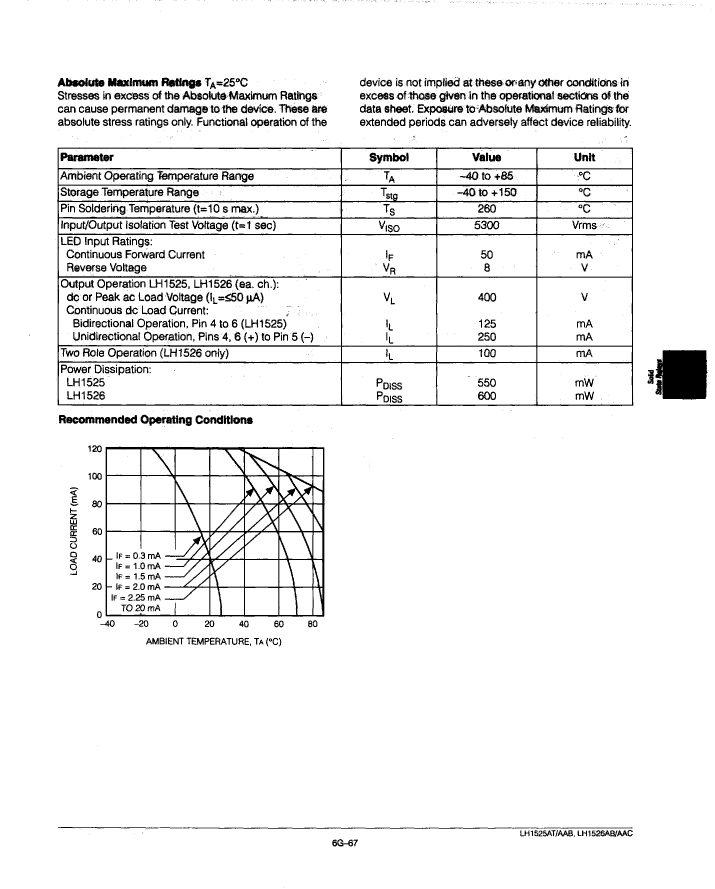

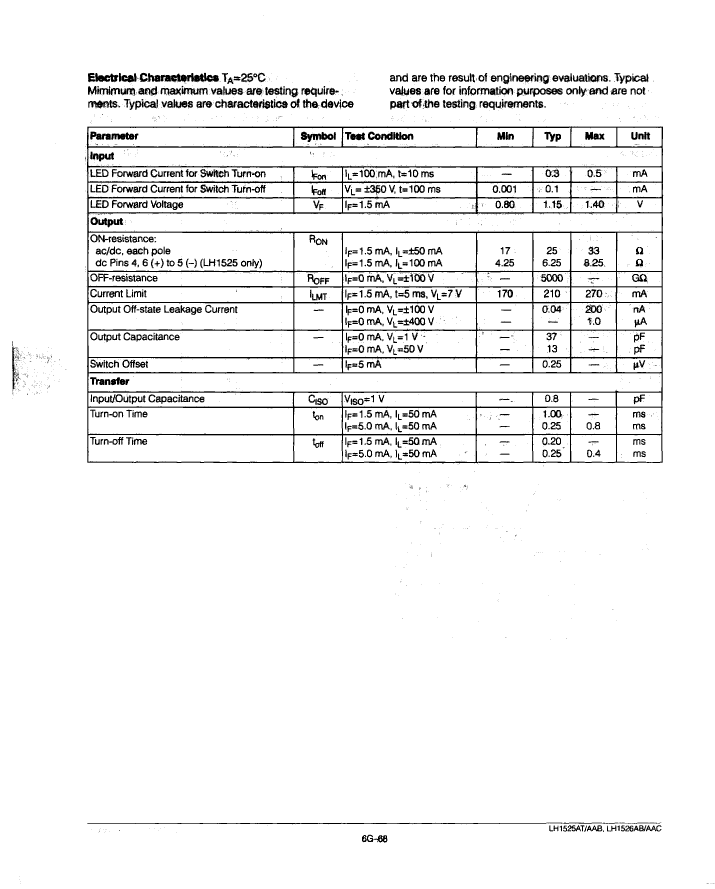

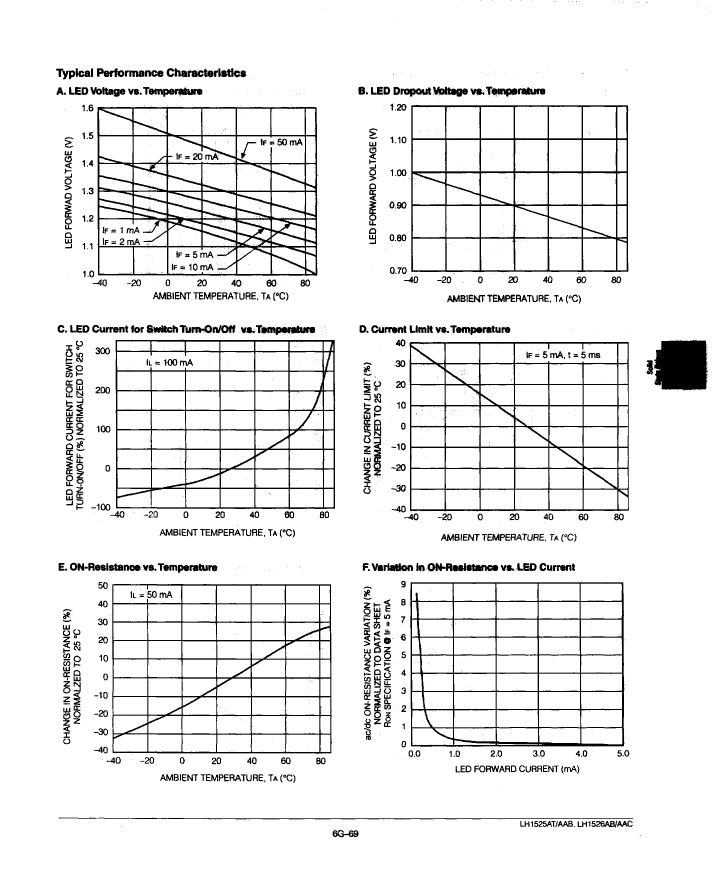

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknown
Is Samacsys	N
Configuration	SINGLE

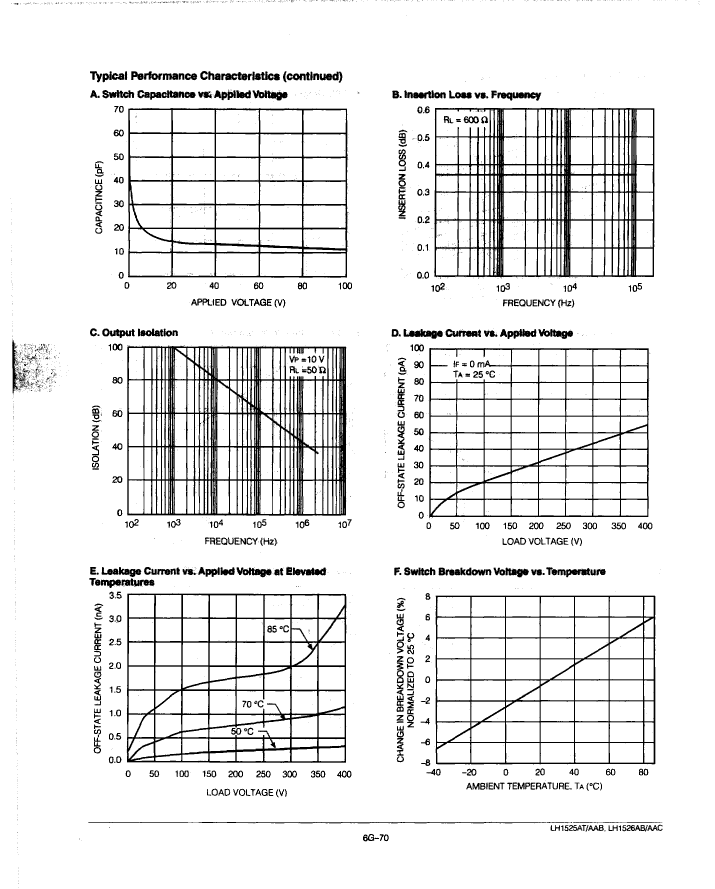

Maximum insulation voltage	3750 V
Number of components	1
Maximum on-state current	0.12 A
Maximum on-state resistance	33 Ω
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Base Number Matches	1

	LH1525AT	LH1526AAC-TR	LH1526AB	LH1526AAC	LH1525AAB-TR	LH1525AAB
Description	Transistor Output SSR, 1-Channel, 3750V Isolation	Transistor Output SSR, 2-Channel, 5300V Isolation	Transistor Output SSR, 2-Channel, 3750V Isolation	Transistor Output SSR, 2-Channel, 5300V Isolation	Transistor Output SSR, 1-Channel, 5300V Isolation	Transistor Output SSR, 1-Channel, 5300V Isolation
Maker	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SINGLE	SINGLE
Maximum insulation voltage	3750 V	5300 V	3750 V	5300 V	5300 V	5300 V
Number of components	1	2	2	2	1	1
Maximum on-state current	0.12 A	0.1 A	0.09 A	0.1 A	0.125 A	0.125 A
Maximum on-state resistance	33 Ω	33 Ω	33 Ω	33 Ω	33 Ω	33 Ω
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Other features	-	HIGH RELIABILITY	-	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Maximum forward current	-	0.05 A	-	0.05 A	0.05 A	0.05 A
Maximum operating temperature	-	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-	-40 °C	-40 °C	-40 °C
