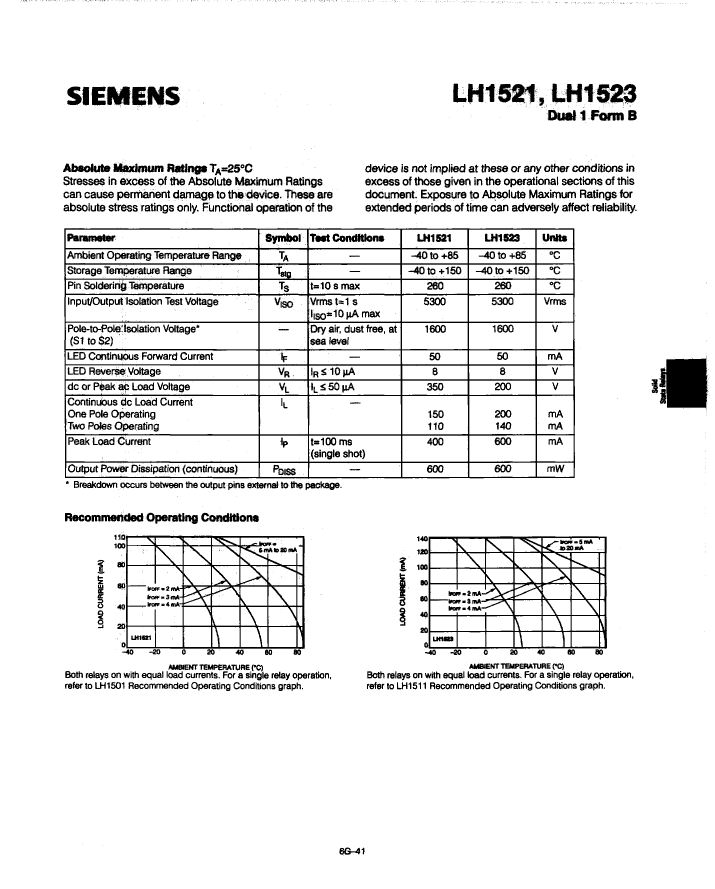

LH1521AAC-TR Overview

Transistor Output SSR, 2-Channel, 5300V Isolation

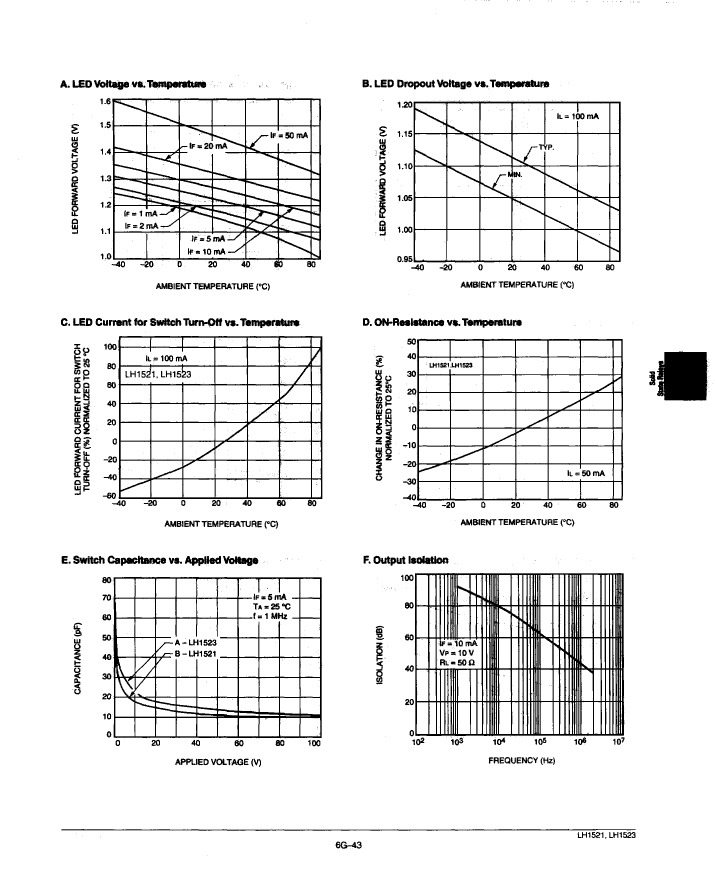

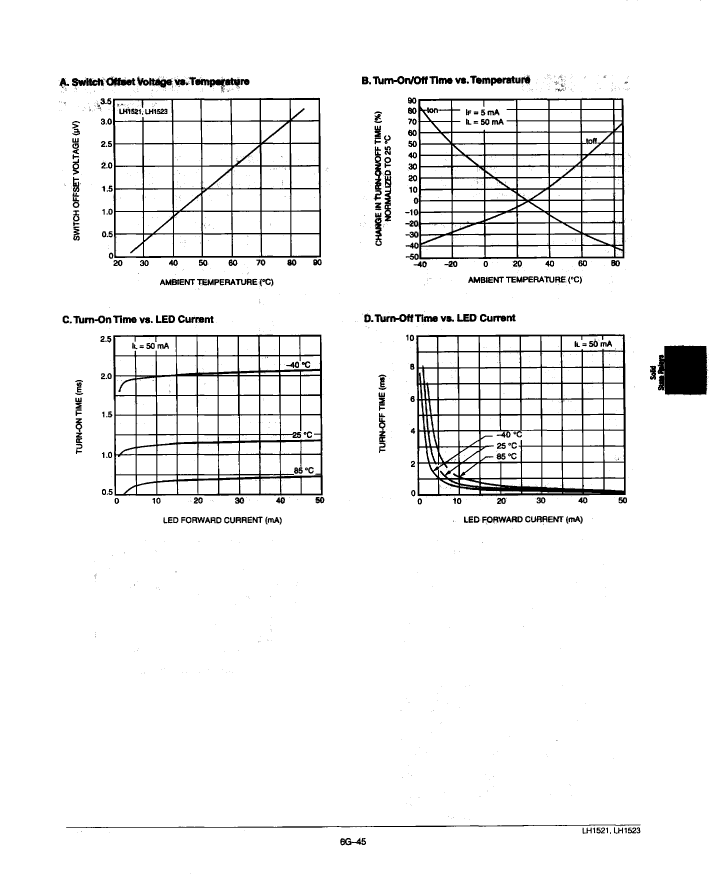

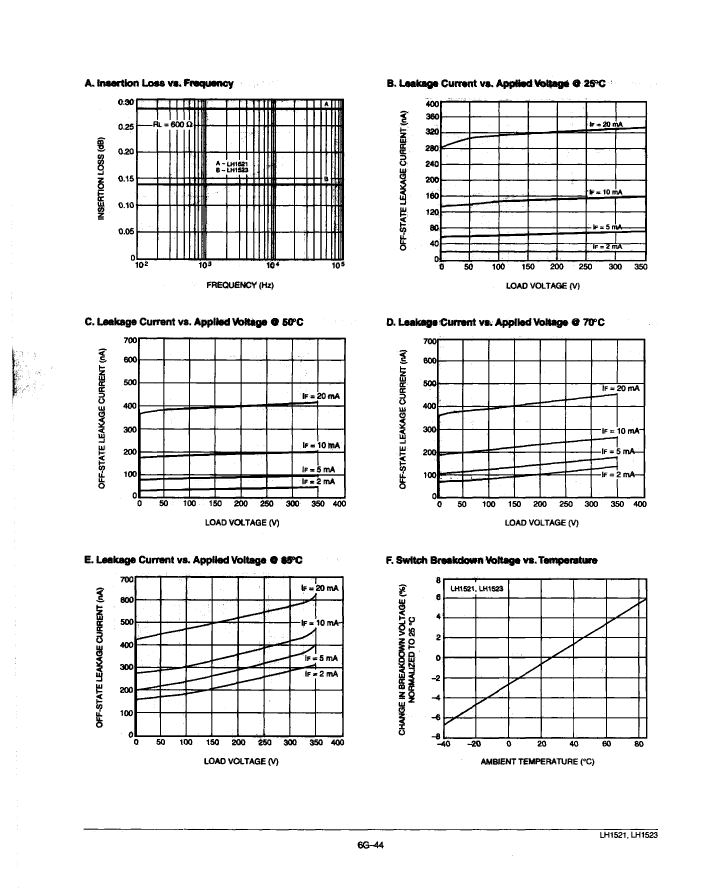

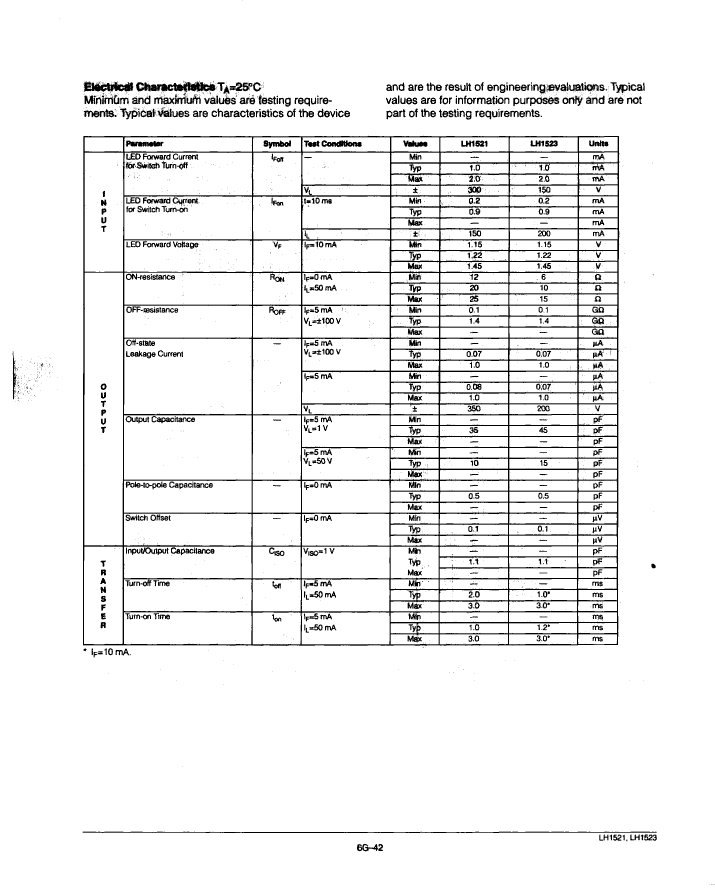

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknown
Is Samacsys	N
Other features	UL RECOGNIZED, LOGIC COMPATIBLE, HIGH RELIABILITY
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.05 A
Maximum insulation voltage	5300 V
Number of components	2
Maximum on-state current	0.15 A
Maximum on-state resistance	25 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Base Number Matches	1

	LH1521AAC-TR	LH1523AAC	LH1523AAC-TR	LH1521AB	LH1523AB	LH1521AAC
Description	Transistor Output SSR, 2-Channel, 5300V Isolation	Transistor Output SSR, 2-Channel, 5300V Isolation	Transistor Output SSR, 2-Channel, 5300V Isolation	Transistor Output SSR, 2-Channel, 5300V Isolation	Transistor Output SSR, 2-Channel, 5300V Isolation	Transistor Output SSR, 2-Channel, 5300V Isolation
Maker	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	UL RECOGNIZED, LOGIC COMPATIBLE, HIGH RELIABILITY	UL RECOGNIZED, LOGIC COMPATIBLE, HIGH RELIABILITY	UL RECOGNIZED, LOGIC COMPATIBLE, HIGH RELIABILITY	UL RECOGNIZED, LOGIC COMPATIBLE, HIGH RELIABILITY	UL RECOGNIZED, LOGIC COMPATIBLE, HIGH RELIABILITY	UL RECOGNIZED, LOGIC COMPATIBLE, HIGH RELIABILITY
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	5300 V	5300 V	5300 V	5300 V	5300 V	5300 V
Number of components	2	2	2	2	2	2
Maximum on-state current	0.15 A	0.2 A	0.2 A	0.15 A	0.2 A	0.15 A
Maximum on-state resistance	25 Ω	15 Ω	15 Ω	25 Ω	15 Ω	25 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
