LH1521AACTR

Description
Transistor Output SSR, 2-Channel, 5300V Isolation, GULLWING, SMD, 8 PIN
Categoryphotoelectric    Solid state relay
File Size514KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

LH1521AACTR Overview

Transistor Output SSR, 2-Channel, 5300V Isolation, GULLWING, SMD, 8 PIN

LH1521AACTR Parametric

Parameter NameAttribute value
MakerVishay
package instructionGULLWING, SMD, 8 PIN
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresHIGH RELIABILITY, UL RECOGNIZED, VDE APPROVED
ConfigurationSEPARATE, 2 ELEMENTS
Maximum forward current0.05 A
Maximum insulation voltage5300 V
Number of components2
Maximum on-state current0.11 A
Maximum on-state resistance25 Ω
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Optoelectronic device typesTRANSISTOR OUTPUT SSR
Base Number Matches1
LH1521AB/AAC/AACTR
Dual 1 Form B
State Relay
FEATURES
• Dual Channel (LH1501)
• l/O Isolation, 5300 V
RMS
• Typical
R
ON
20
• Load Voltage 350 V
• Load Current 150 mA
• High Surge Capability
• Linear, AC/DC Operation
• Clean Bounce Free Switching
• Low Power Consumption
• High Reliability Monolithic Receptor
• SMD Lead Available on Tape and Reel
• Equivalent to CPC1035N
• UL 52744 Recognition
• BABT/BSI Certified
AGENCY APPROVALS
UL – File No. E52744
CSA – Certification 093751
BSI/BABT Cert. No. 7980
VDE 0884 Approval
FIMKO Approval
SMD
Pin one I.D.

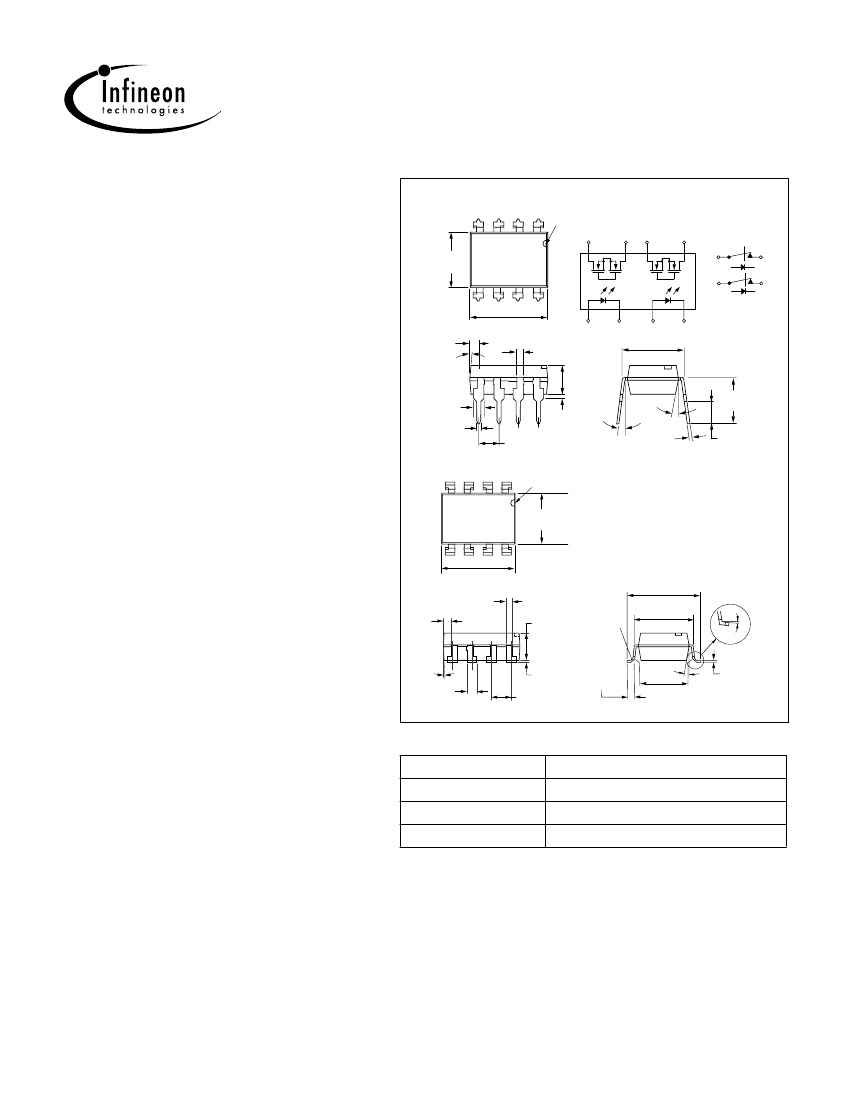

Package Dimensions in Inches (mm)
DIP
pin one ID
4
.268 (6.81)
.255 (6.48)
5
6
7
8
3
2
1
S1
8
S1'
7
S2
6
S2'
5
S1
S1'
S2
S2'
.390 (9.91)
.379 (9.63)
.045 (1.14)
.030 (0.76)
4° typ.
.031 (0.79)
1
2
3
4
.300 (7.62)
typ.
.150 (3.81)
.130 (3.30)
.050 (1.27)
.022 (.56)
.018 (.46)
.035 (.89)
.020 (.51)
.100 (2.54) typ.
10°
3°–9°
.012 (.30)
.008 (.20)
.130 (3.30)
.110 (2.79)
.250 (6.35)
.230 (5.84)
.268 (6.81)
.255 (6.48)
APPLICATIONS
• General Telecom Switching
– On/off Hook Control
– Ring Delay
– Dial Pulse
– Ground Start
– Ground Fault Protection
• Instrumentation
• Industrial Controls
DESCRIPTION
The LH1521 dual 1 Form B relays are SPST normally
closed switches that can replace electromechanical
relays in many applications. They are constructed using
a GaAIAs LED for actuation control and an integrated
monolithic die for the switch output. The die, fabricated
in a high-voltage dielectrically isolated technology is
comprised of a photodiode array, switch control cir-
cuitry, and MOSFET switches.
.390 (9.91)
.379 (9.63)
.031 (.79)
typ.
.150 (3.81)
.130 (3.30)
.395 (10.03)
.375 (9.52)
.312 (7.80)
.298 (7.52)
.045 (1.14)
.030 (0.78)
Radius
3
°
to 7
°
typ.
.050
(1.27)
typ.
.008 (.25)
.004 (.10) .040 (1.02)
.020 (.51)
.100 (2.54)
typ.
10°
.315
(8.00)
typ.
.010
(2.54)
typ.
Part Identification
Part Number
LH1521AB
LH1521AAC
LH1521AACTR
Description
8-pin DIP, Tubes
8-pin SMD, Gullwing, Tubes
8-pin SMD, Gullwing, Tape and Reel
2000 Infineon Technologies Corp. • Optoelectronics Division • San Jose, CA
www.infineon.com/opto • 1-888-Infineon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG • Regensburg, Germany
www.osram-os.com • +49-941-202-7178
1
March 30, 2000-14

LH1521AACTR Related Products

LH1521AACTR LH1521AB LH1521AAC
Description Transistor Output SSR, 2-Channel, 5300V Isolation, GULLWING, SMD, 8 PIN Transistor Output SSR, 2-Channel, 5300V Isolation, DIP-8 Transistor Output SSR, 2-Channel, 5300V Isolation, GULLWING, SMD, 8 PIN
Maker Vishay Vishay Vishay
package instruction GULLWING, SMD, 8 PIN DIP-8 GULLWING, SMD, 8 PIN
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Other features HIGH RELIABILITY, UL RECOGNIZED, VDE APPROVED HIGH RELIABILITY, UL RECOGNIZED, VDE APPROVED HIGH RELIABILITY, UL RECOGNIZED, VDE APPROVED
Configuration SEPARATE, 2 ELEMENTS SEPARATE, 2 ELEMENTS SEPARATE, 2 ELEMENTS
Maximum forward current 0.05 A 0.05 A 0.05 A
Maximum insulation voltage 5300 V 5300 V 5300 V
Number of components 2 2 2
Maximum on-state current 0.11 A 0.11 A 0.11 A
Maximum on-state resistance 25 Ω 25 Ω 25 Ω
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Optoelectronic device types TRANSISTOR OUTPUT SSR TRANSISTOR OUTPUT SSR TRANSISTOR OUTPUT SSR
