LH1521AB/AAC/AACTR
Dual 1 Form B
State Relay
FEATURES
• Dual Channel (LH1501)
• l/O Isolation, 5300 V
RMS
• Typical
R
ON
20
Ω
• Load Voltage 350 V
• Load Current 150 mA
• High Surge Capability
• Linear, AC/DC Operation
• Clean Bounce Free Switching
• Low Power Consumption
• High Reliability Monolithic Receptor
• SMD Lead Available on Tape and Reel
• Equivalent to CPC1035N
• UL 52744 Recognition
• BABT/BSI Certified
AGENCY APPROVALS
•
•
•
•
•
UL – File No. E52744
CSA – Certification 093751
BSI/BABT Cert. No. 7980
VDE 0884 Approval
FIMKO Approval
SMD
Pin one I.D.

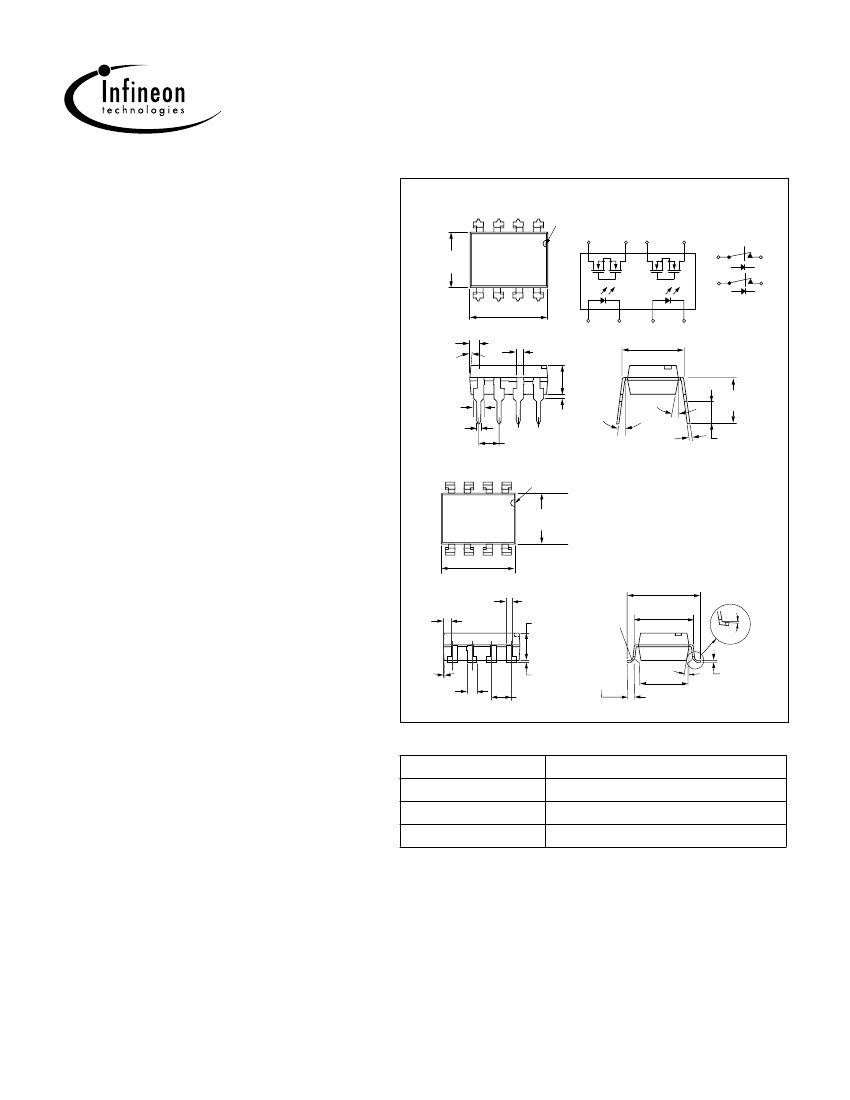

Package Dimensions in Inches (mm)
DIP
pin one ID
4
.268 (6.81)
.255 (6.48)
5
6
7
8
3
2
1
S1
8
S1'
7
S2
6
S2'
5
S1
S1'
S2
S2'
.390 (9.91)
.379 (9.63)
.045 (1.14)
.030 (0.76)
4° typ.
.031 (0.79)
1
2
3
4
.300 (7.62)
typ.
.150 (3.81)
.130 (3.30)
.050 (1.27)
.022 (.56)
.018 (.46)
.035 (.89)
.020 (.51)
.100 (2.54) typ.
10°
3°–9°
.012 (.30)
.008 (.20)
.130 (3.30)
.110 (2.79)
.250 (6.35)
.230 (5.84)
.268 (6.81)
.255 (6.48)
APPLICATIONS
• General Telecom Switching
– On/off Hook Control
– Ring Delay
– Dial Pulse
– Ground Start
– Ground Fault Protection
• Instrumentation
• Industrial Controls
DESCRIPTION
The LH1521 dual 1 Form B relays are SPST normally
closed switches that can replace electromechanical
relays in many applications. They are constructed using
a GaAIAs LED for actuation control and an integrated
monolithic die for the switch output. The die, fabricated
in a high-voltage dielectrically isolated technology is
comprised of a photodiode array, switch control cir-
cuitry, and MOSFET switches.
.390 (9.91)
.379 (9.63)
.031 (.79)
typ.
.150 (3.81)
.130 (3.30)
.395 (10.03)
.375 (9.52)
.312 (7.80)
.298 (7.52)
.045 (1.14)
.030 (0.78)
Radius
3
°
to 7
°
4°
typ.
.050
(1.27)
typ.
.008 (.25)
.004 (.10) .040 (1.02)
.020 (.51)
.100 (2.54)
typ.
10°
.315
(8.00)
typ.
.010
(2.54)
typ.
Part Identification
Part Number
LH1521AB
LH1521AAC
LH1521AACTR
Description
8-pin DIP, Tubes
8-pin SMD, Gullwing, Tubes
8-pin SMD, Gullwing, Tape and Reel
2000 Infineon Technologies Corp. • Optoelectronics Division • San Jose, CA
www.infineon.com/opto • 1-888-Infineon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG • Regensburg, Germany
www.osram-os.com • +49-941-202-7178
1
March 30, 2000-14
Recommended Operating Conditions
LOAD CURRENT (mA)
110
100
80
60
I
FOFF
=5.0–20 mA
40
20
I
FOFF
=2.0 mA
I
FOFF
=3.0 mA
I
FOFF
=4.0 mA
–20
0
20
40
60
80
Absolute Maximum Ratings,
T
A
=25
°
C
Stresses in excess of the absolute Maximum Ratings can cause permanent
damage to the device. These are absolute stress ratings only. Functional oper-
ation of the device is not implied at these or any other conditions in excess of
those given in the operational sections of this document. Exposure to absolute
Maximum Ratings for extended periods of time can adversely affect reliability.
0
–40
AMBIENT TEMPERATURE (°C)
Both relays on with equal load currents.
For a single relay operation, refer to LH1501 Recommended
Operating Conditions graph.
Ambient Temperature Range (
T
A
) .................................... –40 to +85
°
C
Storage Temperature Range (
T
stg
) ................................. –40 to +150
°
C
Pin Soldering Temperature (t=10 s max) (
T
S
) ............................. 260
°
C
Input/Output Isolation Voltage
(t=1.0 s,
I
ISO
=10
µ
A max) (
V
ISO
) ....................................... 5300
V
RMS
Pole-to-Pole Isolation Voltage (S1 to S2)*
(dry air, dust free, at sea level) ................................................. 1600 V
LED Continuous Forward Current (
I
F
) .........................................50 mA
LED Reverse Voltage (
I
R
≤
10
µ
A) (
V
R
)........................................... 8.0 V
DC or Peak AC Load Voltage (
I
L
≤
50
µ
A) (
V
L
) .............................. 350 V
Continuous DC Load Current (
I
L
)
One Pole Operating.................................................................150 mA
Two Poles Operating ...............................................................110 mA
Peak Load Current (t=100 ms) (single shot) (
I
P
) ......................400 mA
Output Power Dissipation (continuous) (
P
DISS
)........................ 600 mW
* Breakdown occurs between the output pins external to the package.
Electrical Characteristics,
T
A
=25
°
C
Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of
engineering evaluations. Typical values are for information only and are not part of the testing requirements.
Parameter
Input
LED Forward Current, Switch Turn-on
LED Forward Current, Switch Turn-off
LED Forward Voltage
Output
ON-resistance
OFF-resistance
Off-state Leakage Current
I
Fon
I
Foff
V
F
0.2
—
1.15
0.9
1.0
1.22
—
2.0
1.45
mA
mA
V
Ω
G
Ω
µ
A
µ
A
pF
I
L
=±150 mA, t=10 ms
V
L
±300 V
I
F
=10 mA
I
F
=0 mA,
I
L
=50 mA
I
F
=5.00 mA,
V
L
=±100 V
I
F
=5.0 mA,
V
L
=±100 V
I
F
=5.0 mA,
V
L
=±350 V
I
F
=5.0 mA,
V
L
=1.0 V
I
F
=5.0 mA,
V
L
=50 V
pF
µ
V
I
F
=0 mA
I
F
=0 mA
V
ISO
=1.0 V
I
F
=5.0 mA,
I
L
=50 mA
I
F
=5.0 mA,
I
L
=50 mA
Sym.
Min.
Typ.
Max.
Units
Test Conditions
R
ON
R
OFF
—
12
0.1
—
—
20
1.4
0.07
0.08
35
10
0.5
0.1
25
—
1.0
1.0
—
—
—
—
Output Capacitance
—
—
—
Pole-to-Pole Capacitance
Switch Offset
Transfer
Input/Output Capacitance
Turn-on Time
Turn-off Time
—
—
—
—
C
ISO
t
on
t
off
—
—
—
1.1
2.0
1.0
—
3.0
3.0
pF
ms
ms
2000 Infineon Technologies Corp. • Optoelectronics Division • San Jose, CA
www.infineon.com/opto • 1-888-Infineon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG • Regensburg, Germany
www.osram-os.com • +49-941-202-7178
LH1521AB/AAC/AACTR
2
March 30, 2000-14
Typical Performance Characteristics

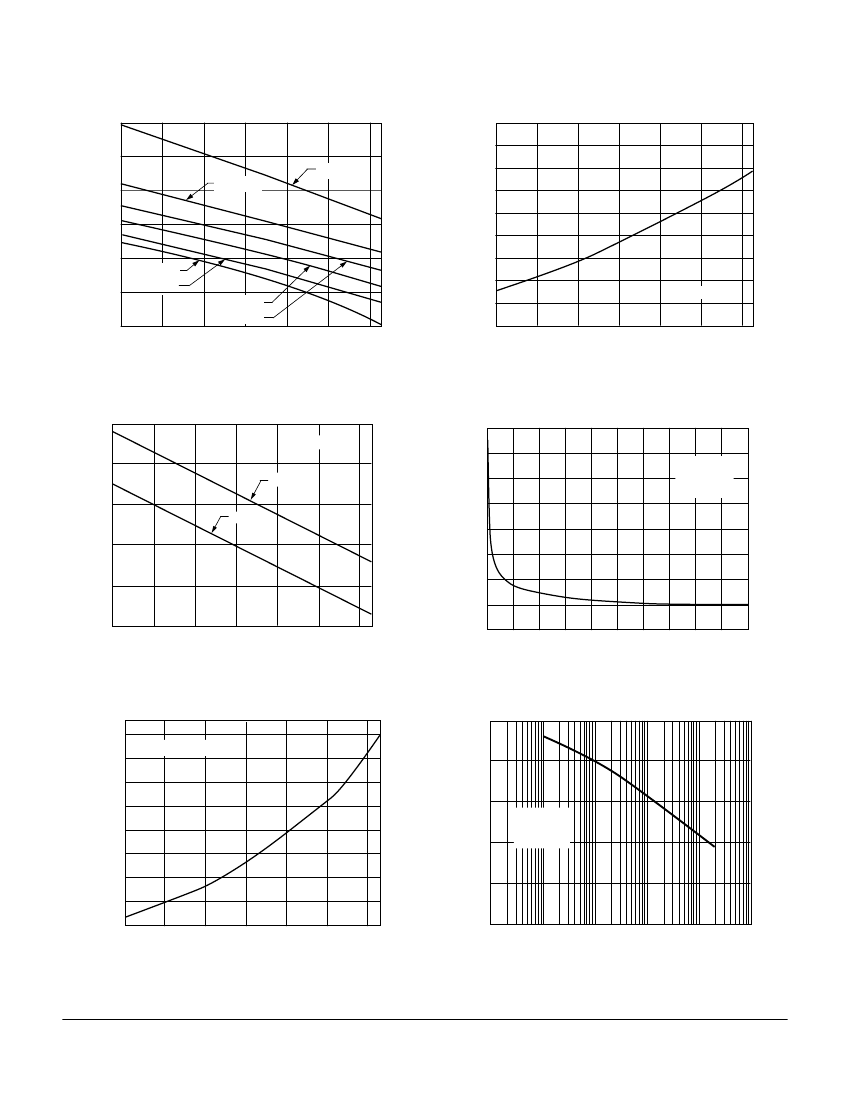

Figure 1. LED Voltage vs. Temperature
1.6
CHANGE IN ON-RESISTANCE (%)
NORMALIZED TO 25°C
LED FORWARD VOLTAGE (V)
1.5
I
F
=50 mA
1.4
1.3
1.2
I
F
=1.0 mA
1.1 I
F
=2.0 mA
1.0
–40
I
F
=5.0 mA
I
F
=10 mA
–20
0
20
40
60
80
I
F
=20 mA
Figure 4. On-resistance vs. Temperature
50
40
30
20
10
0
–10
–20
–30
–40
–40
–20
0
20
40
I
L
=50 mA
60
80
AMBIENT TEMPERATURE (°C)
AMBIENT TEMPERATURE (°C)
Figure 2. LED Dropout Voltage vs. Temperature
1.20
LED FORWARD VOLTAGE (V)
I
L
=100 mA
1.15
Figure 5. Switch Capacitance vs. Applied Voltage
80
70
CAPACITANCE (pF)
60
50
40
30
20
10
I
F
=5.0 mA
T
A
=25°C
f=1 MHz
TYP.
1.10
MIN.
1.05
1.00
0.95
–40
–20
0
20
40
60
80
0
0
20
40
60
80
100
APPLIED VOLTAGE (V)
AMBIENT TEMPERATURE (°C)
Figure 3. LED Current for Switch Turn-off vs. Temperature
LED FORWARD CURRENT FOR SWITCH
TURN-OFF (%) NORMALIZED TO 25°C
100
I
L
=100 mA
80
Figure 6. Output Isolation
100
80
ISOLATION (dB)
60
40
20
0
–20
–40
–60
–40
60
I
F
=10 mA
V
P
=10 V
R
L
=50
Ω
40
20
0
–20
0
20
40
60
80
10
2
10
3
10
4
10
5
10
6
10
7
AMBIENT TEMPERATURE (°C)
FREQUENCY (Hz)
2000 Infineon Technologies Corp. • Optoelectronics Division • San Jose, CA
www.infineon.com/opto • 1-888-Infineon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG • Regensburg, Germany
www.osram-os.com • +49-941-202-7178
LH1521AB/AAC/AACTR
3
March 30, 2000-14
Figure 7. Insertion Loss vs. Frequency
0.30
0.25
Figure 10. Leakage Current vs. Applied Voltage at 70
°
C
OFF-STATE LEAKAGE CURRENT (nA)
700
600
500
400
300
200
100
0
I
F
=10 mA
I
F
=5.0 mA
I
F
=2.0 mA
0
50
100
150
200
250
300
350
400
I
F
=20 mA
INSERTION LOSS (dB)
R
L
=600
Ω
0.20
0.15
0.10
0.05
0
10
2
10
3
10
FREQUENCY (Hz)
4
10
5
LOAD VOLTAGE (V)
Figure 8. Leakage Current vs. Applied Voltage at 25
°
C
OFF-STATE LEAKAGE CURRENT (nA)
400
360
320
280
240
200
160
120
80
40
0
0
50
10
15
20
250
300
350
LOAD VOLTAGE (V)
I
F
=5.0 mA
I
F
=2.0 mA
I
F
=10 mA
Figure 11. Leakage Current vs. Applied Voltage at 85
°
C
OFF-STATE LEAKAGE CURRENT (nA)
700
600
500
400
300
200
100
0
0
50
100
150
200
I
F
=10 mA
I
F
=5.0 mA
I
F
=2.0 mA
250
300
350
400
I
F
=20 mA
I
F
=20 mA
LOAD VOLTAGE (V)
Figure 9. Leakage Current vs. Applied Voltage at 50
°
C
OFF-STATE LEAKAGE CURRENT (nA)
700
600
500
I
F
=20 mA
400
300
200
100
0
0
50
100
150
200
250
300
350
400
LOAD VOLTAGE (V)
I
F
=10 mA
I
F
=5.0 mA
I
F
=2.0 mA
Figure 12. Switch Breakdown Voltage vs. Temperature
CHANGE IN BREAKDOWN VOLTAGE (%)
NORMALIZED TO 25°C
8
6
4
2
0
–2
–4
–6
–8
–40
–20
0
20
40
60
80
AMBIENT TEMPERATURE (°C)
2000 Infineon Technologies Corp. • Optoelectronics Division • San Jose, CA
www.infineon.com/opto • 1-888-Infineon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG • Regensburg, Germany
www.osram-os.com • +49-941-202-7178
LH1521AB/AAC/AACTR
4
March 30, 2000-14
Figure 13. Switch Offset Voltage vs. Temperature
3.5
SWITCH OFFSET VOLTAGE (µV)
3.0
2.5
2.0
1.5
1.0
0.5
0
20
30
40
50
60
70
80
90
AMBIENT TEMPERATURE (°C)
Figure 16. Turn-off Time vs. LED Current
10
8
I
L
=50 mA
TURN-OFF TIME (ms)
6
4
2
0
0
10
–40°C
25°C
85°C
20
30
40
50
LED FORWARD CURRENT (mA)
Figure 14. Turn-on/off Time vs. Temperature
90
80
70
60
50
40
30
20
10
0
–10
–20
–30
–40
–50
–40
CHANGE IN TURN-ON/OFF TIME (%)
NORMALIZED TO 25°C
I
F
=5.0 mA
I
L
=50 mA
t
on
t
off
–20
0
20
40
60
80
AMBIENT TEMPERATURE (°C)
Figure 15. Turn-on Time vs. LED Current
2.5
IL=50 mA
–40°C
TURN-ON TIME (ms)
2.0
1.5
25°C
1.0
85°C
0.5
0
10
20
30
40
50
LED FORWARD CURRENT (mA)
2000 Infineon Technologies Corp. • Optoelectronics Division • San Jose, CA
www.infineon.com/opto • 1-888-Infineon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG • Regensburg, Germany
www.osram-os.com • +49-941-202-7178
LH1521AB/AAC/AACTR
5
March 30, 2000-14
京公网安备 11010802033920号
EEWORLD
