CFP5623-0150F: DescriptionCard Edge Connector, 23 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,; CategoryThe connector; File Size157KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/; Environmental Compliance

Download Datasheet Parametric View All

CFP5623-0150F Overview

Card Edge Connector, 23 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator,

CFP5623-0150F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	SMK
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	LOW PROFILE, ZIF
body width	0.11 inch
subject depth	0.122 inch
body length	0.63 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	100VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.3876 mm
Rated current (signal)	0.3 A
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	23
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

Preview

Download Datasheet

View All

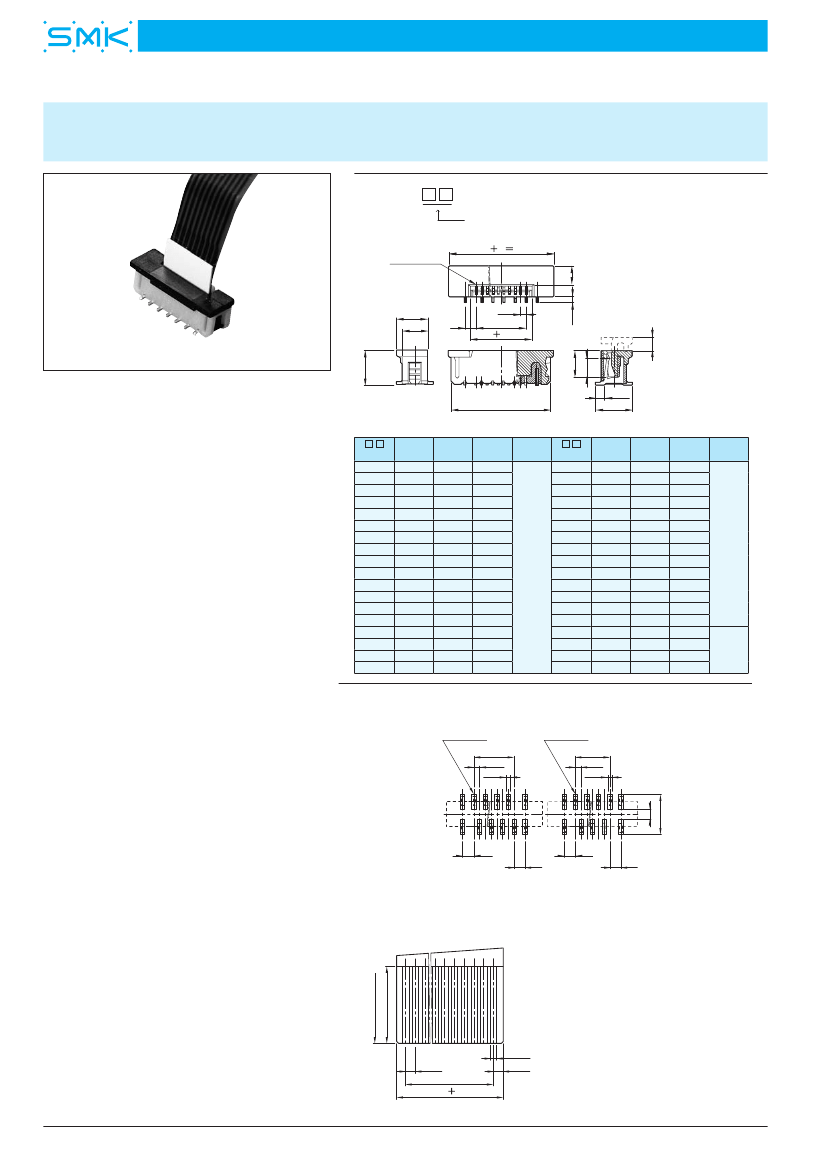

FPC Connectors

FP-5V

Series

0.5mm Pitch, Vertical Type (SMT)

●

CFP56

-0150F

No. of Pins /

極数

A

5

C

1.7

2.8

2.3

1

0.5

A

A 1.05

0.5

Pin No.1

2.35

1.65

D

■

Features

1. Low profile of 3.1mm (5 to 36pins) and 3.5mm

(37 to 40pins) height when mounted.

2. Supplied in the embossed taping with automatic

mounter, with a sucking space provided (without

sucking tape).

*

Please contact us about No. of pins.

3. Our structure to hold the FPC temporary,

provides easy operability.

4. Using the ZIF structure.

A

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

8.5

9.0

9.5

10.0

10.5

B

0.8

3.3

No. of Pins

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

22

B

6.5

7.0

7.5

8.0

8.5

9.0

9.5

10.0

10.5

11.0

11.5

12.0

12.5

13.0

13.5

14.0

14.5

15.0

C

7.0

7.5

8.0

8.5

9.0

9.5

10.0

10.5

11.0

11.5

12.0

12.5

13.0

13.5

14.0

14.5

15.0

15.5

D

No. of Pins

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

A

11.0

11.5

12.0

12.5

13.0

13.5

14.0

14.5

15.0

15.5

16.0

16.5

17.0

17.5

18.0

18.5

19.0

19.5

1.2

B

15.5

16.0

16.5

17.0

17.5

18.0

18.5

19.0

19.5

20.0

20.5

21.0

21.5

22.0

22.5

23.0

23.5

24.0

C

16.0

16.5

17.0

17.5

18.0

18.5

19.0

19.5

20.0

20.5

21.0

21.5

22.0

22.5

23.0

23.5

24.0

24.5

D

3.1

■

Specification

1. Rating : 0.3A, 50V AC/DC

2. Contact Resistance : 30mΩ max., initially

3. Insulation Resistance : 100MΩ min. at 100V DC

4. Withstanding Voltage : 100V AC (for one minute)

5. Operating Temperature Range : –40˚C to +85˚C

3.1

3.5

■

Material and Plating

Housing : Thermoplastic Resin, Natural Color, 94V-0

●

Cover : Thermoplastic Resin, Black, 94V-0

●

Contact : Cu Alloy, Au Plating

●

■

P.C. Board Dimension

取付基板参考図

Pin No.1

A

0.5

0.4

Pin No.1

A

0.5

0.4

■ 特　　長

1. 実装高さは 3.1mm 〜 36P）

（5

、3.5mm

（37 〜 40P）

の½背タイプです。

2. カバーには吸着スペースを設けてあり、自動

マウンタ対応でエンボステーピング方式による

供給です（吸着テープ不要）

。

※極数については別途お問い合わせ下さい。

1

Even Number

1

Odd Number

3. FPC 仮保持機構により、操½性を高めています。

4. ZIF 構造を採用しています。

■

Applicable FPC Dimension

■ 仕　　様

適合 FPC 参考寸法

(t=0.3±0.05)

Reinforcement

plate 4 min.

3 min.

1. 定格電圧電流：AC/DC 50V 0.3A

2. 接触抵抗：初期 30mΩ 以下

3. 絶縁抵抗：DC 100V 100MΩ 以上

4. 耐　電　圧：AC 100V（1 分間）

5. ½用温度範囲：–40℃〜

+85℃

FPC plating to recommend : Au Plating

推奨 FPC めっき：金めっき

●

■ 材質・表面処理

●

カ　

ハウジング：熱可塑性樹脂原色 94V-0

バ　ー：熱可塑性樹脂黒色 94V-0

●

コンタクト：銅合金金めっき

0.5

A

(A 1)

0.35

0.5

16

1

3.7
