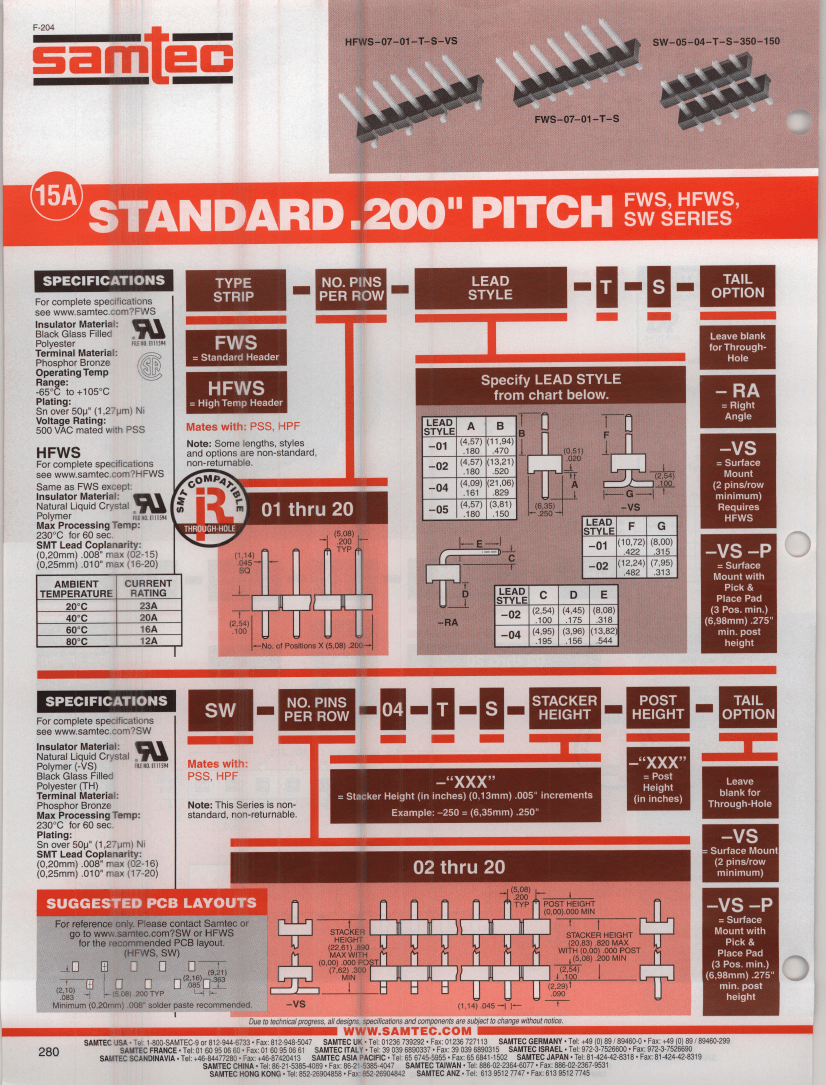

FWS-05-02-T-S-VS-P datasheet, PDF

FWS-05-02-T-S-VS-P: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle,; CategoryThe connector; File Size4MB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FWS-05-02-T-S-VS-P Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	PICK & PLACE PAD
body width	0.25 inch
subject depth	0.2 inch
body length	1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Terminal pitch	5.08 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
Base Number Matches	1
