BF054E0105KDB: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 100V, 1uF, THROUGH HOLE MOUNT, RADIAL LEADED; Categorycapacitor; File Size336KB，19 Pages; ManufacturerAVX

Download Datasheet Parametric View All

BF054E0105KDB Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 100V, 1uF, THROUGH HOLE MOUNT, RADIAL LEADED

BF054E0105KDB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AVX
package instruction	, 3024
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Other features	RATED AC VOLTAGE (V): 63
capacitance	1 µF
Capacitor type	FILM CAPACITOR
Custom functions	Other Tolerance Value On Request
dielectric materials	POLYESTER
high	12 mm
JESD-609 code	e0
length	7.5 mm
Manufacturer's serial number	BF05
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	TR, PLASTIC
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
series	BF/Q05( E)
size code	3024
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	5.08 mm
Terminal shape	WIRE
width	6 mm
Base Number Matches	1

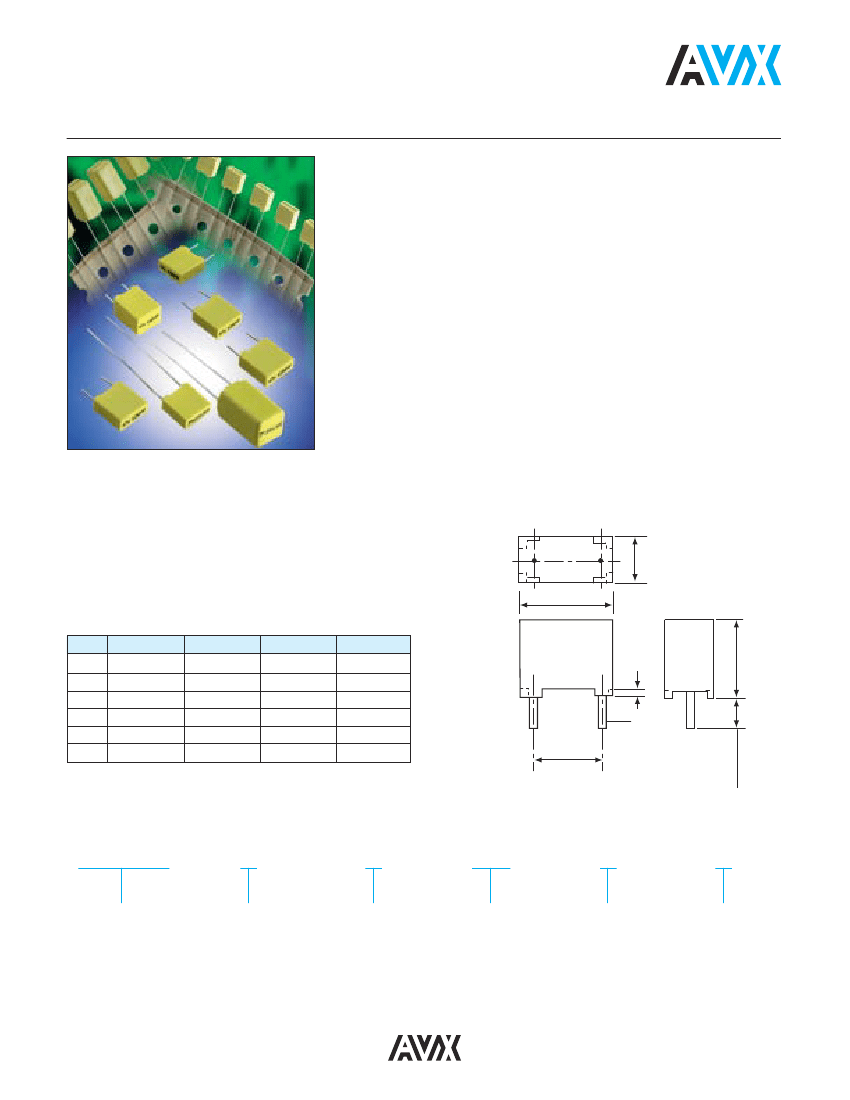

Preview

Download Datasheet

View All

BF 01/02/07/06/05/04: Radial Leads

BQ 01/02/07/06/05/04

(Lead Free product available upon request)

CPM-83----- pitch = 5.08mm (0.200")

GENERAL DESCRIPTION

Dielectric: Metallized polyester film (Polyethylene teraphtalate)

Stacked-film

Leads: Radial tin - plated wire

Protection: Plastic case (UL 94: V-O) / Epoxy Resin

Marking: Logo

Nominal Capacitance

Tolerance (EIA)

DC Nominal Voltage

Example:

T 100nK 63

Delivery Mode: Bulk

Taped (reel or ammopack)

STANDARDIZATION

Generic specifications:

CEI 384-1/CECC 30000/UTE 83100

Sectional specifications:

CEI 384-2/CECC 30400/UTE 83151

Complies with special specification:

CECC 30401-063

APPLICATIONS

• Commodity Product:

• Supply decoupling

• Filter

• Integrators

• Treatment of analog signals

• Rejection of line perturbations, etc.

DIMENSIONS

Case

L max

7.5 (0.295)

H max

6.5 (0.256)

8.0 (0.315)

12.0 (0.472)

9.6 (0.378)

8.0 (0.315)

13.0 (0.512)

millimeters (inches)

e max

2.5 (0.098)

3.2 (0.126)

6.0 (0.236)

5.0 (0.197)

7.5 (0.295)

ø ± 0.02

0.5 (0.020)

5.08 (0.200)

-0.6 (0.024)

-0.1 (0.004)

0.4 (0.016) min

*L dimension measured 3mm above base of case

HOW TO ORDER

BF or BQ01

0104

Type

Class

Voltage

Capacitance

Tolerance

Suffix

4.10 (0.161)

±0.5

(0.020)
