CAT93C86PI-2.7 datasheet, PDF - EEWORLD Datasheet

CAT93C86PI-2.7: DescriptionEEPROM, 2KX8, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8; Categorystorage; File Size262KB，8 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric View All

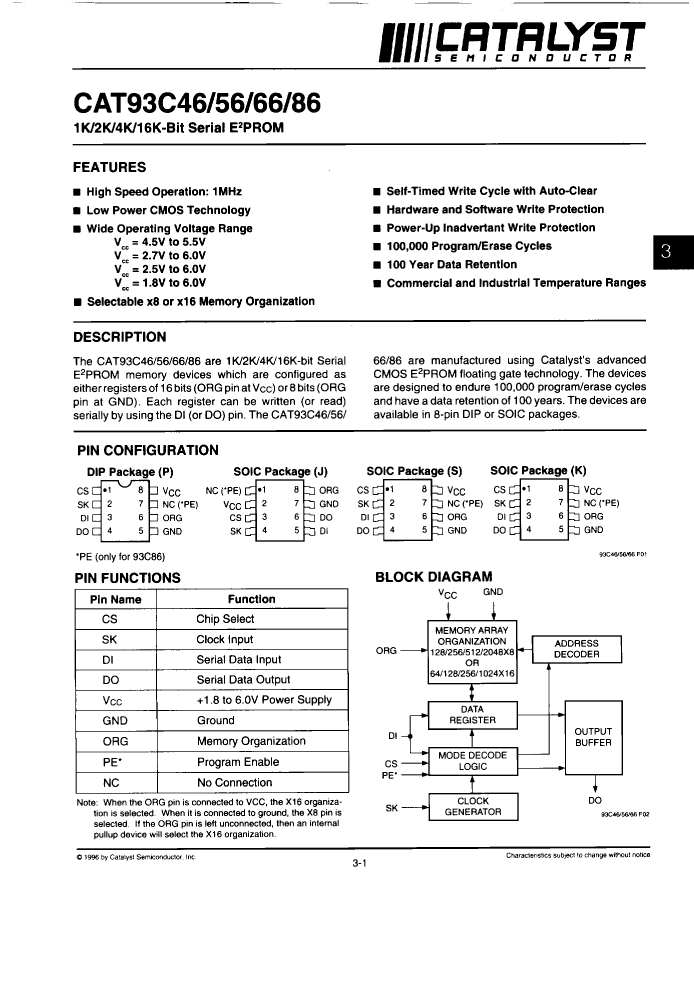

CAT93C86PI-2.7 Overview

EEPROM, 2KX8, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Catalyst
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N

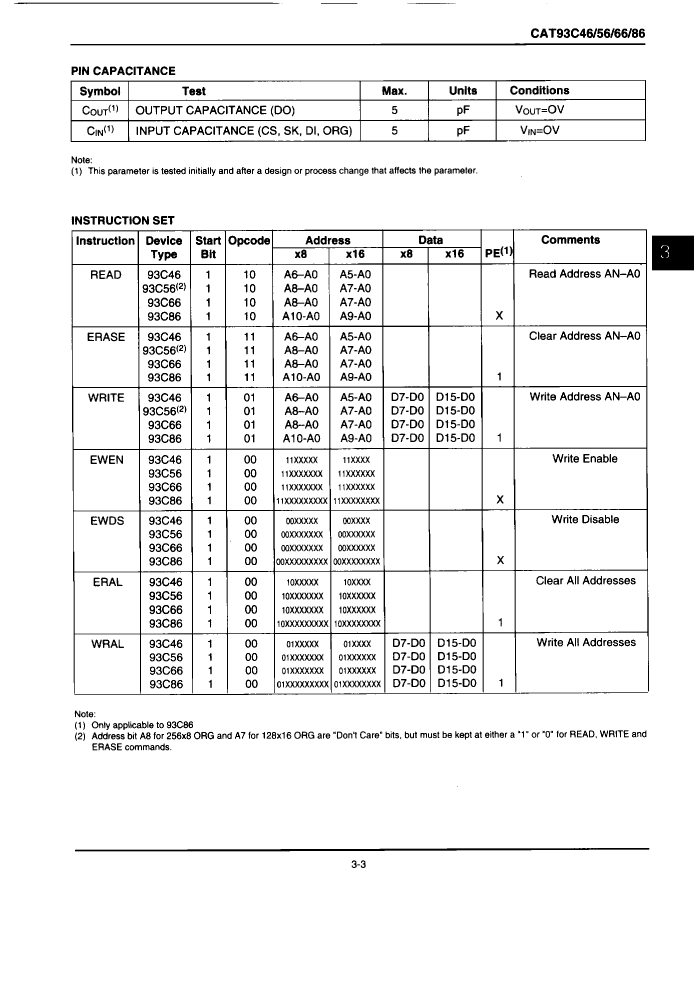

Other features	MICROWIRE BUS SERIAL INTERFACE; AUTOMATIC WRITE
Spare memory width	16
Maximum clock frequency (fCLK)	0.5 MHz
Data retention time - minimum	100
Durability	1000000 Write/Erase Cycles
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
length	9.36 mm
memory density	16384 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	2048 words
character code	2000

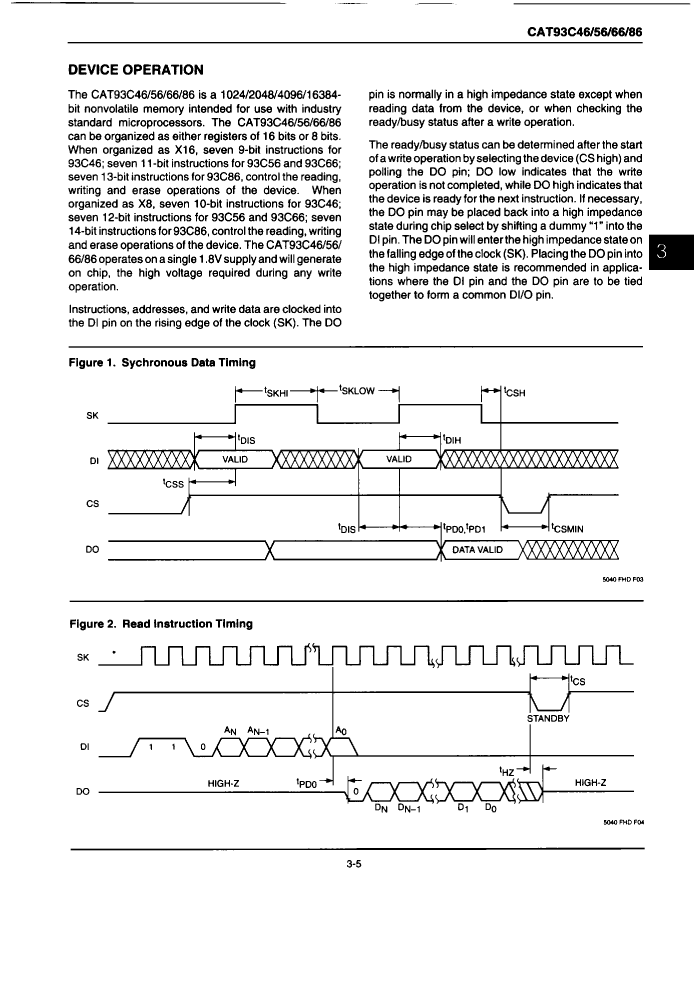

Operating mode	SYNCHRONOUS

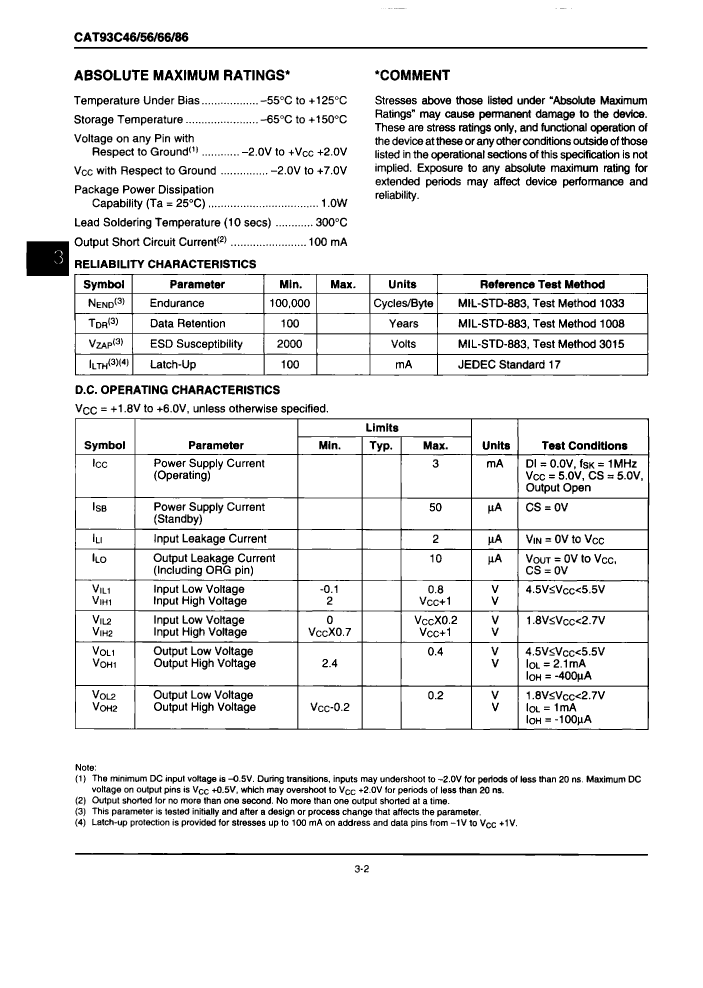

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	240
power supply	3/5 V
Certification status	Not Qualified
Maximum seat height	4.57 mm
Serial bus type	MICROWIRE
Maximum standby current	0.00005 A
Maximum slew rate	0.003 mA
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2.7 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.62 mm

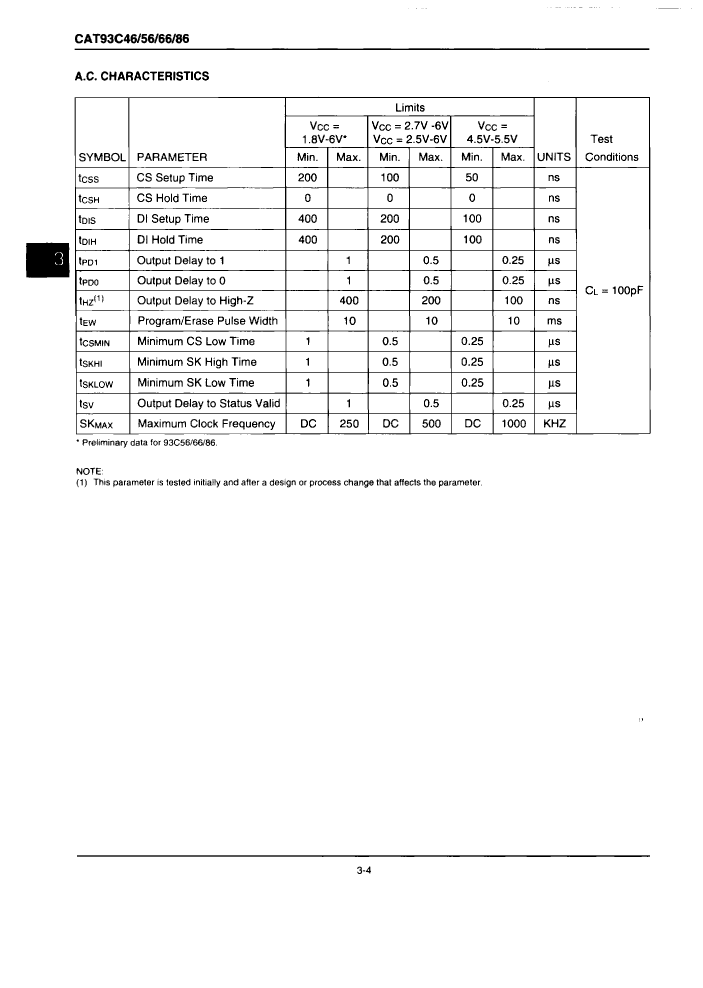

Maximum write cycle time (tWC)	10 ms
write protect	HARDWARE/SOFTWARE
Base Number Matches	1
