IH5144MJE datasheet, PDF - EEWORLD Datasheet

IH5144MJE: Description2-CHANNEL, DBL POLE SGL THROW SWITCH, CDIP16, CERDIP-16; CategoryThe signal circuit; File Size314KB，11 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

IH5144MJE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IH5144MJE	-	-	View	Buy Now

2-CHANNEL, DBL POLE SGL THROW SWITCH, CDIP16, CERDIP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	CERDIP-16
Contacts	16
Reach Compliance Code	not_compliant
Is Samacsys	N
Analog Integrated Circuits - Other Types	DPST
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	9.585 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NO
Number of channels	2
Number of functions	1
Number of terminals	16
Nominal off-state isolation	54 dB
On-state resistance matching specifications	25 Ω
Maximum on-state resistance (Ron)	50 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Maximum seat height	5.33 mm
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum connection time	200 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

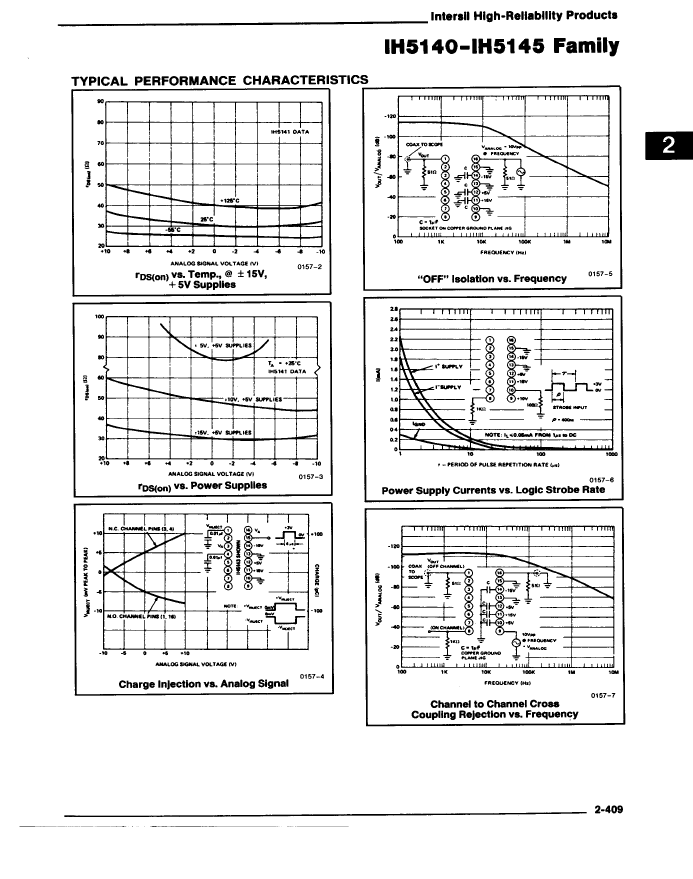

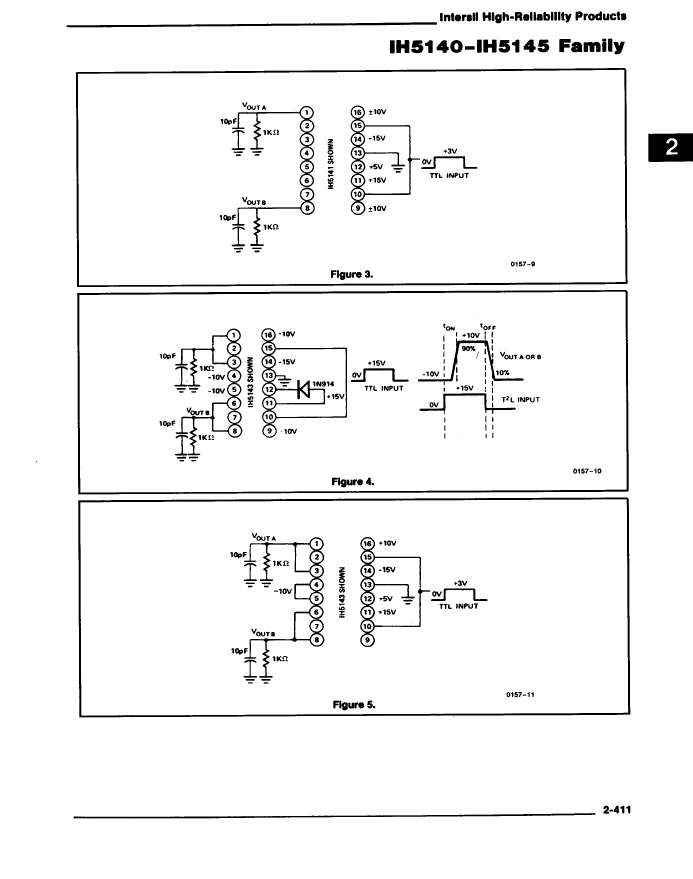

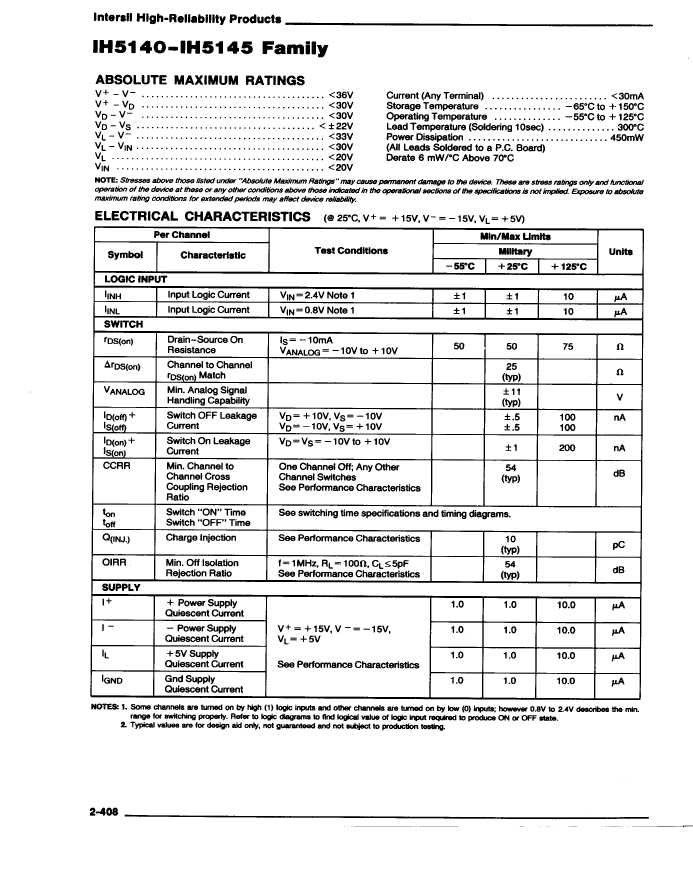

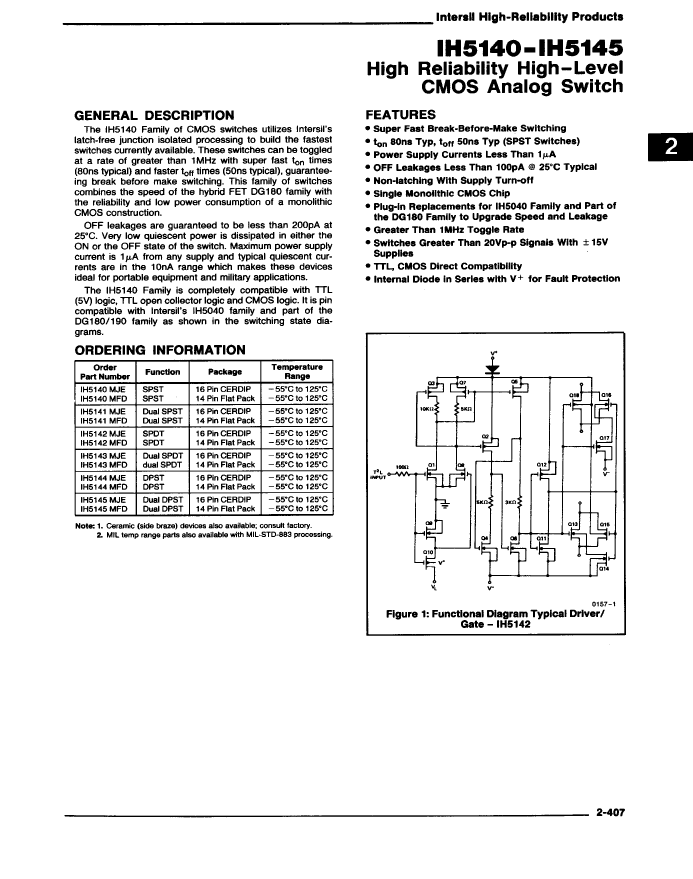

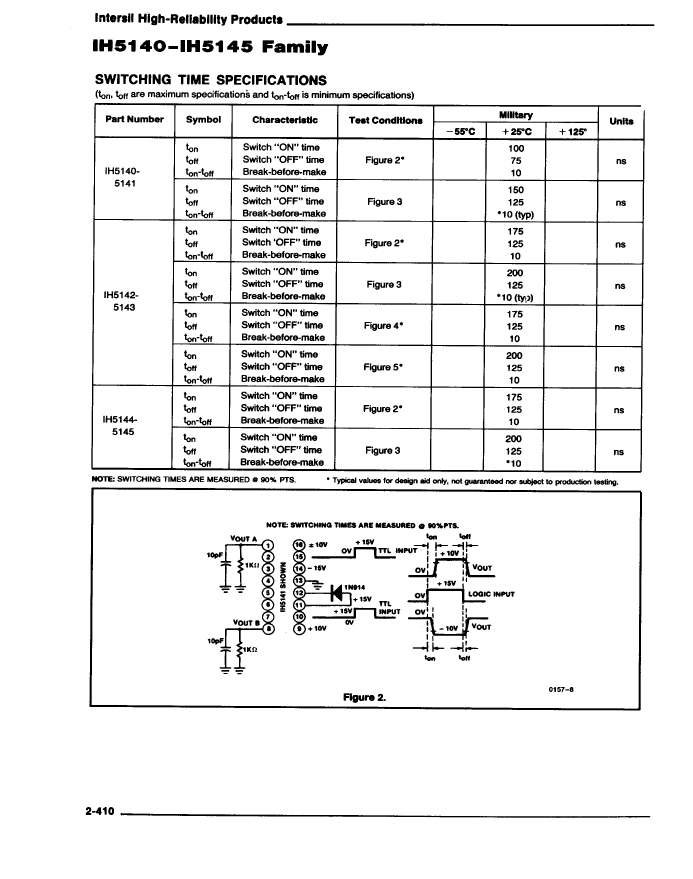

This Material Copyrighted By Its Respective Manufacturer

	IH5144MJE	IH5144MFD	IH5145MFD	IH5141MFD	IH5143MJE	IH5140MFD
Description	2-CHANNEL, DBL POLE SGL THROW SWITCH, CDIP16, CERDIP-16	DBL POLE SGL THROW SWITCH	DBL POLE SGL THROW SWITCH	SGL POLE SGL THROW SWITCH	DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP16, CERDIP-16	SGL POLE SGL THROW SWITCH
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	not_compliant	compliant	compliant	compliant	not_compliant	compliant
Analog Integrated Circuits - Other Types	DPST	DPST	DPST	SPST	SPDT	SPST
