LMU12GM25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Microcontrollers and processors> LMU12GM25

LMU12GM25: DescriptionMultiplier, 12-Bit, CMOS, CPGA68, CERAMIC, PGA-68; CategoryMicrocontrollers and processors; File Size297KB，6 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

LMU12GM25 Overview

Multiplier, 12-Bit, CMOS, CPGA68, CERAMIC, PGA-68

LMU12GM25 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	PGA
package instruction	PGA, PGA68,11X11
Contacts	68
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Is Samacsys	N
boundary scan	NO
maximum clock frequency	40 MHz
External data bus width	12
JESD-30 code	S-CPGA-P68
JESD-609 code	e0
length	29.4386 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	24
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA68,11X11
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.81 mm
Maximum slew rate	35 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
width	29.4386 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER
Base Number Matches	1

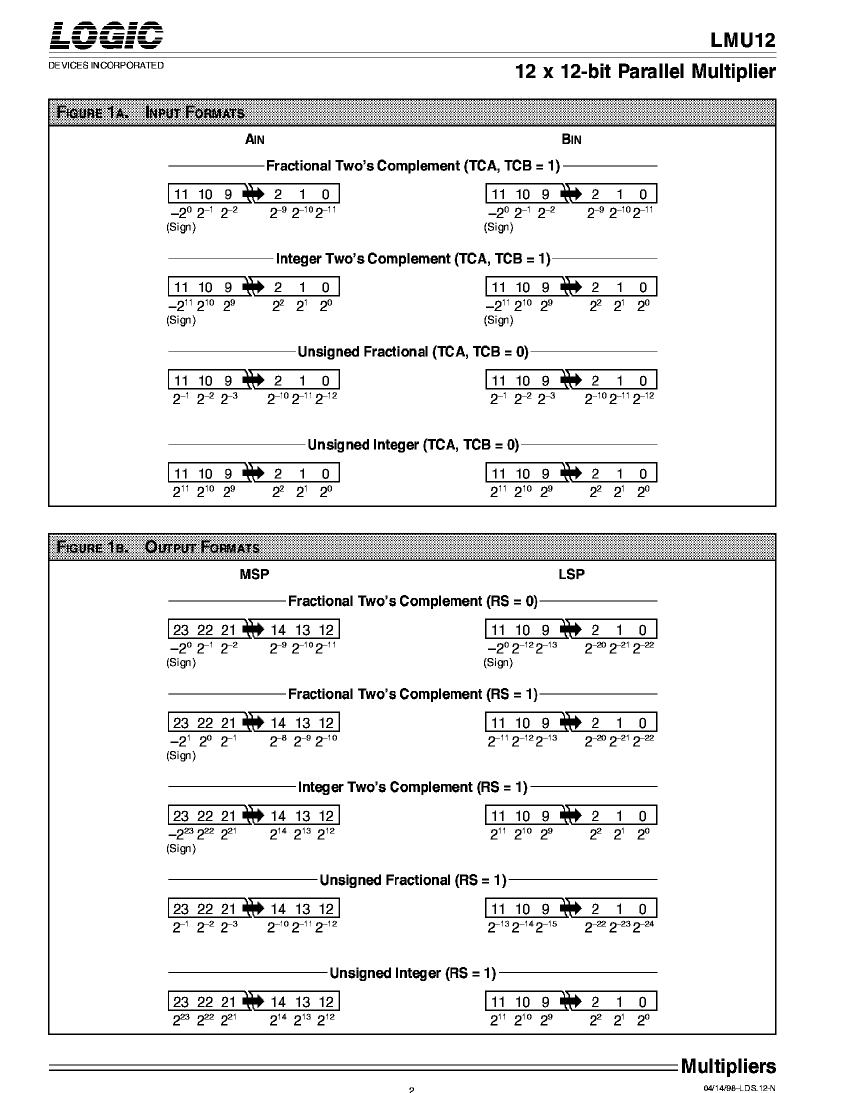

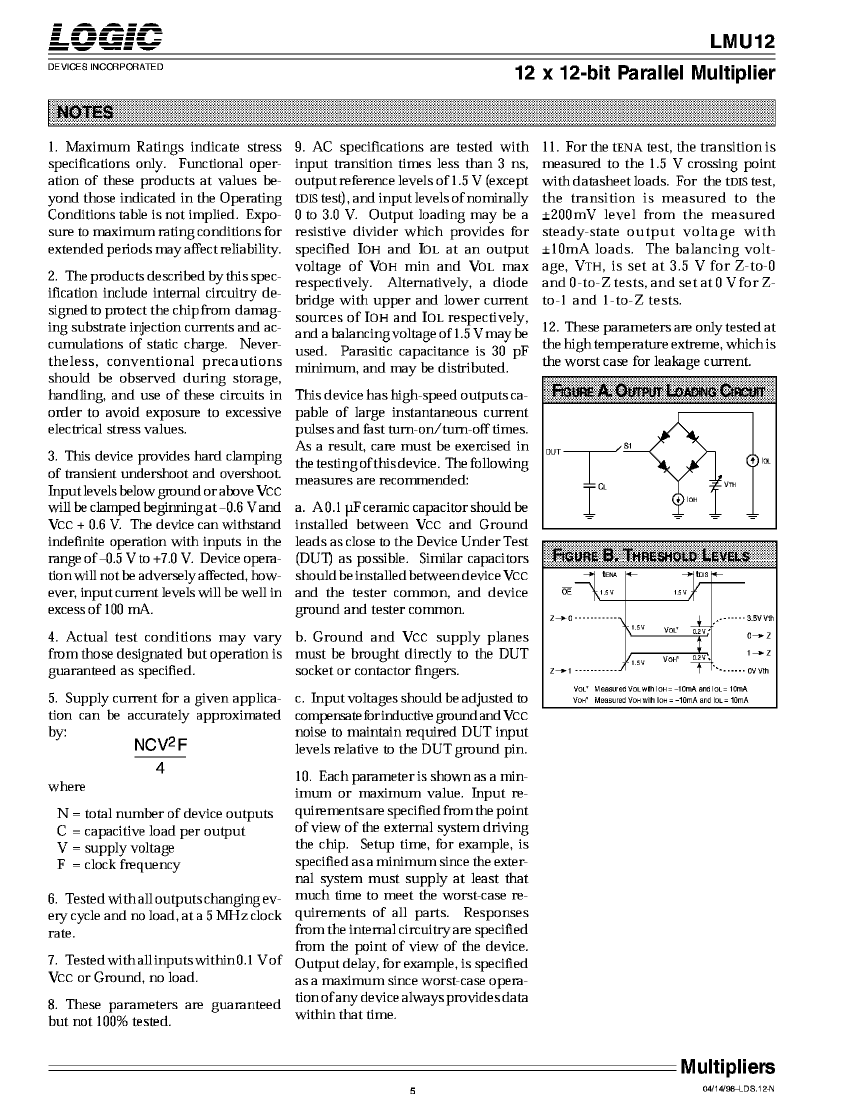

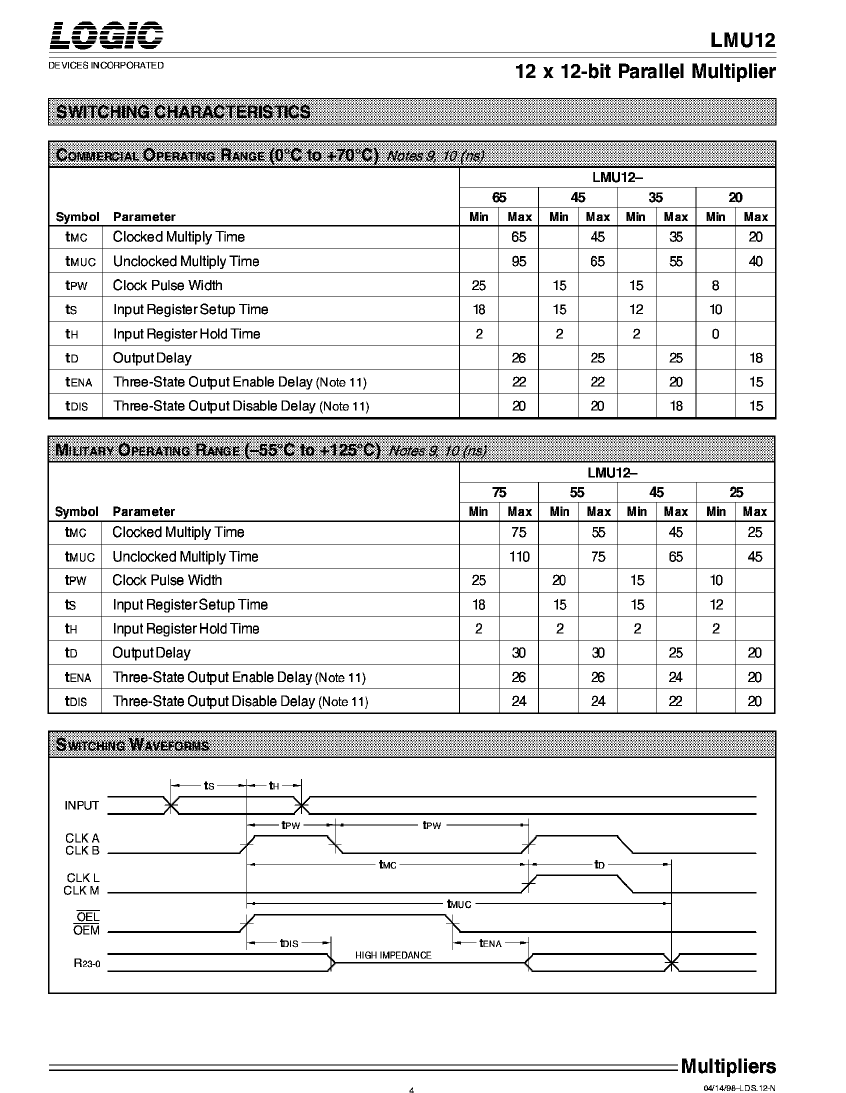

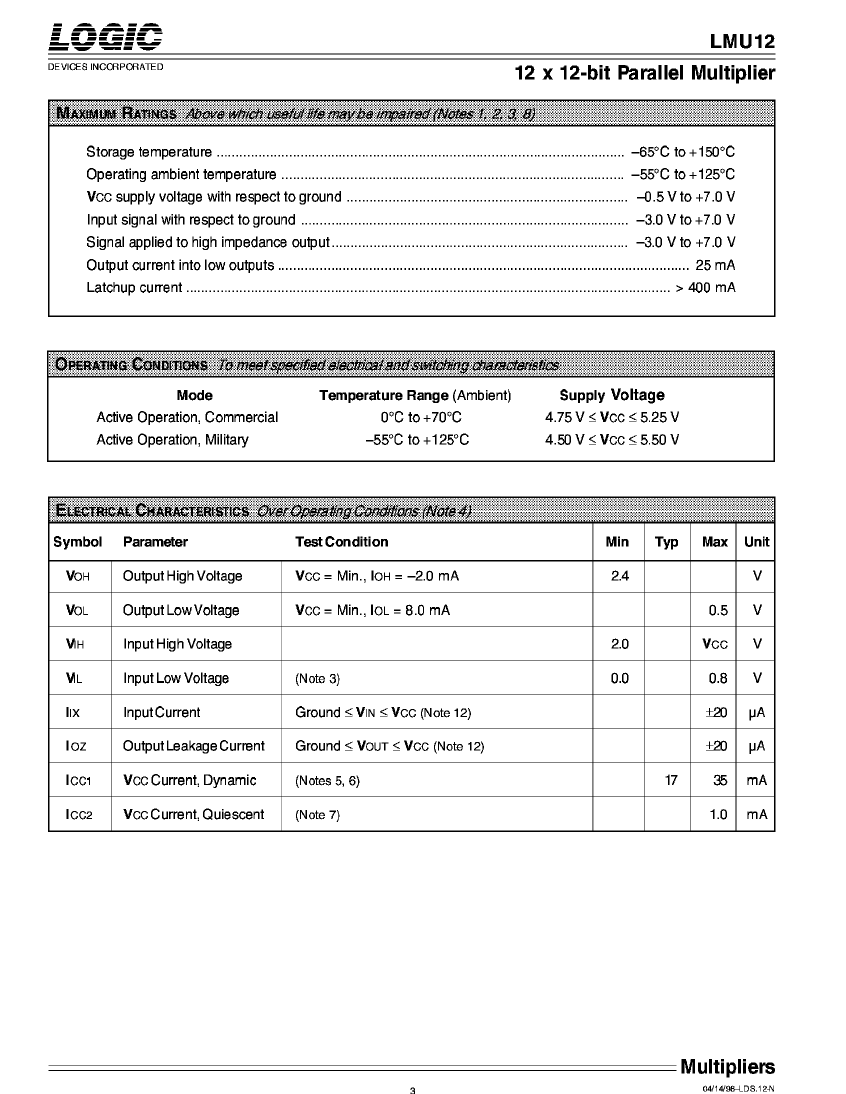

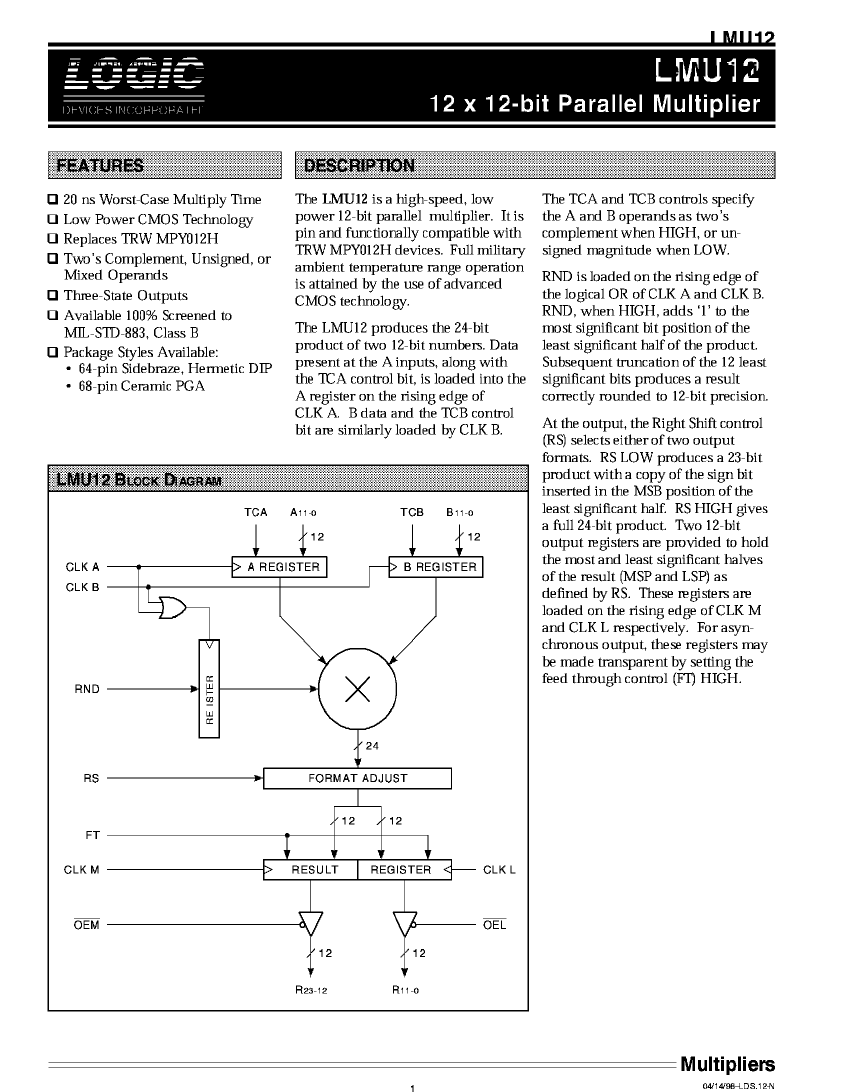

Preview

Download Datasheet

View All

LMU12GM25 Related Products

	LMU12GM25	LMU12DM35	LMU12DMB35	LMU12GMB25
Description	Multiplier, 12-Bit, CMOS, CPGA68, CERAMIC, PGA-68	Multiplier, 12-Bit, CMOS, CDIP64, SIDE BRAZED, HERMETIC SEALED, DIP-64	Multiplier, 12-Bit, CMOS, CDIP64, SIDE BRAZED, HERMETIC SEALED, DIP-64	Multiplier, 12-Bit, CMOS, CPGA68, CERAMIC, PGA-68
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	LOGIC Devices	LOGIC Devices	LOGIC Devices	LOGIC Devices
Parts packaging code	PGA	DIP	DIP	PGA
package instruction	PGA, PGA68,11X11	DIP, DIP64,.9	DIP, DIP64,.9	PGA, PGA68,11X11
Contacts	68	64	64	68
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
boundary scan	NO	NO	NO	NO
maximum clock frequency	40 MHz	28.57 MHz	28.57 MHz	40 MHz
External data bus width	12	12	12	12
JESD-30 code	S-CPGA-P68	R-CDIP-T64	R-CDIP-T64	S-CPGA-P68
JESD-609 code	e0	e0	e0	e0
length	29.4386 mm	81.28 mm	81.28 mm	29.4386 mm
low power mode	NO	NO	NO	NO
Humidity sensitivity level	3	3	3	3
Number of terminals	68	64	64	68
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output data bus width	24	24	24	24
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	DIP	DIP	PGA
Encapsulate equivalent code	PGA68,11X11	DIP64,.9	DIP64,.9	PGA68,11X11
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	GRID ARRAY	IN-LINE	IN-LINE	GRID ARRAY
Peak Reflow Temperature (Celsius)	225	225	225	225
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.81 mm	3.81 mm	3.81 mm	3.81 mm
Maximum slew rate	35 mA	35 mA	35 mA	35 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	THROUGH-HOLE	THROUGH-HOLE	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	DUAL	DUAL	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	29.4386 mm	22.86 mm	22.86 mm	29.4386 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER	DSP PERIPHERAL, MULTIPLIER
Is Samacsys	N	N	N	-
Base Number Matches	1	1	1	-
