Catalog 1307191
Revised 10-00
RF Coax Connectors
SMT | QuickGrip
Connectors
Features
s
s
s
s
Solderless Cable
Termination
3.0 [.118] Mated Height
Excellent Cable Retention
Usable With Flexible and
Semi-Rigid Micro-Coaxial
Cables
Tape and Reel Packaging
s

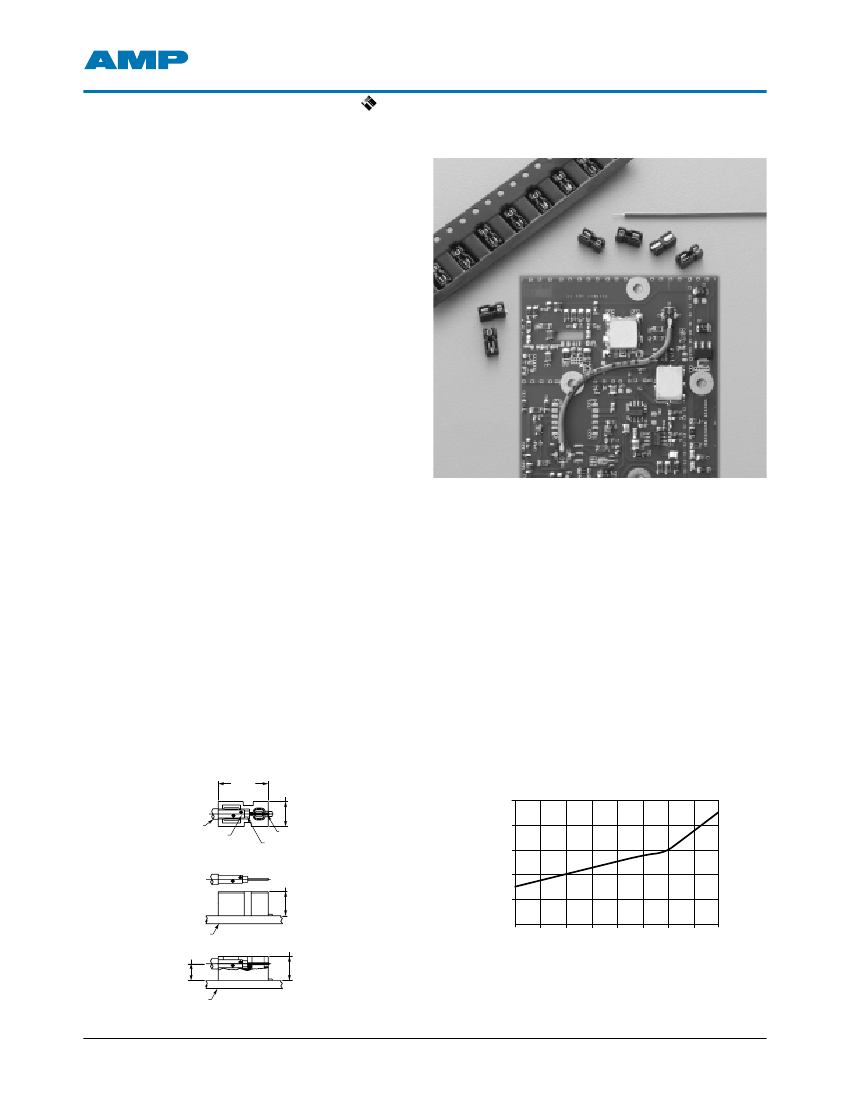

SMT | QuickGrip provides
optimal cable retention for
applications where shock,
vibration, and/or cable flex-
ure may be encountered.
This unique RF design
accepts both flexible and
semi-rigid micro-coaxial
cables while delivering
exceptional RF perfor-
mance up to 3GHz.
These features make this
system extremely versatile
for design engineers and
offer a reliable, cost effective
alternative to direct solder-
ing of cable to the PCB. The
cable is inserted into the
device by means of a simple
self-aligning hand tool, elimi-
nating the requirement for
skilled personnel. This sys-
tem removes the possibility
of damaged PCBs and
cables which are common
quality issues associated
with direct solder, while pro-
viding superior RF perfor-
mance. The SMT | QuickGrip
accommodates multiple
cable insertions allowing
easy replacement of cables
for repairs. This receptacle
is designed for high volume
assembly using surface
mount technology and is
available in tape and reel
packaging for pick and
place board assembly. Pre-
stripped cables and inter-
AMP revolutionary
SMT | QuickGrip product
line is designed to meet the
growing demand for a reli-
able, low cost system for
direct termination of coax to
a printed circuit board
(PCB). SMT | QuickGrip
technology eliminates the
requirement to connectorize
the coaxial cable, reduc-
ing assembly times and,
therefore, cost. The
SMT | QuickGrip surface
mount device occupies less
PCB area than conventional
through hole coaxial con-
nectors. An innovative
microstrip mounting pattern
and cable receptacle
design ensures excellent
grounding and PCB reten-
tion. The SMT | QuickGrip
cable termination system
stands a mere 3.0 [.118] off
the board when mated,
allowing for closer
pitch/spacing when design-
ing a system. The
series cable pigtails are
available as turnkey solu-
tions for your application
needs (i.e.: for use in multi-
board applications, for con-
necting antennas to the
PCB, or point to point trans-
mission on the same PCB).
The SMT | QuickGrip cable
termination system is ideal
for wireless surface mount
applications in handsets,
pagers and personal
digital assistants (PDA).
The SMT | QuickGrip
mechanical and electrical
performance, coupled with
its ease of use, ensure it to
be a high quality, reliable
solution for current and
future interconnect needs.
AMP is an ISO9001 certified
manufacturer and maintains
an SPC controlled manufac-
turing environment. Please
call your local Sales or
Distribution office for addi-
tional information and quali-
fication samples today.
6.4
[.250]
Ref.
3.2
Ref.
[.120]
1.3
1.26
VSWR
1.22
1.18
1.14
1.1
0.3
Cable Jacket
Cable Braid
Cable Conductor
Cable Dielectric
3.0
Ref.
[.120]
PWB
2.1
Ref.
[.083]
3.0
Ref.
[.120]
0.6
0.9
1.2
1.8
2.1
2.4
2.7
3
FREQUENCY (GHz)
Typical VSWR using SMT | QuickGrip with Omni-Flex 200 Cable
PWB
Technical Support Center/AMP FAX Service
1-800-522-6752 717-986-7777
Dimensions are in
millimeters over [inches]
www.amp.com/communications/com
Specifications
subject to change.
207
Catalog 1307191
Revised 10-00
RF Coax Connectors
SMT | QuickGrip
Connectors
(Continued)
Specifications
General
Materials
Housing:
Contacts:
Finishes
Contacts:
Polyphenylene Sulfide (PPS)
Copper Alloy
Gold Plate over Nickel
DC - 3GHz
Usable with 50 & 75 Ohm systems
.08
√
ƒGHz
750 VRMs
1.3:1@ 3GHz (Omni-Flex 100, 200 and .047 [.002] Semi-Rigid)
1.4:1 @ 3GHz (.034 [.001] Semi-Rigid)
5 mating cycles min. (receptacle only)
16 [.629] per EIA-481
Omni-Flex 100 -
Omni-Flex 200 -
.034 [.001] Semi-Rigid -
.047 [.002] Semi-Rigid -
469 typical
543 typical
852 typical
1066 typical
Electrical
Frequency Range:
Impedance:
Insertion Loss:
DWV:
VSWR:
Mechanical
Connector Durability:
Tape and Reel Packaging:
Force to Disengage by
Cam-Out (grams):
Environmental
Temperature Rating:
Resistance to Solder Heat:
–40°C(–40°F) to 105°C(221°F) when mated with Omni-Flex 100
–40°C(–40°F) to 125°C(257°F) when mated with Omni-Flex 200
Infrared, convection, and vapor phase solderable (receptacle only).
Maximum reflow time/temperature not to exceed 260°C for 3 minutes.
Omni-Flex 100 (OSMT)
PVC Flexible Cable (105°C)
Polyvinyl Chloride
Silver plated copper wire,
38 AWG, 90% min. coverage
PFA or FEP
Silver Plated Copper Clad Steel, 30 AWG
9.5 [.375]
1.3dB/m, 0.4 dB/ft. @ 500 MHz
2.0dB/m, 0.6 dB/ft. @ 1 GHz
3.0dB/m, 0.9 dB/ft. @ 2 GHz
.26 Ohms per foot average
Omni-Flex 200 (SSMT)
FEP Flexible Cable (200°C)
Fluorinated Ethylene Propylene
Silver plated copper wire,
44 AWG, 90% min. coverage
PTFE (Polytetrafluoroethylene)
Silver Plated Copper Clad Steel, 30 AWG
6.35 [.250]
1.3dB/m, 0.4 dB/ft. @ 500 MHz
2.0dB/m, 0.5 dB/ft. @ 1 GHz
3.0dB/m, 0.9 dB/ft. @ 2 GHz
.26 Ohms per foot average
Cable Information
Materials:
Jacket:
Shield:
Dielectric:
Center Conductor:
Minimum Bend Radius:
Insertion Loss (PVC and FEP cable only):
Center Conductor Resistance:
208
Technical Support Center/AMP FAX Service
1-800-522-6752 717-986-7777
Dimensions are in
millimeters over [inches]
www.amp.com/communications/com
Specifications
subject to change.
Catalog 1307191
Revised 10-00
RF Coax Connectors
SMT | QuickGrip
Connectors
(Continued)

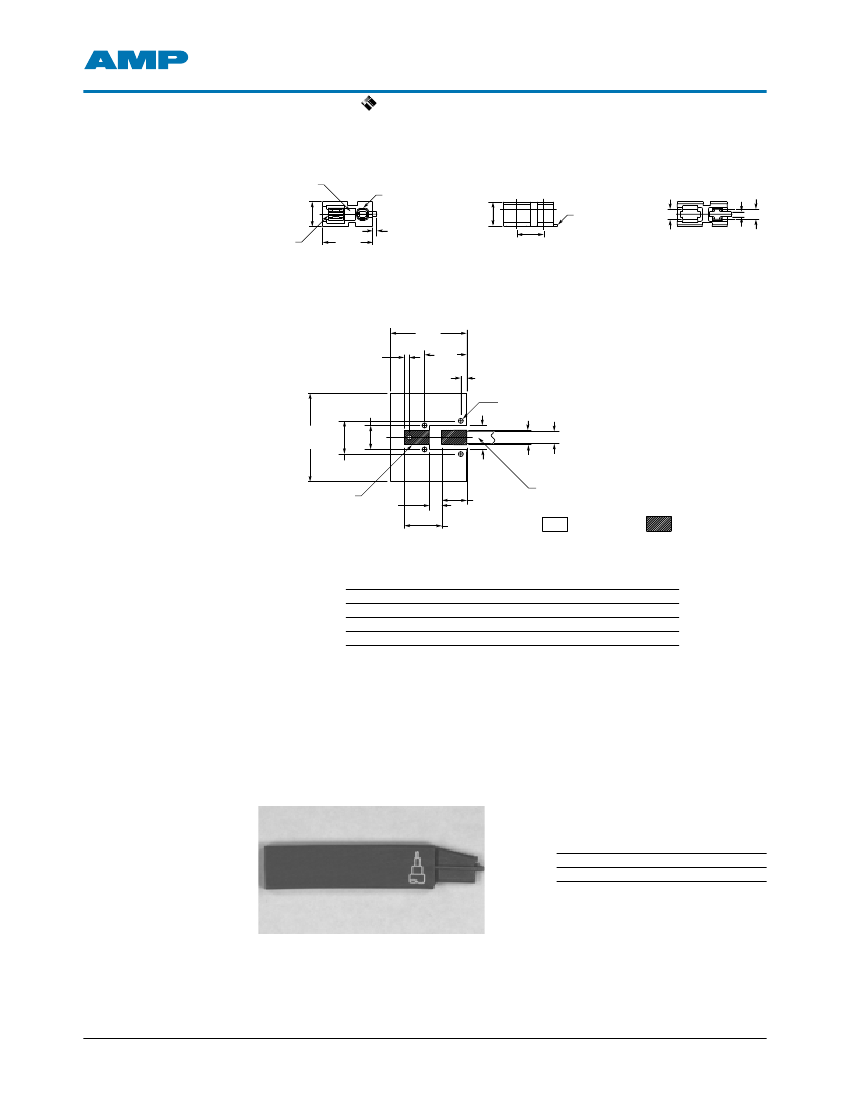

PC Board Mount
Receptacle
Pick and Place
Feature
3.2
[.125]
Ground
Contact
6.4
[.250]
Center Contact
3.0
[.120]
0.5
[.020]
3.4
[.135]
Center Contact
Terminal
1.3
[.050]
0.6
[.025]
1.3
[.050]
0.5
[.020]
7.8
[.305]
4.3
[.169]
2 Plcs.
0.6
2 Plcs.
[.024]
Ø 0.5
Via. 5 Plcs.
[.020]
2.4
[.096]
9.0
[.345]
3.4
[.133]
Ground Pad
1.3
[.050]
3.8
[.150]
2.4
[.095]
2.5
[.100]
1.3
1.5
[.058] [.050]
Circuit Line
1.0 oz.
Copper
[.0014]
Area Free of
Solder Mask
Recommended Mounting Pattern for Microstrip Line
Description
Bulk Packaged 100/bag
700 Piece Reel
2000 Piece Reel
M/A-COM Model No.
2318-0000-54
2399-5011-54
2399-5012-54
Part No.
1085456-1
1086008-1
1086009-1
1. Printed wiring board material: glass epoxy FR-4 or similar,
relative permitivity: 4.8, 1 oz. copper clad both sides.
2. These dimensions valid for 1.6 [.062] board thickness.
Cable Insertion Tool
M/A-COM Model No.
2598-5438-54
Part No.
1088313-1
Technical Support Center/AMP FAX Service
1-800-522-6752 717-986-7777
Dimensions are in
millimeters over [inches]
www.amp.com/communications/com
Specifications
subject to change.
209
Catalog 1307191
Revised 10-00
RF Coax Connectors
SMT | QuickGrip
Connectors
(Continued)
Inter-Series Cable
Assemblies

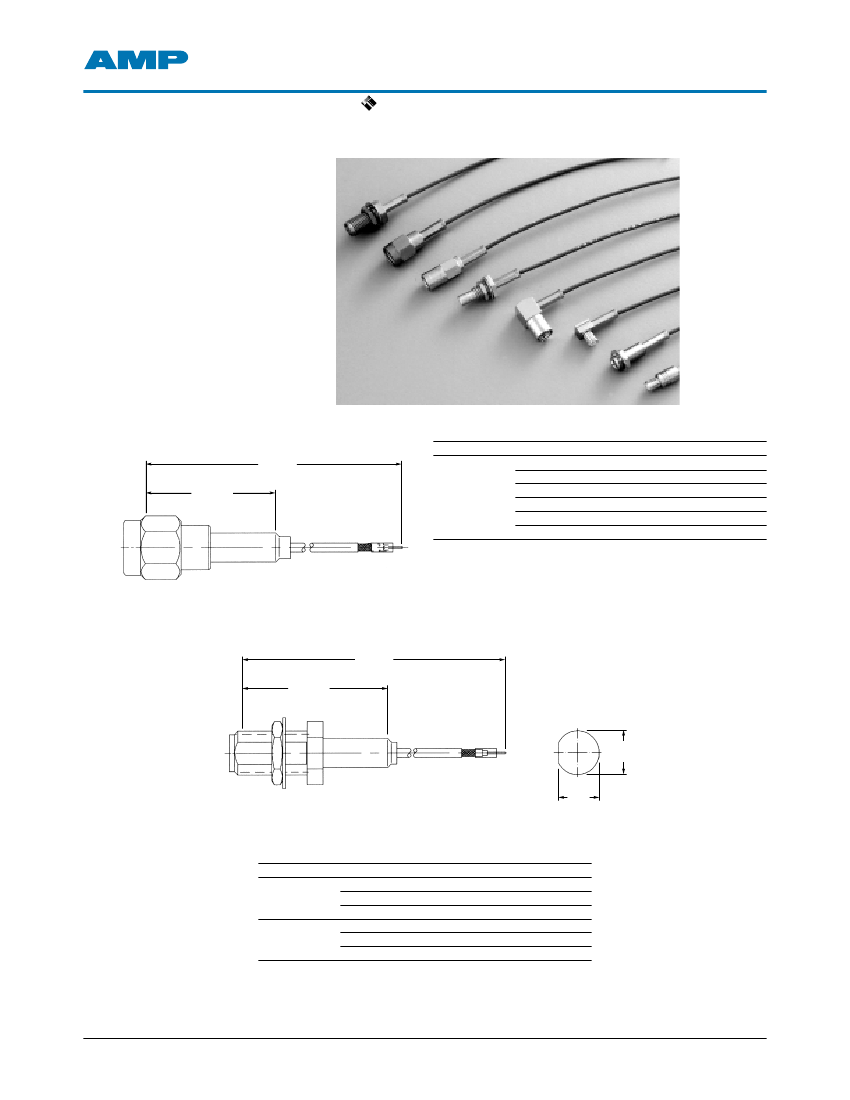

SMA Straight Plug
Cable
Length
A
Omni-Flex 100
19.2
Ref.
[.755]
Omni-Flex 200
Assembly Length (A)
100 [4]
200 [8]
305 [12]
100 [4]
200 [8]
305 [12]
M/A-COM Model No.
9970-4100-01
9970-4200-01
9970-4305-01
9980-4100-01
9980-4200-01
9980-4305-01
Part No.
1329187-1
1329187-2
1329187-3
1329174-1
1329174-2
1310432-1
Note:
1. Cable length tolerances: Length ‘A’ mm [In], Tolerance mm [In],
50 to 100 [3.94], ±3 [± .12], 101 to 500 [3.98 to 19.69], ±5 [± .20],
Over 500 [19.69], ±10 [± .39]
SMA Bulkhead Jack
Length
A
21.3
Ref.
[.837]
6.40
Min.
[.250]
6.00
[.235]
Min.
Recommended
Mounting Hole
Cable
Omni-Flex 100
Assembly Length (A)
100 [4]
200 [8]
305 [12]
100 [4]
200 [8]
305 [12]
M/A-COM Model No.
9970-4100-02
9970-4200-02
9970-4305-02
9980-4100-02
9980-4200-02
9980-4305-02
Part No.
1329173-1
1329173-2
1329173-3
1329175-1
1329175-2
1329175-3
Omni-Flex 200
Note:
1. Cable length tolerances: Length ‘A’ mm [In], Tolerance mm [In],
50 to 100 [3.94], ±3 [± .12], 101 to 500 [3.98 to 19.69], ±5 [± .20],
Over 500 [19.69], ±10 [± .39]
210
Technical Support Center/AMP FAX Service
1-800-522-6752 717-986-7777
Dimensions are in
millimeters over [inches]
www.amp.com/communications/com
Specifications
subject to change.
Catalog 1307191
Revised 10-00
RF Coax Connectors
SMT | QuickGrip
Connectors
(Continued)
Inter-Series Cable
Assemblies
(Continued)

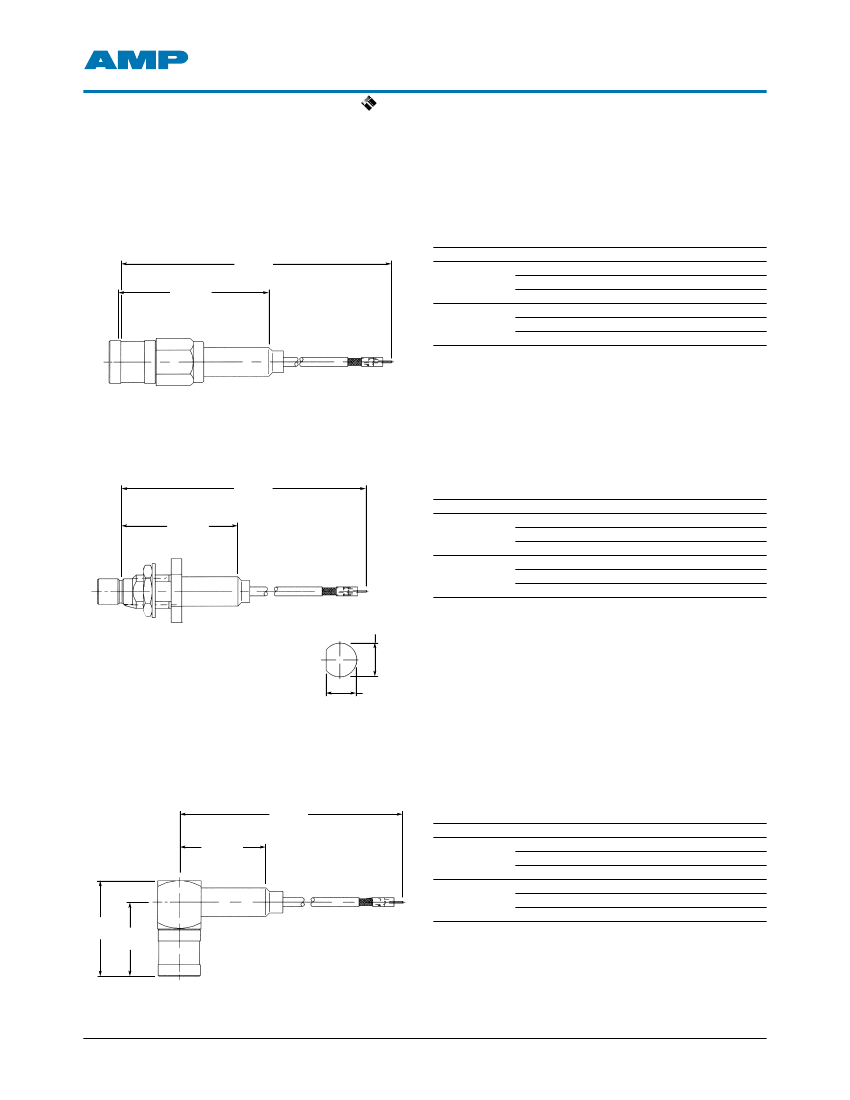

SMB Straight Plug
Cable
Length
A
21.9
Ref.
[.862]
Omni-Flex 100
Omni-Flex 200
Assembly Length (A)
100 [4]
200 [8]
305 [12]
100 [4]
200 [8]
305 [12]
M/A-COM Model No.
9970-4100-03
9970-4200-03
9970-4305-03
9980-4100-03
9980-4200-03
9980-4305-03
Part No.
1313275-2
1313275-3
1313275-1
1408049-1
1408049-2
1408049-3
Note:
1. Cable length tolerances: Length ‘A’ mm [In], Tolerance mm [In],
50 to 100 [3.94], ±3 [± .12], 101 to 500 [3.98 to 19.69], ±5 [± .20],
Over 500 [19.69], ±10 [± .39]
SMB Bulkhead Jack
Length
A
Cable
17.1
Ref.
[.675]
Omni-Flex 100
Omni-Flex 200
Assembly Length (A)
100 [4]
200 [8]
305 [12]
100 [4]
200 [8]
305 [12]
M/A-COM Model No.
9970-4100-04
9970-4200-04
9970-4305-04
9980-4100-04
9980-4200-04
9980-4305-04
Part No.
1408050-1
1408050-2
1408050-3
1408050-4
1408050-5
1408050-6
4.90
Min.
[.192]
Note:
1. Cable length tolerances: Length ‘A’ mm [In], Tolerance mm [In],
50 to 100 [3.94], ±3 [± .12], 101 to 500 [3.98 to 19.69], ±5 [± .20],
Over 500 [19.69], ±10 [± .39]
4.40
Min.
[.172]
Recommended
Mounting Hole
SMB Right Angle Plug
Length
A
12.7
Ref.
[.500]
Assembly Length (A)
100 [4]
Omni-Flex 100
200 [8]
305 [12]
100 [4]
Omni-Flex 200
200 [8]
305 [12]
Cable
M/A-COM Model No.
9970-4100-05
9970-4200-05
9970-4305-05
9980-4100-05
9980-4200-05
9980-4305-05
Part No.
1255378-1
1255378-2
1255378-3
1255378-4
1255378-5
1255378-6
14.0
[.550]
10.8
[.427]
Note:
1. Cable length tolerances: Length ‘A’ mm [In], Tolerance mm [In],
50 to 100 [3.94], ±3 [± .12], 101 to 500 [3.98 to 19.69], ±5 [± .20],
Over 500 [19.69], ±10 [± .39]
Technical Support Center/AMP FAX Service
1-800-522-6752 717-986-7777
Dimensions are in
millimeters over [inches]
www.amp.com/communications/com
Specifications
subject to change.
211
