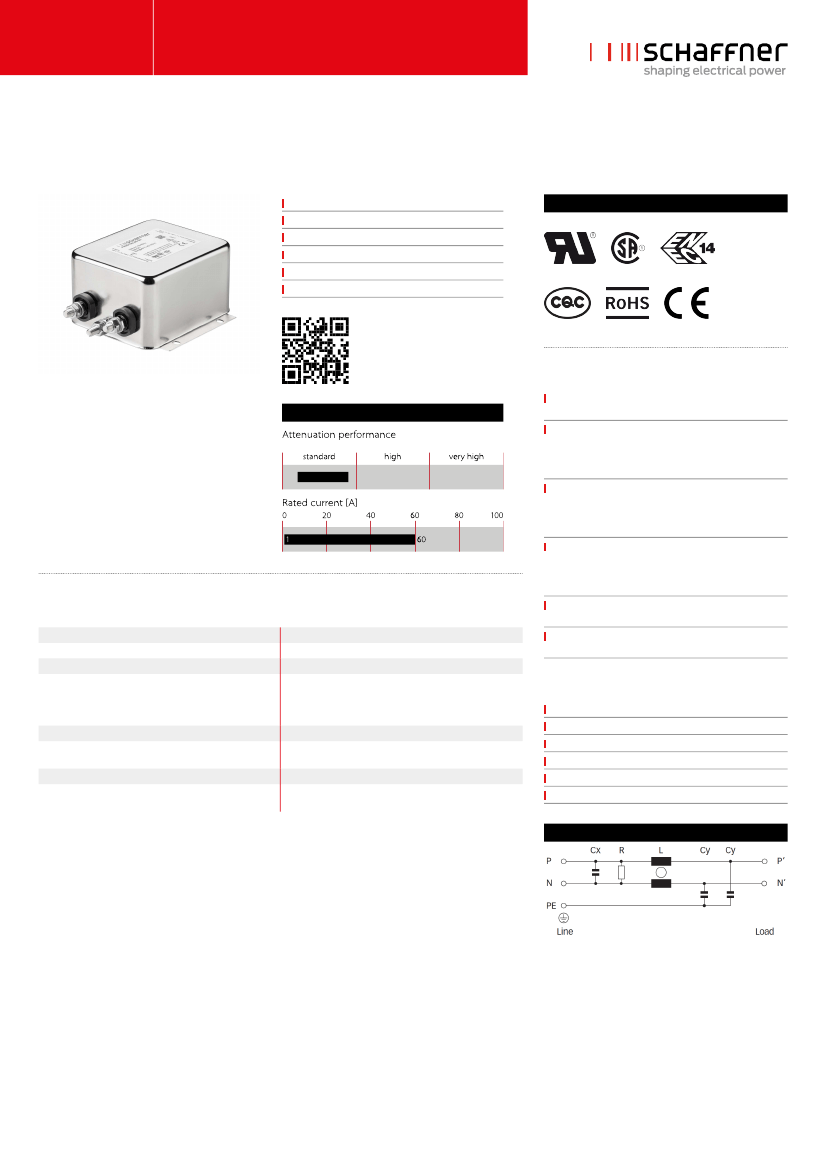

Single-Stage Filters FN 2010
General Purpose AC/DC EMI Filter
Rated currents from 1 to 60 A
General purpose filtering performance
Optional medical versions (B type)
Optional safety versions (A type)
Optional enhanced performance versions
Optional DC optimized versions
Approvals
Features and benefits
Performance indicators
FN 2010 filters are designed for easy and fast chassis
mounting
FN 2010 filters are available as B versions without Y-
capacitors for medical applications as well as A
version with low capacitance for safety critical
applications with necessity for low leakage currents
FN 2010 filters are also available as enhanced
performance and DC optimized versions. With
higher attenuation in very compact housing (M,
N1,N types)
All filters provide a general purpose conducted
attenuation performance, based on chokes with
high saturation resistance and excellent thermal
behavior
FN 2010 filters can be used to cover a broad range
of usage and they offer a good size/amperage ratio
250 VAC, 50/60 Hz; 250 VDC
DC to 400 Hz
1 to 60 A @ 40°C max.
P –> PE 2000 VAC for 2 sec (equiv. cap <88 nF)
P –> PE 2550 VDC for 2 sec (equiv. cap >88 nF)
P –> PE 2500 VAC for 2 sec (B types)
P –> N 1100 VDC for 2 sec
-25 °C to +100 °C (25/100/21)
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to
AC and DC applications)
UL 94 V-2 or better
1,250,000 hours
3,200,000 hours (B types)
Technical specifications
Rated voltage*
Operating frequency
Rated currents
High potential test voltage
Various terminal options allow you to select the
desired connection style
Typical applications
Electrical and electronic equipment
Consumer goods
Household equipment
Medical equipment
Office automation equipment
Datacom equipment
Temperature range (operation and storage)
Certified to
Flammability corresponding to
MTBF @ 40°C/230 V (Mil-HB-217F)
*maximum RMS operating voltage at rated frequency or the maximum DC operating voltage
Typical electrical schematic
4
EMC/EMI Products
Schaffner Group
Datasheets
11 Oct 2018

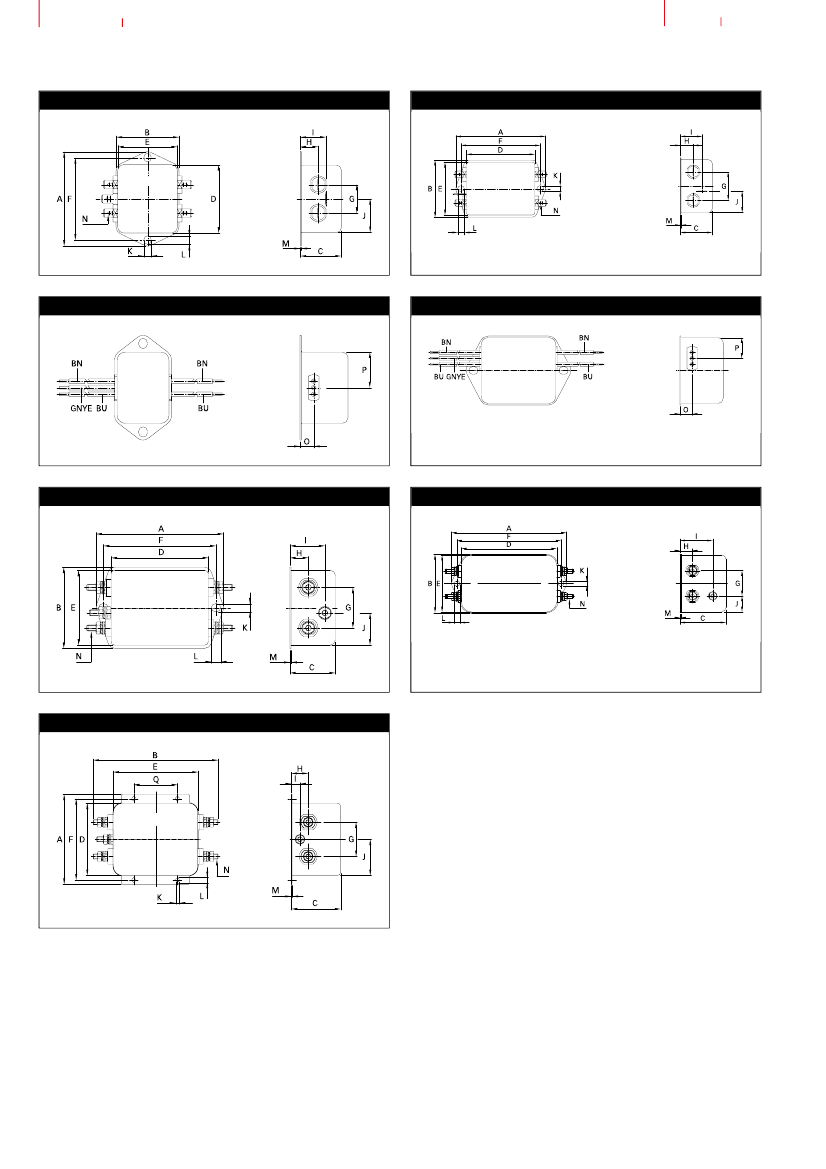

Mechanical data
Connection style -06, 1 to 12 A types
Connection style -06, 16 and 20 A types
Connection style -07, 1 to 12 A types (same dimensions as style -06)
Connection style -07, 16 and 20 A types (same dimensions as style -06)
Connection style -08, 20 A types
Connection style -08, 30 A types
Connection style -24
Power technology
