SMA6J SERIES
Taiwan Semiconductor
CREAT BY ART
600W, 10V - 30V Surface Mount Transient Voltage Suppressor

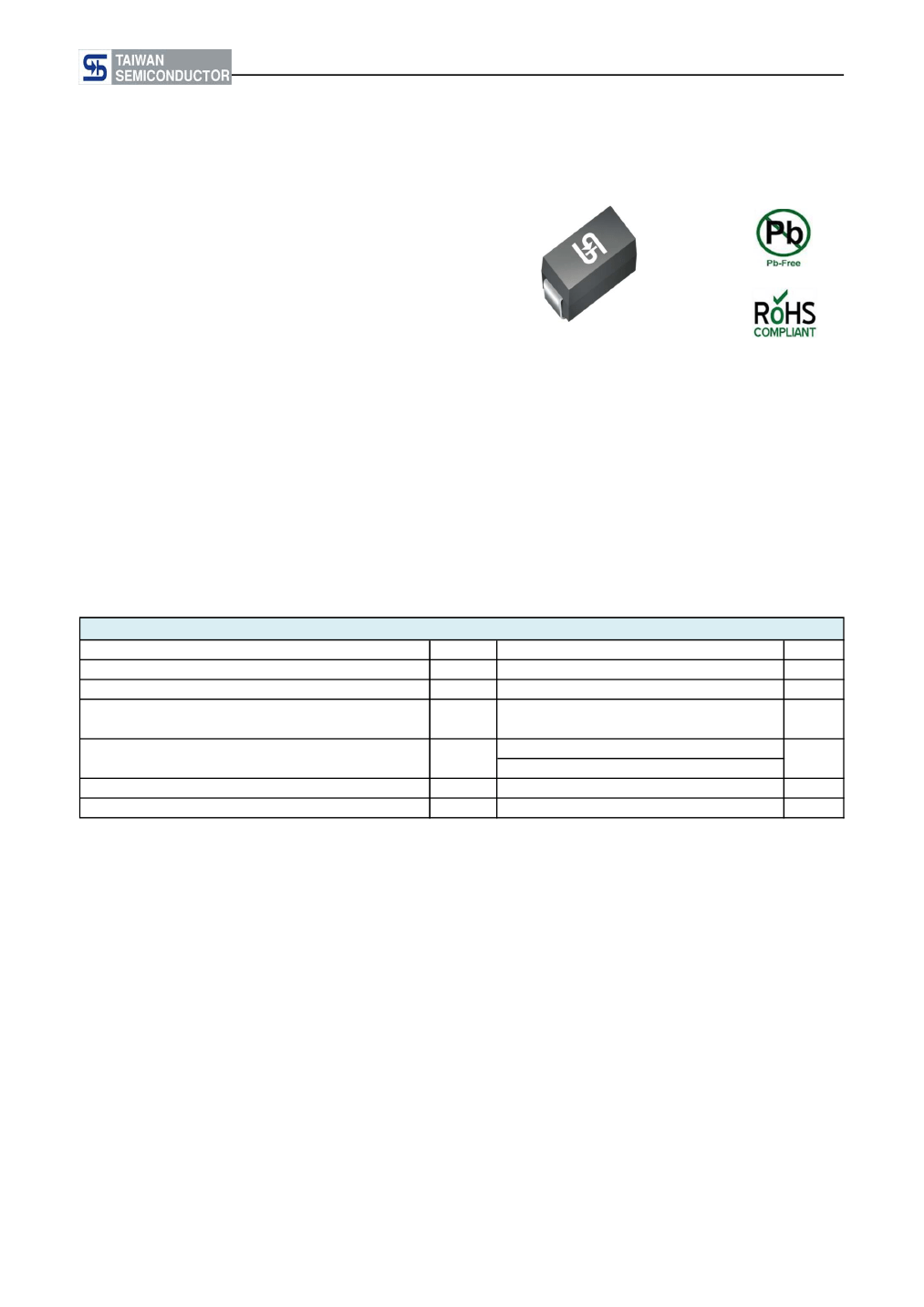

FEATURES
- Low profile package
- Ideal for automated placement
- Glass passivated junction
- Excellent clamping capability
- Fast response time: typically less than 1.0ps
- 600 watts peak pulse power capability with a
10 / 1000
μs
waveform
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
DO-214AC (SMA)
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound, UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.06 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Peak power dissipation at T
A
=25°C, tp=1ms(Note 1)
Steady state power dissipation
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Typcial thermal resistance
Operating junction temperature range
Storage temperature range
SYMBOL
P
PK
P
D
I
FSM
R
θJA
R
θJL
T
J
T
STG
Value
600
4
50
56
20
- 55 to +175
- 55 to +175
UNIT
W
W
A
°C/W
°C
°C
Note 1: Non-repetitive current pulse per fig. 3 and derated above T
A
=25°C per fig. 2
Document Number: DS_D1502001
Version: D15
SMA6J SERIES
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
SMA6JxxA
(Note 1, 2)
PART NO.
SUFFIX
H
PACKING
CODE
R3
R2
M2
G
PACKING CODE
SUFFIX
PACKAGE
SMA
SMA
SMA
PACKING
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
Note 1: "xx" defines voltage from 10V (SMA6J10A) to 30V (SMA6J30A)
Note 2: Whole series with green compound
EXAMPLE
EXAMPLE P/N
SMA6J10AHR3G
PART NO.
SMAJ26A
PART NO.
SUFFIX
H
PACKING CODE
R3
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

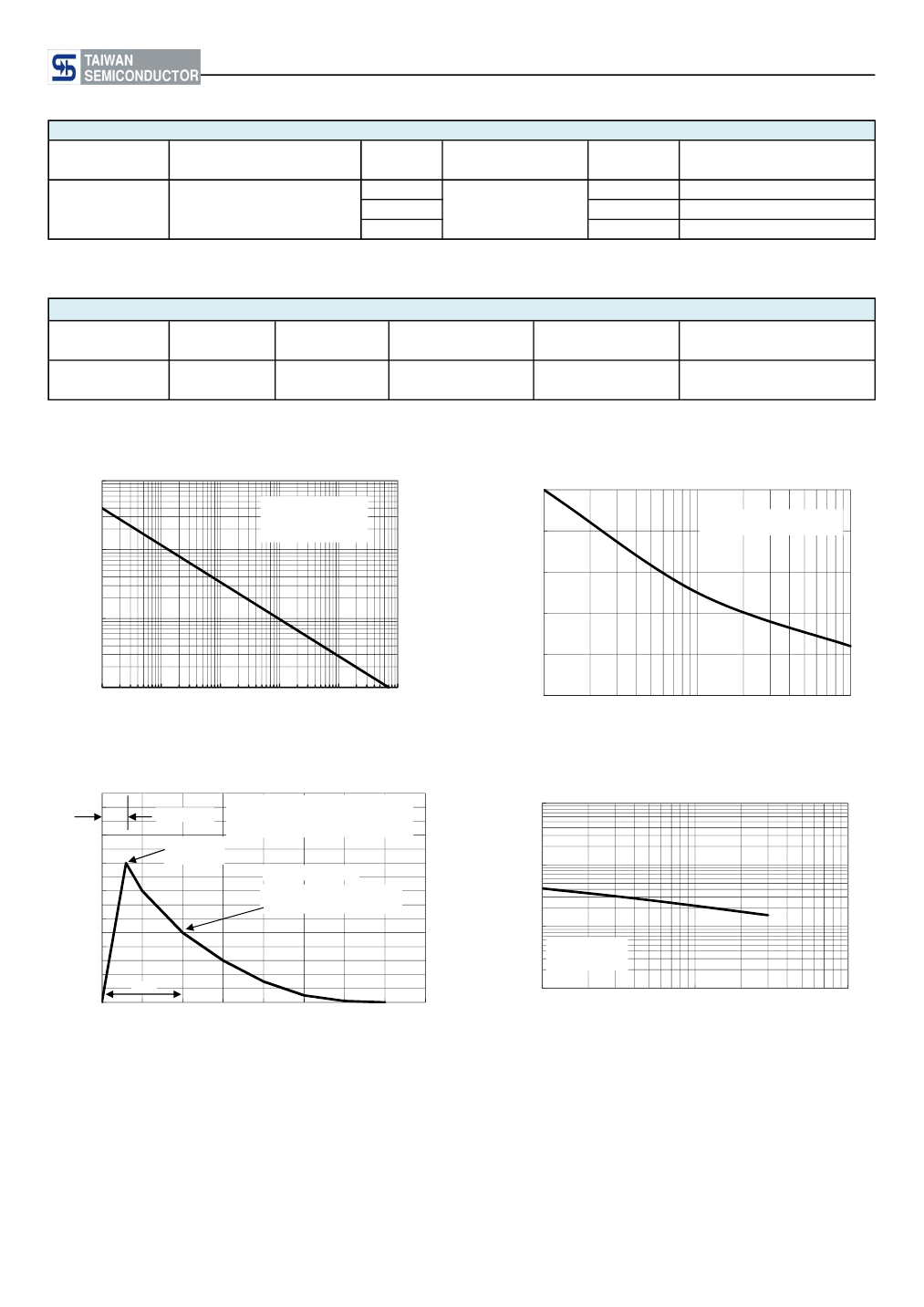

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG. 1 PEAK PULSE POWER RATING CURVE
IFSM, PEAK FORWARD SURGE CURRENT (A)
100
Non-repetitive
pulse wave from
shown in fig.3
10
50
8.3ms single half sine wave
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT UNIDIRECTIONAL ONLY
P
PPM
, PEAK PULSE POWER, KW
40
30
1
20
10
0.1
0.1
1
10
100
1000
10000
tp, PULSE WIDTH, (μs)
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3 CLAMPING POWER PULSE WAVEFORM
140
PEAK PULSE CURRENT (%)
120
100
80
60
40
20
0
0
td
0.5
1
1.5
2
t, TIME ms
2.5
3
3.5
4
Pulse width(td) is defined
as the point where the peak current
decays to 50% of I
PPM
10000
CJ, JUNCTION CAPACITANCE (pF)
A
FIG. 4 TYPICAL JUNCTION CAPACITANCE
tr=10μs
Peak value
I
PPM
Half value-I
PPM
/2
10/1000μs, waveform
as defined by R.E.A.
1000
100
f=1.0MHz
Vsig=50mVp-p
10
1
10
V(
BR
), BREAKDOWN VOLTAGE (V)
100
Document Number: DS_D1502001
Version: D15
SMA6J SERIES
Taiwan Semiconductor
CREAT BY ART
Device
Marking
Code
6AX
6AZ
6BE
6BG
6BM
6BP
6BR
6BT
6BV
6BX
6BZ
6CE
6CG
6CK
Working
Peak
Reverse
Voltage
V
WM
(V)
10
11
12
13
15
16
17
18
20
22
24
26
28
30
Breakdown Voltage
V
BR
(V)
at I
T
Min
11.1
12.2
13.3
14.4
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
Max
12.3
13.5
14.7
15.9
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
Test
Current
I
T
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
15.7
17.2
18.8
20.4
23.6
25.2
26.7
28.3
31.4
34.5
37.8
40.9
44.0
48.4
Maximum
Clamping
Voltage at I
PPM
Vc (V)
Maximum
Maximum
Reverse Leakage
Peak Pulse
Surge Current
@ V
WM
I
PPM
(A)
I
D
(uA)
38.2
34.8
31.9
29.4
25.4
23.8
22.5
21.2
19.1
17.4
15.9
14.7
13.6
12.3
5.0
5.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Device
SMA6J10A
SMA6J11A
SMA6J12A
SMA6J13A
SMA6J15A
SMA6J16A
SMA6J17A
SMA6J18A
SMA6J20A
SMA6J22A
SMA6J24A
SMA6J26A
SMA6J28A
SMA6J30A
Document Number: DS_D1502001
Version: D15
SMA6J SERIES
Taiwan Semiconductor

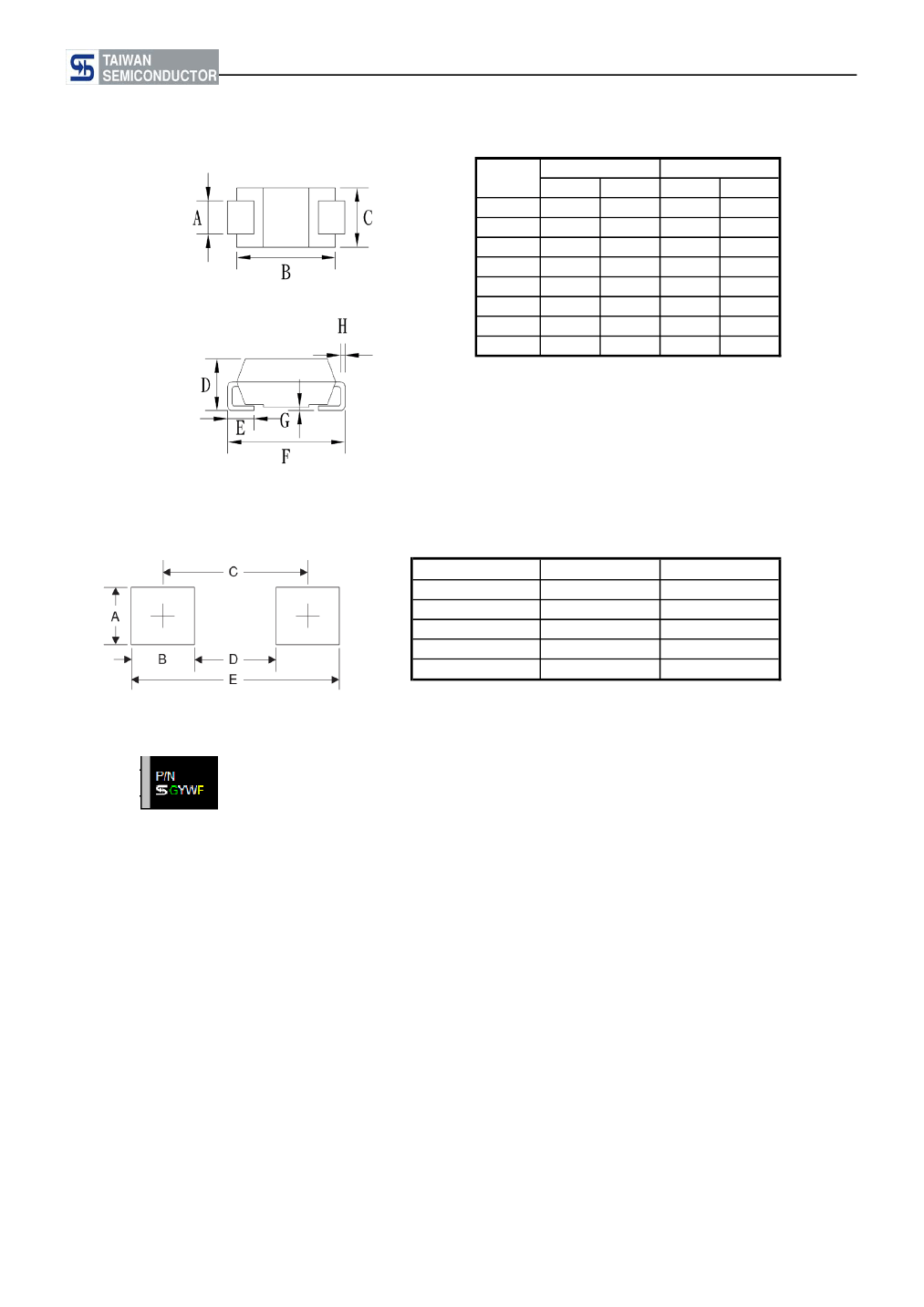

PACKAGE OUTLINE DIMENSIONS
DO-214AC (SMA)
DIM.
A
B
C
D
E
F
G
H
Unit (mm)
Min
1.27
4.06
2.29
1.99
0.90
4.95
0.10
0.15
Max
1.58
4.60
2.83
2.50
1.41
5.33
0.20
0.31
Unit (inch)
Min
0.050
0.160
0.090
0.078
0.035
0.195
0.004
0.006
Max
0.062
0.181
0.111
0.098
0.056
0.210
0.008
0.012
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.68
1.52
3.93
2.41
5.45
Unit (inch)
0.066
0.060
0.155
0.095
0.215
MARKING DIAGRAM
P/N =
G=
YW =
F=
Device Marking Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1502001
Version: D15
SMA6J SERIES
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1502001
Version: D15
