FEATURES AND SPECIFICATIONS
Features and Benefits
s
Preloaded contact assures low insertion force-to-normal
force ratio
s
Covered PC leads reduce contamination during soldering
operation
s
High-temperature plastic housing—SMT compatible
Electrical (cont’d)
Insulation Resistance: 500 M
Ω
min.
Shielding Effectiveness: 30 to 500 MHz—20 dB min.
500 MHz to 1 GHz—10 dB min.
Electrostatic Discharge Protection: 20kV min.
Mechanical
Mating Force: 1.4 lb
Unmating Force: 1.3 lb
Normal Force: 100g min.
Durability: 500 cycles min.
Physical
Housing: Black SMT-compatible thermoplastic, UL 94V-0
Contact: Phosphor Bronze
Plating: 50
µ
" select Gold in contact area, Tin/Lead on solder
tails, both over Nickel plate
Shields: Brass with Tin-over-Nickel plate
Operating Temperature: -20 to +80˚C
Wire Accommodation: 24 to 28 AWG foil-shielded flat,
round and retractile cable
SEMCONN
™
Shielded Receptacle
71355
Flanged, Right Angle
With PCB Ground Tab
Reference Information
Product Specification: PS-71350A
Packaging: Tray
Tooling Information: See end of section
UL File No.: E29179
CSA File No.: LR19980
Designed In: Inches
Electrical
Voltage: 30V
Current: 1.5A
Contact Resistance: 10m
Ω
max.
Dielectric Withstanding Voltage: 1000V AC rms

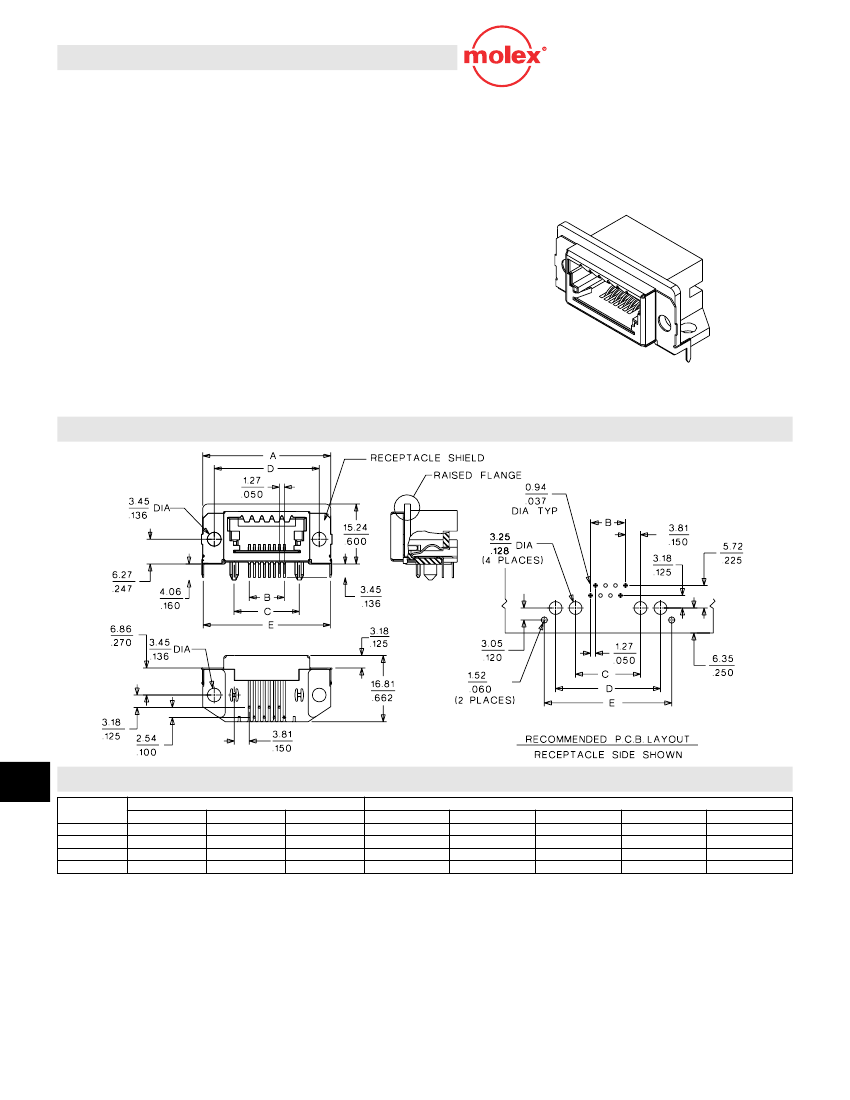

CATALOG DRAWING (FOR REFERENCE ONLY)
Q
I/O Connectors
ORDERING INFORMATION AND DIMENSIONS
Circuits
4
6
8
16
* Industry compatible
Non-Keyed Version
15-83-0404*
15-83-0406*
15-83-0408*
15-83-0416*
Order No.
Keying Option 1
15-83-0434
15-83-0436z
15-83-0438
15-83-0446
Keying Option 2
15-83-0454
15-83-0456
15-83-0458
15-83-0466
A
(1.080)
(1.180)
(1.280)
(1.680)
B
(.150)
(.250)
(.350)
(.750)
Dimension
C
11.43 (.450)
13.97 (.550)
16.51 (.650)
26.67 (1.050)
D
(.850)
(.950)
(1.050)
(1.450)
E
(1.073)
(1.173)
(1.273)
(1.673)
27.43
29.97
32.51
42.67
3.81
6.35
8.89
19.05
21.59
24.13
26.67
36.83
27.25
29.79
32.33
42.49
Q-108
MX01
