1736934636 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1736934636

1736934636: DescriptionFEMALE CRIMPED TERMINAL; CategoryThe connector; File Size198KB，1 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

1736934636 Overview

FEMALE CRIMPED TERMINAL

1736934636 Parametric

Parameter Name	Attribute value
type	power
pin or socket	jack
Contact termination	crimp
Wire gauge	14-16 AWG
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
Rated current	55A

Preview

Download Datasheet

View All

PART

NUMBER

PLATING

RECOMMENDED

WIRE SIZE

8 AWG

(2) 12 AWG

DIM "A"

HEIGHT

DIM "B"

WIDTH

173693-4634

30 " GOLD STRIPE OVER

50 " NICKEL OVERALL WITH

80-130 " SELECT TIN

RECOMMENDED

CRIMP

APPLICATOR

PACKAGE

SIZE

7.42

0.5

5.84

0.5

63832-6300

1800 PARTS/

REEL

173693-4632

10-12 AWG

(2) 14 AWG

14-16 AWG

(2) 16 AWG

(2) 18 AWG

5.97

0.5

5.33

0.5

63832-6000

2500 PARTS/

REEL

173693-4636

5.20

0.5

5.33

0.5

63832-6100

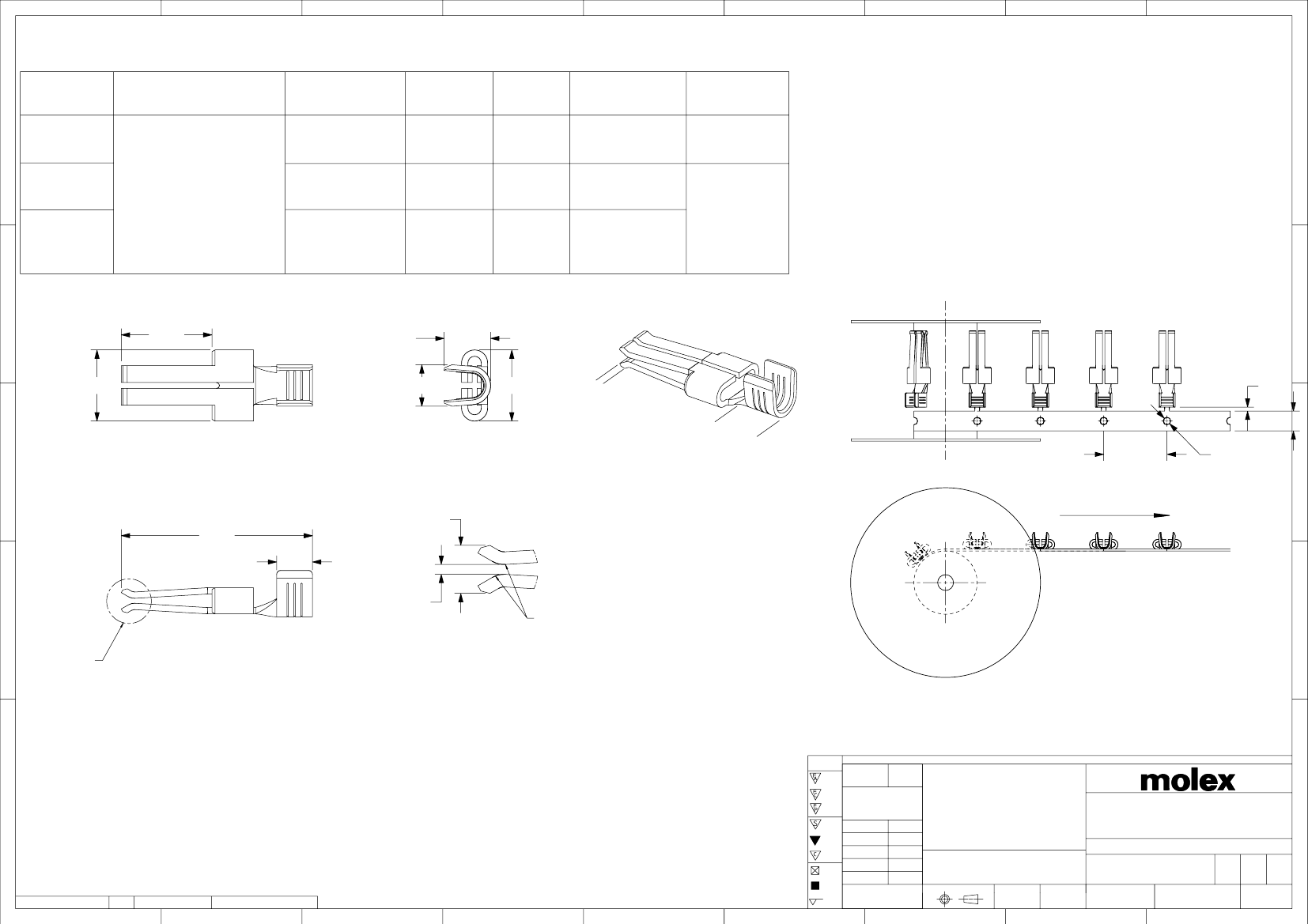

NOTES:

1. MATERIAL: COPPER ALLOY 0.81MM THICK

2. FINISH: PER MOLEX PLATING SPECIFICATION ES-88 - SEE CHART

3. FOR CRIMP APPLICATOR SEE CHART

4. FOR CRIMP TOOLING CONTACT MOLEX OR VISIT THE MOLEX WEBSITE A

WWW.MOLEX.COM

5. STANDARD PACKAGE SIZE: SEE CHART

6. SEE PRODUCT SPECIFICATION: PS-173693-001 FOR MORE INFORMATION

7. PARTS ARE RoHS COMPLIANT

8. FOR CRIMP SET UP INFORMATION SEE MOLEX APPLICATION

SPECIFICATION DOCUMENT:

8 AWG - ATS-638326300

10/12 AWG - ATS-638326000

14/16 AWG - ATS-638326100

11.65

9.14

GOLD STRIPE

LOCATION

(BETWEEN CONTACTS

ONLY)

1.27

6.35

TIN STRIPE

LOCATION

20.32

TYP

⌀

2.39

TYP

REEL UNWIND DIRECTION

3.33

24.56

4.60

0.89

SEE DETAIL 1

GOLD STRIPE AREA

-INSIDE GAP AREA ONLY-

(SEE CHART)

SYMBOLS

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

CURRENT REV DESC: ECTR MIGRATION

ANGULAR TOL

NTS

0.5 °

GENERAL TOLERANCES

(UNLESS SPECIFIED)

EC NO:

170941

4 PLACES

3 PLACES

2 PLACES

1 PLACE

0 PLACES

0.13

0.25

DRWN:

JTAN02

CHK'D: SCHEONG

APPR: KHLIM

INITIAL REVISION:

DRWN:

JSCHAFER

APPR:

BPISZCZOR

THIRD ANGLE PROJECTION

DRAWING

2018/01/16

2018/01/31

2018/02/07

2016/04/15

2016/10/03

SERIES

TERMINAL - RECEPTACLE

POWER CONTACT TEN60 POWER FAMILY

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

SD-173693-001

MATERIAL NUMBER

CUSTOMER

PSD

001

DOCUMENT STATUS

FORMAT: master-tb-prod-A3

REVISION: H

DATE: 2018/01/18

RELEASE DATE

2018/02/07

10:05:22

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

A3-SIZE

173693

SEE TABLE

GENERAL MARKET

1 OF 1

1736934636 Related Products

	1736934636	1736934632	1736934634
Description	FEMALE CRIMPED TERMINAL	FEMALE CRIMP TERMINAL	FEMALE CRIMPED TERMINAL
type	power	power	power
pin or socket	jack	jack	jack
Contact termination	crimp	crimp	crimp
Wire gauge	14-16 AWG	10-12 AWG	8 AWG
Contact plating	gold	gold	gold
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）
Rated current	55A	55A	55A
