108483006004026 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 108483006004026

108483006004026: DescriptionBoard Euro Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size91KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

108483006004026 Overview

Board Euro Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug,

108483006004026 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: DIN 41612, SPECIAL CONTACT TERMINAL PITCH IS 7.62
body width	0.437 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact arrangement	S6P10
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	8483
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.445 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

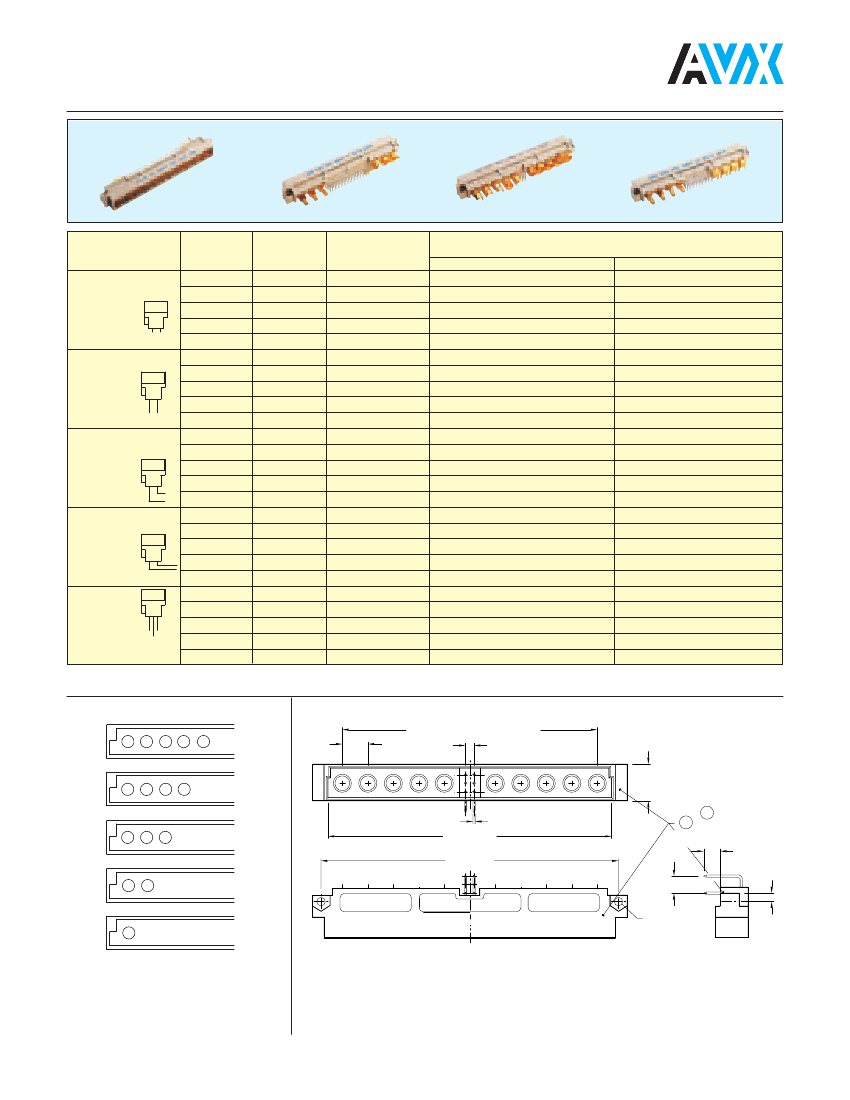

Male Style M

Series 8483 – a + c loaded

Contact Design

and

Termination Length

No. of Cavities No. of Cavities

For Signal

for Special

Contacts

Loading Description

6 (3 x 2)

24 (3 x 8)

42 (3 x 14)

a + c fully loaded

Part Number

Performance classes according to DIN 41612

10 8483 006 001 026

10 8483 024 001 026

10 8483 042 001 026

10 8483 060 001 026

10 8483 078 001 026

10 8483 006 002 026

10 8483 024 002 026

10 8483 042 002 026

10 8483 060 002 026

10 8483 078 002 026

10 8483 006 003 026

10 8483 024 003 026

10 8483 042 003 026

10 8483 060 003 026

10 8483 078 003 026

10 8483 006 004 026

10 8483 024 004 026

10 8483 042 004 026

10 8483 060 004 026

10 8483 078 004 026

10 8483 006 005 026

10 8483 024 005 026

10 8483 042 005 026

10 8483 060 005 026

10 8483 078 005 026

10 8483 006 001 050

10 8483 024 001 050

10 8483 042 001 050

10 8483 060 001 050

10 8483 078 001 050

10 8483 006 002 050

10 8483 024 002 050

10 8483 042 002 050

10 8483 060 002 050

10 8483 078 002 050

10 8483 006 003 050

10 8483 024 003 050

10 8483 042 003 050

10 8483 060 003 050

10 8483 078 003 050

10 8483 006 004 050

10 8483 024 004 050

10 8483 042 004 050

10 8483 060 004 050

10 8483 078 004 050

10 8483 006 005 050

10 8483 024 005 050

10 8483 042 005 050

10 8483 060 005 050

10 8483 078 005 050

3.0 mm (Y)

Straight

60 (3 x 20)

78 (3 x 26)

6 (3 x 2)

24 (3 x 8)

42 (3 x 14)

11.4 mm (Y)

Straight

60 (3 x 20)

78 (3 x 26)

6 (3 x 2)

24 (3 x 8)

42 (3 x 14)

3.0 mm (Y)

Right Angled

60 (3 x 20)

78 (3 x 26)

6 (3 x 2)

24 (3 x 8)

42 (3 x 14)

11.3mm (Y)

Right Angled

60 (3 x 20)

78 (3 x 26)

6 (3 x 2)

24 (3 x 8)

Solder eyelet

rows a + c 4.8 mm

row b 7.5 mm

42 (3 x 14)

60 (3 x 20)

78 (3 x 26)

NB: Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION

●

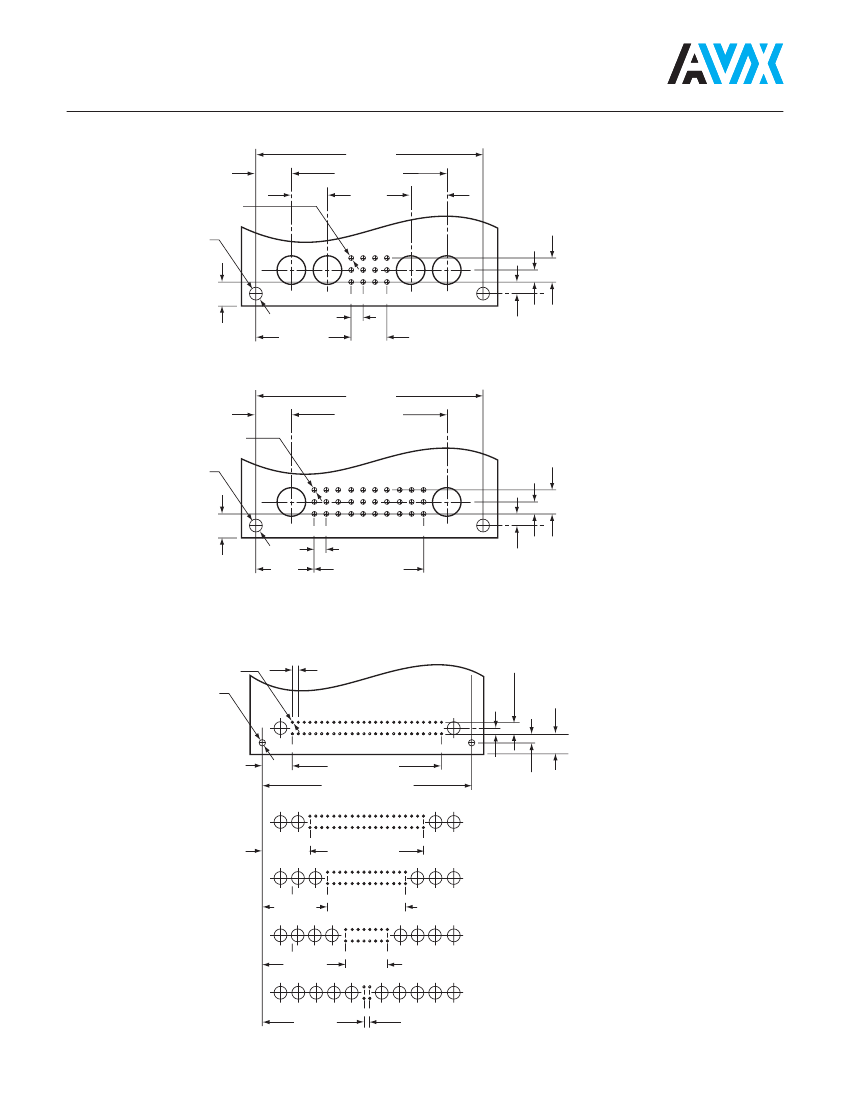

DIMENSIONS

29.0 [1.140] x 2.54 [0.100] = 73.66 [2.900]

7.62

[0.300]

2.54

[0.100]

10 contacts, rows a + c fully loaded

●

0.60

[0.025]

85.2 [3.350]

8 contacts, rows a + c fully loaded

●

11.1

[0.437]

PLUG SERIES 8483

❂

5.08

[0.200]

88.9 [3.500]

6 contacts, rows a + c fully loaded

●

3.00

[0.118]

2.60 DIA.

[0.102]

4 contacts, rows a + c fully loaded

●

2 contacts, rows a + c fully loaded

See Page 45 for board layout

2.54

[0.100]
