108477048001033 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 108477048001033

108477048001033: DescriptionBoard Euro Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

108477048001033 Overview

Board Euro Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Plug, ROHS COMPLIANT

108477048001033 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARD: DIN 41612
body width	0.433 inch
body length	2.162 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	8477
Plug contact pitch	0.2 inch
Match contact row spacing	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

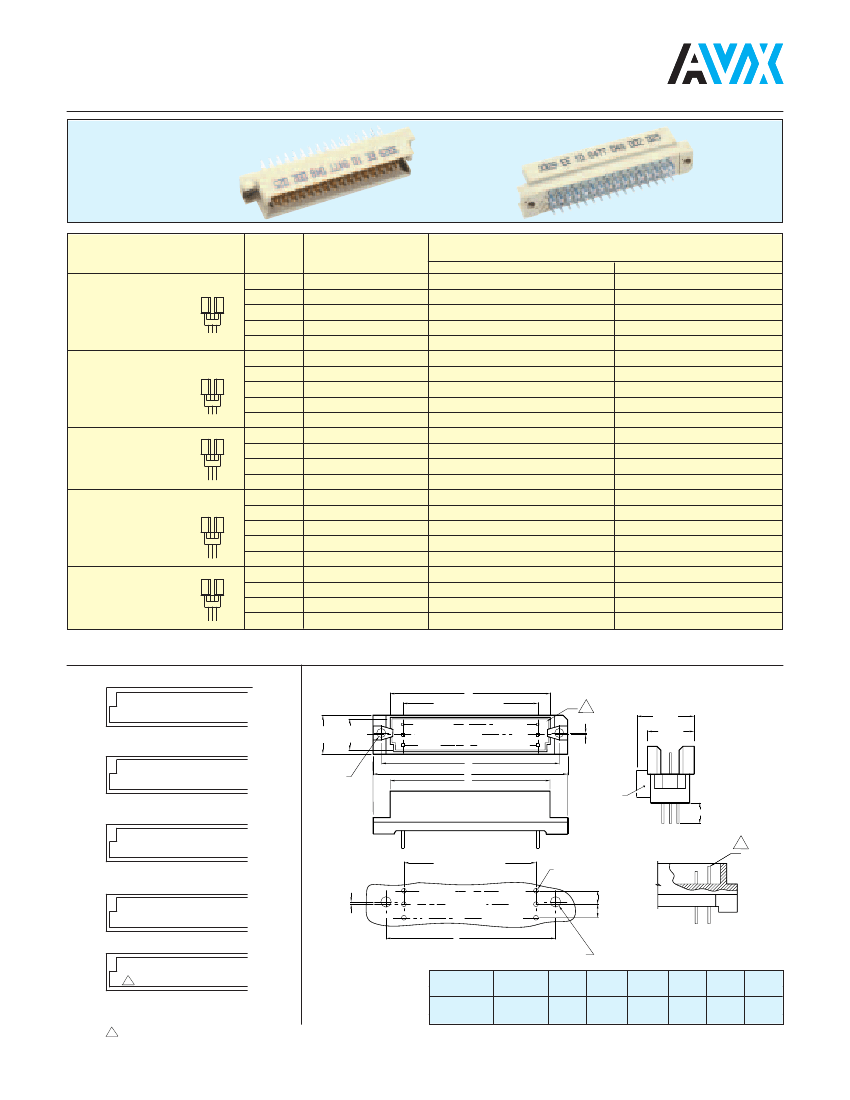

Male Style 1/2 R

Series 8477 – 3 rows (3 x 16) Inverted

Contact Design

and

Termination Length

Number of

Contacts

Loading Description

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

fully loaded + ground

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

fully loaded + ground

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

fully loaded + ground

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

Part Number

Performance classes according to DIN 41612

10 8477 048 001 025

10 8477 048 001 049

10 8477 048 001 026

10 8477 048 001 033

10 8477 048 001 027

10 8477 048 101 025

10 8477 048 002 025

10 8477 048 002 026

10 8477 048 002 033

10 8477 048 002 027

10 8477 048 102 025

10 8477 048 005 025

10 8477 048 005 026

10 8477 048 005 033

10 8477 048 005 027

10 8477 048 006 025

10 8477 048 006 026

10 8477 048 006 033

10 8477 048 006 027

10 8477 048 106 025

10 8477 048 007 025

10 8477 048 007 026

10 8477 048 007 033

10 8477 048 007 027

10 8477 048 001 050

10 8477 048 001 057

10 8477 048 001 051

10 8477 048 101 049

10 8477 048 002 049

10 8477 048 002 050

10 8477 048 002 057

10 8477 048 002 051

10 8477 048 102 049

10 8477 048 005 049

10 8477 048 005 050

10 8477 048 005 057

10 8477 048 005 051

10 8477 048 006 049

10 8477 048 006 050

10 8477 048 006 057

10 8477 048 006 051

10 8477 048 106 049

10 8477 048 007 049

10 8477 048 007 050

10 8477 048 007 057

10 8477 048 007 051

2.9 mm (Y)

Straight

46 + 2

4.5 mm (Y)

Straight

46 + 2

9.5 mm (Y)

Straight

13.0 mm (Y)

Straight

46 + 2

14.9 mm (Y)

Straight

NB: Alternative Prefix Variations Available: 12, 14, 15, 16 & 17, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION

●

DIMENSIONS

A EQ SP @ 2.54 [0.100] = B

ROW A

13.6

[0.535]

11.0

[0.433]

ROW C

0.30

[0.012]

11.0

[0.433]

8.74

[0.344]

48 contacts,

rows a + b + c fully loaded

●

ROW B

2.80 DIA.

[0.110]

KEYING

32 contacts,

rows a + c fully loaded

●

For Y dimension

see contact design

A EQ SP @ 2.54 [0.100] = B

1.02 DIA.

[0.040]

ROW A

2.54

[0.100]

GROUND

CONTACT

16 contacts,

rows a + c even loading

●

ROW B

0.30

[0.012]

HOLE PATTERN

2.84 DIA.

[0.112]

ROW C

2.54

[0.100]

16 contacts, row a loading only

●

Unit: millimeters (inches)

38.10

(1.500)

44.70

(1.760)

47.29

(1.862)

No. Contact

Positions

Contact

Rows

3 (3 x 16)

46 + 2 contacts, fully loaded

with ground in A1 & A16

denotes ground pin

49.99 54.91

(1.968) (2.162)
