BCR20CM-16LB
800V - 20A - Triac
Medium Power Use
Features
I
T (RMS)
: 20 A
V
DRM
: 800 V
I
FGTI
, I
RGTI
, I
RGT III
: 30 mA
The Product guaranteed maximum junction
temperature 150C
Non-Insulated Type
Planar Type
R07DS0673EJ0200
Rev.2.00
Feb 25, 2013
Outline
RENESAS Package code: PRSS0004AG-A
(Package name: TO-220AB)
4
RENESAS Package code: PRSS0004AA-A
A
(Package name: TO-220)
4
2, 4
1.
2.
3.
4.
T
1
Terminal
T
2
Terminal
Gate Terminal
T
2
Terminal
3
1
1
2
3
12
3
Applications
Switching mode power supply, washing machine, motor control, heater control, and other general purpose control
applications
Maximum Ratings
Parameter
Repetitive peak off-state voltage
Note1
Non-repetitive peak off-state voltage
Note1
Symbol
V
DRM
V
DSM
Voltage class
16
800
960
Unit
V
V
Parameter
RMS on-state current
Surge on-state current
I
2
t for fusion
Peak gate power dissipation
Average gate power dissipation
Peak gate voltage
Peak gate current
Junction Temperature
Storage temperature
Mass
Symbol
I
T (RMS)
I
TSM
I
2
t
P
GM
P
G (AV)
V
GM
I
GM
Tj
Tstg
—
Ratings
20
200
167
5
0.5
10
2
–40 to +150
–40 to +150
2.1
Unit
A
A
A
2
s
W
W
V
A
C
C
g
Conditions
Commercial frequency, sine full wave
360 conduction, Tc = 116C
Note3
60 Hz sinewave 1 full cycle, peak value,
non-repetitive
Value corresponding to 1 cycle of half
wave 60 Hz, surge on-state current
Typical value
R07DS0673EJ0200 Rev.2.00
Feb 25, 2013
Page 1 of 8
BCR20CM-16LB
Preliminary
Electrical Characteristics
Parameter
Repetitive peak off-state current
On-state voltage
Gate trigger voltage
Note2
Symbol
I
DRM
V
TM
V
FGT
V
RGT
V
RGT
I
FGT
I
RGT
I
RGT
V
GD
R
th (j-c)
(dv/dt)c
Min.
—
—
—
—
—
—
—
—
—
0.2
0.1
—
10
1
Typ.
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Max.
2.0
5.0
1.5
1.5
1.5
1.5
30
30
30
—
—
1.4
—
—
Unit
mA
mA
V
V
V
V
mA
mA
mA
V
V
C/W
V/s
V/s
Test conditions
Tj = 125C, V
DRM
applied
Tj = 150C, V
DRM
applied
Tc = 25C, I
TM
= 30 A,
instantaneous measurement
Tj = 25C, V
D
= 6 V, R
L
= 6
,
R
G
= 330
Tj = 25C, V
D
= 6 V, R
L
= 6
,
R
G
= 330
Tj = 125C, V
D
= 1/2 V
DRM
Tj = 150C, V
D
= 1/2 V
DRM
Junction to case
Note3,4
Tj = 125C
Tj = 150C
Gate trigger curent
Note2
Gate non-trigger voltage
Thermal resistance
Critical-rate of rise of off-state
commutation voltage
Note5
Notes: 1.
2.
3.
4.
5.
Gate open.
Measurement using the gate trigger characteristics measurement circuit.
Case temperature is measured at the T
2
tab 1.5 mm apart from the molded case.
The contact thermal resistance R
th (c-f)
in case of greasing is 1.0C/W.
Test conditions of the critical-rate of rise of off-state commutation voltage is shown in the table below.
Test conditions
Commutating voltage and current waveforms
(inductive load)
Supply Voltage
Time
(di/dt)c
Time
Time
V
D
1. Junction temperature
Tj = 125C/150C
2. Rate of decay of on-state commutating current
(di/dt)c = –10 A/ms
3. Peak off-state voltage
V
D
= 400 V
Main Current
Main Voltage
(dv/dt)c
R07DS0673EJ0200 Rev.2.00
Feb 25, 2013
Page 2 of 8
BCR20CM-16LB
Preliminary

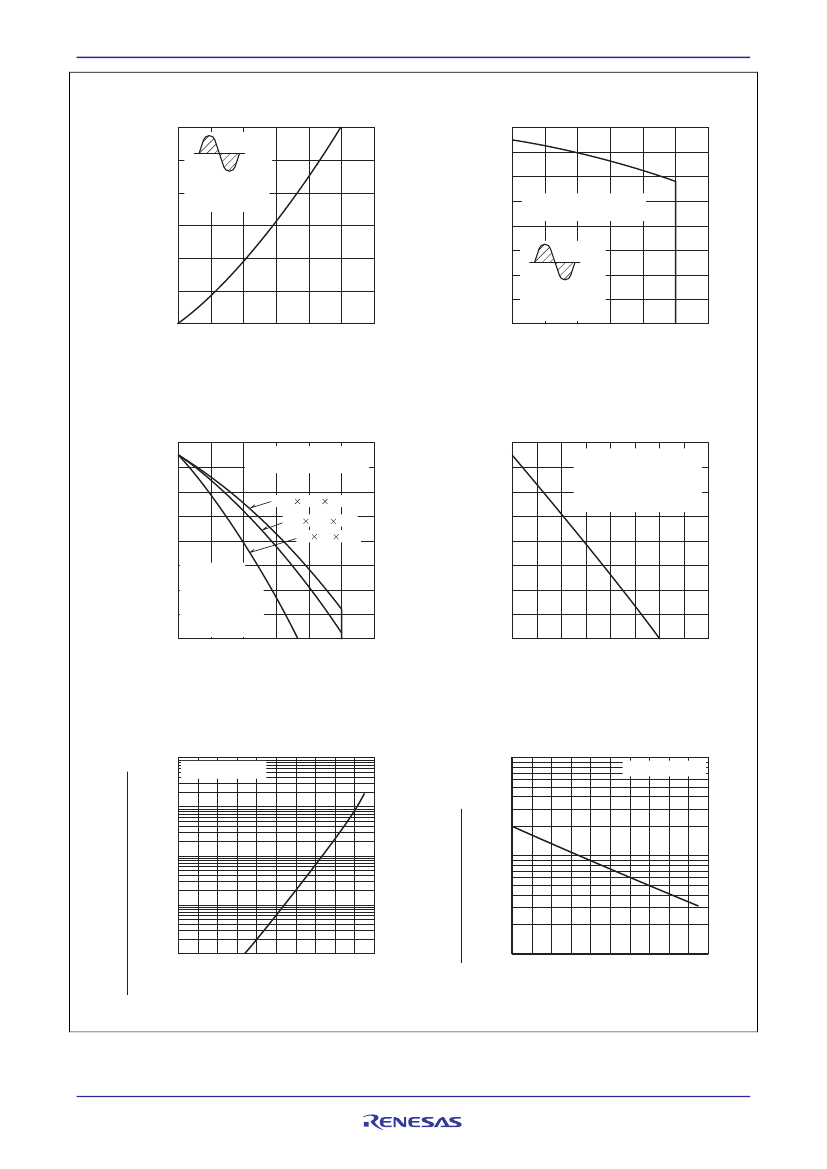

Performance Curves
Maximum On-State Characteristics
10
3
240
Rated Surge On-State Current
Surge On-State Current (A)
On-State Current (A)
200
160
120
80
40
0
10
0
10
2
10
1
10
0
Tj = 150°C
Tj = 25°C
10
−1
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
10
1
10
2
On-State Voltage (V)
Conduction Time (Cycles at 60Hz)
10
2
Gate Trigger Current (Tj = t°C)
×
100 (%)
Gate Trigger Current (Tj = 25°C)
Gate Characteristics (I, II and III)
Gate Trigger Current vs.
Junction Temperature
10
3
Typical Example
Gate Voltage (V)
V
GM
= 10V
10
1
V
GT
= 1.5V
10
0
P
G(AV)
= 0.5W
P
GM
= 5W
I
GM
= 2A
I
RGT I
, I
RGT III
10
2
I
FGT I
I
GT
= 30mA
10
−1
1
10
V
GD
= 0.1V
10
2
10
3
10
4
10
1
–40
0
40
80
120
160
Gate Current (mA)
Junction Temperature (°C)
Gate Trigger Voltage (Tj = t°C)
×
100 (%)
Gate Trigger Voltage (Tj = 25°C)
Gate Trigger Voltage vs.
Junction Temperature
10
3
Maximum Transient Thermal Impedance
Characteristics (Junction to case)
Transient Thermal Impedance (°C/W)
10
2
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
10
−1
10
3
Typical Example
10
2
10
1
–40
0
40
80
120
160
10
0
10
1
10
2
Junction Temperature (°C)
Conduction Time (Cycles at 60Hz)
R07DS0673EJ0200 Rev.2.00
Feb 25, 2013
Page 3 of 8
BCR20CM-16LB
Preliminary
Allowable Case Temperature vs.
RMS On-State Current
160
140
Maximum On-State Power Dissipation
24
On-State Power Dissipation (W)
Case Temperature (°C)
20
16
12
8
4
0
360° Conduction
Resistive,
inductive loads
120
100
80
60
40
20
Curves apply regardless
of conduction angle
0
4
8
12
16
20
24
0
360° Conduction
Resistive,
inductive loads
0
4
8
12
16
20
24
RMS On-State Current (A)
RMS On-State Current (A)
Allowable Ambient Temperature vs.
RMS On-State Current
160
Allowable Ambient Temperature vs.
RMS On-State Current
160
Ambient Temperature (°C)
120
100
80
Ambient Temperature (°C)
140
All fins are black painted
aluminum and greased
120 120 t2.3
100 100 t2.3
60 60 t2.3
140
120
100
80
60
40
20
0
0
1
Natural convection
No Fins
Curves apply regardless
of conduction angle
Resistive, inductive loads
60
Curves apply
regardless of
40
conduction angle
Resistive,
20
inductive loads
Natural convection
0
0
4
8
12
16
20
24
2
3
4
RMS On-State Current (A)
RMS On-State Current (A)
Repetitive Peak Off-State Current (Tj = t°C)
×
100 (%)
Repetitive Peak Off-State Current (Tj = 25°C)
Repetitive Peak Off-State Current vs.
Junction Temperature
10
6
Typical Example
Holding Current vs.
Junction Temperature
Holding Current (Tj = t°C)
×
100 (%)
Holding Current (Tj = 25°C)
10
3
Typical Example
10
5
10
4
10
2
10
3
10
2
–40
0
40
80
120
160
10
1
–40
0
40
80
120
160
Junction Temperature (°C)
Junction Temperature (°C)
R07DS0673EJ0200 Rev.2.00
Feb 25, 2013
Page 4 of 8

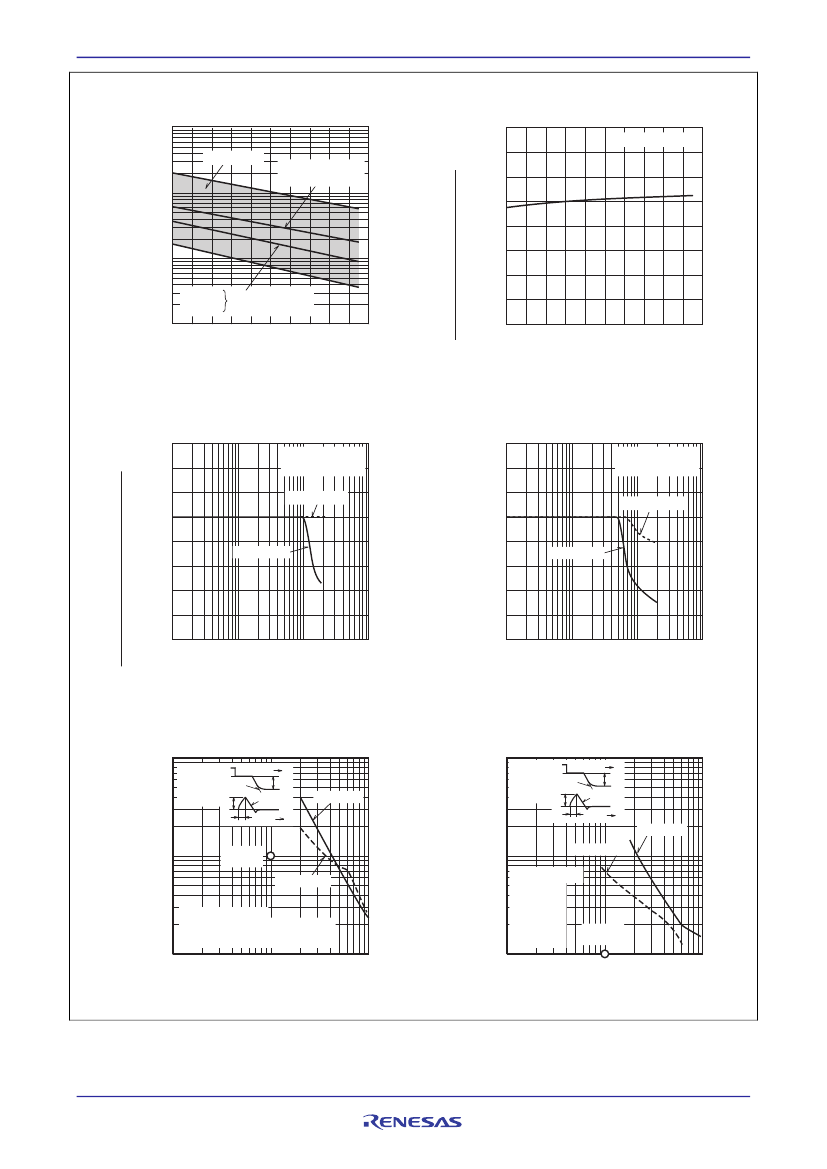

BCR20CM-16LB
Latching Current vs.
Junction Temperature
10
3
Preliminary
Breakover Voltage vs.
Junction Temperature
Breakover Voltage (Tj = t°C)
×
100 (%)
Breakover Voltage (Tj = 25°C)
160
Typical Example
140
120
100
80
60
40
20
0
–40
Latching Current (mA)
Distribution
T
2
+, G–
Typical Example
10
2
10
1
T
2
+, G+
Typical Example
T
2
–, G–
10
0
–40
0
40
80
120
160
0
40
80
120
160
Junction Temperature (°C)
Junction Temperature (°C)
Breakover Voltage (dv/dt = xV/μs)
×
100 (%)
Breakover Voltage (dv/dt = 1V/μs)
Breakover Voltage vs.
Rate of Rise of Off-State Voltage (Tj=125°C)
160
140
120
100
80
I Quadrant
60
40
20
0
10
1
10
2
10
3
10
4
Typical Example
Tj = 125°C
III Quadrant
Breakover Voltage vs.
Rate of Rise of Off-State Voltage (Tj=150°C)
160
140
120
100
80
I Quadrant
60
40
20
0
10
1
10
2
10
3
10
4
Typical Example
Tj = 150°C
III Quadrant
Rate of Rise of Off-State Voltage (V/μs)
Rate of Rise of Off-State Voltage (V/μs)
Commutation Characteristics (Tj=125°C)
10
2
Commutation Characteristics (Tj=150°C)
10
2
Critical Rate of Rise of Off-State
Commutating Voltage (V/μs)
Time
Main Voltage
(dv/dt)c
V
D
Main Current
(di/dt)c
I
T
τ
Time
I Quadrant
Critical Rate of Rise of Off-State
Commutating Voltage (V/μs)
Time
Main Voltage
(dv/dt)c
V
D
Main Current
(di/dt)c
I
T
τ
Time
I Quadrant
10
1
Minimum
Value
III Quadrant
10
1
III Quadrant
10
0
10
0
Typical Example
Tj = 125°C, I
T
= 4A,
τ
= 500μs
V
D
= 200V, f = 3Hz
10
1
10
2
Typical Example
Tj = 150°C
I
T
= 4A
τ
= 500μs,
V
D
= 200V
Minimum
f = 3Hz
Value
10
0
10
0
10
1
10
2
Rate of Decay of On-State
Commutating Current (A/ms)
Rate of Decay of On-State
Commutating Current (A/ms)
R07DS0673EJ0200 Rev.2.00
Feb 25, 2013
Page 5 of 8
