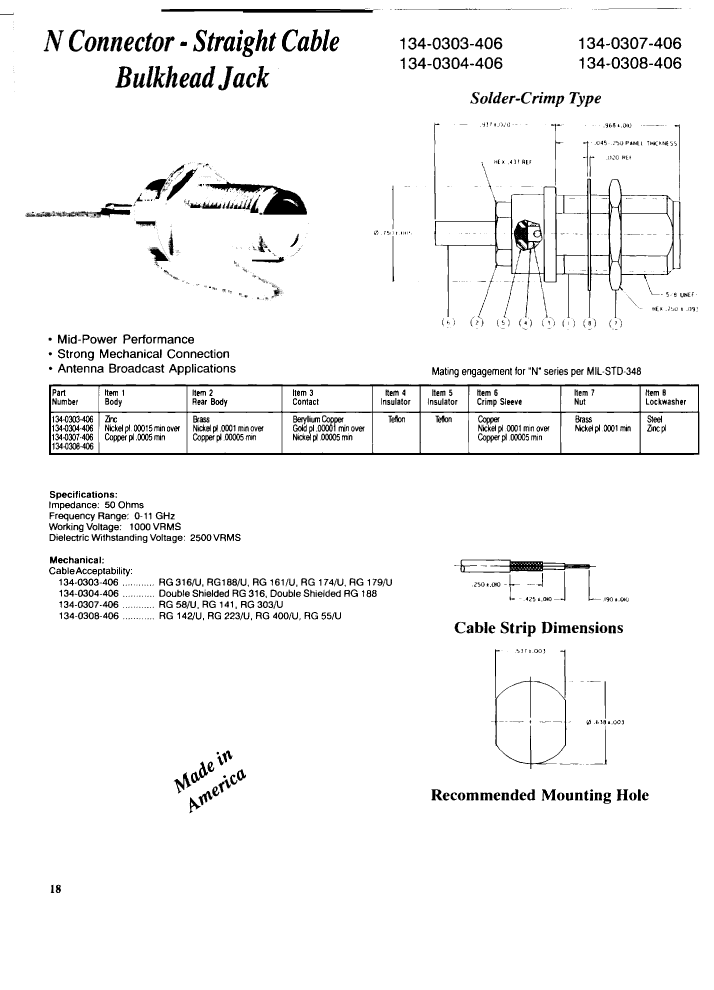

Preview

134-0307-406: DescriptionRF N Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerEF Johnson Technologies Inc.

Download Datasheet Parametric Compare View All

134-0307-406 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	134-0307-406	-	-	View	Buy Now

134-0307-406 Overview

RF N Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack

134-0307-406 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG58/U; RG141; RG303/U
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD (10) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	TEFLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	134
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

134-0307-406 Related Products

	134-0307-406	134-0303-407	134-0304-406	134-0308-406
Description	RF N Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack	RF N Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack	RF N Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack	RF N Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack
Reach Compliance Code	unknow	unknow	unknow	unknow
Other features	APPLICABLE CABLES: RG58/U; RG141; RG303/U	APPLICABLE CABLES:RG 316; RG 188; RG 161; RG 174	APPLICABLE CABLES: RG316; RG188	APPLICABLE CABLES: RG142/U; RG223/U; RG400/U; RG55/U
Body/casing type	JACK	JACK	JACK	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR	RF N CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	TEFLON	TEFLON	TEFLON	TEFLON
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	134	134	134	134
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	11 GHz	11 GHz	11 GHz	11 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES
Termination type	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER
Base Number Matches	1	1	1	1
