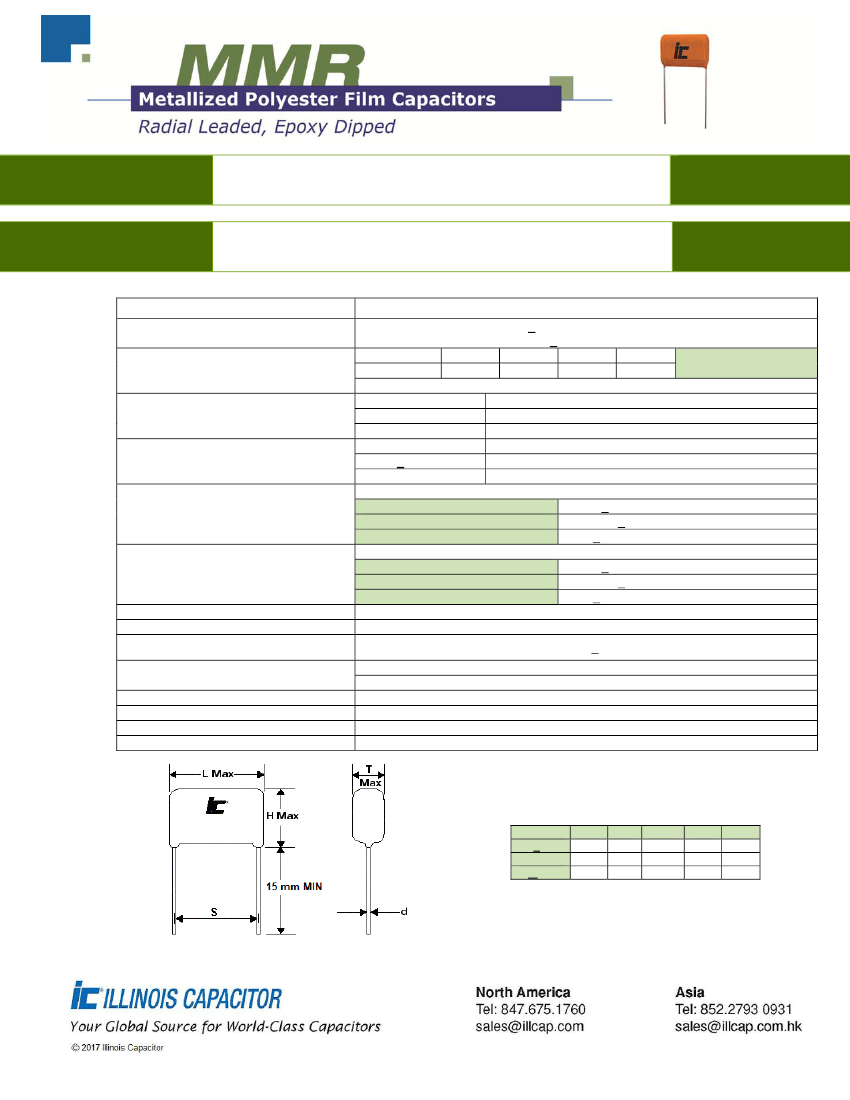

FEATURES
APPLICATIONS
Small Size
-
High Voltage
-
General Purpose
General Purpose
–
Bypass
–
Coupling
–
Blocking
Operating Temperature Range
Capacitance Tolerance
Peak, AC voltage (50/60 Hz)
Dissipation Factor (MAX)
25°C
Insulation Resistance
@25°C (<70% RH)for 1 minute at
100VDC applied
Load Life
Damp Heat test
Self Inductance
Capacitance Drift Factor
Capacitance Temperature Coefficient
Dielectric Strength
Dielectric
Construction
Coating
Leads
-40°C to +105°C
+10% at 1 kHz, 25°C
+5% optional
WVDC
100
250
400
630
VAC
63
160
200
220
For T>+85°C , The voltage must be decreased by 1.25% per °C
Frequency (kHz)
Dissipation Factor
1
1.0%
10
1.5%
Capacitance
Insulation Resistance
<0.33μF
9000 MΩ
>0.33μF
3000 MΩxμF
2000 Hours, +85C with 125% of rated voltage
Capacitance Change
<5% of initially measured value
Dissipation Factor
<0.005 at 1kHz and 25°C
Insulation Resistance
>50% of maximum specified value
1000 Hours, 93%RH(+/-2%), +40°C and no voltage applied
Capacitance Change
<5% of initially measured value
Dissipation Factor
<0.005 at 1kHz and 25°C
Insulation Resistance
>50% of maximum specified value
<1 nano-Henry per mm of body length and lead length
<1.0% after 2 years at 40°C
+400 ppm/°C, +200ppm/°C
Terminal to Terminal
160% of VDC applied for 2 Seconds and 25°C
Polyester
Metallized film
Flame Retardant epoxy resin (UL94V0)
Lead free tinned copper leads
L MAX
S+1.0
G MAX
d +0.05
10.5
7.5
1.5
0.6
12
10
1.5
0.6
18.5
15
1.5
0.8
26
22.5
1.5
0.8
31
27.5
1.5
0.8
