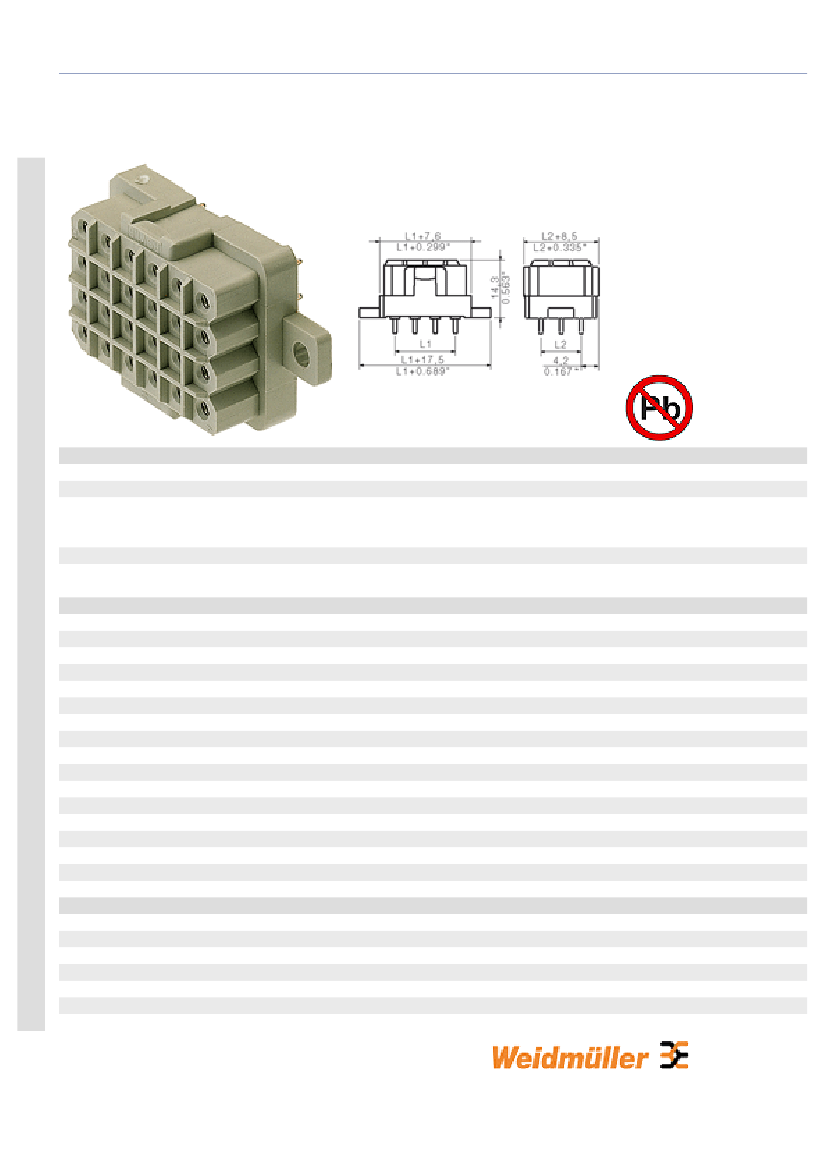

Product catalogue | PCB connection systems | PCB plug-in connectors | CrimpMate | Plug/Socket connectors, solder
connection pitch 5.00 | RSV 1.6 L | RSV1.6 LBF
Material data
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group C)
Rated current (Use group C)
UL 1977 rating data
Rated voltage (UL 1977)
Rated current (UL 1977)
Approvals
Approvals institutes
tinned
-25 °C
100 °C
-25 °C
55 °C
75 %
14 A
10 A
12 A
8.5 A
250 V
4 kV
320 V
2.5 kV
500 V
2.5 kV
3 x 1s with 120 A
300 V
13 A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | CrimpMate | Plug/Socket connectors, solder
connection pitch 5.00 | RSV 1.6 L | RSV1.6 LBF
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
RSV1.6.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-01
Similar products
Order No.
1440700000
1413700000
1441700000
1414700000
1442700000
1415700000
1443700000
1416700000
1444700000
1417700000
1445700000
1446700000
1419700000
Part designation
RSV1,6 LBF4 GR 3,2 SN
RSV1,6 LBF4 GR 4,5 SN
RSV1,6 LBF6 GR 3,2 SN
RSV1,6 LBF6 GR 4,5 SN
RSV1,6 LBF9 GR 3,2 SN
RSV1,6 LBF9 GR 4,5 SN
RSV1,6 LBF12 GR 3,2 SN
RSV1,6 LBF12 GR 4,5 SN
RSV1,6 LBF18 GR 3,2 SN
RSV1,6 LBF18 GR 4,5 SN
RSV1,6 LBF24 GR 3,2 SN
RSV1,6 LBF36 GR 3,2 SN
RSV1,6 LBF36 GR 4,5 SN
Version
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 24, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 36, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 36, 180°, Box
