142-0694-051 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 142-0694-051

142-0694-051: DescriptionRF SMA Connector, Male, Cable Mount, Solder Terminal, Plug; CategoryThe connector The connector; File Size767KB，3 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

142-0694-051 Overview

RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug

142-0694-051 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	INSERTION LOSS MAX AT 10 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.09 dB
insulator material	PTFE FLUOROCARBON/PFA
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	26.5 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.26
Base Number Matches	1

Preview

Download Datasheet

View All

SMA 50 Ohm

Straight Solder Type Plug -

with contact, thread-on nut

INCHES (MILLIMETERS)

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST

CABLE TYPE

.141

Semi-Rigid

VSWR & FREQ. RANGE

1.05+.008 f (GHz)

0-26.5 GHz

GOLD PLATED NICKEL PLATED

142-0694-051

142-0694-056

“A”

.438 (11.13)

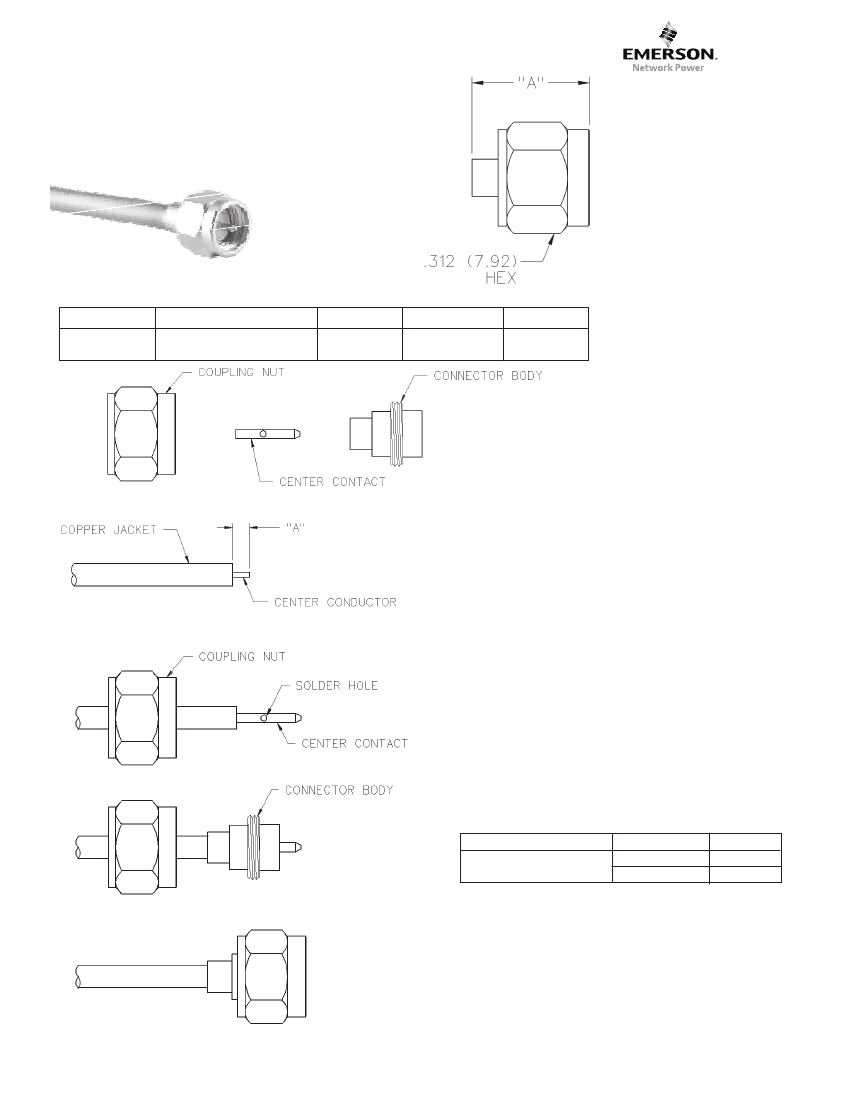

Identify connector parts. (3 piece parts)

Strip cable to dimensions shown. Do not nick center

conductor. Slide coupling nut onto cable as shown.

Place center contact on center conductor making sure

contact bottoms against cable insulation. Solder cen-

ter conductor to center contact through solder hole.

Solder

must not

be allowed to run on outside of con-

tact. Use a minimum amount of solder for a good joint.

.020 (0.51) diameter solder is recommended.

Trim

excess insulation.

Insert contact and cable into body making sure cable

is bottomed against insulator in body. Solder body to

cable. Use a minimum amount of heat to minimize

cable insulation movement.

Thread coupling nut over body.

CABLE GROUP

RG-402/u

(.141 semi-rigid)

PART NUMBER

142-0694-051

142-0694-056

“A”

.085 (2.16)

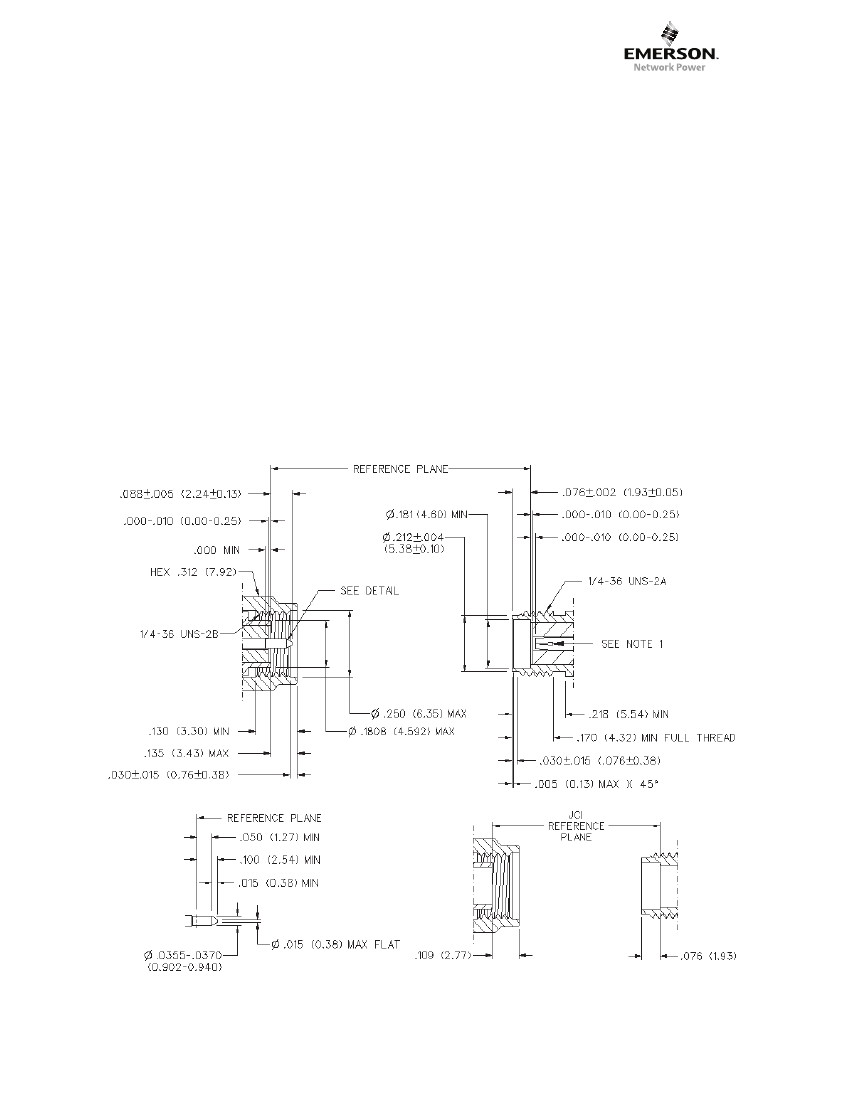

Emerson Network Power Connectivity Solutions

299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com

142-0694-051 Related Products

	142-0694-051	142-0694-056
Description	RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	INSERTION LOSS MAX AT 10 GHZ	INSERTION LOSS MAX AT 10 GHZ
Body/casing type	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)
Contact completed and terminated	GOLD (30)	GOLD (30)
Contact point gender	MALE	MALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insertion loss	0.09 dB	0.09 dB
insulator material	PTFE FLUOROCARBON/PFA	PTFE FLUOROCARBON/PFA
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	SMA	SMA
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Maximum operating frequency	26.5 GHz	26.5 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SOLDER	SOLDER
voltage standing wave ratio	1.26	1.26
Base Number Matches	1	1
