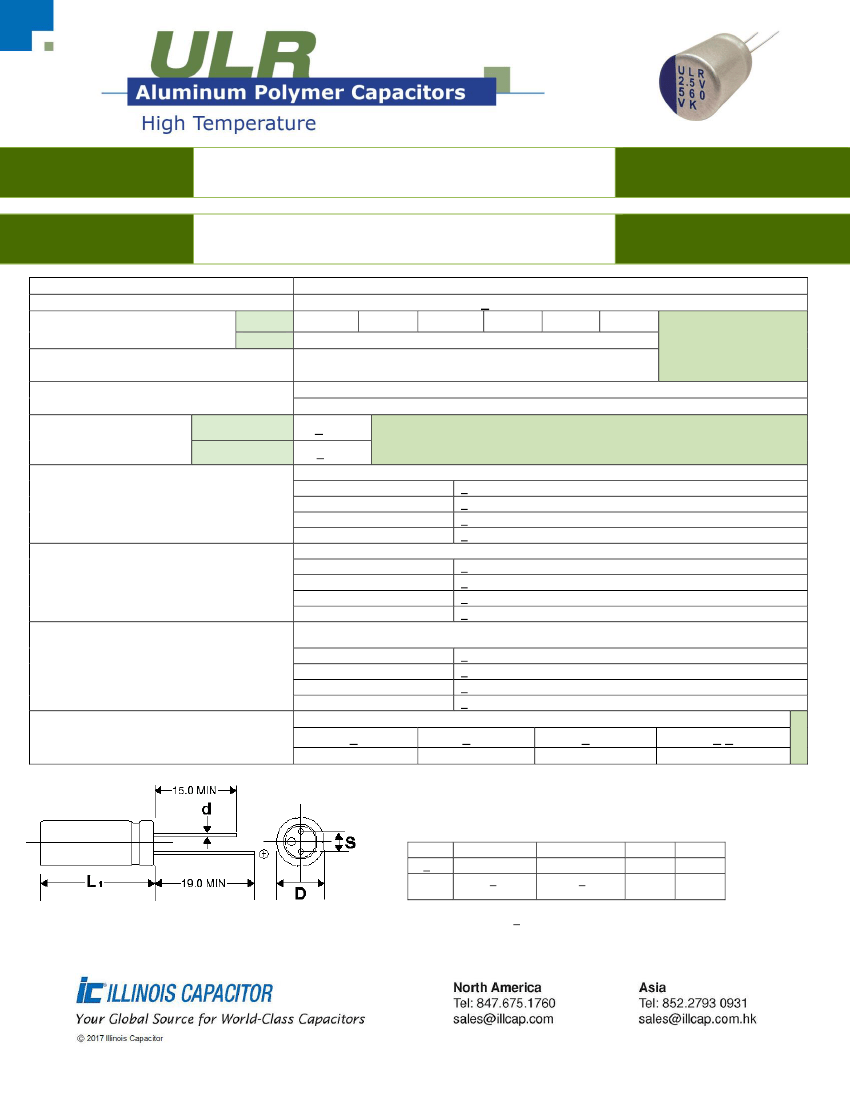

227ULR016MFH: DescriptionCAP ALUM POLY 220UF 20% 16V T/H; CategoryPassive components; File Size330KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

227ULR016MFH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	227ULR016MFH	-	-	View	Buy Now

227ULR016MFH Overview

CAP ALUM POLY 220UF 20% 16V T/H

227ULR016MFH Parametric

Parameter Name	Attribute value
type	polymer
capacitance	220µF
Tolerance	±20%
Voltage - Rated	16V
ESR (equivalent series resistance)	750 milliohms
Service life at different temperatures	2000 hours at 105°C
Operating temperature	-55°C ~ 105°C
grade	-
application	decoupling
Ripple current @ low frequency	250mA @ 120Hz
Ripple current @ high frequency	5A @ 100kHz
lead spacing	0.138"（3.50mm）
size/dimensions	0.315" diameter (8.00mm)
Height - Installation (maximum)	0.512"（13.00mm）
Surface mount pad dimensions	-
Installation type	Through hole
Package/casing	Radial, Can

Preview

Download Datasheet

View All

FEATURES

APPLICATIONS

High Temperature

–

Very Low ESR – High Ripple Current –

Stable with Temperature – High Frequency

DC-DC Converters

–

Voltage Regulators

–

Decoupling

-55°C to +105°C

+20% at 120 Hz, 20°C

10

16

20

25

1.15 x rated WVDC

10% MAX

2 Minutes

0.2CV or 280uA, whichever is greater

<1.25

2000 hours at 105°C with rated WVDC applied

Capacitance Change

<20% of initial measured value

Dissipation Factor

<150% of maximum specified value

ESR

<150% of maximum specified value

Leakage Current

<100% of maximum specified value

1000 hours at 60°C with rated voltage applied at 90-95% R.H.

Capacitance Change

<20% of initial measured value

Dissipation Factor

<150% of maximum specified value

ESR

<150% of maximum specified value

Leakage Current

<100% of maximum specified value

1000 cycles at 105°C with rated surge voltage applied for 30 seconds through a 1kΩ resistor

and discharged for 5 minutes and 30 seconds

Capacitance Change

<20% of initial measured value

Dissipation Factor

<150% of maximum specified value

ESR

<150% of maximum specified value

Leakage Current

<100% of maximum specified value

Operating Temperature Range

Capacitance Tolerance

WVDC

Surge Voltage

SVDC

Dissipation Factor

120 Hz, 20°C

Leakage Current

Low Temperature Stability

Impedance Ratio

(100 kHz)

2.5

4

-55°C/ +20°C

+105°C/ +20°C

Load Life

Damp Heat test

Surge Voltage test

Ripple Current Multipliers

120Hz<f<1kHz

0.05

Frequency (Hz)

1kHz<f<10kHz 10kHz<f<100kHz

0.3

0.7

100kHz<f<500kHz

1.0

5

6.3

2

2.5

0.5 L<7mm)

0.45 L<6mm)

d

0.6( L>7mm)

0.6( L>6mm)

L

1

=L+1.0 mm MAX L<11mm

L

1

=L+1.5 mm MAX, L>11 mm

D+0.5

S+0.5

8

3.5

0.6

10

5.0

0.6

Feb-17
