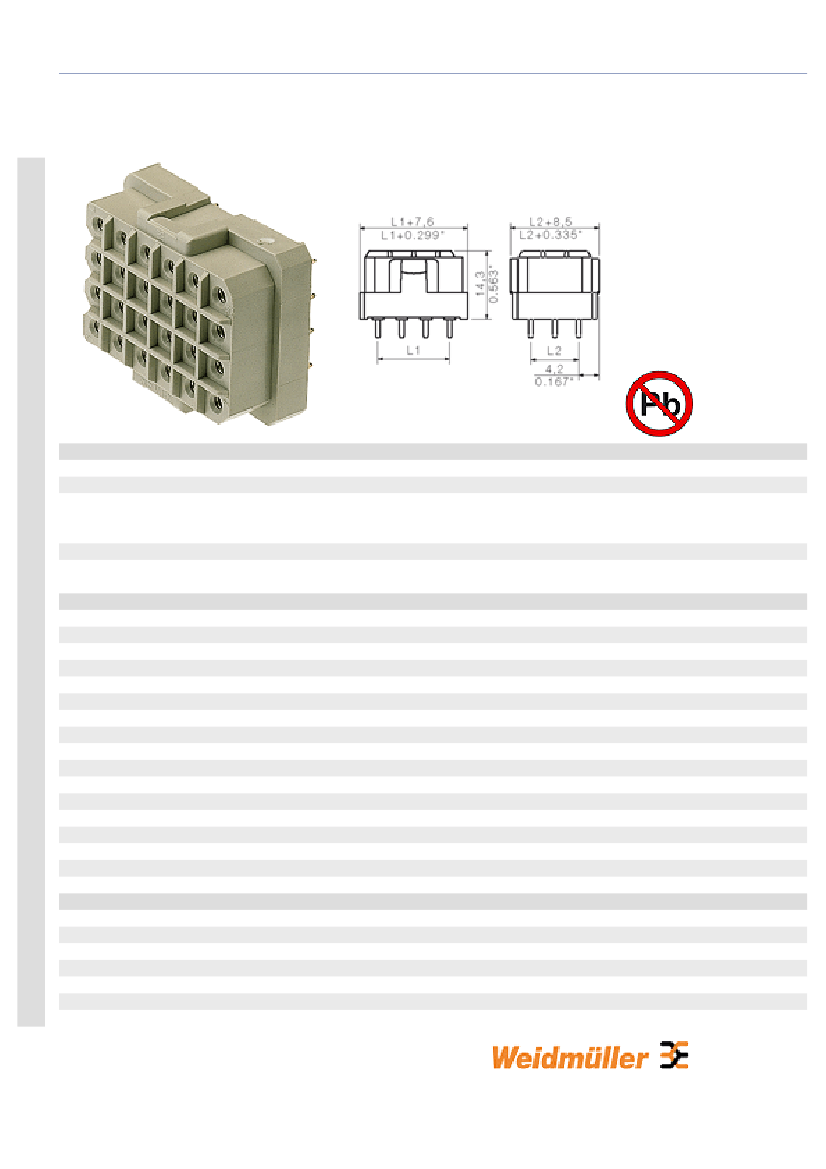

Product catalogue | PCB connection systems | PCB plug-in connectors | CrimpMate | Plug/Socket connectors, solder
connection pitch 5.00 | RSV 1.6 L | RSV1.6 LB AU
Material data
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group C)
Rated current (Use group C)
UL 1977 rating data
Rated voltage (UL 1977)
Rated current (UL 1977)
Approvals
Approvals institutes
gold-plated
-25 °C
100 °C
-25 °C
55 °C
75 %
14 A
10 A
12 A
8.5 A
250 V
4 kV
320 V
2.5 kV
500 V
2.5 kV
3 x 1s with 120 A
300 V
13 A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | CrimpMate | Plug/Socket connectors, solder
connection pitch 5.00 | RSV 1.6 L | RSV1.6 LB AU
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
RSV1.6.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-01
Similar products
Order No.
1440200000
1413200000
1441200000
1414200000
1442200000
1415200000
1443200000
1416200000
1444200000
1417200000
1418200000
1446200000
1419200000
Part designation
RSV1,6 LB4 GR 3,2 AU
RSV1,6 LB4 GR 4,5 AU
RSV1,6 LB6 GR 3,2 AU
RSV1,6 LB6 GR 4,5 AU
RSV1,6 LB9 GR 3,2 AU
RSV1,6 LB9 GR 4,5 AU
RSV1,6 LB12 GR 3,2 AU
RSV1,6 LB12 GR 4,5 AU
RSV1,6 LB18 GR 3,2 AU
RSV1,6 LB18 GR 4,5 AU
RSV1,6 LB24 GR 4,5 AU
RSV1,6 LB36 GR 3,2 AU
RSV1,6 LB36 GR 4,5 AU
Version
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 24, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 36, 180°, Box
PCB plug-in connector, Female connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 36, 180°, Box
-3-
