226BJVAARG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> 226BJVAARG

226BJVAARG: DescriptionSWITCH TACTILE SPST-NO 0.05A 12V; Categoryaccessories; File Size261KB，2 Pages; ManufacturerCTS [CTS Corporation]; Environmental Compliance

Download Datasheet Parametric Compare View All

226BJVAARG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	226BJVAARG	-	-	View	Buy Now

226BJVAARG Overview

SWITCH TACTILE SPST-NO 0.05A 12V

226BJVAARG Parametric

Parameter Name	Attribute value
circuit	SPST-NO
switch function	Off - instantaneous
Contact rated current at different voltages	0.05A @ 12VDC
Actuator type	standard
Installation type	surface mount
Actuator PCB height, vertical	1.70mm
Actuator length, right angle	-
Actuator direction	top touch
Terminal type	J lead
shape	3.50mm x 2.90mm
illumination	Not glowing
lighting type, color	-
Lighting voltage (nominal)	-
force	100gf
Intrusion protection	-
characteristic	Ground pin, tactile feedback
Operating temperature	-40°C ~ 85°C
Actuator material	-
Switching stroke	0.15mm
Mechanical life	1,000,000 cycles

Preview

Download Datasheet

View All

Electrocomponents

3.5x2.9mm Compact

Tactile Switch

Features

Optimized Mechanical Features

• Surface mount J bend terminal configuration

• Compatible with IR reflow and manual soldering

• Variety of operating force options

Optimized Contact System

• Excellent tactile feedback

Materials

• Silver coated terminals for better solderability

• High temperature materials (UL94V-0)

• RoHS compliant

Series 226B

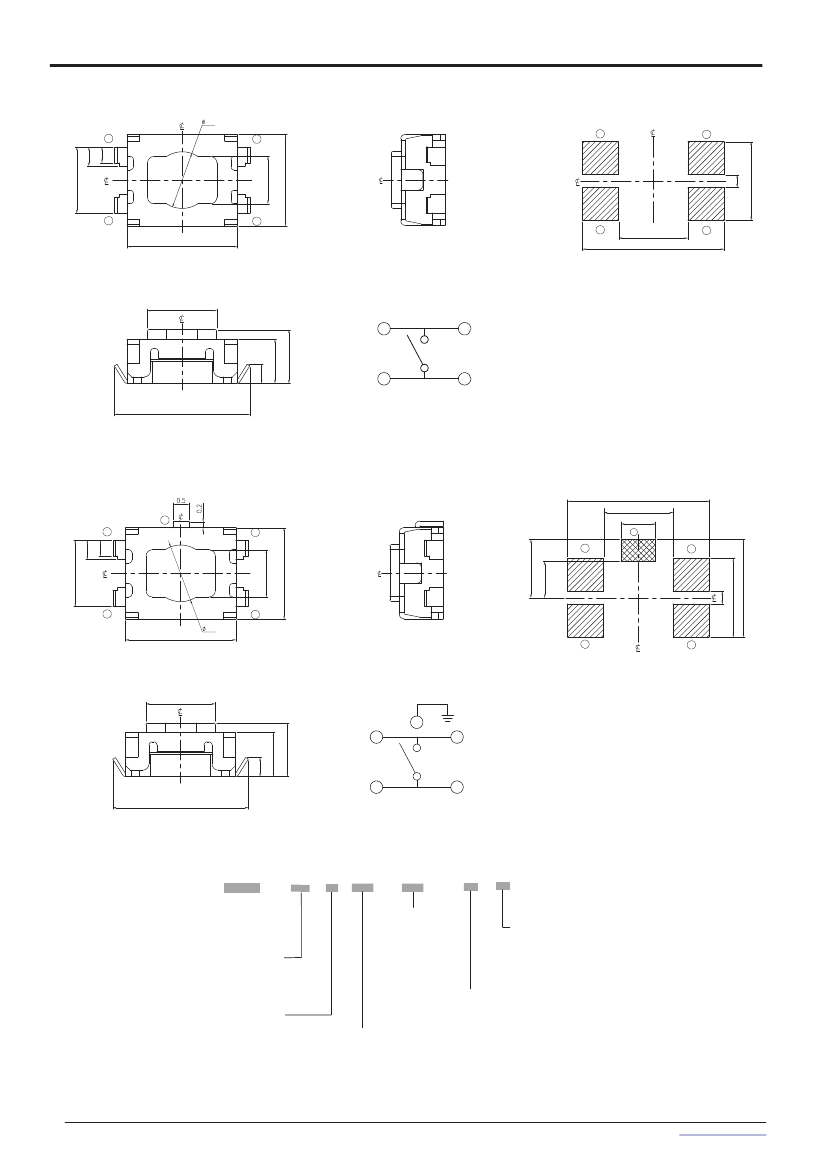

Data Sheet

Tactile Switch

Electrical and Mechanical Specifications

Switch Contact Resistance

100 milliohms maximum

Insulation Resistance

100 Megohms minimum between

insulated terminals

Maximum Rating

50 mA 12 VDC

Dielectric Strength

250 VAC for 1 minute between adjacent

terminals

Operating Force

100,160, 200, 350 or 500 gf

Travel

0.15mm

Operating Temperature

- 40°C to +85°C

Storage Temperature

- 40°C to +85°C

Actuator Strength

3 Kgf. maximum

Actuation Life

100 gf: 1,000,000 cycles

160 gf: 200,000 cycles

200 gf: 200,000 cycles

350 gf: 200,000 cycles

500 gf: 100,000 cycles

Allowable Solder Time

IR Reflow: Up to 5 seconds at 260°C

Manual soldering: Up to 3 seconds at 350°C

Packaging

Standard: Tape and reel packaging with

330mm diameter reel and 12mm wide plastic tape

1-2

CTS Electrocomponents

10/1/15

www.ctscorp.com

226BJVAARG Related Products

	226BJVAARG	226BJVAAR	226BJVABRG	226BJVACRG	226BJVADRG	226BJVAER	226BJVAERG	226BJVABR	226BJVADR
Description	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V
circuit	SPST-NO	SPST-NO	SPST-NO	SPST-NO	SPST-NO	SPST-NO	SPST-NO	SPST-NO	SPST-NO
switch function	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous
Contact rated current at different voltages	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC
Actuator type	standard	standard	standard	standard	standard	standard	standard	standard	standard
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Actuator PCB height, vertical	1.70mm	1.70mm	1.70mm	1.70mm	1.70mm	1.70mm	1.70mm	1.70mm	1.70mm
Actuator direction	top touch	top touch	top touch	top touch	top touch	top touch	top touch	top touch	top touch
Terminal type	J lead	J lead	J lead	J lead	J lead	J lead	J lead	J lead	J lead
shape	3.50mm x 2.90mm	3.50mm x 2.90mm	3.50mm x 2.90mm	3.50mm x 2.90mm	3.50mm x 2.90mm	3.50mm x 2.90mm	3.50mm x 2.90mm	3.50mm x 2.90mm	3.50mm x 2.90mm
illumination	Not glowing	Not glowing	Not glowing	Not glowing	Not glowing	Not glowing	Not glowing	Not glowing	Not glowing
force	100gf	100gf	160gf	200gf	350gf	500gf	500gf	160gf	350gf
characteristic	Ground pin, tactile feedback	touch feedback	Ground pin, tactile feedback	Ground pin, tactile feedback	Ground pin, tactile feedback	touch feedback	Ground pin, tactile feedback	touch feedback	touch feedback
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Switching stroke	0.15mm	0.15mm	0.15mm	0.15mm	0.15mm	0.15mm	0.15mm	0.15mm	0.15mm
Mechanical life	1,000,000 cycles	1,000,000 cycles	200,000 cycles	200,000 cycles	200,000 cycles	500,000 cycles	500,000 cycles	200,000 cycles	200,000 cycles

Recommended Resources

RTS9100 series circuit

LED lighting output temperature compensation circuit diagram using S-8100B

Wanhe WK237A mechanical barbecue microwave oven circuit diagram

The most practical basic diagram circuit 40 - motor forward and reverse control circuit

Home game console time controller

Soft start regulated power supply

Detailed explanation of msp430g2553 timer 3: #include "msp430g2553.h" unsigned char num; void main() {// Stop watchdog timer to prevent time out resetWDTCTL = WDTPW + WDTHOLD;BCSCTL3 |= LFXT1S_2; // Set LFXT1 to vol clock, i.e. 12kHZCCTL0|= CCIE...; tcvsdonnnie Microcontroller MCU

Storage test burn in test: BurnInTest is an application software for PC platform. It is a computer system stability and reliability test tool. It is easy and fast to operate. It can measure the performance of CPU, hard disk, CD...; 白丁 Integrated technical exchanges

ADI chips have increased by NNN times?: I was browsing the group these days and saw someone saying that ADI's chip price has gone crazy. He also sent a quotation. I checked the chip and found that it is an analog-to-digital conversion chip ...; buildele Talking

How to write TG12864 font?: I'm using an LCD without a font library. I want it to display numbers and Chinese characters, but I don't know how to make a font library or add it to the program. Can anyone help me?...; 红红火火155 MCU

How to improve the anti-interference ability of wireless modules: Anti-interference ability cannot be quantified, so it is generally not included as a regular parameter in the specification of wireless modules. So is the anti-interference ability of wireless modules...; 火辣西米秀 RF/Wirelessly

[Zero-knowledge ESP8266 tutorial] WIFI TCP protocol communication TCP server example: This post mainly explains the application of ESP8266 WIFI function on TCP protocol network transmission. Here is an example of ESP8266 as a TCP server:1. HardwareZero-knowledge ESP8266 development boa...; roc2 stm32/stm8
