AK40A-024L-120F01SM Overview

1-OUTPUT 7.2 W DC-DC REG PWR SUPPLY MODULE

Preview

Download Datasheet

View All

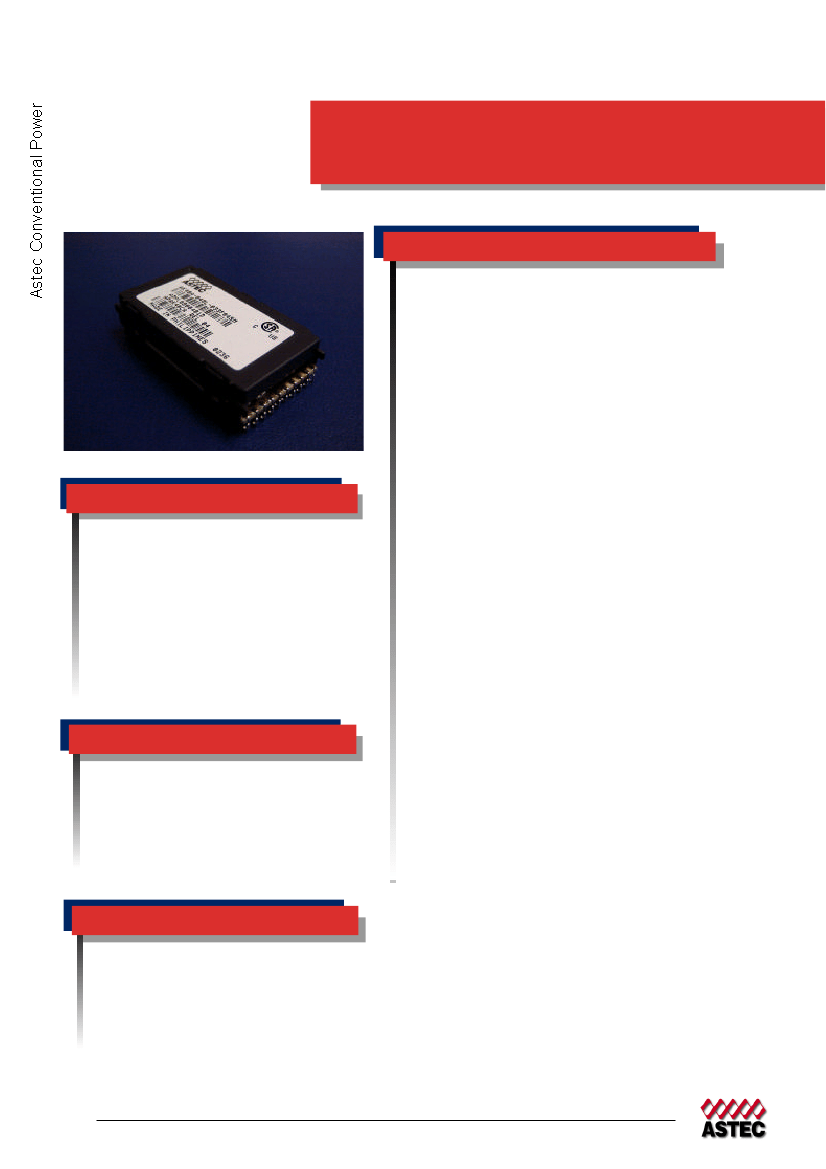

15 Watts

AK40A

Total Power:

Input Voltages:

No. of Outputs:

15W

24V, 48V

Single

Electrical Specs

Input

Input Range

Maximum Inrush

Current Limit:

Maximum External

Capacitor to Limit:

Low Input Shutdown:

Auto Recovery:

Hysteresis:

36 to 75 VDC for 48V

18 to 36 VDC for 24V

1.0 A Max

4.0mF

34.0V ±2.0V for 48V

17.0V ±1.0V for 24V

37.0V ±2.0V for 48V

18.5V ±1.0V for 24V

3.0V ±1.0V for 48V

1.5V ±0.5V for 24V

85%

Open Circuit or up to 0.5V max.

4V min, 75V max

Special Features

Surface Mount

High Power Desnity 15W/Cu. in.

Full power capability without external heatsink

Input differential and common mode filtering

Hot insertable with inrush current limit

Ability to limit inrush current in an external

capcacitor

• Input undervoltage lockout with hysteresis

• Output overvoltage protection

• Remote shutdown

•

Efficiency:

Enable:

Disable:

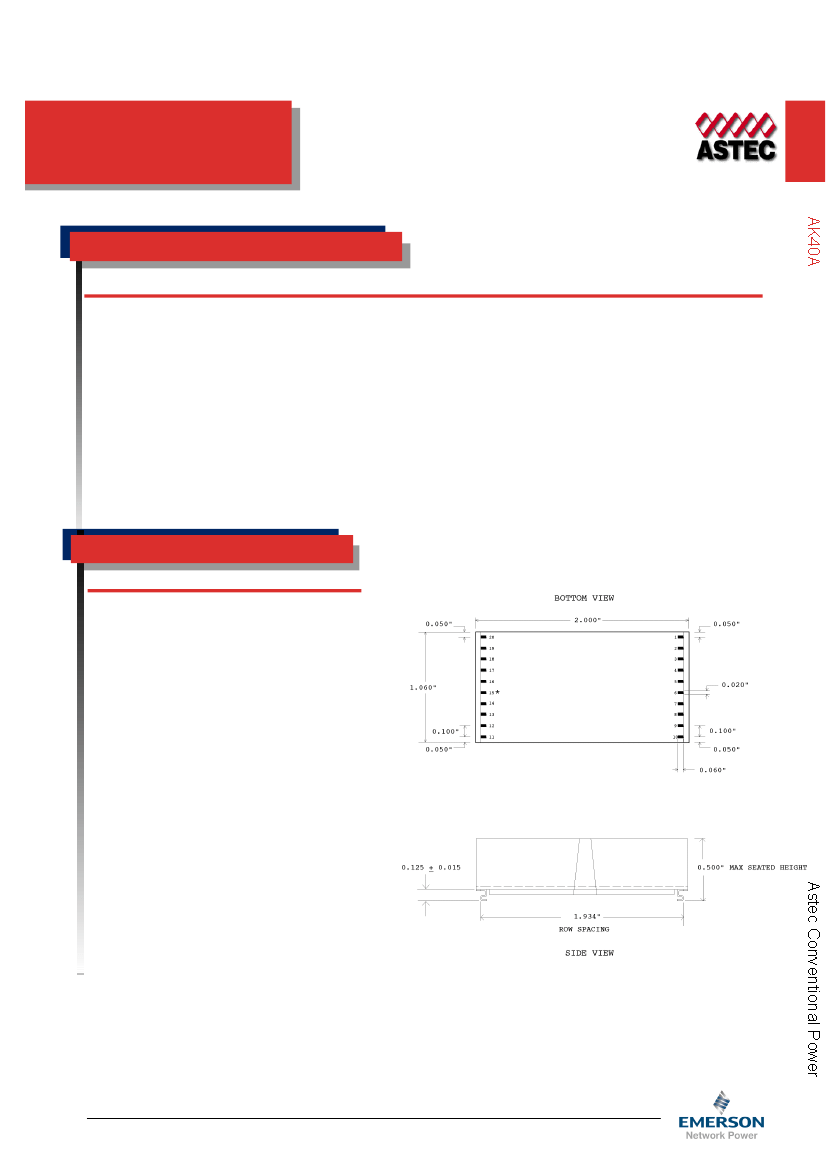

Output

Voltage Tolerance:

Noise/Ripple:

Output Voltage

Adjust Range:

Overvoltage Protection:

Short Circuit Protection:

Switching Frequency:

±3% for single output

75mVrms max.

±10% for single output

Self limiting Clamp, 140% max

Continuous Auto Start

200kHz nominal

Environmental

Ambient air operating temperature range:

-40°C to +75°C (no derating)

Cooling Method: Convection

MTBF: > 7.5 Mhrs

Storage and Handling per Jedec Std-033

Moisture Sensitivity Level 2

Safety

IEC

CSA

1950

950

C22.2-9.50

52719-106

North America (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211Asia (HK): 852-2437-9662
