Part Number

Search

5452698

Description
TERM BLOCK PLUG 2POS 90DEG 3.5MM
CategoryThe connector
File Size88KB,3 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

5452698 Online Shopping

Suppliers Part Number Price MOQ In stock
5452698 - - View Buy Now

5452698 Overview

TERM BLOCK PLUG 2POS 90DEG 3.5MM

5452698 Parametric

Parameter NameAttribute value
typeplug, female socket
Number of pins2
Number of pins per level2
Number of levels1
spacing0.138"(3.50mm)
Needle seat direction-
Plug entrance90°
Terminal typescrews
Installation typefree hanging
Current - IEC8A
Voltage - IEC160V
Current - UL8A
Voltage - UL300V
Wire Gauge or Range - AWG14-30 AWG
Wire gauge or range - mm²0.2-1.5mm²
colorblack
Operating temperature-
Contact mating surface treatmenttin
characteristic-
Material flammability rating-
Intrusion protection-
Screw sizeM2
Torque - Screws0.2-0.25 Nm(1.7-2.2 Lb-In)
Wire stripping length7mm
Contact material-
Shell material-
Contact tail length-
Insulation height0.752"(19.10mm)
https://www.phoenixcontact.com/us/products/5452698
Printed-circuit board connector - BCVP-350R- 2 BK - 5452698
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 2, Pitch: 3.5 mm,
Connection method: Screw connection with tension sleeve, Color: black, Contact surface: Tin

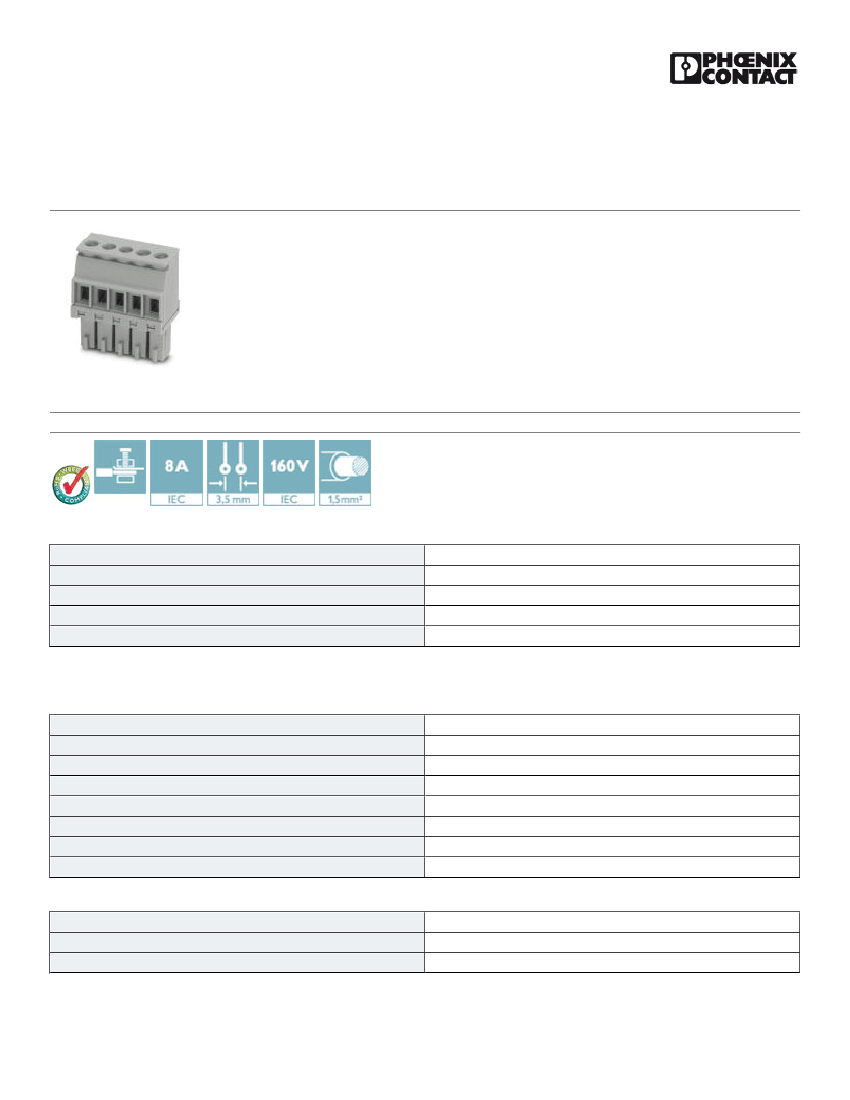

The figure shows a 5-pos. version of
the product in gray
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
100 pc
2.0 g
85366990
Germany
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27261101
27440401
27440309
27440309
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002638
05/06/2016   Page 1 / 3
