PA3493NL Overview

PULSE XFMR 1.25:1 656UH

PA3493NL Parametric

Parameter Name	Attribute value
Transformer type	-
inductance	656µH
Energy Time (ET)	23V µS
Turns Ratio - Primary:Secondary	1.25:1
Installation type	surface mount
size/dimensions	0.430" long x 0.380" wide (10.92mm x 9.65mm)
Height - Installation (maximum)	0.105"（2.67mm）
Operating temperature	-40°C ~ 130°C

Preview

Download Datasheet

View All

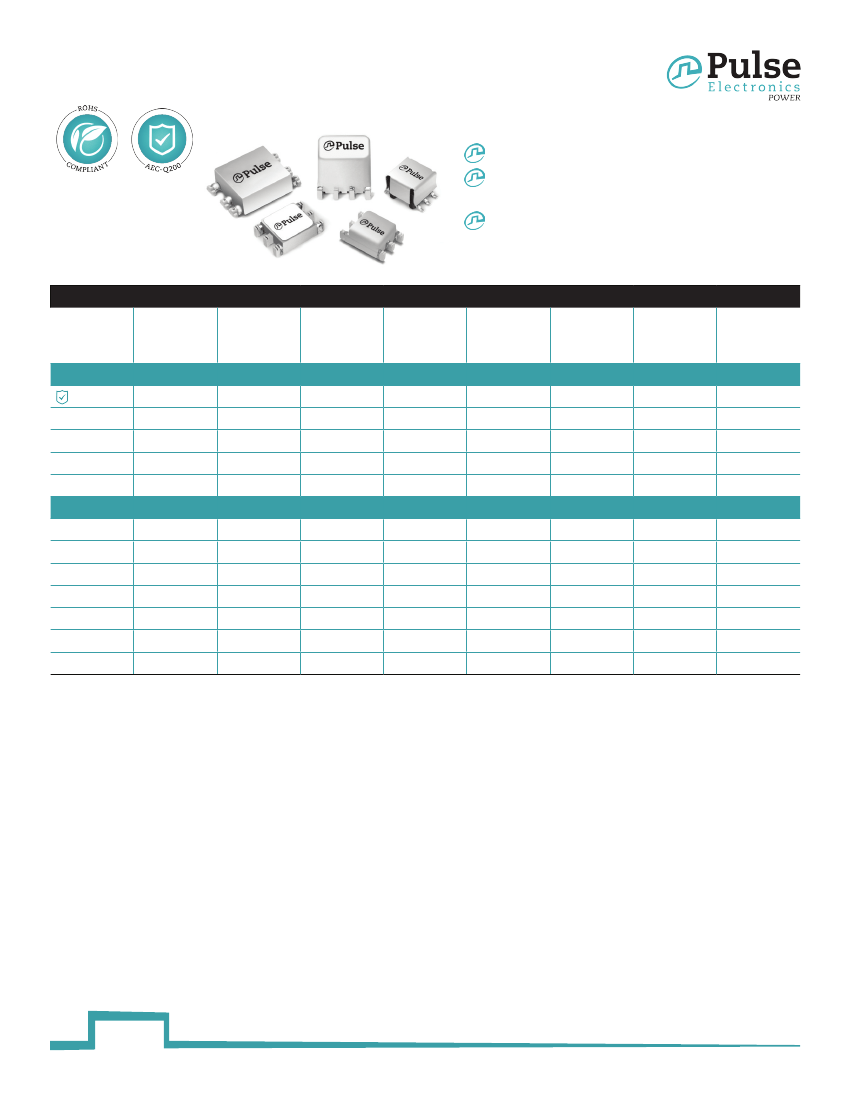

SMT Gate Drive Transformers

>1500VDC Basic and Functional Insulation

>1500V

isolation (380Vrms continuous)

Basic insulation (1.4mm creepage/

clearance) and functional available

Operating frequency: 50kHz and up

Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C

Part

Number

Functional Insulation

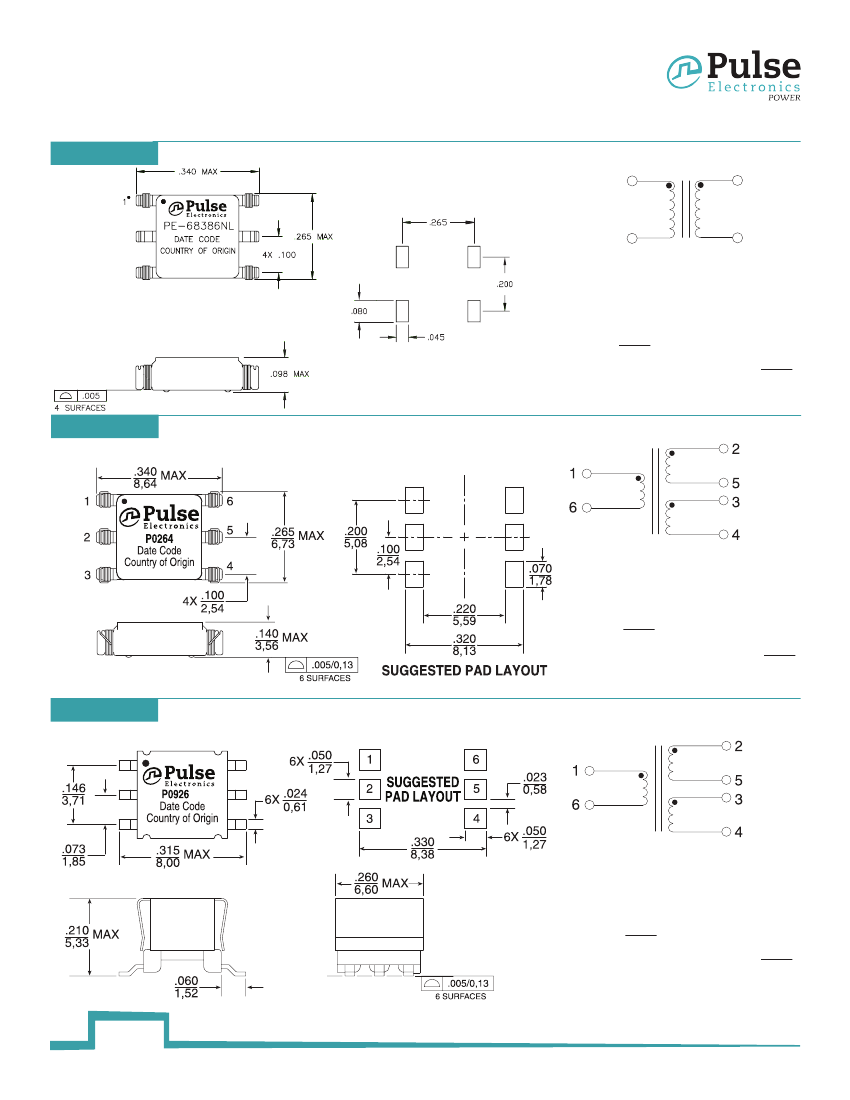

PE-68386NL

P0926NL

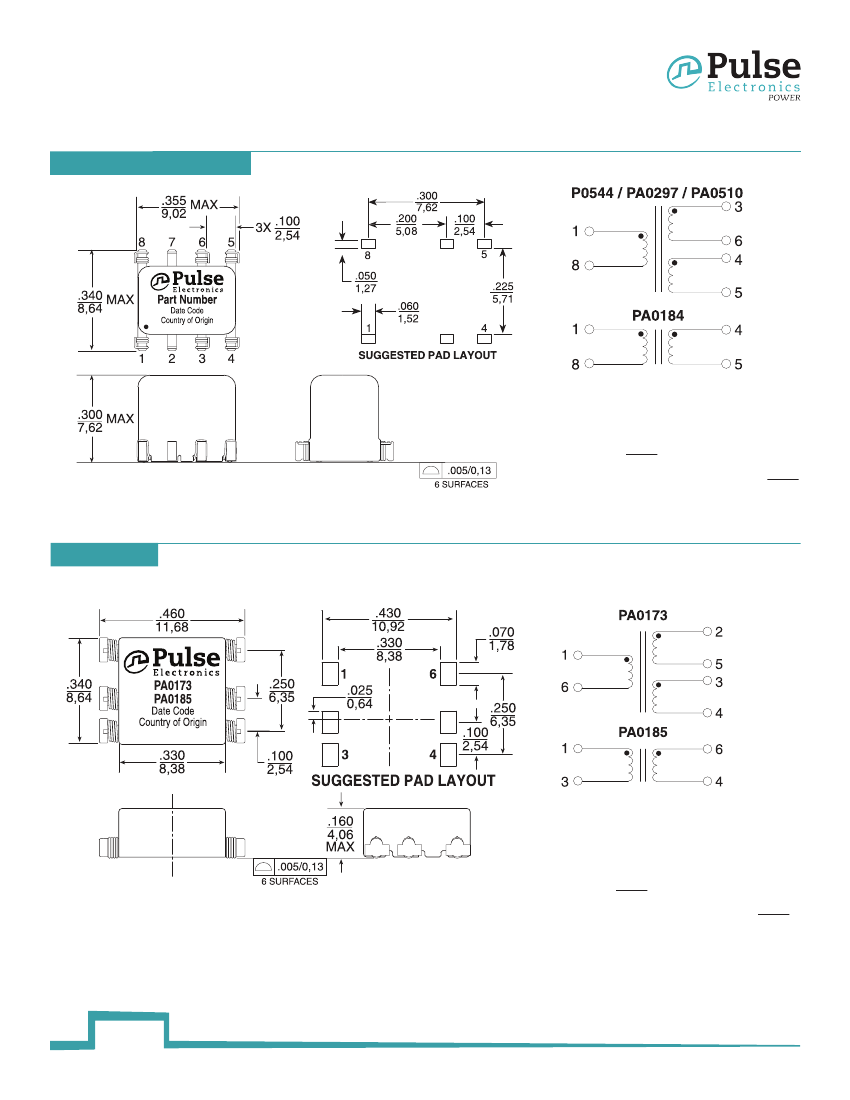

P0544NL

PA0264NL

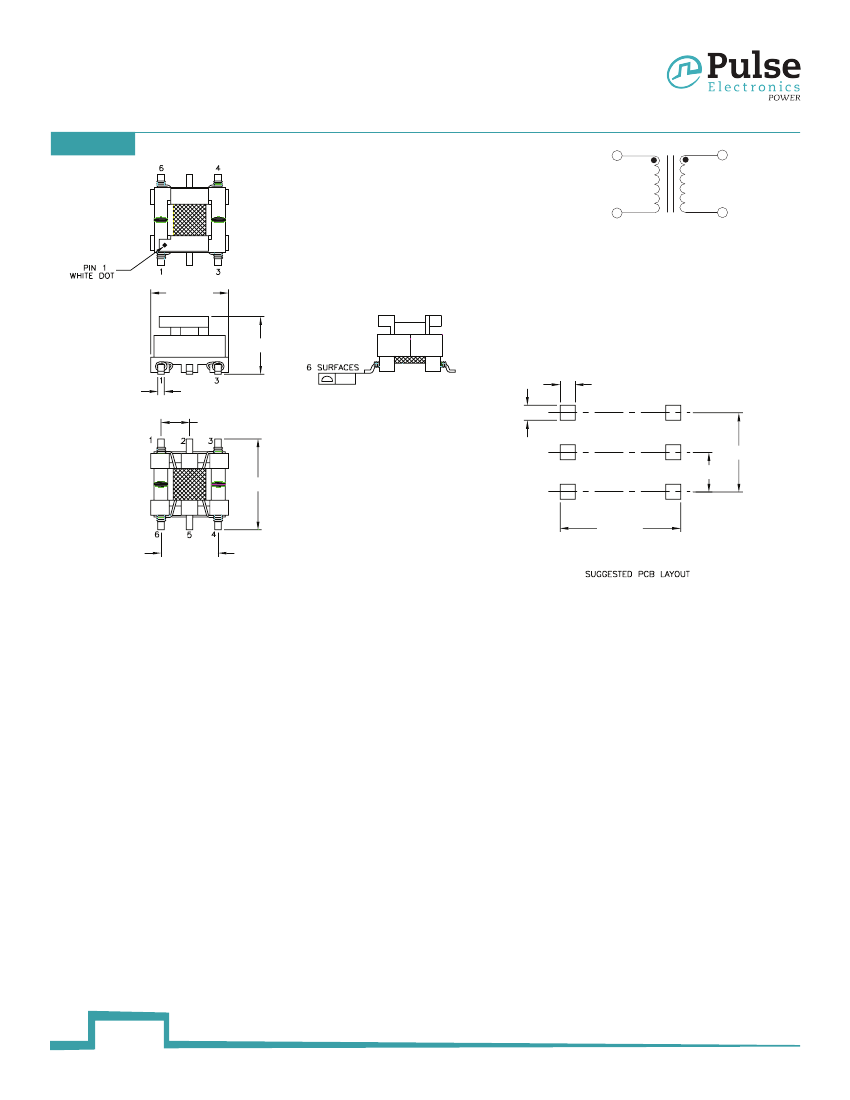

PA1323NL

PA0173NL

PA0185NL

PA0184NL

PA0297NL

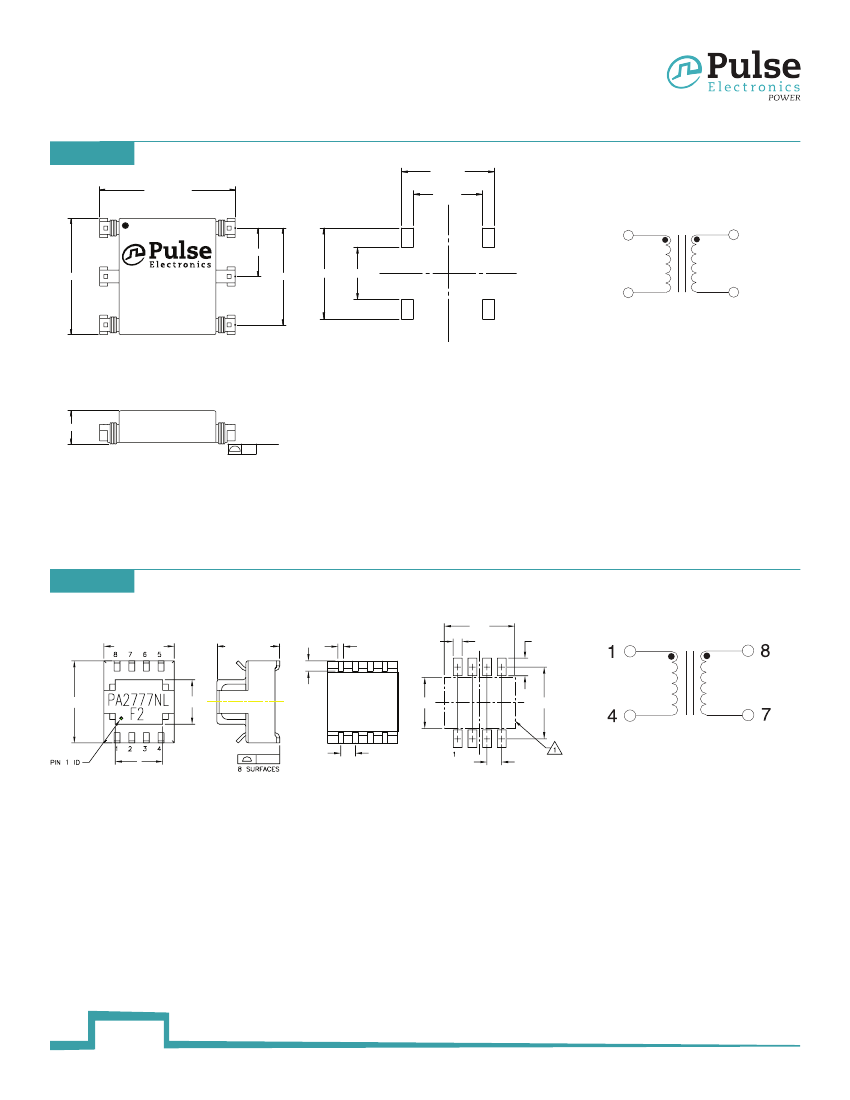

PA2777NL

PA0510NL

PA3493NL

3,4

Turns

Ratio

1:1

1:1:1

1:1

1:1:1

1:1

2:1:1

1:1

2.5:1:1

1.25:1

Pri-Sec

Isolation

1500 Vdc

1000 Vrms

1500 Vrms

1650 Vrms

MAX

V*μsec

9.7

23.8

45.1

12.7

21.7

17.2

27.2

9.3

27.2

Primary

Inductance

(μH MIN)

785

300

3300

1140

600

980

1200

335.2

1200

656

Leakage

Inductance

(μH MAX)

0.46

0.50

0.80

0.65

2.0

0.75

0.50

0.60

0.36

0.68

1.3

DCR

Primary

(Ω MAX)

0.60

2.00

1.25

0.75

1.25

0.62

0.88

0.91

0.70

0.91

1.03

DCR

Secondary

(Ω MAX)

0.60

2.00

1.25

0.75

1.25

0.88

0.62

0.91

0.46

0.70

0.380

0.85

Package Size

(L x W x H)

(mm MAX)

8.6 x 6.7 x 2.5

8.0 x 6.6 x 5.3

9.0 x 8.6 x 7.6

8.6 x 6.7 x 3.6

9.5 x 7.1 x 5.3

11.8 x 8.8 x 4.0

9.0 x 8.6 x 7.6

7.1 x 6.1 x 5.5

9.0 x 8.6 x 7.6

10.9 x 9.7 x 2.7

Basic Insulation (1.4mm creepage and clearance between Primary and Secondary)

Notes:

1. The Maximum volt-μsec rating limits the peak flux density to 2200 Gauss when

used in a unipolar drive application. For bi-polar drive applications, a maximum

volt-sec of two times this rating is acceptable (ie: 2* (volt*μsec rating) = (voltage

applied to the primary) * dutycycle / Frequency = V * alpha / Freq_Hz = V *

μsec

2. Leakage inductance is measured at primary terminals with all secondaries shorted.

3. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part

number (i.e. P0544NL becomes P0544NLT). Pulse complies to industry standard

tape and reel specification EIA481.

4. The “NL” suffix indicates an RoHS-compliant part number.

5. The temperature of the component (ambient plus temperature rise) must be within the

stated operating temperature range.

6. Continuous isolation voltage confirmed by 125°C/1000hrs accelerated aging with the bias

voltage applied between primary and secondary windings

113

power.pulseelectronics.com

SPM2007 (07/17)

http://www.power.pulseelectronics.com/contact
