382 datasheet, PDF - EEWORLD Datasheet

382: DescriptionCONN IC DIP SOCKET 28POS; CategoryThe connector; File Size60KB，1 Pages; ManufacturerAdafruit

Download Datasheet Parametric View All

382 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	382	-	-	View	Buy Now

CONN IC DIP SOCKET 28POS

Parameter Name	Attribute value
type	DIP, 0.3" (7.62mm) line spacing
Number of pins or pins (grid)	28（2 x 14）
Spacing - Mating	-
Contact surface treatment - mating	-
Contact Surface Treatment Thickness - Mating	-
Contact Material - Mating	-
Installation type	-
characteristic	-
Termination	-
spacing-column	-
Contact Surface Preparation - Column	-
Contact Surface Treatment Thickness - Column	-
Contact Material - Pillar	-
Shell material	-
Operating temperature	-
Termination post length	-
Material flammability rating	-
Contact resistance	-

28-pin ZIF socket

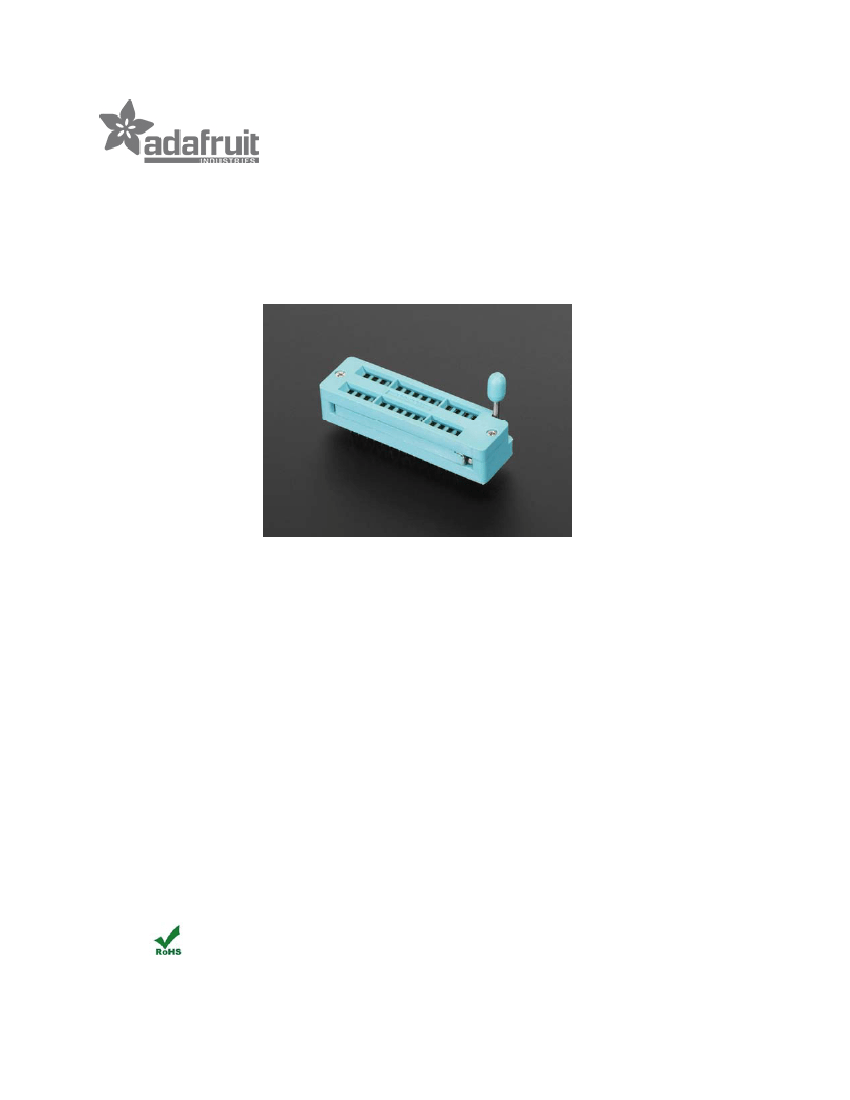

PRODUCT ID: 382



Description

A ZIF (Zero Insertion Force Socket) allows you to insert and remove chips easily from an existing circuits.

These are often used for chip programmers or when you need to test a chip without damaging it. Move the

lever up and chips drop right in. Move the lever down to 'latch' the chip in place.

This socket is designed for DIP chips of up to 28 pins and 0.3" wide. What's nice about it is it can snap into

an existing circuit board or socket that is designed for the chip so you may not have to redesign the board!

For example, we snapped it into an Arduino socket, which would allow you to change chips out (if you

wanted to put a shield on top, you'll need to fit a set of stacking headers on)



Technical Details

Fits up to 28-pin DIP chips, in 0.3" width

Overall body size: 0.6" x 2" x 0.43" (15mm x 50mm x 11mm) - not including lever or pins

Pins are 0.3" apart (fit into a 0.3" socket) and 3.6mm (0.15") long

Engineered in NYC Adafruit ®
