ASVMB-40.000MHZ-XY-T: DescriptionMEMS OSC XO 40.0000MHZ LVCMOS; CategoryPassive components oscillator; File Size89KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASVMB-40.000MHZ-XY-T Overview

MEMS OSC XO 40.0000MHZ LVCMOS

ASVMB-40.000MHZ-XY-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1268655544
Reach Compliance Code	compliant
Country Of Origin	Thailand
Factory Lead Time	53 weeks 1 day
YTEOL	6.71
Other features	TRI-STATE; STANDBY; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE; TAPE AND REEL
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	10%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	40 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	PLASTIC
physical size	7.0mm x 5.0mm x 0.85mm
longest rise time	2 ns
Maximum slew rate	15 mA
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	NICKEL PALLADIUM GOLD

Preview

Download Datasheet

View All

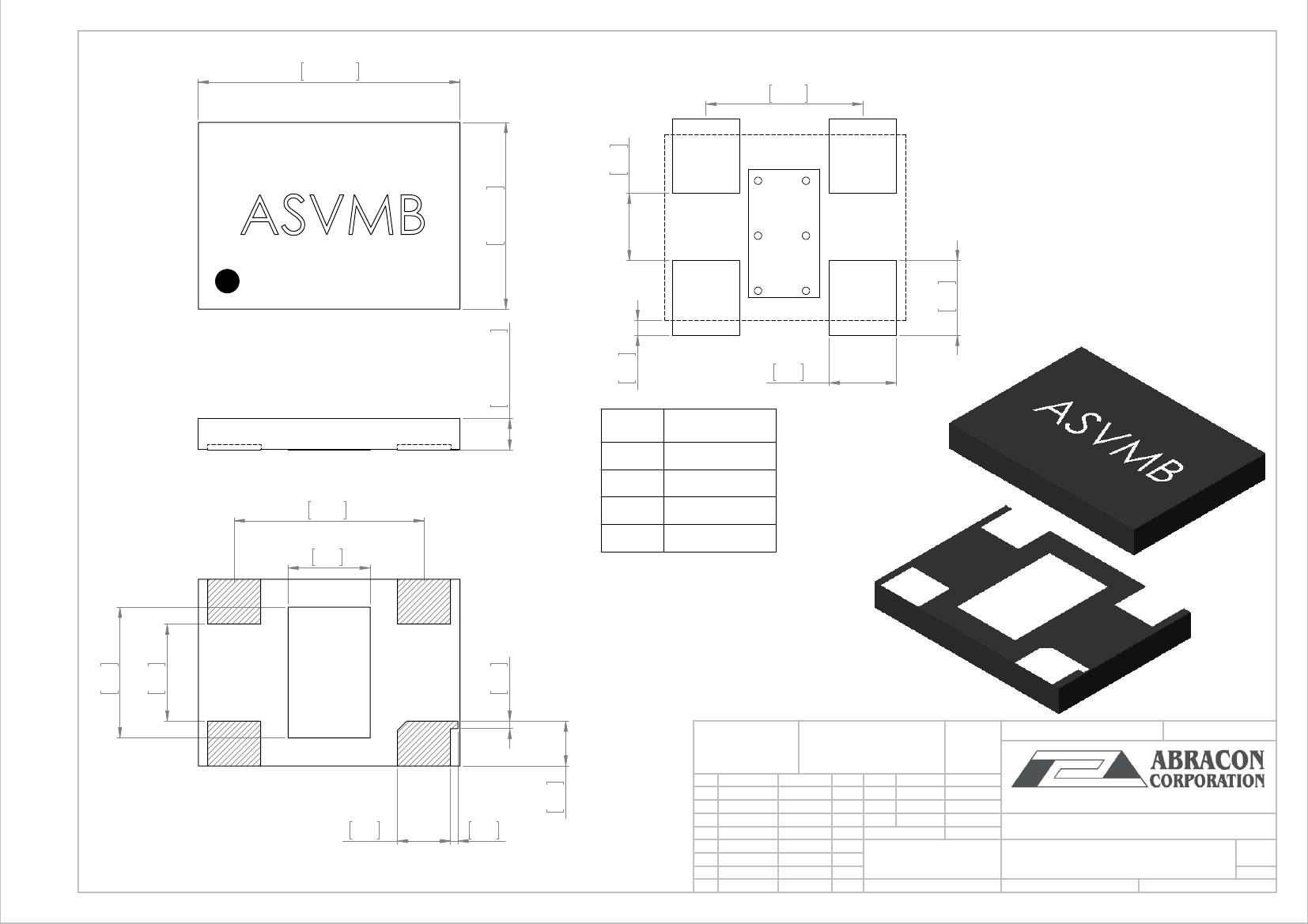

0.276 ±0.004

7 ±0.10

#4

#3

0.102

2.6

Recommended Land Pattern

0.200

5.08

0.197 ±0.004

5 ±0.10

0.033 ±0.002

0.85 ±0.05

#1

#2

0.008

0.2

0.055

1.4

No

1

0.2

5.08

#3

0.087

2.2

#4

Pin Terminal

Standby#

GND

Output

VDD

2

3

4

Center Pad: NC/GND

Note:Recommend using

an approximately 0.01uF

bypass capacitor between

PIN 2 and 4.

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBUR AND

BREAK SHARP

EDGES

DO NOT SCALE DRAWING

REVISION

0.138

3.5

0.102

2.6

0.008

0.2

0.055

1.4

-

0.047

1.2

#2

0.056

1.4

#1

0.008

0.2

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

SAAZVAT

XXXXXX

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

Oscillator

MATERIAL:

DWG NO.

ASVMB

SHEET 1 OF 1

A3

WEIGHT:

SCALE:12:1
