Connectors - QP 1,5/ 2 - 3051111
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Connectors, Connection method: Quick connection, Number of positions: 2, Cross section: 0.25
mm² - 1.5 mm², AWG: 24 - 16, Width: 10.4 mm, Height: 40 mm, Color: gray

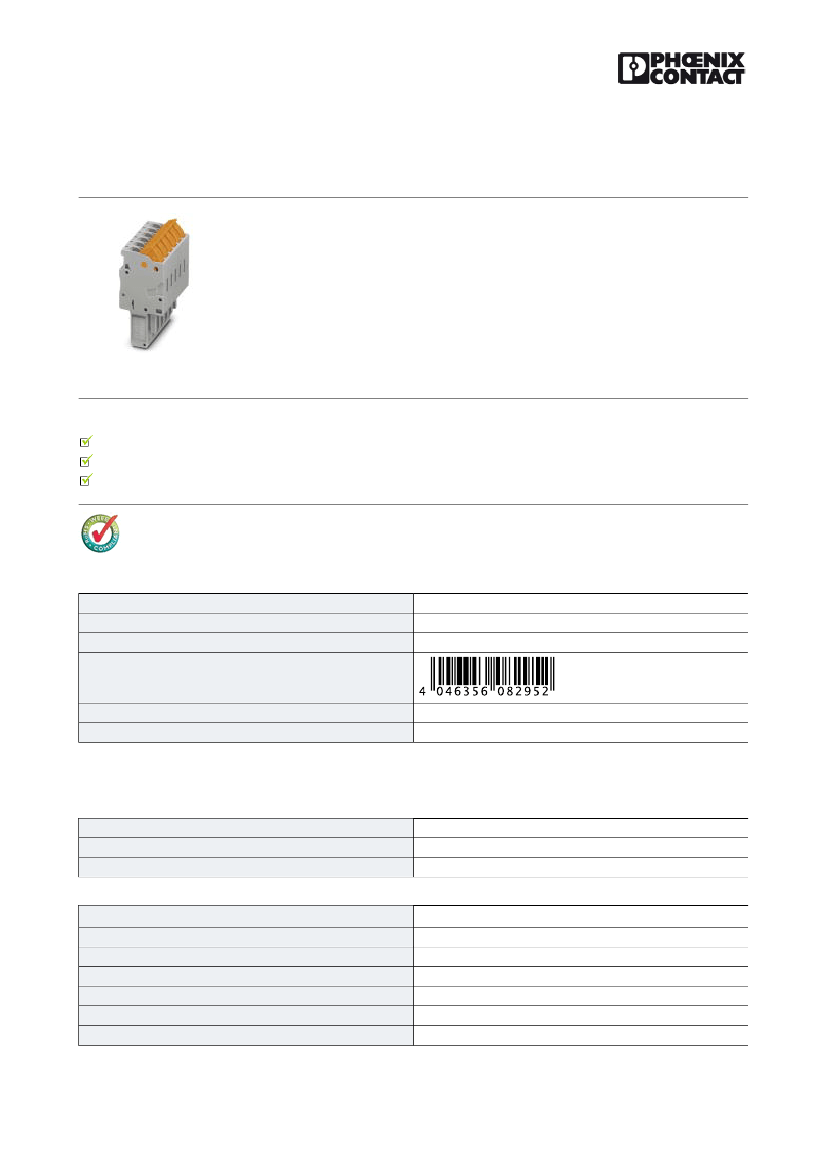

Illustration shows the product
version QP 1,5/ 6
Why buy this product
Just like the basic terminal blocks, the plugs also offer the right connection technology for every application
The conductor is connected using the familiar IDC connection with no stripping, therefore saving time
The QP 1,5/... fast connector plug is designed for the connection of solid and stranded conductors
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85366990
POLAND
1
1
Page 344 (CL1-2011)
Technical data
Dimensions
Width
Length
Height
10.4 mm
20 mm
40 mm
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
17.5 A (with 1.5 mm conductor cross section)
6 kV
3
III
I
IEC 61984
17.5 A
03.12.2012 Page 1 / 7
2
https://www.phoenixcontact.com/us/produkte/3051111
Connectors - QP 1,5/ 2 - 3051111
Technical data
Technical data
Nominal voltage U
N
Number of positions
500 V
2
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. conductor AWG cross section, stranded
Max. AWG conductor cross section, stranded
Connection method
Material wire insulation
Structure of individual litz in acc. with VDE 0295 / smallest wire
diameter
0.25 mm²
1.5 mm²
24
16
0.25 mm²
1.5 mm²
24
16
Quick connection
PVC / PE
VDE 0295 Cl.1-5
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC001121
EC001121
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
39121402
39121402
39121402
30211802
39121402
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
272607xx
27260701
27260701
27260701
27141120
27141120
Approvals
Approvals
03.12.2012 Page 2 / 7
https://www.phoenixcontact.com/us/produkte/3051111
Connectors - QP 1,5/ 2 - 3051111
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / GL / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-16
10 A
300 V
C
24-16
10 A
300 V
D
24-16
5A
600 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
24-16
10 A
600 V
B
24-16
10 A
300 V
C
24-16
10 A
300 V
D
24-16
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
GL
24-12
10 A
600 V
B
24-12
10 A
300 V
C
24-12
10 A
300 V
D
24-12
5A
600 V
cULus Recognized
Accessories
Accessories
03.12.2012 Page 3 / 7
https://www.phoenixcontact.com/us/produkte/3051111
Connectors - QP 1,5/ 2 - 3051111

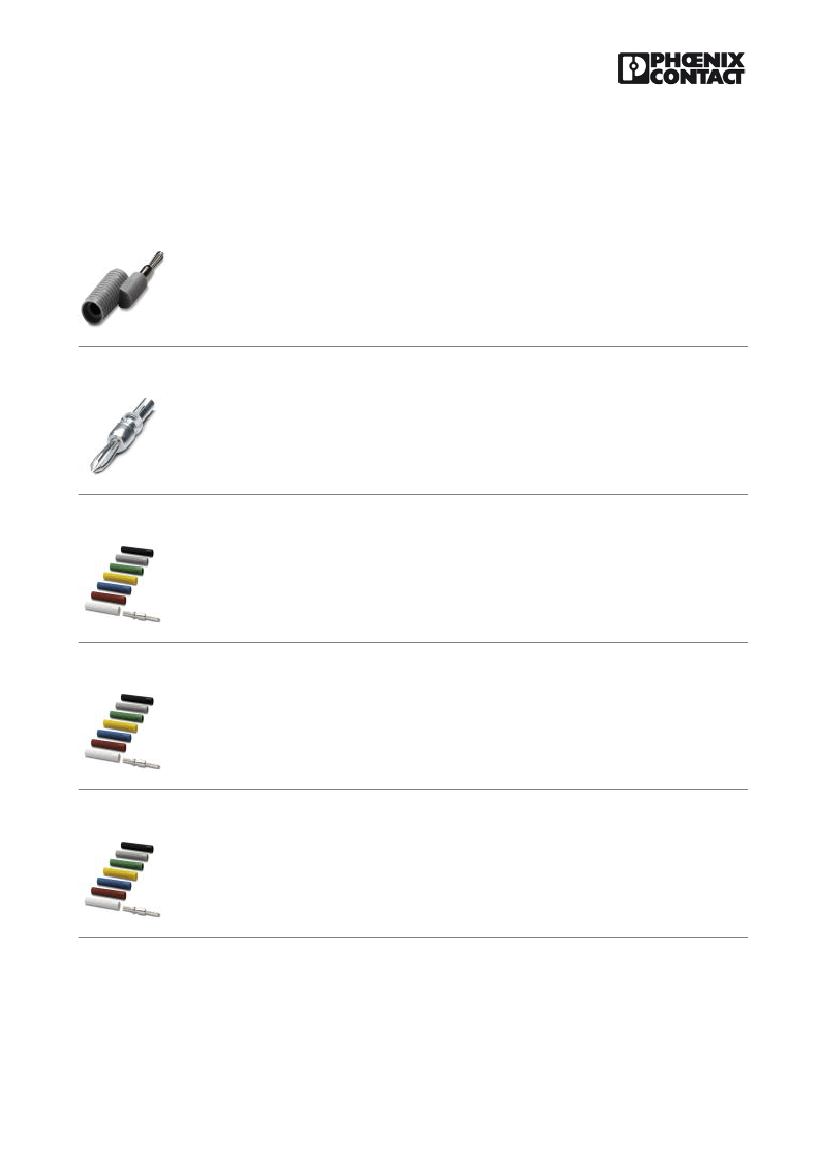

Accessories
Plug/Adapter
Reducing plug - RPS - 0201647
Reducing plug, Color: gray
Test plugs - MPS-MT - 0201744
Test plugs
Insulating sleeve - MPS-IH WH - 0201663
Insulating sleeve, Color: white
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, Color: red
Insulating sleeve - MPS-IH BU - 0201689
Insulating sleeve, Color: blue
03.12.2012 Page 4 / 7
https://www.phoenixcontact.com/us/produkte/3051111
Connectors - QP 1,5/ 2 - 3051111

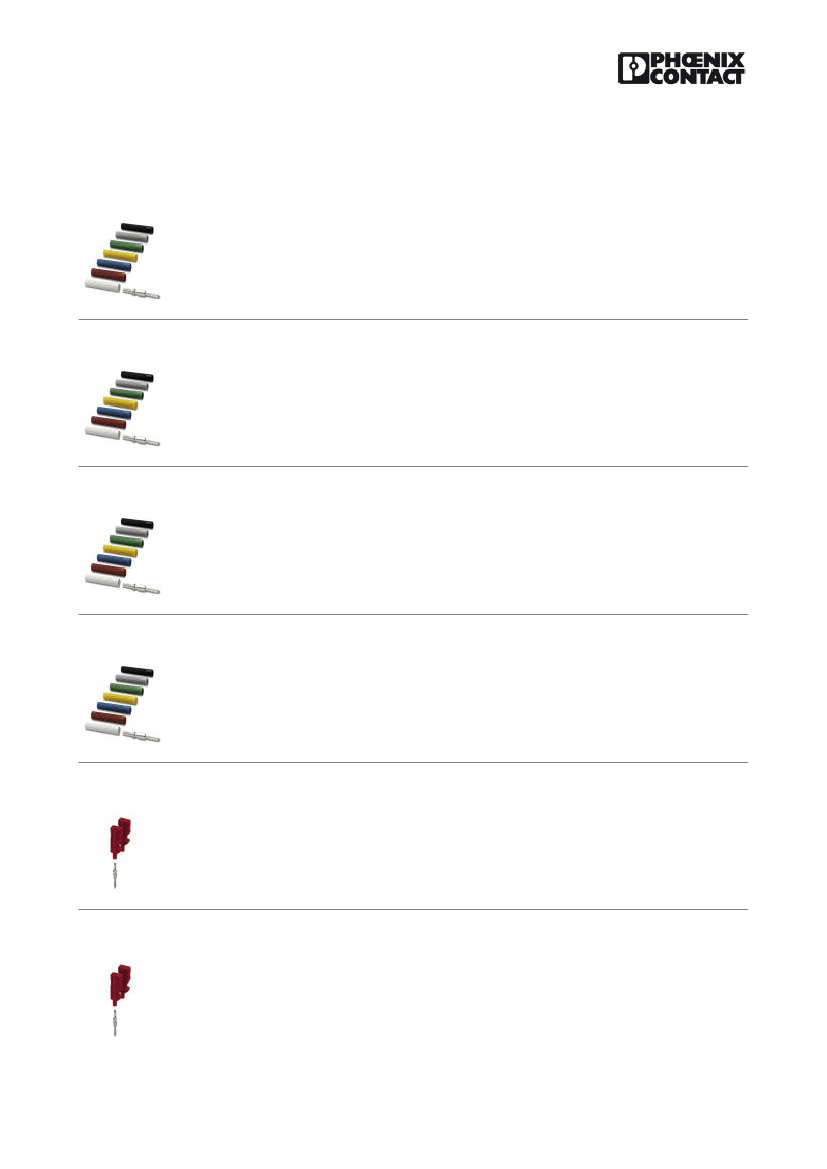

Accessories
Insulating sleeve - MPS-IH YE - 0201692
Insulating sleeve, Color: yellow
Insulating sleeve - MPS-IH GN - 0201702
Insulating sleeve, Color: green
Insulating sleeve - MPS-IH GY - 0201728
Insulating sleeve, Color: gray
Insulating sleeve - MPS-IH BK - 0201731
Insulating sleeve, Color: black
Test plugs - PS-5/2,3MM RD - 3038723
Test plugs, Color: red
Test plugs - PS-6/2,3MM RD - 3038736
Test plugs, Color: red
