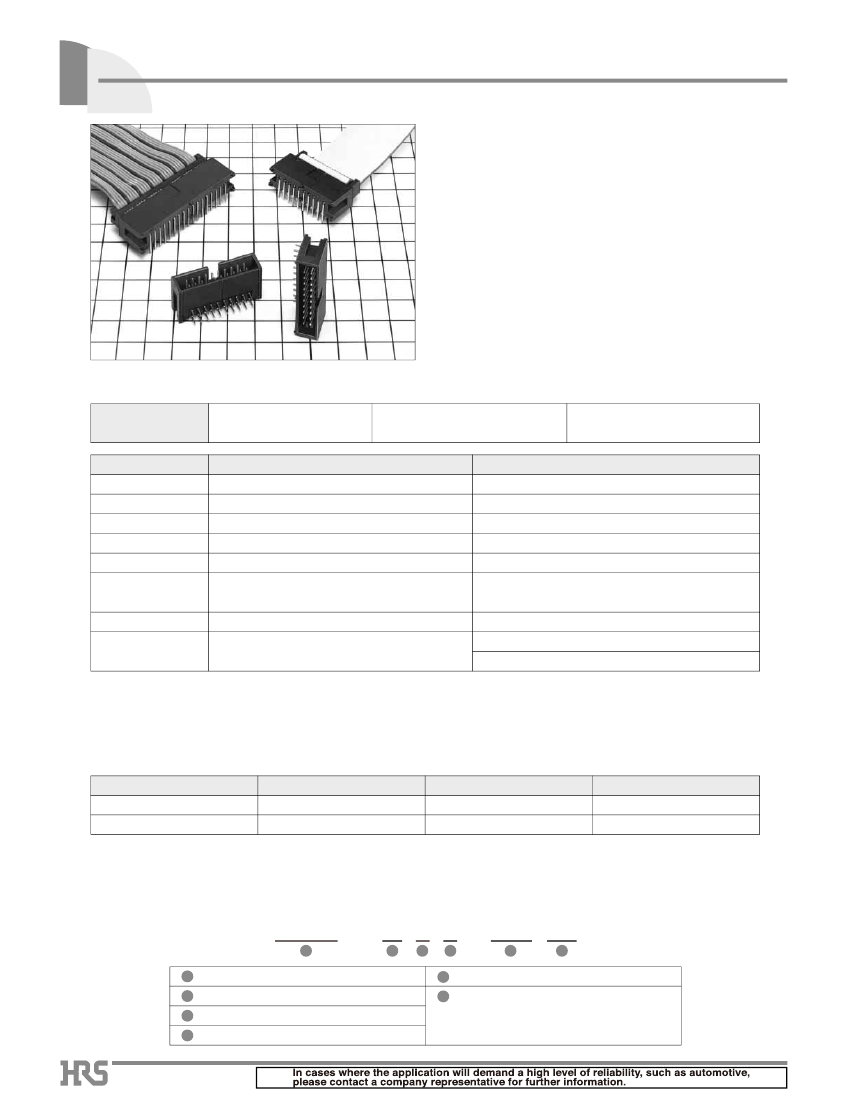

Box type Pin Header to Prevent Mis-insertion
HIF3F Series
■Features
1. Prevent to Reverse Insertion
The pin header to prevent reverse insertion is equipped
with contact protective walls to the HIF3E series.
2. Compatibility
This pin header is compatible with HIF3B series.
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Applications
Computers, terminal equipment, PPC, various kinds of
electronic equipment, office automation machines, etc.
■Product
Specifications
Rating
Current rating: 1A
Voltage rating: 200V AC
Specification
Operating Temperature Range:–55 to
+85ç
(Note 1)
Operating Moisture Range:40 to 80%
Storage Temperature Range:–10 to
+60ç(Note
2)
Storage Humidity Range:40 to 70% (Note 2)
Condition
Item
1. Insulation Resistance 1000M
ohms
min.
2. Withstanding voltage
No flashover or insulation breakdown.
3. Contact Resistance 15m
ohms
max.
4. Vibration
No electrical discontinuity of 1μs or more
5.
Humidity (Steady state)
Insulation resistance: 1000M
ohms
min.
6. Temperature Cycle
No damage, cracks, or parts looseness.
7. Durability (Mating/un-mating) Contact resistance15m
ohms
max.
8. Resistance to
Soldering heat
500V DC
650V AC/1 minute
0.1A
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(–55ç: 30 minutes
➝
15 to 35ç: 5 minutes max.
125ç: 30 minutes
➝
15 to 35ç: 5 minutes max.) 5 cycles
500 cycles
No deformation of components affecting performance.
Solder bath: 260ç for 10 seconds
Manual soldering: 360ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series.Contact us for the drawings and
specifications for a specific part number shown.
■Material
Part
Insulator
Contact
Material
PBT
Brass
Finish
Black
Selective gold plating over nickel underplated
Remarks
UL94V-0
---------------
■Ordering
Information
HIF3F
1
1
Series Name: HIF3F
-
*
P A - 2.54 DS
2
3
4
5
6
5
Contact Pitch: 2.54mm
6

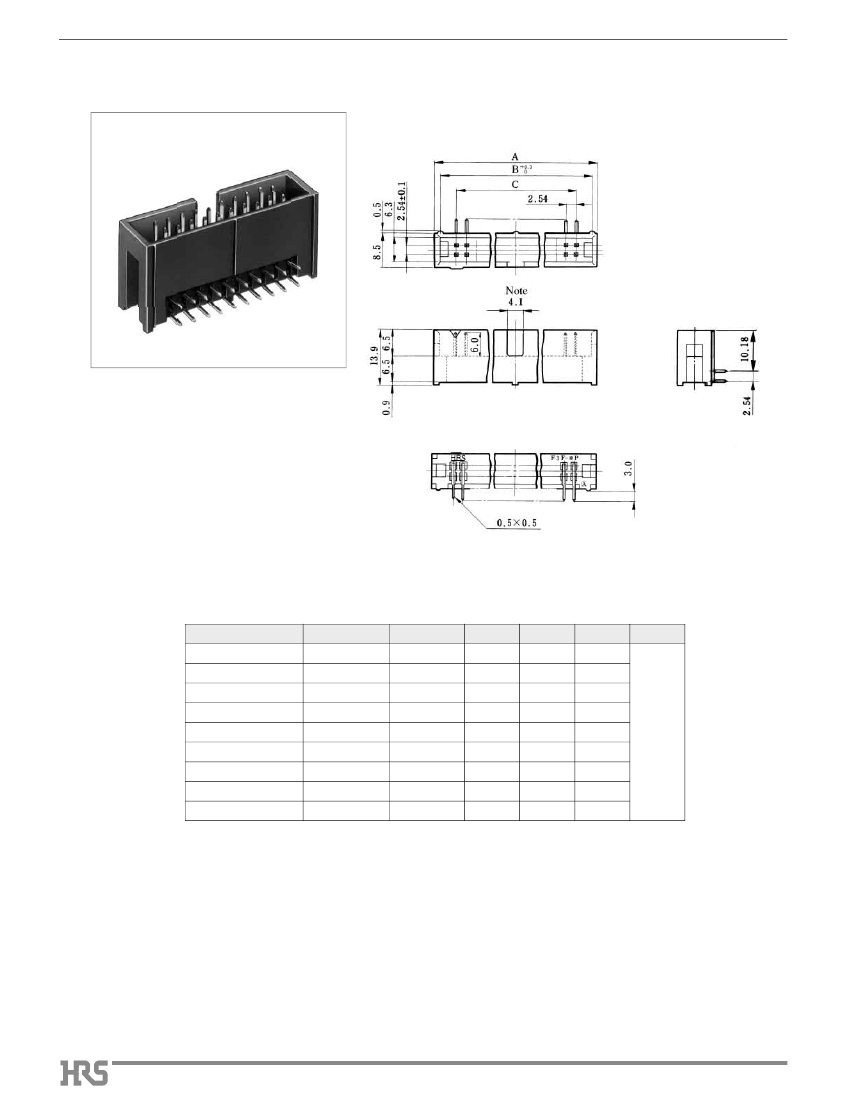

Terminal type DS: Right angle type
DSA: Straight type
2
Number of contacts: 10, 16, 20, 26, 30, 34, 40, 50, 60
3
P: Pin header
4
A: Selective gold plating
B44
HIF3F Series●Box type Pin Header to Prevent Mis-insertion

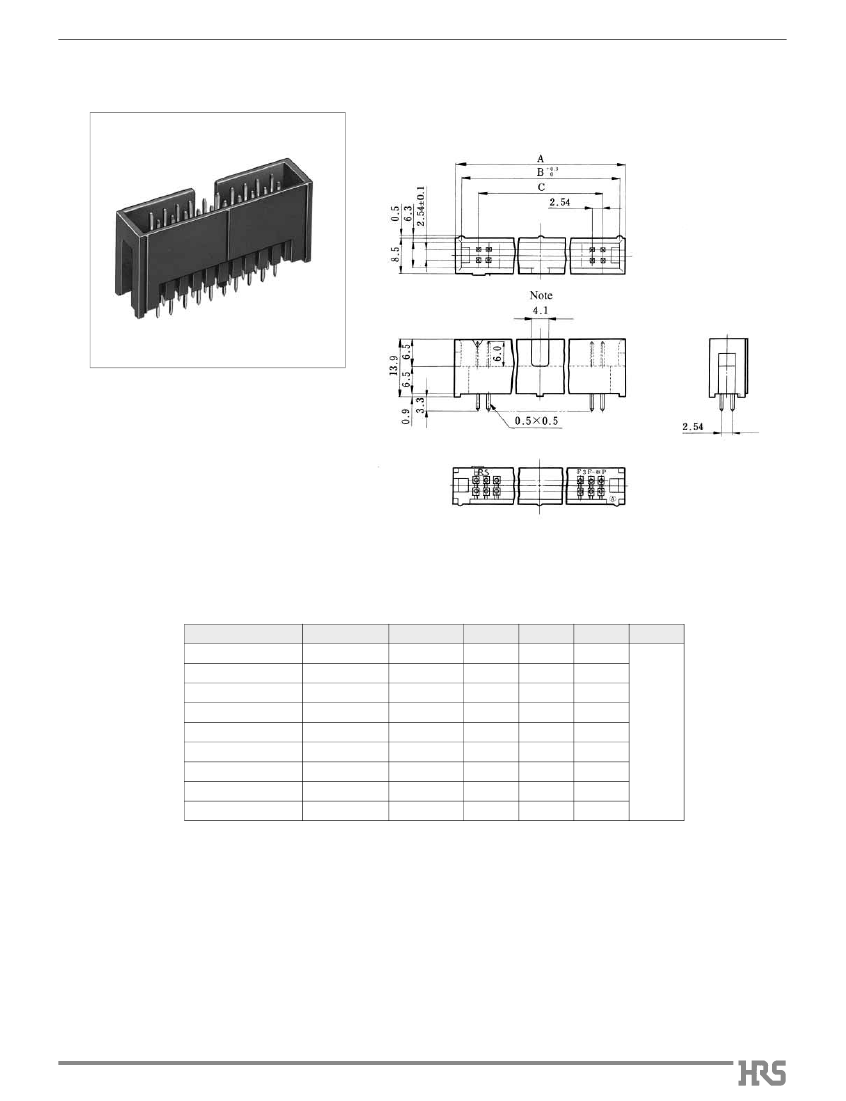

■Straight
Pin Header
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit: mm
Part Number
CL No.
Number of Contacts
10
16
20
26
30
34
40
50
60
A
20.5
28.1
33.2
40.8
45.9
51.0
58.6
71.3
84.0
B
17.5
25.1
30.2
37.8
42.9
48.0
55.6
68.3
81.0
C
10.16
17.78
22.86
30.48
35.56
40.64
48.26
60.96
73.66
RoHS
HIF3F-10PA-2.54DSA(71) 615-0061-3-71
HIF3F-16PA-2.54DSA(71) 615-0062-6-71
HIF3F-20PA-2.54DSA(71) 615-0063-9-71
HIF3F-26PA-2.54DSA(71) 615-0064-1-71
HIF3F-30PA-2.54DSA(71) 615-0065-4-71
HIF3F-34PA-2.54DSA(71) 615-0066-7-71
HIF3F-40PA-2.54DSA(71) 615-0067-0-71
HIF3F-50PA-2.54DSA(71) 615-0068-2-71
HIF3F-60PA-2.54DSA(71) 615-0069-5-71
YES
Note: The slot size for false-insertion for 50 contact and 60 contact connectors is 26.96.
B45
