Series ND3
Toggles
8mm Process Sealed SMT DIP Rotaries
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Switching Rating:
Nonswitching Rating:
100mA @ 5V DC
100mA @ 50V DC
Pushbuttons
Other Ratings
Programmable Illuminated PB
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Torque:
Contact Timing:
80 milliohms maximum for circuit; 30 milliohms maximum for contact point
1,000 megohms minimum @ 250V DC
250V AC minimum for 1 minute minimum
20,000 detent operations minimum
20,000 detent operations minimum
Note: A detent operation is one actuator position operation or stepping.
20,000 detent operations = 1,250 cycles for hexadecimal devices or 2,000 cycles for decimal
devices. A cycle is one 360° rotation.
.061 kgf/cm (.846 oz/in)
Nonshorting (break-before-make)
Keylocks
Materials & Finishes
G
Slides
Actuator:
Housing:
O-ring:
Base:
Movable Contact:
Stationary Contacts:
Terminals:
Glass fiber reinforced polyamide
Glass fiber reinforced polyamide (UL94V-0)
Nitrile butadiene rubber
Glass fiber reinforced polyamide (UL94V-0)
Beryllium copper with gold plating
Brass with gold plating
Brass with gold plating
Rotaries
Tactiles
Environmental Data
Operating Temperature Range:
Humidity:
Vibration:
Shock:
–25°C through +85°C (–13°F through +185°F)
90 ~ 95% humidity for 100 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tilt
Processing
Touch
Soldering:
Indicators
Cleaning:
Reflow Soldering: See Profile B in Supplement section.
Note: During Reflow Soldering process, set the switch to the following position:
ND3FR10, ND3FR16, ND3KR10, ND3KR16: 0 position;
ND3FC10, ND3KC10: 7 position; ND3FC16, ND3KC16: F position.
Manual Soldering: See Profile B in Supplement section.
Automated cleaning. See Cleaning Specifications in Supplement section.
Accessories
Standards & Certifications
Flammability Standards:
Supplement
UL94V-0 rated housing & base
The ND3 Series rotaries have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
G38
www.nkk.com

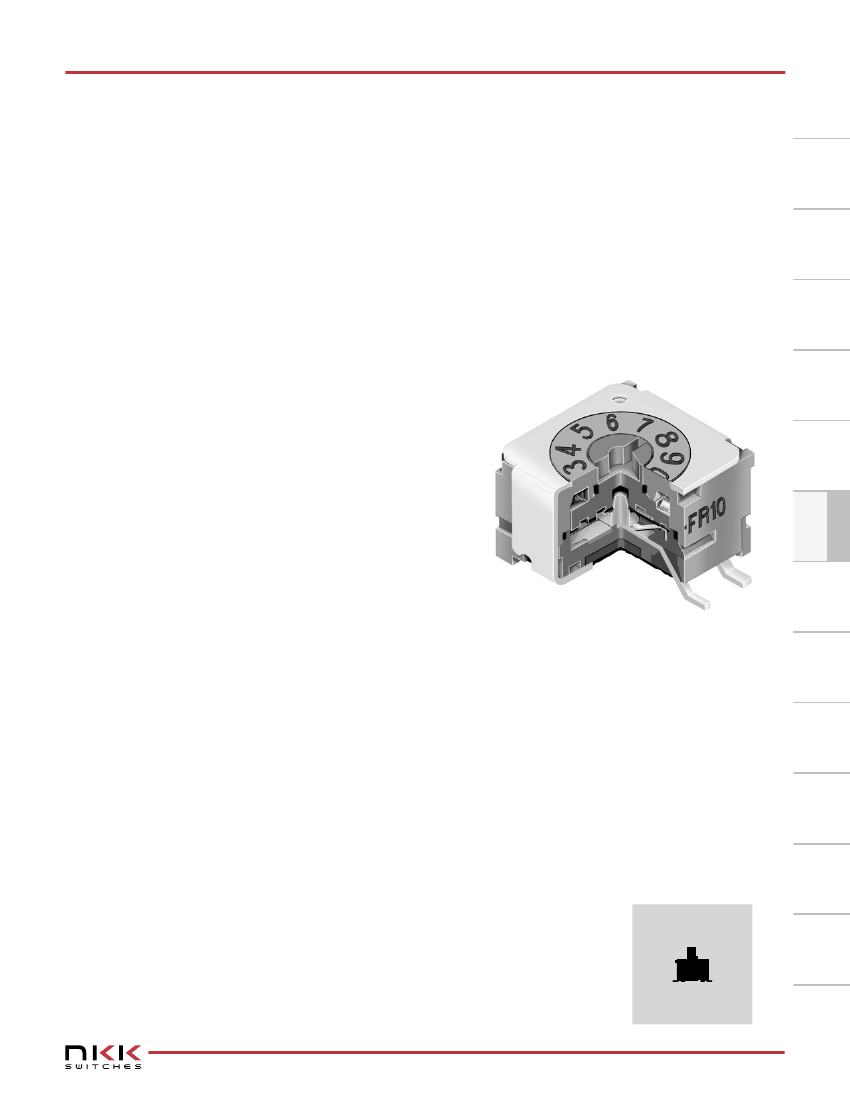

8mm Process Sealed SMT DIP Rotaries
Series ND3
Toggles
Detent mechanism designed for crisp, positive action for
accurate switch setting.
Bifurcated, spring loaded contacts give unmatched
logic-level reliability.
Heat tolerant resin used for body meets UL
flammability rating of 94V-0 and maintains
switch reliability through vapor phase and
infrared convection reflow soldering.
Gull-winged terminals ensure mechanical
stability during soldering and simplified
solder joint inspection.
.100” (2.54mm) terminal grid spacing between
pin centers, plus 3-by-3 terminal arrangement for
pad layout pattern equivalent to industry standard.
Epoxy sealed terminals lock out flux, solvents, and other contaminants.
Packaging in tape-reel or partitioned tray. Tape-reel packaging meets
EIA-481-2 Standard.
Coplanarity: all considered surfaces must lie between two parallel planes that are
a maximum distance apart of .0059” (0.15mm). (Additional coplanarity details in
Terms and Acronyms in the Supplement section.)
Actual Size
G
www.nkk.com
G39
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Highly visible legends and choice of screwdriver or shaft actuation
to provide trouble-free code setting.
Pushbuttons
Sealed construction prevents contact contamination and allows vapor phase and
IR reflow soldering. Sealed design accomplished with seals between the actuator
and housing and between housing and base.
Rockers
Distinctive
Characteristics
Series ND3
Toggles
8mm Process Sealed SMT DIP Rotaries

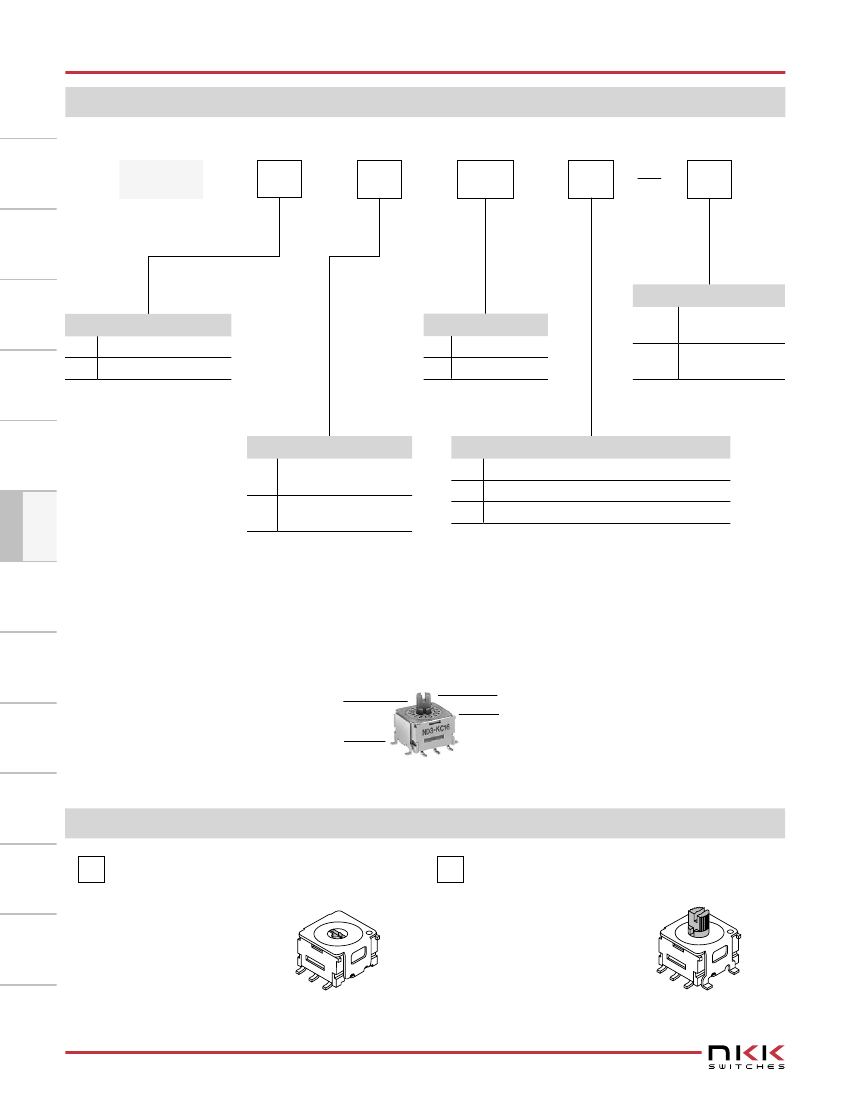

TYPICAL SWITCH ORDERING EXAMPLE
Rockers
ND3
K
C
16
B
Programmable Illuminated PB
Pushbuttons
Packaging
Actuators
F
K
Screwdriver Actuated
Shaft Actuated
10
16
Positions
Decimal
Hexadecimal
R
No
Code
Tape-Reel
500 Pieces/Reel
Partitioned Tray
Keylocks
Circuits
R
Real Coded
(White Actuator)
Complement Coded
(Red Actuator)
P
B
H
Terminals
Gull Wing for Upright Mount
Gull Wing for Upright with Bracket Mount
Gull Wing for Right Angle Mount
Rotaries
G
C
Slides
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
ND3KC16B
Tactiles
Shaft Actuated
Gull Wing Terminals for
Upright with Bracket Mount
Tilt
Complement Coded
Hexadecimal Positions
Touch
ACTUATION
F
Screwdriver Actuated
Indicators
K
3
4
Shaft Actuated
Accessories
ND3
- FC
10P
ND3
- KC
10B
Supplement
Actuators are fully rotational in either direction.
G40
www.nkk.com
8
9
8
9
Actuator colors:
White for real coded
Red for complement coded
Actuator colors:
White for real coded
Red for complement coded
12
0
0
12
3
4
6
5
7
6
5
7
8mm Process Sealed SMT DIP Rotaries

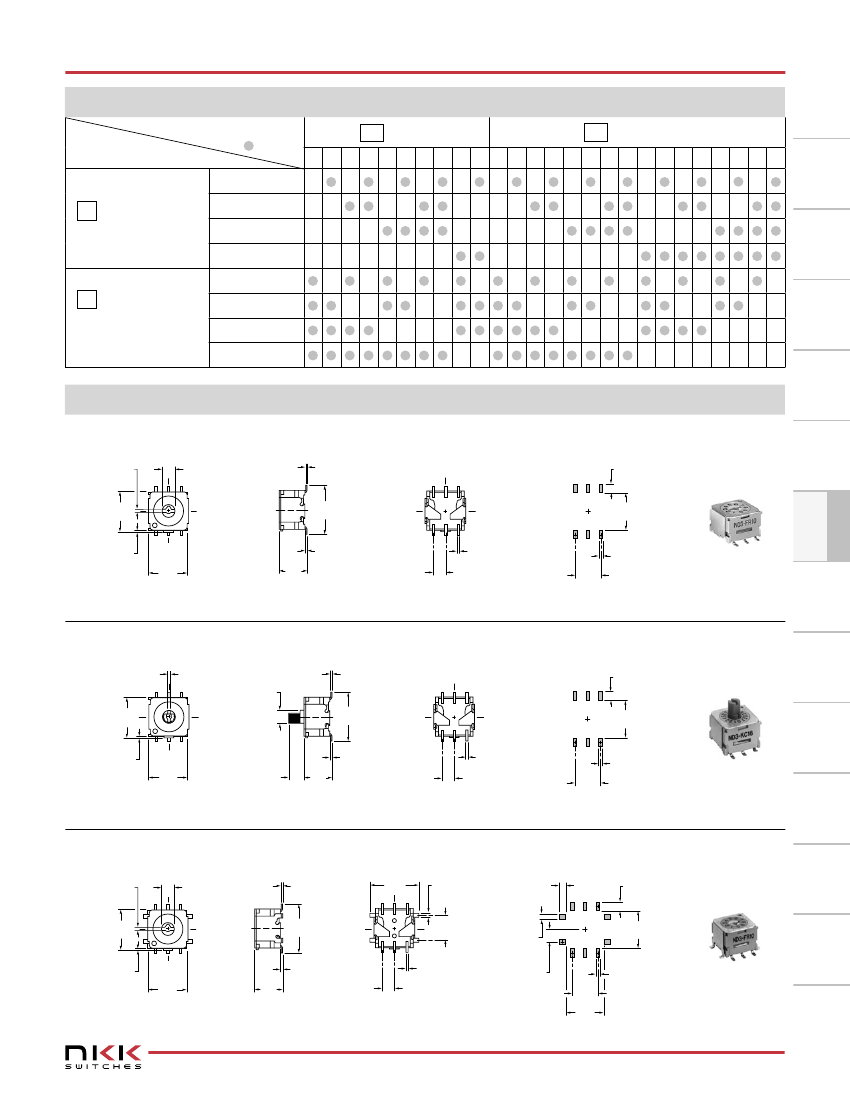

TRUTH TABLES (CIRCUITS & POSITIONS)
Terminal No. (Output)
Real Coded
Model Numbers:
ND3FR, ND3KR
Actuator Position
x = ON
Series ND3
16
Hexadecimal
Rockers
Toggles
C
2
10
Decimal
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 A B C D E F
1
R
2
4
8
C
Complement
1
2
4
8
Coded
Model Numbers:
ND3FC, ND3KC

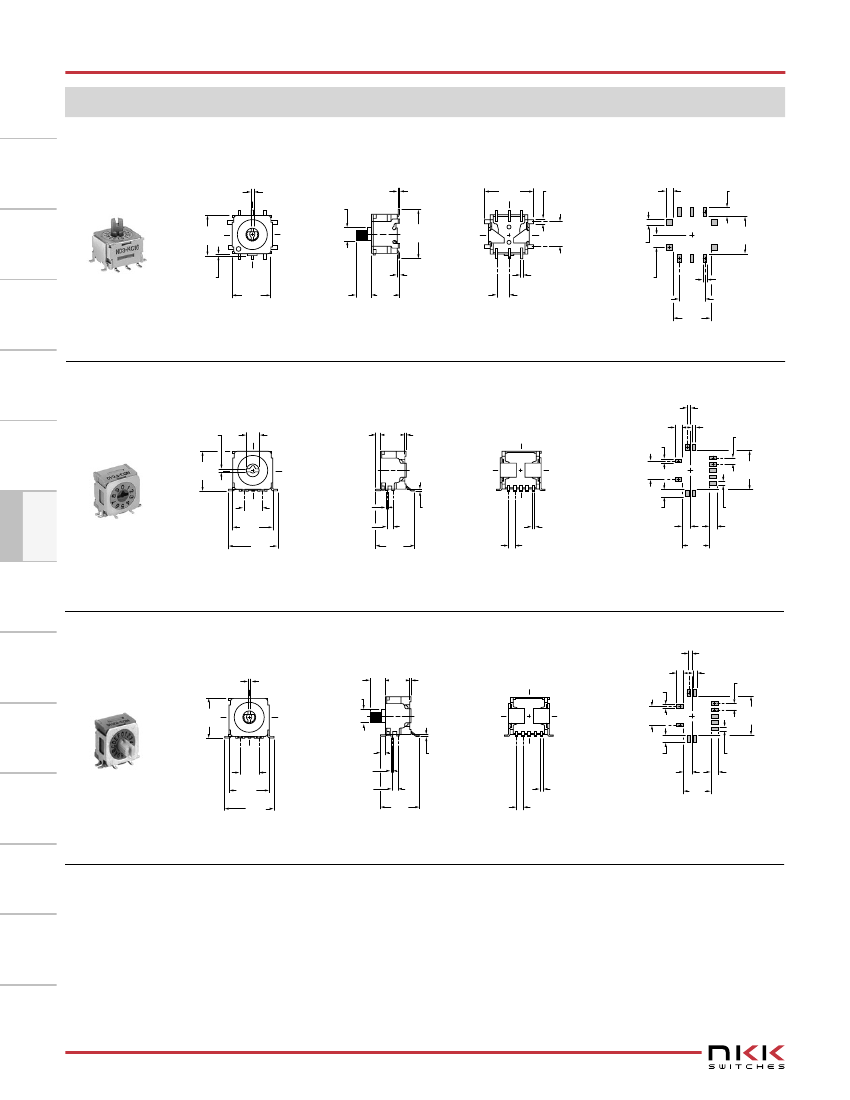

TYPICAL SWITCH DIMENSIONS
(0.6)
.024
0
1
(2.6) Dia
.102
(0.25) Typ
.010
2
C
1
1
(1.7) Typ
.067
8
C
4
(0.3)
.012
(8.12)
.320
(0.4)
.016
(5.6)
.220
(0.5) Typ
.020
(2.54) Typ
.100
4
C
8
G
(0.7) Typ
.028
Terminal numbers are not on switch.
ND3FR10P
(0.6)
.024
EF0
1
2
(0.25) Typ
.010
(2.6) Dia
.102
(10.0)
.394
34
56
Shaft Actuated • Upright
(1.7) Typ
.067
2
C
1
1
C
2
8
C
4
(0.3)
.012
(8.12)
.320
(3.2)
.126
(5.6)
.220
(0.4)
.016
(0.5) Typ
.020
(2.54) Typ
.100
4
C
8
(0.7) Typ
.028
(5.08)
.200
Terminal numbers are not on switch.
ND3KC16P
(0.6)
.024
0
1
2
3
(2.6) Dia
.102
(0.25) Typ
.010
2
(10.0)
.394
C
1
(0.9) Typ
.035
(1.3) Typ
.051
1
C
2
(1.7) Typ
.067
(1.1) Typ
.043
(2.54) Typ
.100
4
C
8
8
C
4
(0.3)
.012
(8.12)
.320
(5.6)
.220
(0.4)
.016
Terminal numbers are not on switch.
www.nkk.com
ND3FR10B
G41
Supplement
(0.5) Typ
.020
(2.54) Typ
.100
(0.7) Typ
.028
(5.08)
.200
(7.8)
.307
Accessories
456
(7.92)
.312
9
(10.0)
.394
(5.08)
.200
(7.6)
.300
78
Indicators
Screwdriver Actuated • Upright with Bracket
Touch
Tilt
78
9
(7.92)
.312
(7.6)
.300
AB
CD
Tactiles
Slides
(5.08)
.200
Rotaries
456
(7.92)
.312
9
78
(10.0)
.394
(7.6)
.300
Keylocks
Screwdriver Actuated • Upright
Programmable Illuminated PB
Pushbuttons
2
3
Series ND3
Toggles
8mm Process Sealed SMT DIP Rotaries
TYPICAL SWITCH DIMENSIONS
Shaft Actuated • Upright with Bracket
Rockers
(0.6)
.024
(2.6) Dia
.102
(7.92)
.312
CD
EF0
1
2
(0.25) Typ
.010
2
(10.0)
.394
C
1
(0.9) Typ
.035
(1.3) Typ
.051
1
C
2
(1.7) Typ
.067
Pushbuttons
(10.0)
.394
8
C
4
(5.08)
.200
(1.1) Typ
.043
(2.54) Typ
.100
4
C
8
(7.6)
.300
34
56
Programmable Illuminated PB
(0.3)
.012
(8.12)
.320
(3.2)
.126
(5.6)
.220
ND3KC16B
Screwdriver Actuated • Right Angle
(1.3)
.051
(0.7) Typ
.028
(3.8)
.150
2 8 C 4 1
Keylocks
(0.6)
.024
(8.02)
.316
9
78
G
ND3FC10H
(3.8)
.150
(8.12)
.320
(10.0)
.394
Rotaries
Slides
Shaft Actuated • Right Angle
(0.6)
.024
(8.02)
.316
E
F
01
2
Tactiles
Tilt
Touch
(3.8)
.150
(8.12)
.320
(10.0)
.394
ND3KR16H
Indicators
Supplement
Accessories
G42
789A
BCD
456
789
AB
(0.4)
.016
(0.5) Typ
.020
(2.54) Typ
.100
(0.7) Typ
.028
(5.08)
.200
(7.8)
.307
Terminal numbers are not on switch.
(2.6) Dia
.102
0
1
(1.0)
.039
(4.9)
.193
(0.3)
.012
(0.635) Typ
.025
(0.7) Typ
.028
(1.27) Typ
.050
1
4
C
8
2
(8.0)
.315
(0.7)
.028
(1.4)
.055
2
3
(0.5) Typ
.020
(1.27)
.050
(7.9)
.311
(0.4)
.016
(0.5) Typ
.020
(1.27) Typ
.050
(1.3) Typ
.051
(1.8)
.071
(5.7)
.224
Terminal numbers are not on switch.
(3.2) (4.9)
.126 .193
(2.6) Dia
.102
(0.3)
.012
(1.3)
.051
(0.7) Typ
.028
(3.8)
.150
2 8 C 4 1
(0.635) Typ
.025
(0.7) Typ
.028
(1.27) Typ
.050
1
4
C
8
2
(8.0)
.315
(0.7)
.028
(1.4)
.055
3456
(1.0)
.039
(0.5) Typ
.020
(1.27)
.050
(7.9)
.311
(0.4)
.016
(0.5) Typ
.020
(1.27) Typ
.050
(1.3) Typ
.051
(1.8)
.071
(5.7)
.224
Terminal numbers are not on switch.
www.nkk.com
