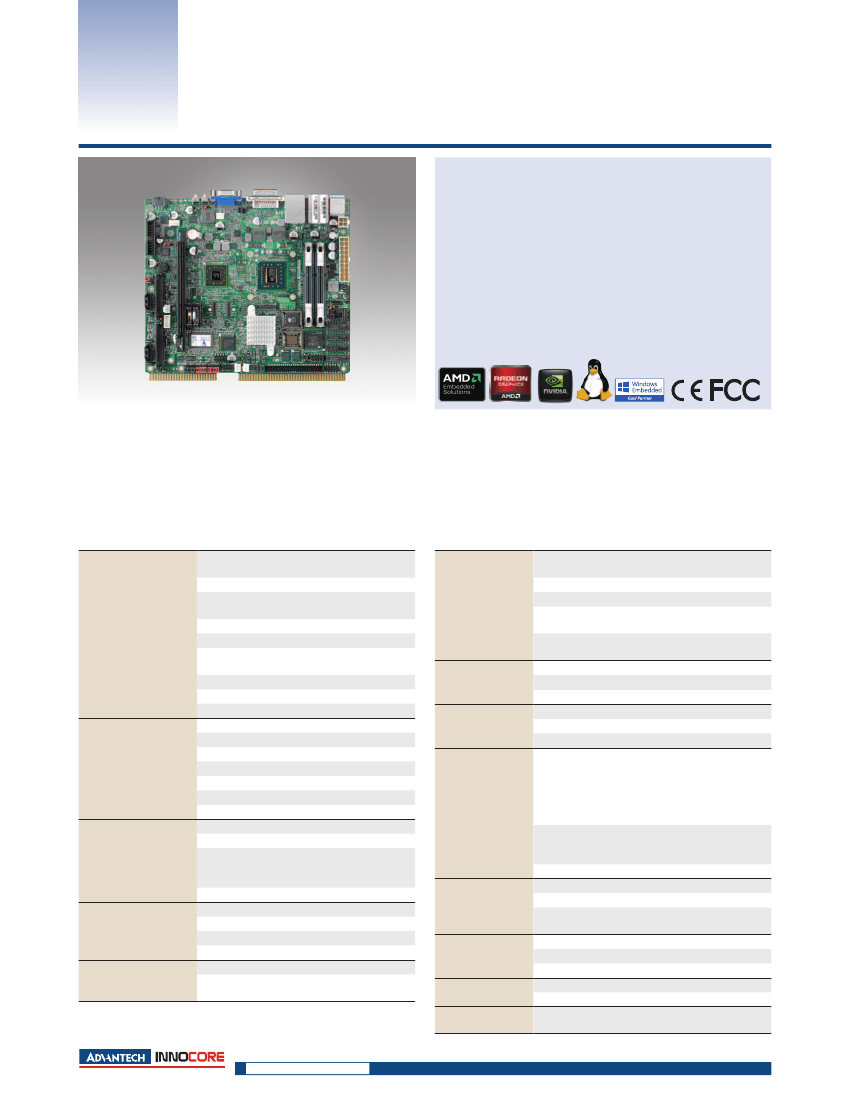

DPX -S415
®
AMD
®
Athlon™ II Neo, Turion™ II
Neo Gaming Platform
Features
Very high performance AMD
®
platform
Comprehensive gaming features
High performance integrated or PCI-Express graphics
Low power consumption
Small format
Introduction
The DPX
®
-S415 is the latest, highly integrated industrial single board computer from Advantech-Innocore. The DPX
®
-S415 offers unrivalled performance, long lifecycle and low
power with AMD’s Athlon X2 and Turion Neo processors and includes lightning fast chipset graphics (Radeon HD4270). A full feature set of I/O and COMs designed specifically for
gaming devices is also included on the board and it is backward compatible both mechanically and in the software API with the DPX
®
-S410 series.
Specifications
Mobile AMD Athlon II X2, Turion II X2 Neo
performance
AMD 785E Embedded chipset
High performance chipset graphics
Radeon HD4270
Max. 8 GB DDR3 SDRAM
2 x Gigabit Ethernet LAN
2 x Compact Flash
2 x SATA DOM sockets
2 x CFast™ (Option)
Sound (on-board 3 channel amp)
2 MB SRAM, 1 MB ROM, EEPROM
5 x RS232
2 x CCTalk/RS232
2 x RS232/TTL
1 x RS232/485
12 x USB 2.0
GPIO
32 inputs and 32 outputs
Embedded Chipset Radeon HD4270
Dual independent monitor support (on-board)
Full speed PCI-Express X16 v2.0 slot to support a
range of PCI-Express graphics cards; ATi
®
, Nvidia
®
,
S3 Graphics
Dual, triple and quad independent monitor
TPM security device on board
iButton
®
option
Intrusion switch inputs
BIOS customisation
Edge-to-edge drivers and API/SDK
Range of Advantech-Innocore software products for
Gaming
Mobile AMD Athlon X2 Neo,
Turion X2 Neo performance
Up to 2.2 GHz HT3 CPUs
Very low power operation (CPU 8 to 25W)
AMD 785E chipset.
Embedded/long lifecycle chipset and CPUs
Highest performance chipset
graphics – Radeon HD4270
2 x SO-DIMM socket, 8 GB Max
DDR3 up to 800 MHz (1600 MT/s)
64 bit OS and RAM in excess of 4 GB
AMI PCI/ PnP/ ACPI BIOS
BIOS Flash can be write protected
Fast boot option. “No user menu” option
Integrated (Chipset)
Embedded Radeon HD4270
DirectX
®
10.1-compliant, Shader
Model 4.1,Open GL 2.0
Dedicated UVD (Unified Video Decoder) 2.0 hardware for
H.264,VC-1, and MPEG-2 decode
PCI-Express x16 v2.0 slot
A range of PCI-Express graphics cards from ATi, Nvidia,
S3 Graphics
multiple displays with ATI Crossfire
Primary: Analog VGA (15 pin D-Sub)
Secondary: Analog VGA or Digital DVI (DVI-I)
PCI-E graphics card installed.
Dependent on PCI-E adapter card
Gigabit Ethernet
Full duplex operation
Wake-On-LAN capability
2 x SATA 6Gbps ports
Power header for SATA DOM support
2 x CompactFlash Type I/II headers
(Flash/MicroDrive)
CPU/Chipset
System
Memory
BIOS
I/O
Video
Video
Video Ports
Security
LAN 1,2
SATA Controller
Compact Flash
Software
Innovations in Gaming Computing
www.advantech-innocore.com
See overleaf for continued specification
Last updated : 10-Sep-2014

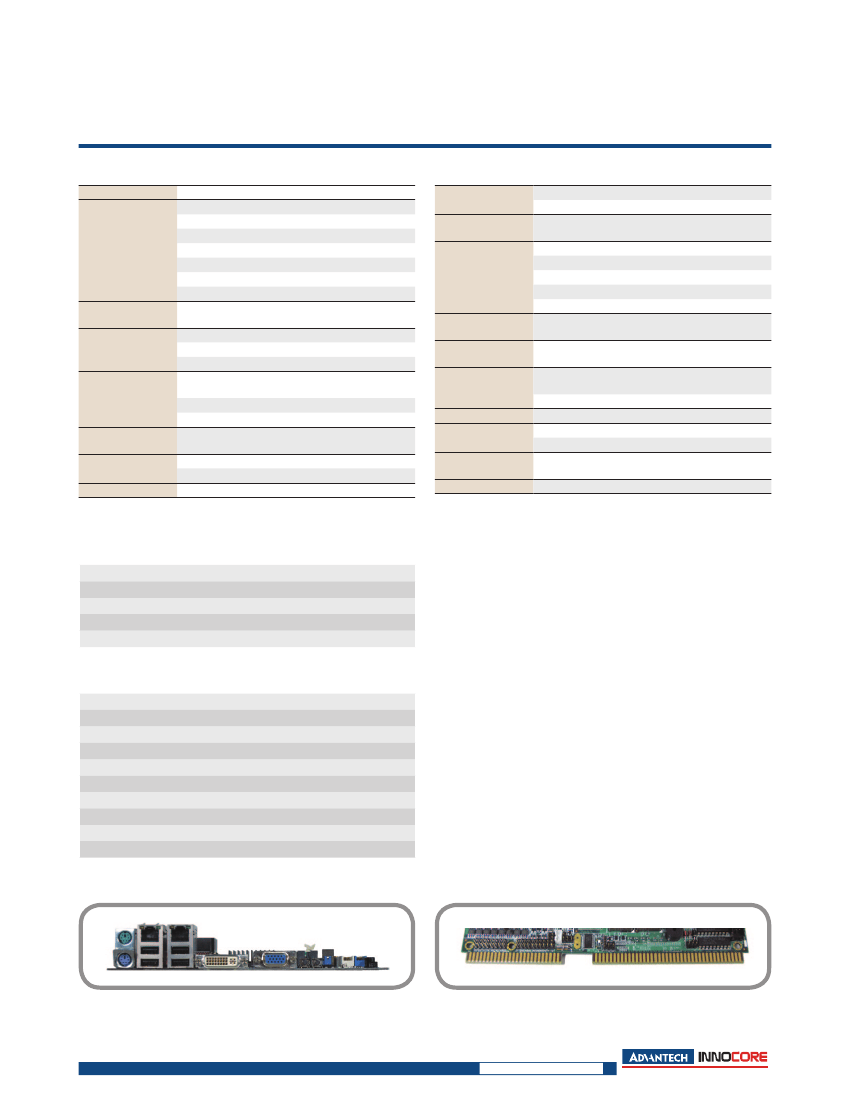

DPX
®
-S415
Specifications Cont.
CFast™ (Option)
2x CFast connectors on underside
5 x RS232
2 x CCTalk/RS232
2 x RS232/TTL
1 x RS232/485
12 x USB 2.0 (4 with over-current detect)
Keyboard/Mouse on-board
2 x I2C ports on board headers
Bi-Directional, programmable GPIO header for iButton,
special purpose device or security module
32 ESD protected inputs
32 OC Outputs (500 mA, 50 V)
Meter Connect Sensing up to 6 meters
Onboard 13 W+13 W+13 W class D audio amp with FL +
FR + LF speaker connectors
6 channel line level outputs
Stereo line in, SPDIF (Digital) audio in/out
1MB EPROM/OTPROM PLCC32 socket
(PCI, Bootable)
2048 KB fast SRAM (2 banks) on PCI bus
Battery state software readable (Option 4 MB)
TCPA/TPM 1.2 compliant security device
Programmable time-out of 1-255 seconds
“Always on” design (default 255 seconds)
Serial EEPROM for storage of serial numbers, data,
EEPROM
security keys. 32 KB (option for larger)
Six Intrusion detection input lines
Operates with and without system active
Intrusion Detection
Logs date/time of last 48 events
Logs system resets/ brownouts as events
EEPROM backup for 10 years retention
System Health
Measurement of CPU core temp. With thermal trip. PWM
Monitoring
fan for CPU. Monitoring up to 3 fans.
External sensor input for advanced warning of AC power
Power Fail Detect
fail
1) Up to 240 Bytes of PCI-based I/O expansion available
through DirectPCI + interface on board header.
Expansion
2) PCI-Express x16 graphics card
Power
ATX or AT mode, typical 45-65W
Operating Temperature: 0 – 50 °C
Environment
Storage Temperature: -20 – 85 °C
EMC: CE, FCC Class A
Approvals
RoHS, WEEE
Dimensions
170 x 200mm (6.7 x 7.9”)
All product specifications are subject to change without notice .
Watchdog Timer
Ports
iButton/GPIO
I/O
Sound
ROM
SRAM On-Board
Security
Optional Accessories
Full System chassis
Range of PCI-E graphics cards
I/O Connector breakout board
iButton Carrier
Compact Flash, SATA DOM, SSD storage devices
OEM Customization and Product
Development
Advantech-Innocore specializes in the fields of PC-based hardware design and
software development. Our in-depth knowledge and global resources make us your
ideal partner.
Advantech-Innocore is part of the Advantech Co., Ltd. Group of Companies.
Specifications subject to change. E&OE.
Copyright © 2011 Advantech Co., Ltd.
All rights reserved. Advantech-Innocore, the Advantech-Innocore Logo, DPX,
ConnectBus are trademarks of Advantech Co., Ltd. in the UK, US and other
countries.
All other trademarks are acknowledged and respected.
Benefits
High performance integrated and expandable graphics capabilities
Low Power (CPU power between 8 W and 25 W)
Single board solution
Edge connector for I/O
Small size – 170 x 200 mm (6.7 x 7.9")
Long Life Cycle
Designed for the Gaming Industry
Meets GLI and other regulatory standards
Backward compatible with DPX-S410, 112
Low Cost
Front I/O
Rear I/O
