I/O module - AXL F RTD8 S 1F - 2702120
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

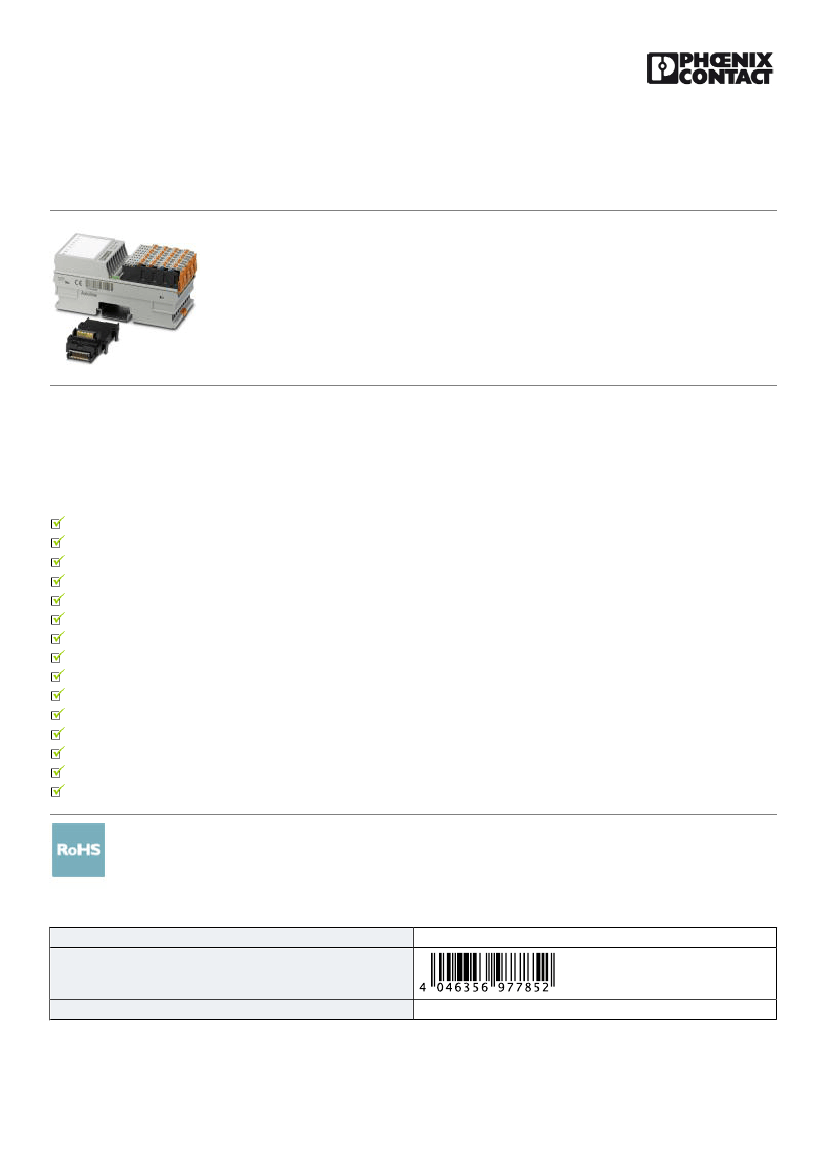

Axioline F, Temperature recording module, Analog inputs: 8 (for resistance temperature detectors),
connection method: 2, 4-wire (shielded), transmission speed in the local bus: 100 Mbps, measuring dynamics
up to 8 Hz, degree of protection: IP20, including bus base module and Axioline F connectors
Product Description
The module is designed for use within an Axioline F station.
It is used to acquire signals from resistive temperature sensors.
The module supports all common platinum sensors in accordance with DIN EN 60751 and SAMA, as well as nickel sensors in accordance with
DIN 43760.
Cu10, Cu50, and Cu53 sensors are also supported.
Your advantages
8 analog input channels for the connection of resistance temperature detectors (RTD)
Linear inputs 500 Ω
Connection of sensors with 2- and 4-wire technology
Integrated, digital sensor linearization
Standardized measured value representation directly in °C, °F or Ω
Measured value display in 16-bit format or floating point format
8 Hz measuring dynamics per channel
Programmable filters
Short-circuit protected inputs
Device rating plate stored
Diagnostic and status indicators
Temperature stability
Very high level of noise immunity
Low noise emission
Installation monitoring by means of “Channel scout” function
Key Commercial Data
Packing unit
GTIN
GTIN
4046356977852
1 pc
12/02/2018 Page 1 / 6
https://www.phoenixcontact.com/pi/products/2702120
I/O module - AXL F RTD8 S 1F - 2702120
Technical data
Dimensions
Caption
Width
Height
Depth
Note on dimensions
Dimensional drawing
53.6 mm
126.1 mm
54 mm
The depth is valid when a TH 35-7,5 DIN rail is used (according to
EN 60715).
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
-25 °C ... 60 °C
-40 °C ... 85 °C
5 % ... 95 % (non-condensing)
5 % ... 95 % (non-condensing)
70 kPa ... 106 kPa (up to 3000 m above sea level)
70 kPa ... 106 kPa (up to 3000 m above sea level)
IP20
Connection data
Designation
Connection method
Note on the connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Axioline F connector
Push-in connection
Please observe the information provided on conductor cross sections in
the “Axioline F: system and installation” user manual.
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
24
16
8 mm
General
Mounting type
Net weight
Note on weight specifications
DIN rail
241.3 g
with connectors and bus base module
Interfaces
Designation
No. of channels
Connection method
Transmission speed
Axioline F local bus
2
Bus base module
100 Mbps
Axioline potentials
Designation
Supply voltage
Axioline F local bus supply (U
Bus
)
5 V DC (via bus base module)
12/02/2018 Page 2 / 6
https://www.phoenixcontact.com/pi/products/2702120
I/O module - AXL F RTD8 S 1F - 2702120
Technical data
Axioline potentials
Current consumption
Power consumption
Designation
Supply voltage
Supply voltage range
Current consumption
Power consumption
typ. 115 mA
max. 180 mA
typ. 0.58 W
max. 0.9 W
Supply for analog modules (U
A
)
24 V DC
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
typ. 15 mA
max. 25 mA
max. 0.6 W
typ. 0.94 W (at U
Bus
and U
A
)
max. 1.5 W (at U
Bus
and U
A
)
Type of protection
Surge protection of the supply voltage
Polarity reversal protection of the supply voltage
Transient protection
Analog inputs
Number of inputs
Input name
Description of the input
Connection method
Connection technology
Sensor types (RTD) that can be used
Linear resistance measuring range
Nominal value of the current sources
Measured value representation
Resolution A/D
Type of protection
8 (for resistance temperature detectors)
Analog inputs
Inputs for resistive temperature sensors
Push-in connection
2, 4-wire (shielded)
Pt, Ni, Cu sensors
0 Ω ... 500 Ω
1 mA (Pt 100, Ni 100, R
Lin
500 Ω; pulse current, the specification is valid
during the sampling phase)
16 bits (15 bits + sign bit)
24 bit
Short-circuit protection, overload protection of the inputs
Transient protection of inputs
Transient protection of sensor supplies
Data formats
Input filter time
IB IL, S7-compatible
8 ms
Electrical isolation
Test section
5 V communications power (logic), 24 V supply (I/O) 500 V AC 50 Hz 1
min.
5 V supply (logic)/functional earth ground 500 V AC 50 Hz 1 min.
24 V supply (I/O) / functional earth ground 500 V AC 50 Hz 1 min.
Standards and Regulations
Mechanical tests
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g
12/02/2018 Page 3 / 6
https://www.phoenixcontact.com/pi/products/2702120
I/O module - AXL F RTD8 S 1F - 2702120
Technical data
Standards and Regulations
Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
Protection class
III, IEC 61140, EN 61140, VDE 0140-1
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Connection diagram
a1
00
01
02
03
04
05
06
07
Connection diagram
a1
00
01
02
03
04
05
06
07
U+
a2
10
11
12
13
14
15
16
17
RL
a2
10
11
12
13
14
15
16
17
U+
RL
RL
RL
I+
b1
20
21
22
23
24
25
26
27
RL
RL
ϑ
RTD
b1
20
21
22
23
24
25
26
27
b2
30
31
32
33
34
35
36
37
I+
I–
ϑ
RTD
I–
b2
30
31
32
33
34
35
36
37
U–
RL

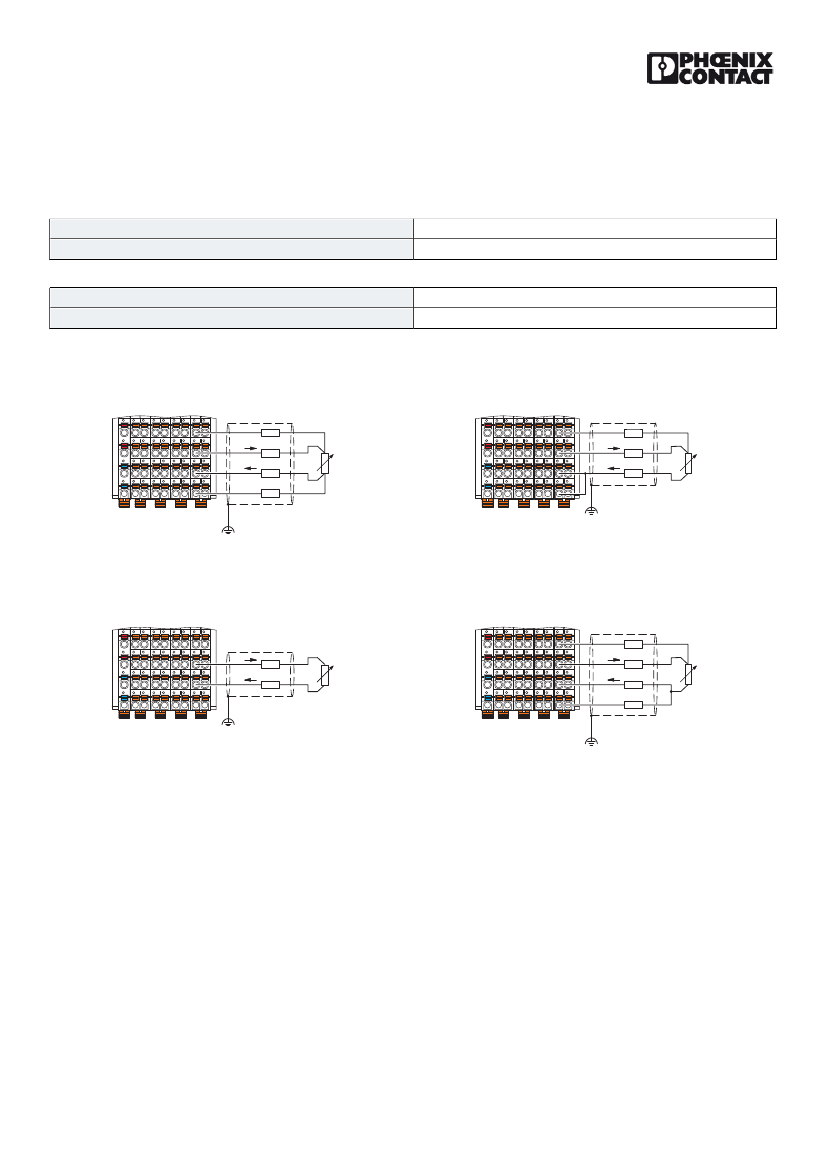

Connection example: 3-wire connection with external bridge
Connection example: 4-wire connection
Connection diagram
a1
00
01
02
03
04
05
06
07
a1
00
01
02
03
Connection diagram
04
05
06
07
U+
a2
10
11
12
13
14
15
16
17
a2
10
11
12
13
14
15
16
17
RL
RL
RL
I+
b1
20
21
22
23
24
25
26
27
RL
RL
ϑ
RTD
b1
20
21
22
23
24
25
26
27
b2
30
31
32
33
34
35
36
37
I+
I–
U–
ϑ
RTD
I–
b2
30
31
32
33
34
35
36
37
RL
Connection example: 2-wire connection
Connection example: 4-wire connection for 3-wire sensor with long supply
lines
12/02/2018 Page 4 / 6
https://www.phoenixcontact.com/pi/products/2702120
I/O module - AXL F RTD8 S 1F - 2702120

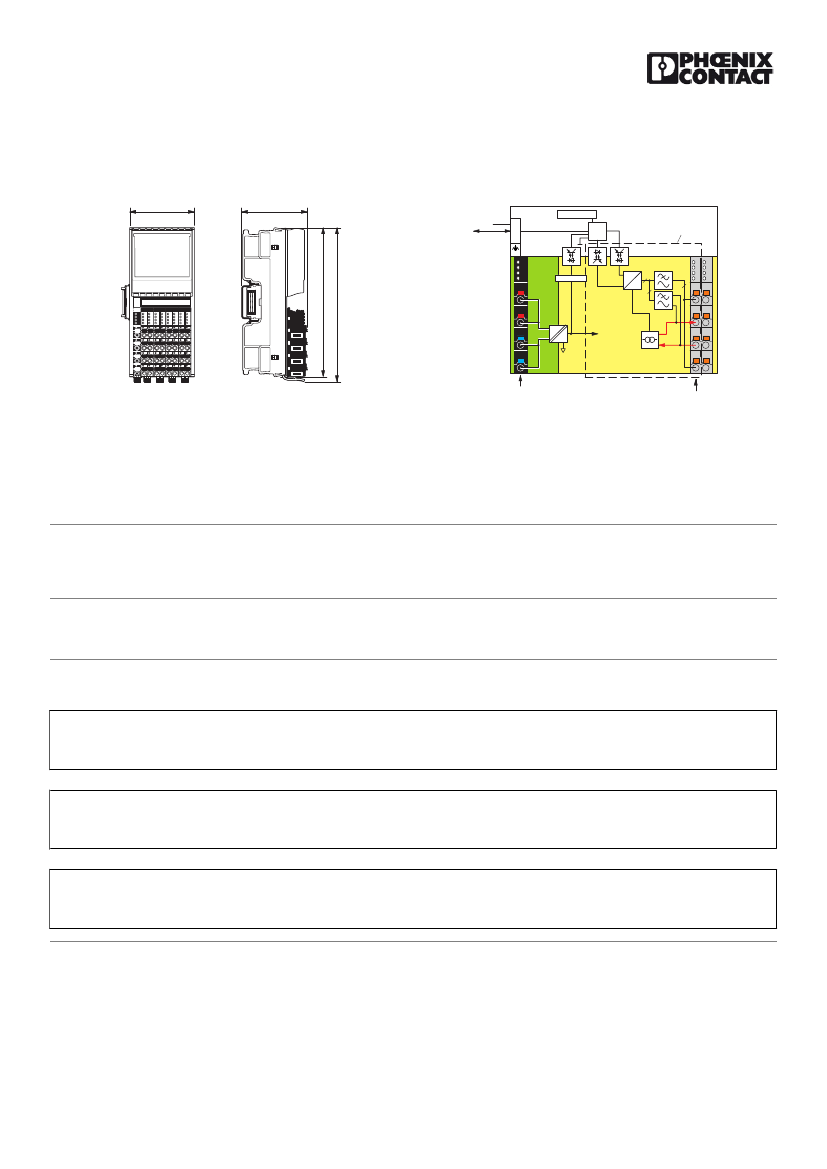

Dimensional drawing
53,6
54
U
Bus
Local bus
FE
Block diagram
Supervisor
mC
8x
D
UA
E1
E2
122,4
126,1
+5V DC
U
ANA
24 V
Dimensional drawing
Internal wiring of the terminal points
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
cULus Listed
U
Supervisor
#
RTD IN
FILE E 238705
FILE E 238705
12/02/2018 Page 5 / 6
