HMC440QS16G
/
440QS16GE
v03.0808
2.8 GHz INTEGER-N SYNTHESIZER
(N = 2 - 32)
Typical Applications
The HMC440QS16G(E) is ideal for:
• Satellite Communication Systems
• Point-to-Point Radios
• Military Applications
• Sonet Clock Generation
Features
Ultra Low SSB Phase Noise Floor:
-153 dBc/Hz @ 10 kHz offset @ 100 MHz
Reference Frequency.
Programmable Divider (N = 2 - 32) Operating
up to 2.8 GHz
Open Collector Output Buffer Amplifiers for
Interfacing w/ Op-Amp Based Loop Filter
QSOP16G SMT Package: 29.4 mm
2
8
INTEGER-N SYNTHESIZER - SMT

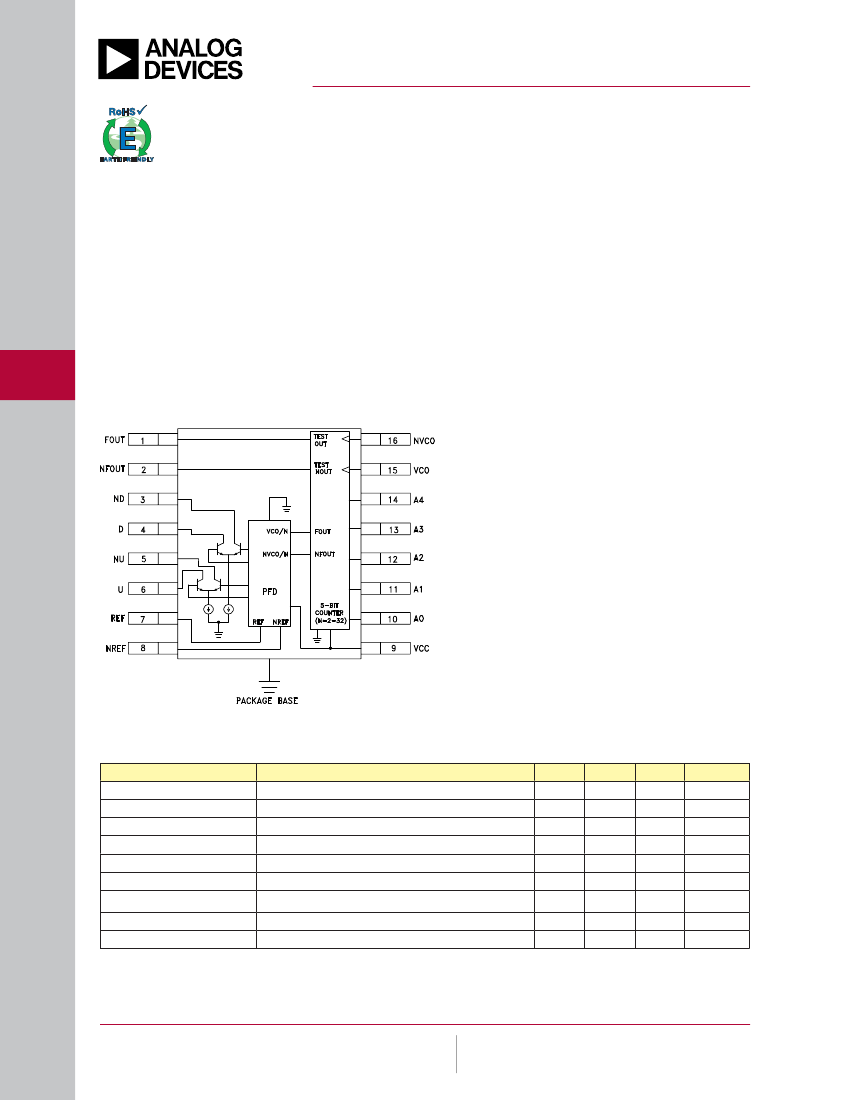

Functional Diagram
General Description
The HMC440QS16G(E) is an Integer-n synthesizer
that incorporates a 10 to 1300 MHz digital Phase-
Frequency Detector with 10 to 2800 MHz 5-Bit
Frequency Counter (continuous division from 2 to
32) in miniature 16 lead QSOP plastic packages.
It is intended for use in low phase noise offset-
synthesizer applications. The HMC440QS16G(E)’s
combination of high frequency operation along
with ultra low phase noise floor make possible
synthesizers with wide loop bandwidth and low N
resulting in fast settling and very low phase noise.
When used in conjunction with a differential loop
amplifier, the HMC440QS16G(E) generates an
output voltage that can be used to phase lock a VCO
to a reference oscillator.
Electrical Specifi cations,
T
A
= +25° C, Vcc= 5V
Parameter
Maximum Ref. Input Frequency
Minimum Ref. Input Frequency
Reference Input Power Range
Maximum VCO Input Frequency
Minimum VCO Input Frequency
VCO Input Power Range
Output Voltage
SSB Phase Noise
Supply Current
Conditions
Sine or Square Wave Input
Square Wave Input
100 MHz Frequency
Sine or Square Wave Input
Square Wave Input
100 MHz Input Frequency
200 Ohm Pull Up to Vcc
@ 10 kHz Offset @ 100 MHz Ref. Input, Pin= 0 dBm
-15
2000
-153
250
-10
2800
10
+10
Min.
1300
10
+10
Typ.
Max.
Units
MHz
MHz
dBm
MHz
MHz
dBm
mV, Pk - Pk
dBc/Hz
mA
8-2
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
HMC440QS16G
/
440QS16GE
v03.0808
2.8 GHz INTEGER-N SYNTHESIZER
(N = 2 - 32)

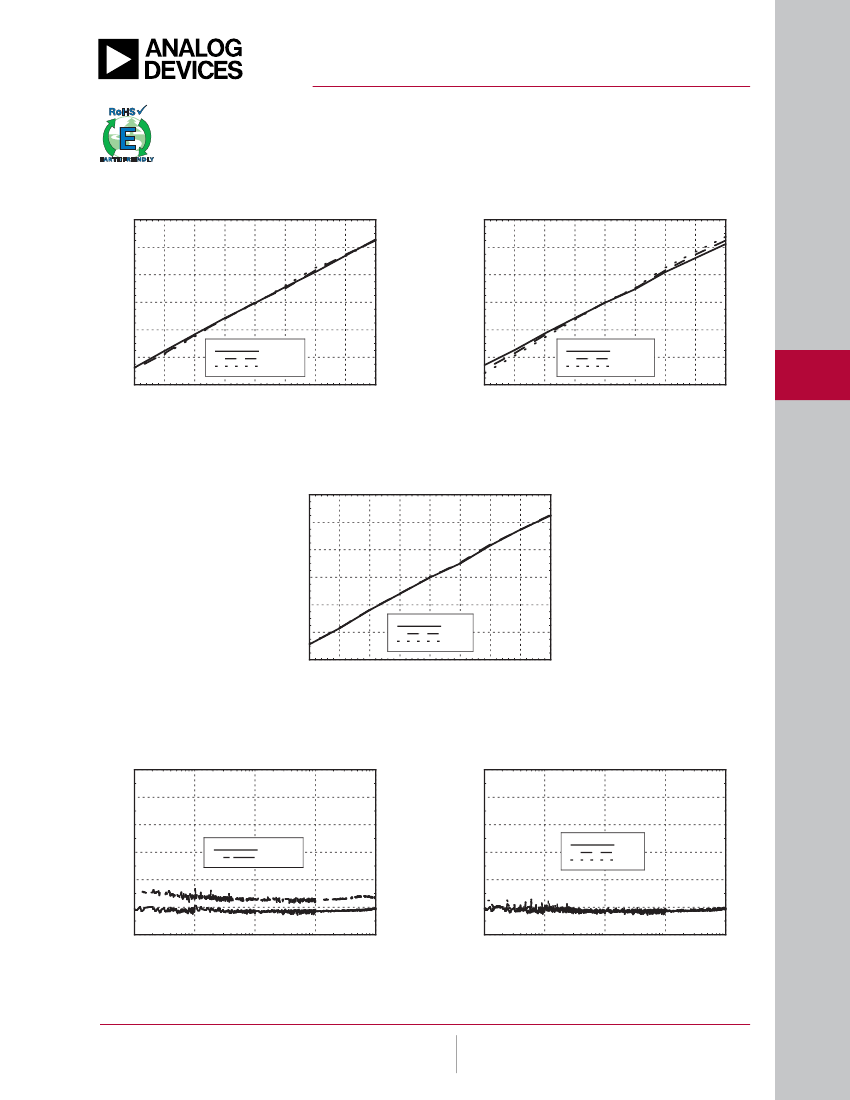

Error Voltage vs. Supply Voltage,
Pin= 0 dBm, Fin= 640 MHz*
1.2
0.8
0.4
0
-0.4
-0.8
-1.2
-p
-p/2
0
p/2
p
-p
-p/2
0
p/2
p
PHASE DIFFERENCE (rad)
PHASE DIFFERENCE (rad)
Vcc=4.8V
Vcc=5.0V
Vcc=5.2V
Error Voltage vs. Frequency, Pin= 0 dBm*
1.2
0.8
0.4
0
-0.4
-0.8
-1.2
50 MHz
640 MHz
1280 MHz
ERROR VOLTAGE (Vdc)
ERROR VOLTAGE (Vdc)
8
INTEGER-N SYNTHESIZER - SMT
Error Voltage vs. Temperature,
Pin= 0 dBm, Fin= 640 MHz*
1.2
0.8
0.4
0
-0.4
-0.8
-1.2
-p
-p/2
0
p/2
p
PHASE DIFFERENCE (rad)
+25 C
+85 C
-40 C
SSB Phase Noise Performance,
Pin= 0 dBm, T= 25 °C
0
SSB PHASE NOISE (dBc/Hz)
-30
-60
-90
-120
-150
-180
2
10
100 MHz
1280 MHz
ERROR VOLTAGE (Vdc)
SSB Phase Noise Performance,
Pin= 0 dBm, Fin= 100 MHz
0
SSB PHASE NOISE (dBc/Hz)
-30
-60
-90
-120
-150
-180
2
10
+25C
+85C
-40C
10
3
10
4
10
5
10
6
10
3
10
4
10
5
10
6
OFFSET FREQUENCY (Hz)
OFFSET FREQUENCY (Hz)
* See Gain & Error Voltage Test Circuit herein.
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
8-3
HMC440QS16G
/
440QS16GE
v03.0808
2.8 GHz INTEGER-N SYNTHESIZER
(N = 2 - 32)
Absolute Maximum Ratings
RF Input (Vcc= +5V)
Supply Voltage (Vcc)
Counter Logic Input (A
0
- A
4
)
Channel Temperature (Tc)
Continuous Pdiss (T = 85 °C)
(derate 56.8 mW/° C above 85 °C)
Thermal Resistance
(Junction to ground paddle)
Storage Temperature
+13 dBm
+5.5V
-0.5V to (0.5V + Vcc)
135 °C
2.84 W
17.6 °C/W
-65 to +150 °C
-40 to +85 °C
Typical Supply Current vs. Vcc
Vcc (Vdc)
4.8
5.0
5.2
Icc (mA)
229
250
266
Note: HMC440QS16G will work over full voltage range above.
Typical DC Characteristics @ Vcc = +5V
+25C
Symbol
Characteristics
Min.
Icc
Voh
Vol
Power Supply
Current
Output High
Voltage
Output Low
Voltage
229
5.0
2.9
Typ.
250
5.0
3
Max.
266
5.0
3.1
mA
V
V
Units
8
INTEGER-N SYNTHESIZER - SMT
Operating Temperature
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS

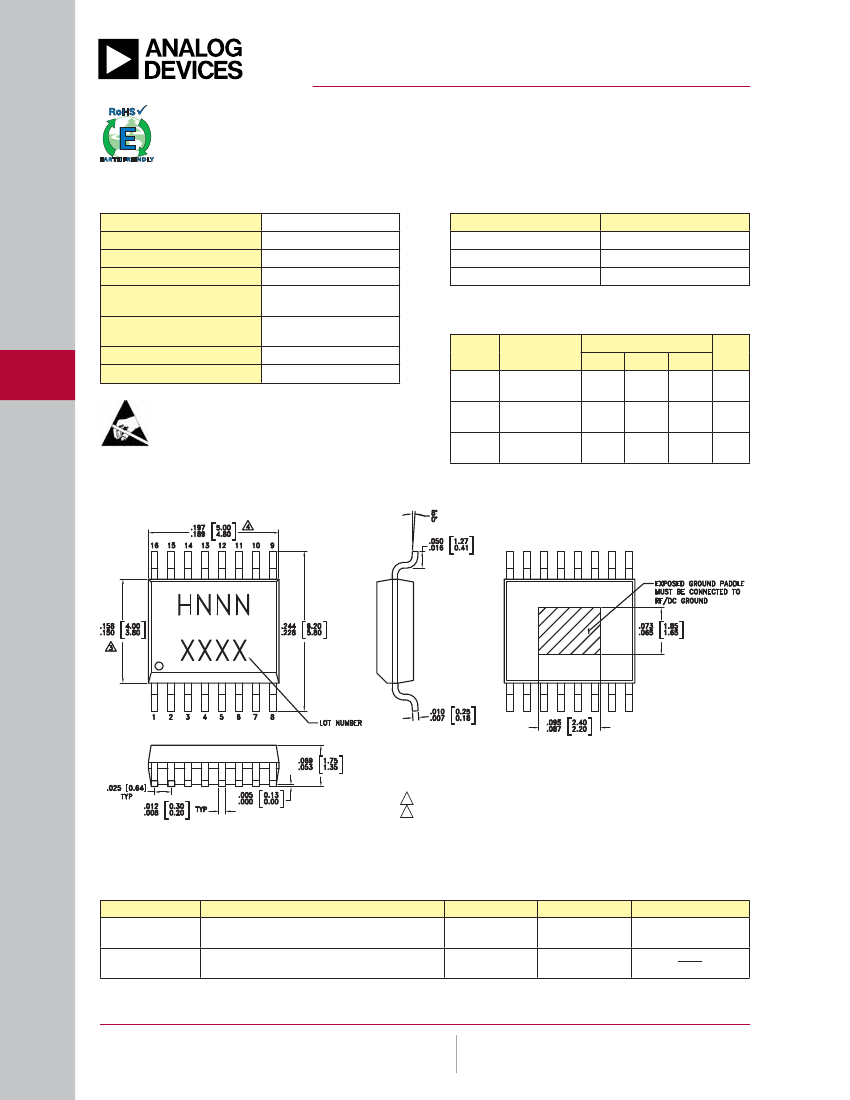

Outline Drawing
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS]
3. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE.
4. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.25mm PER SIDE.
5. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO
PCB RF GROUND.
Package Information
Part Number
HMC440QS16G
HMC440QS16GE
Package Body Material
Low Stress Injection Molded Plastic
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
Sn/Pb Solder
100% matte Sn
MSL Rating
MSL1
MSL1
[1]
Package Marking
[3]
H440
XXXX
H440
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
8-4
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
HMC440QS16G
/
440QS16GE
v03.0808
2.8 GHz INTEGER-N SYNTHESIZER
(N = 2 - 32)
Pin Description
Pin Number
1
2
Function
FOUT
NFOUT
Description
(These pins are DC coupled and must be DC blocked externally).
Both outputs are test ports only and are intended for use with
hi-impedance scope probes.

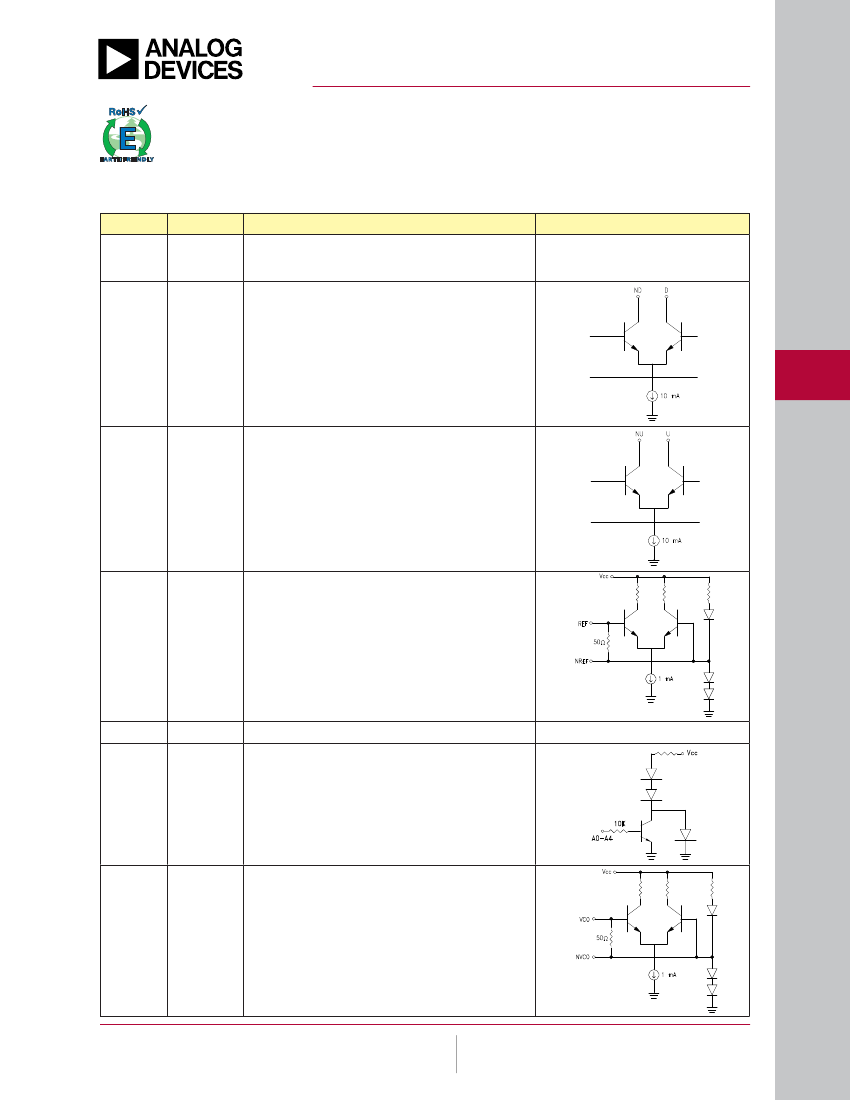

Interface Schematic
3
ND
Down Output Compliment
4
D
Down Output
8
INTEGER-N SYNTHESIZER - SMT
8-5
5
NU
Up Output Compliment
6
U
Up Output
(These pins are AC coupled and must be DC blocked externally.)
7
REF
Reference Input
8
NREF
Reference Input Compliment
9
Vcc
Supply voltage 5V ± 0.2V
10 - 14
A0 - A4
CMOS compatible control input bit 0 (LSB) - 4.
(These pins are AC coupled and must be DC blocked externally.)
15
VCO
VCO Input
16
NVCO
VCO Input Compliment
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
For price, delivery, and to place orders, please contact Hittite
Way, P.O. Box 9106, Norwood, MA 02062-9106
Microwave Corporation:
One Technology
20 Alpha Road, Chelmsford, MA 01824 Phone:
Phone: 781-329-4700 • Order online at www.analog.com
978-250-3343 Fax: 978-250-3373
Application Support: Phone: 1-800-ANALOG-D
Order On-line at www.hittite.com
HMC440QS16G
/
440QS16GE
v03.0808
2.8 GHz INTEGER-N SYNTHESIZER
(N = 2 - 32)
HMC440QS16G Programming Truth Table
Function
Output Low
/2
/3
/4
-
/ 32
(LSB)
A0
0
1
0
1
-
1
A1
0
0
1
1
-
1
A2
0
0
0
0
-
1
A3
0
0
0
0
-
1
A4
0
0
0
0
-
1
8
INTEGER-N SYNTHESIZER - SMT
Note: A0 through A4 are CMOS compatible logic control inputs.

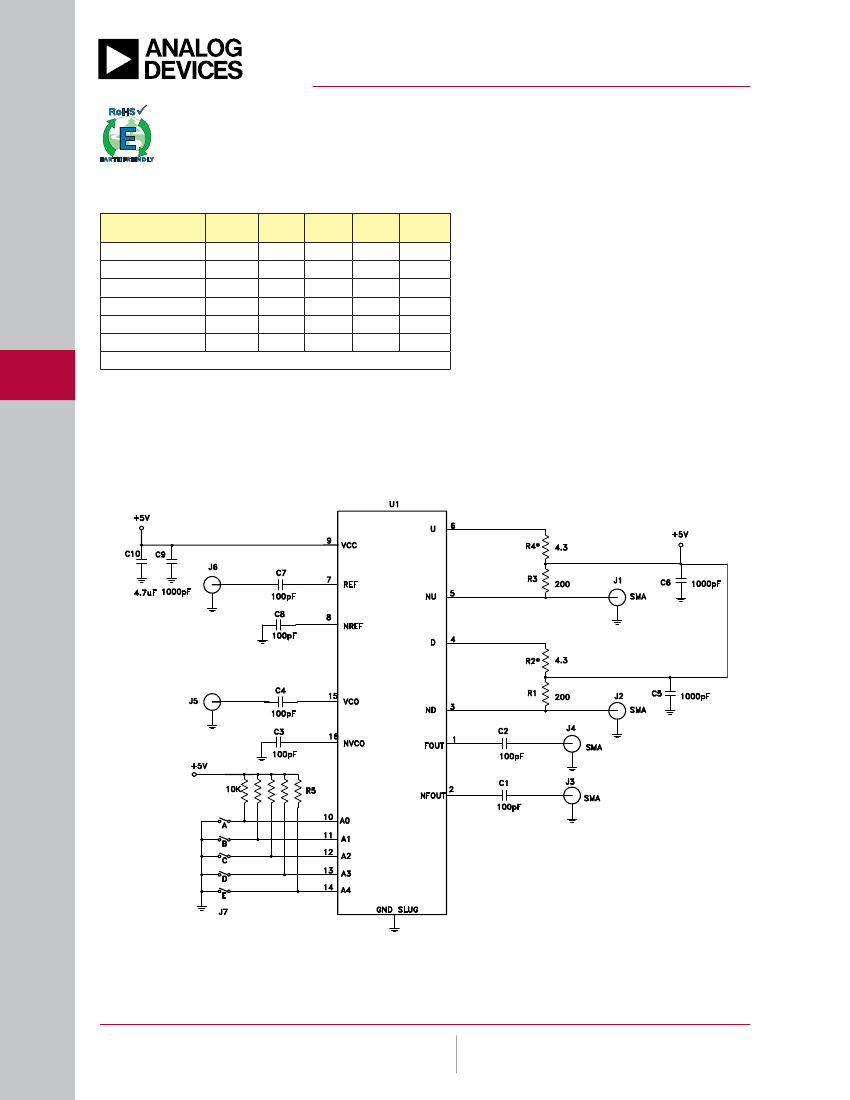

Evaluation PCB Circuit
